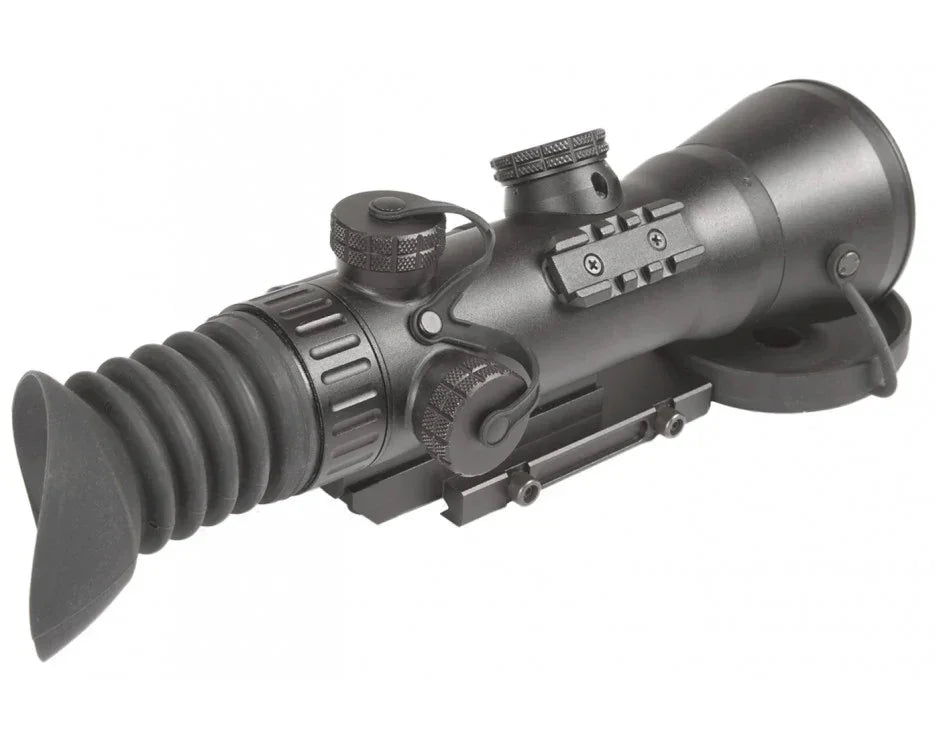

AGM Wolverine-4 NW1 Night Vision Rifle Scope 4x Gen 2+ Level 1 White Phosphor
AGM Wolverine-4 NW1 Night Vision Rifle Scope 4x Gen 2+ Level 1 White Phosphor
SKU:15WOL422154211
Regular price
$ 2,995.00
Regular price
Sale price
$ 2,995.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
AGM Wolverine-4 NW1 Night Vision Rifle Scope 4x Gen 2+ Level 1 White Phosphor 15WOL422154211
The Wolverine 4 is a rugged and advanced night vision riflescope that offers excellent performance at a competitive price. Boasting a high-quality Gen 2+ image intensifier tube, adjustable illuminated reticle, easy-to-use internal windage and elevation adjustments, and simple controls, the Wolverine 4 allows you to see beyond the expected in nighttime conditions. This riflescope is manufactured using a specially-coated aircraft alloy. It is equip with a double-lever quick-release mount that allows for highly-accurate rail positioning to maximize user comfort. The manual precision top wheel focus provides improved accuracy and ergonomics. Water-resistant, lightweight, and robust, the Wolverine 4 is the ideal night vision riflescope for dedicated hunters and tactical marksmen.
AGM Wolverine-4 NW1 Features:
- 4X magnification
- Shock protected, all-glass IR transmission multicoated optics
- Made from aircraft aluminum alloy
- Illuminated reticle with brightness adjustment
- Quick-release mount
- Mounts to standard weaver rails
- Water and fog-resistant
- 3-Year Warranty
Tube Level Info:
|
Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|||||||||
AGM Wolverine-4 NW1 Specifications:
Image Intensifier Tube
Gen 2+ "White Phosphor Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
4x
Lens System
108 mm; F/ 1.54
FOV
9°
Focus Range
10m to infinity
Diopter Adjustment
-5 to +5 dpt
Eye Relief
45 mm
Reticle Type / Color
Mil-Dot / Illuminated Red center
Boresight Adjustment Increment
1/4 MOA
Boresight Adjustment Range
± 60 MOA
Infrared Illuminator
Detachable, long-range
Battery Type
Single CR123A 3V Lithium battery
Battery Life (Operating)
Up to 50 hours at 20°C
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Environment Rating
Water and fog-resistant
Weight
1.2 kg (2.6 lbs)
Overall Dimensions
308 x 94 x 97 mm (12.1 x 3.7 x 3.8 in)
Package Includes
Night Vision Weapon Sight, Lens Cloth, Soft Carrying Case, Sioux850 Long Range IR Illuminator, User Manual
|
Warranty |
3 Years |
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
