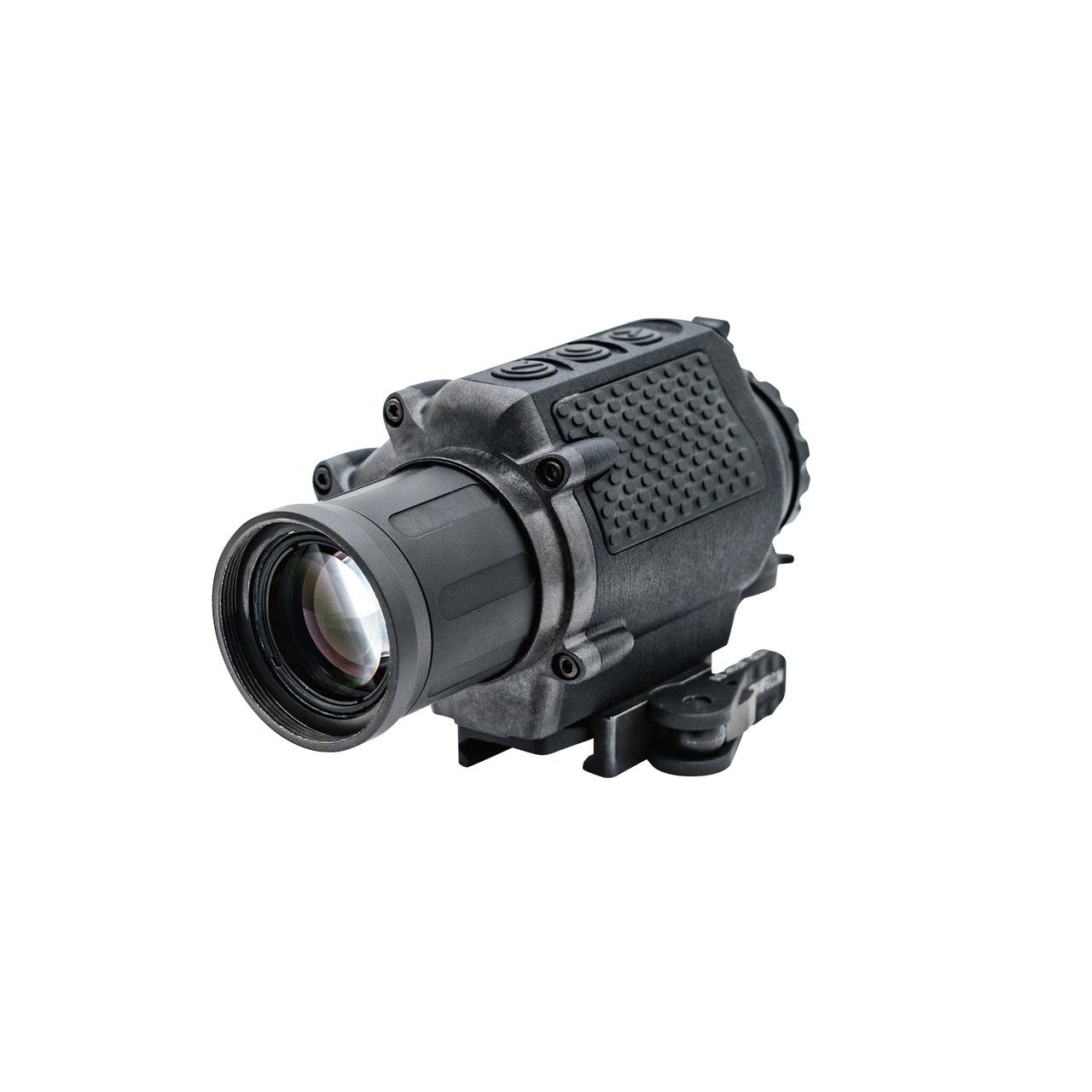

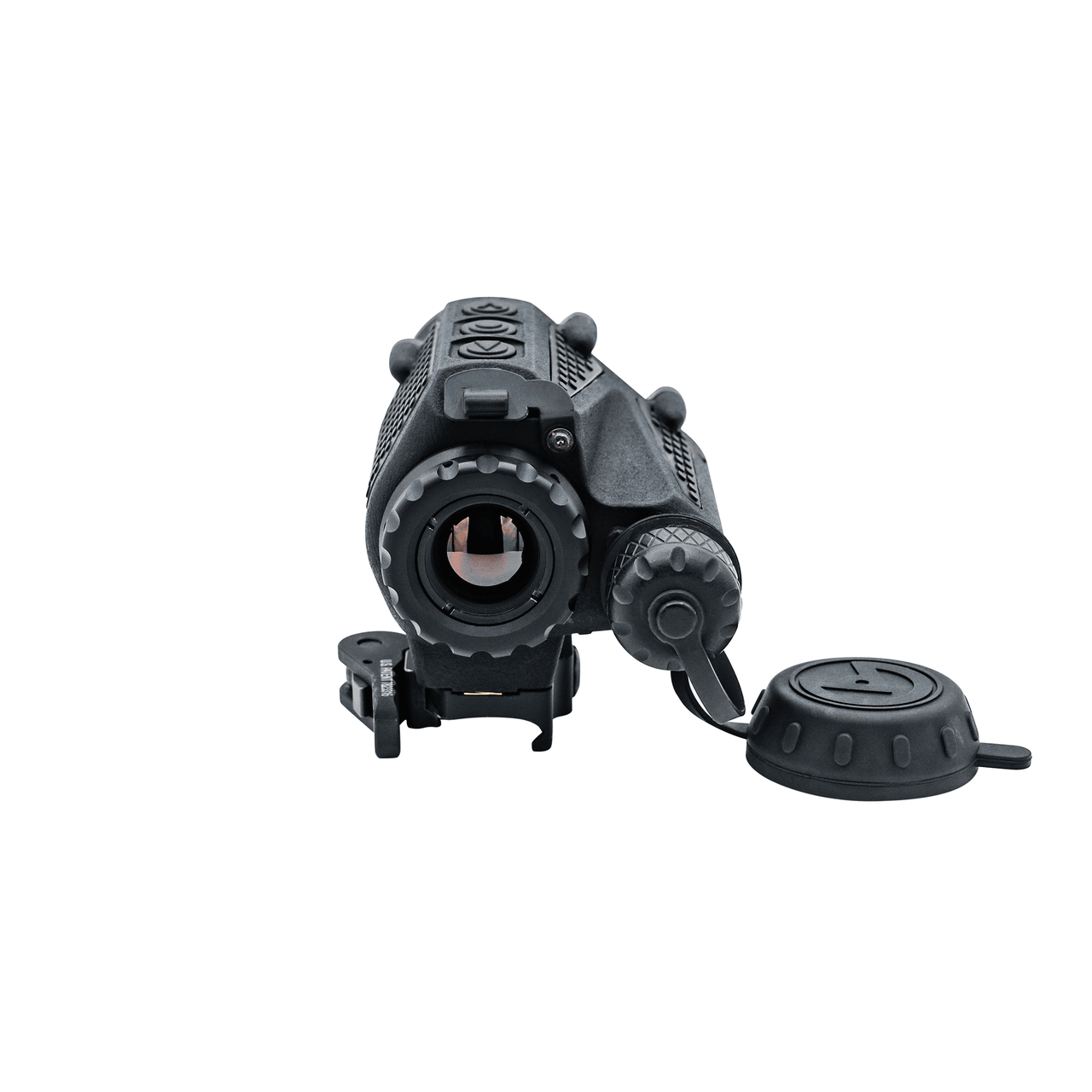

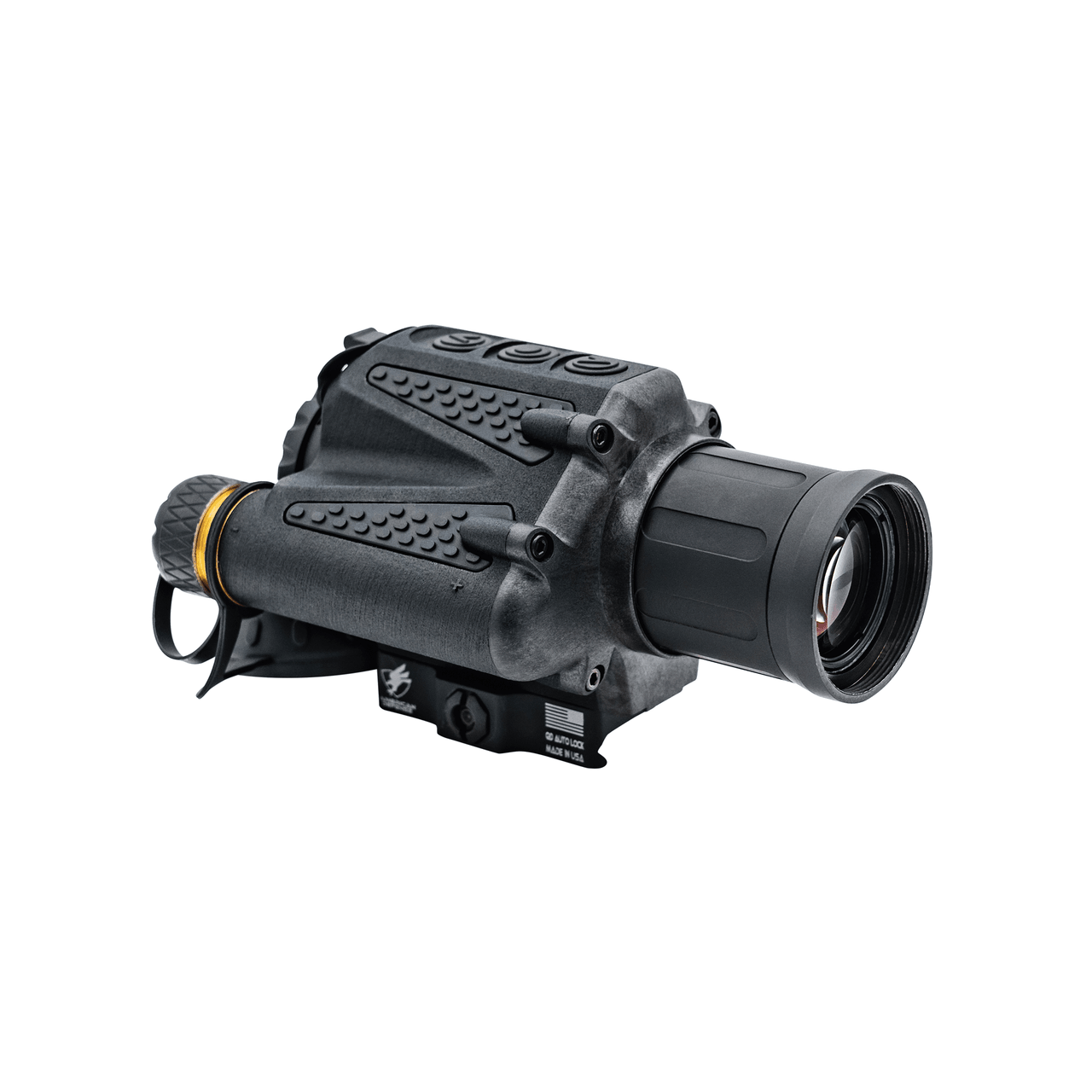

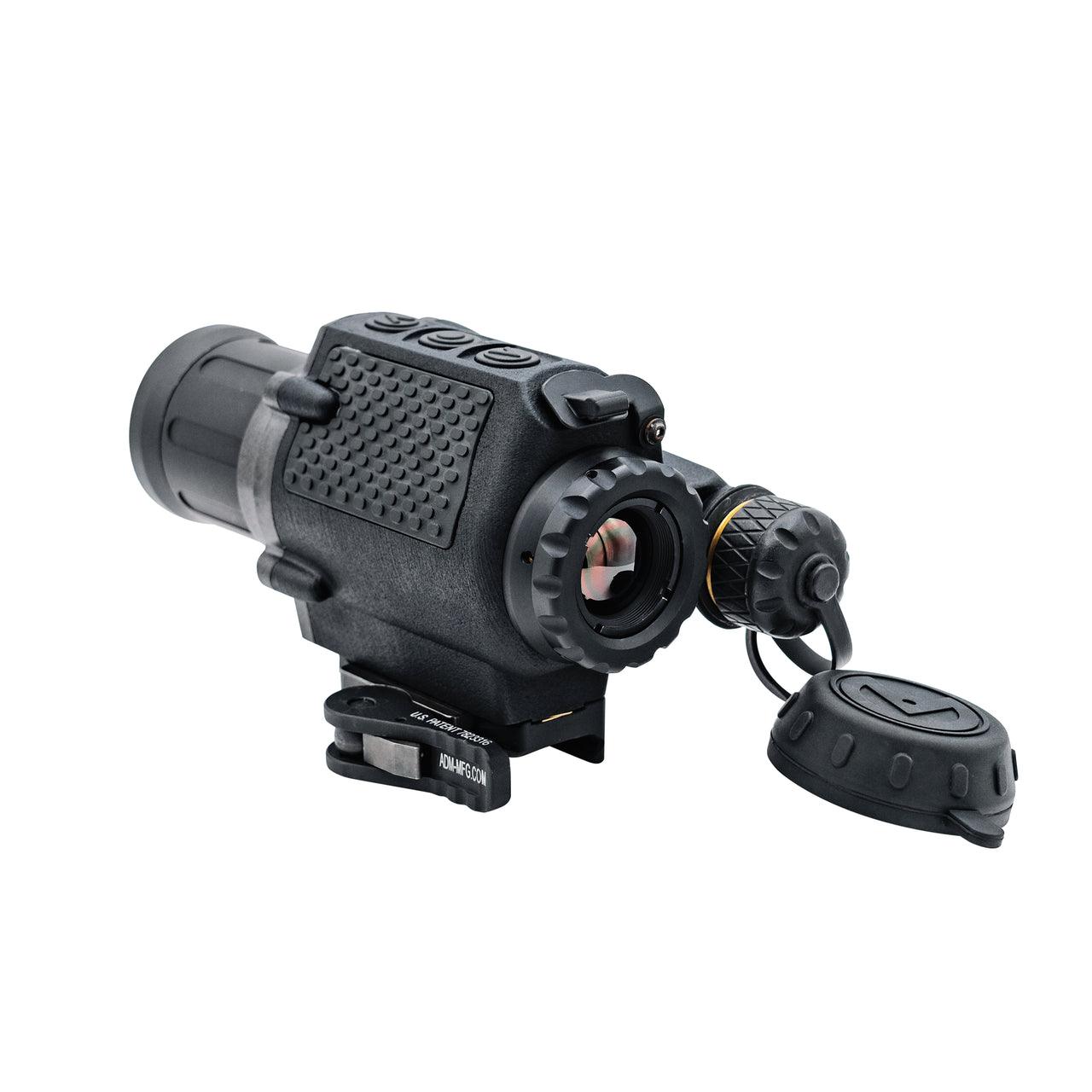

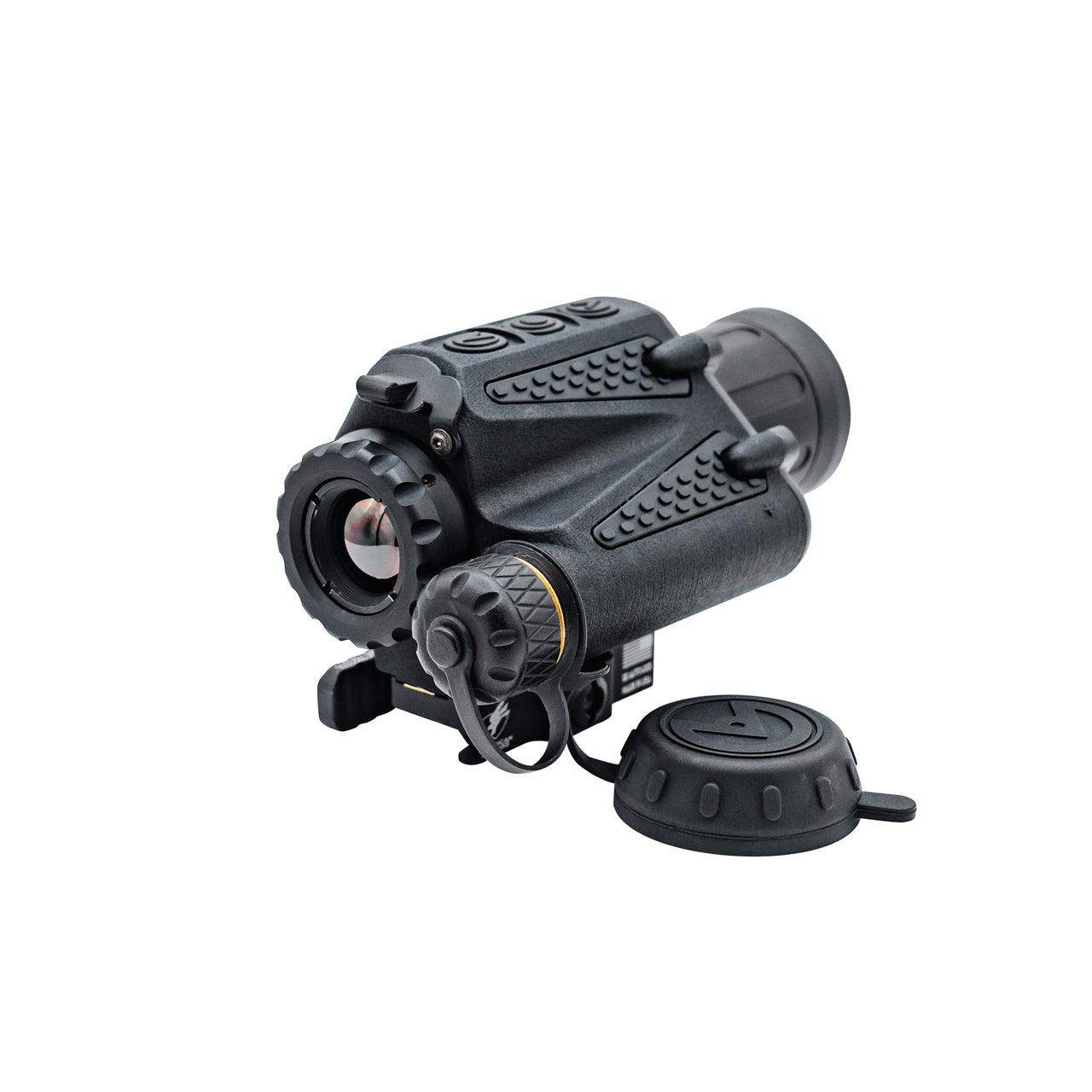

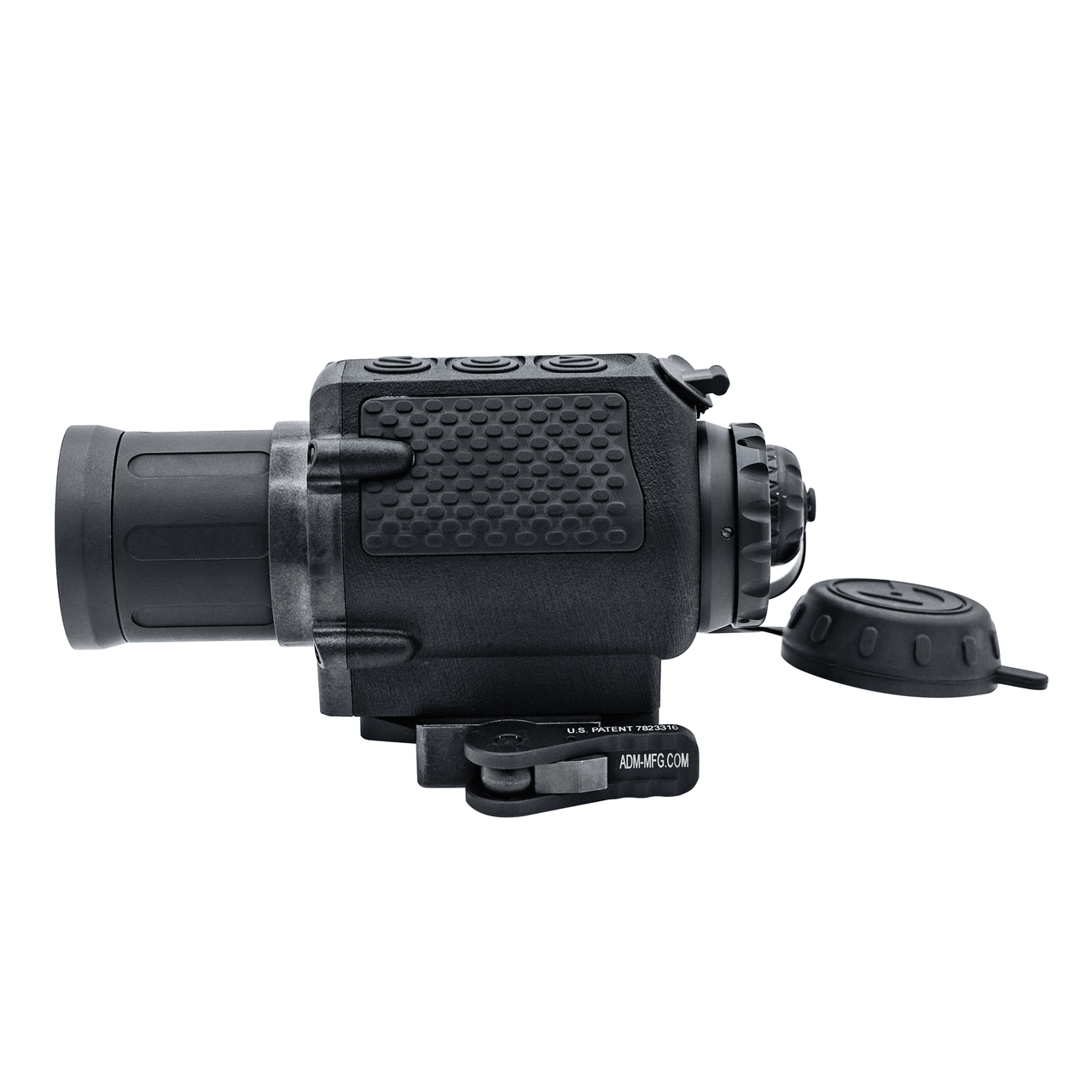

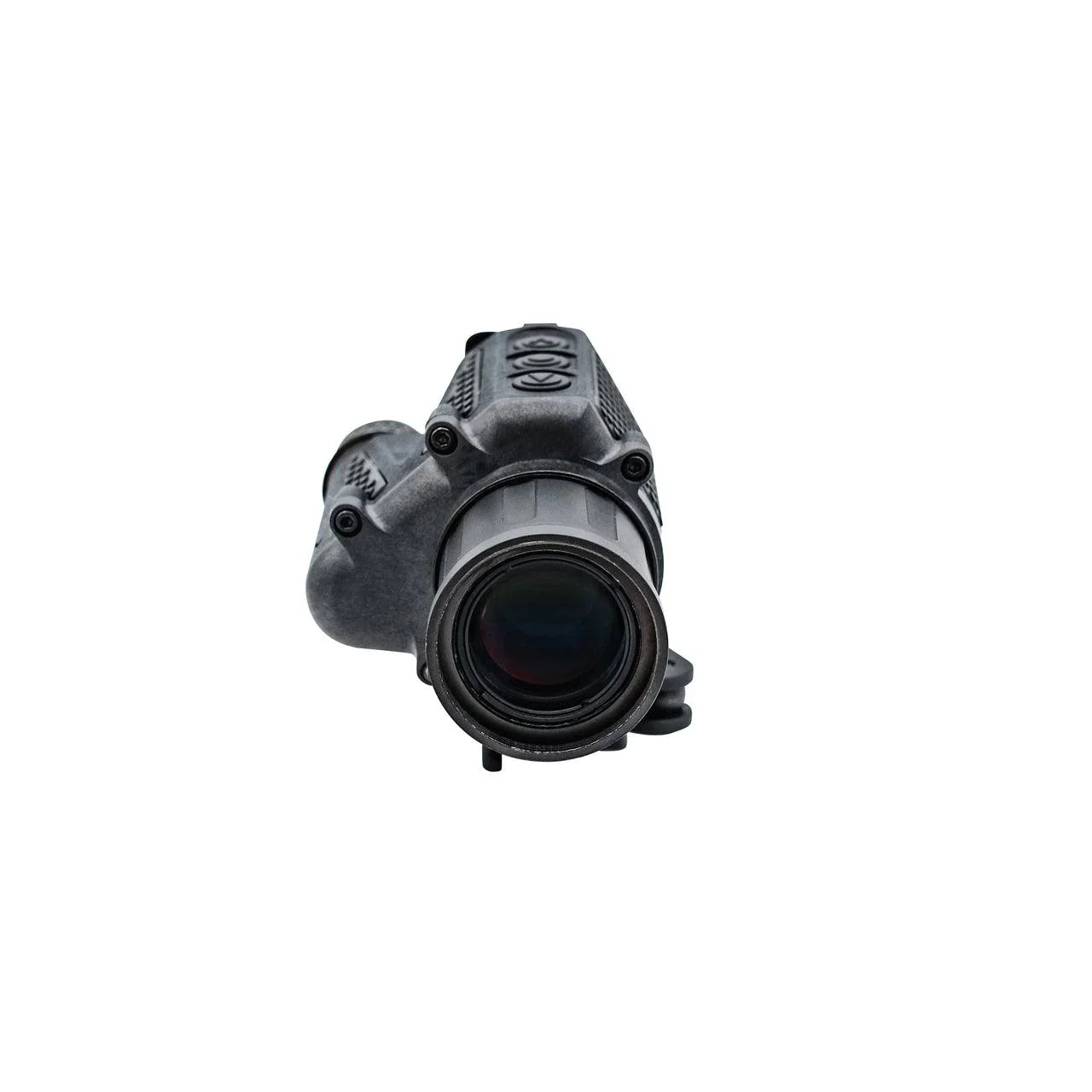

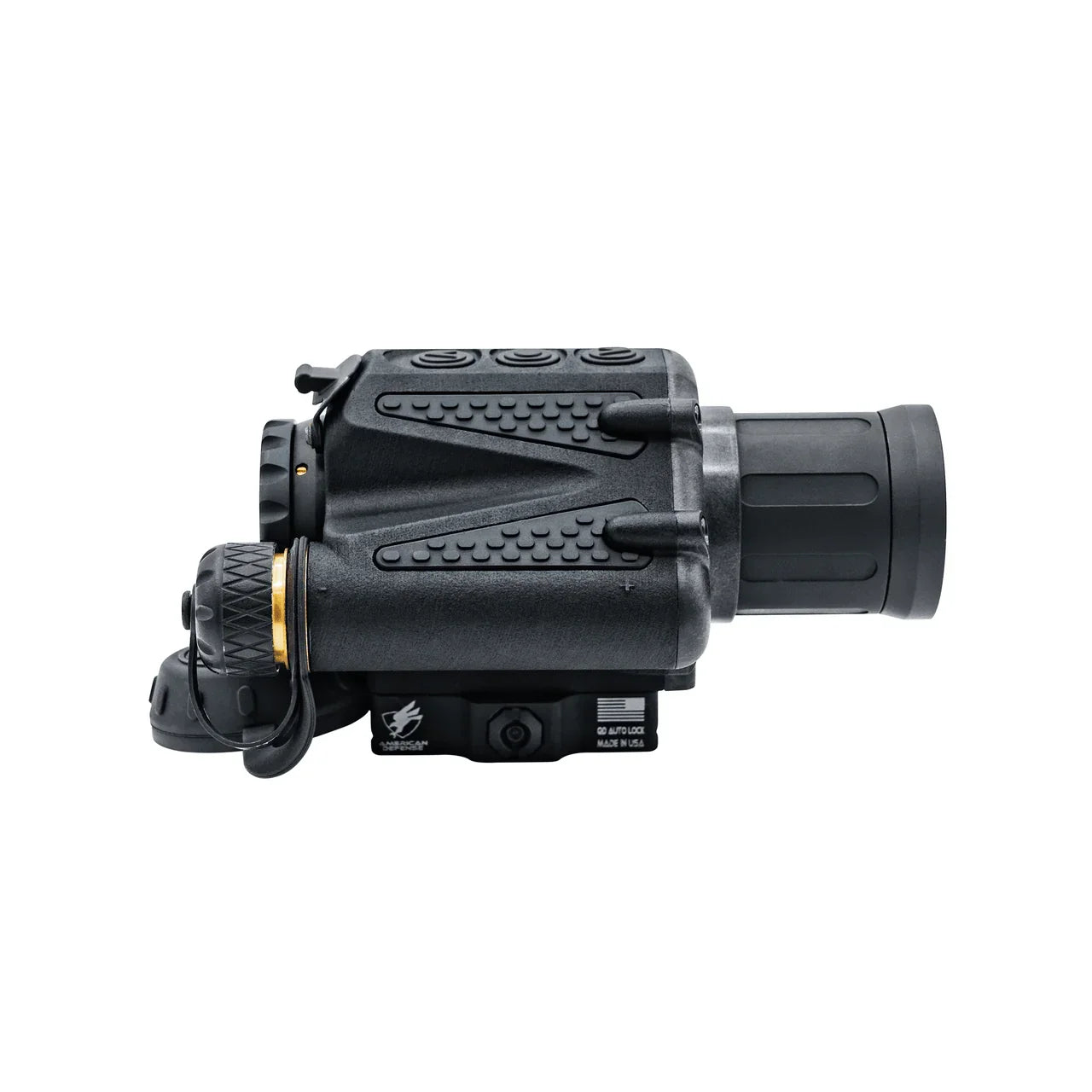

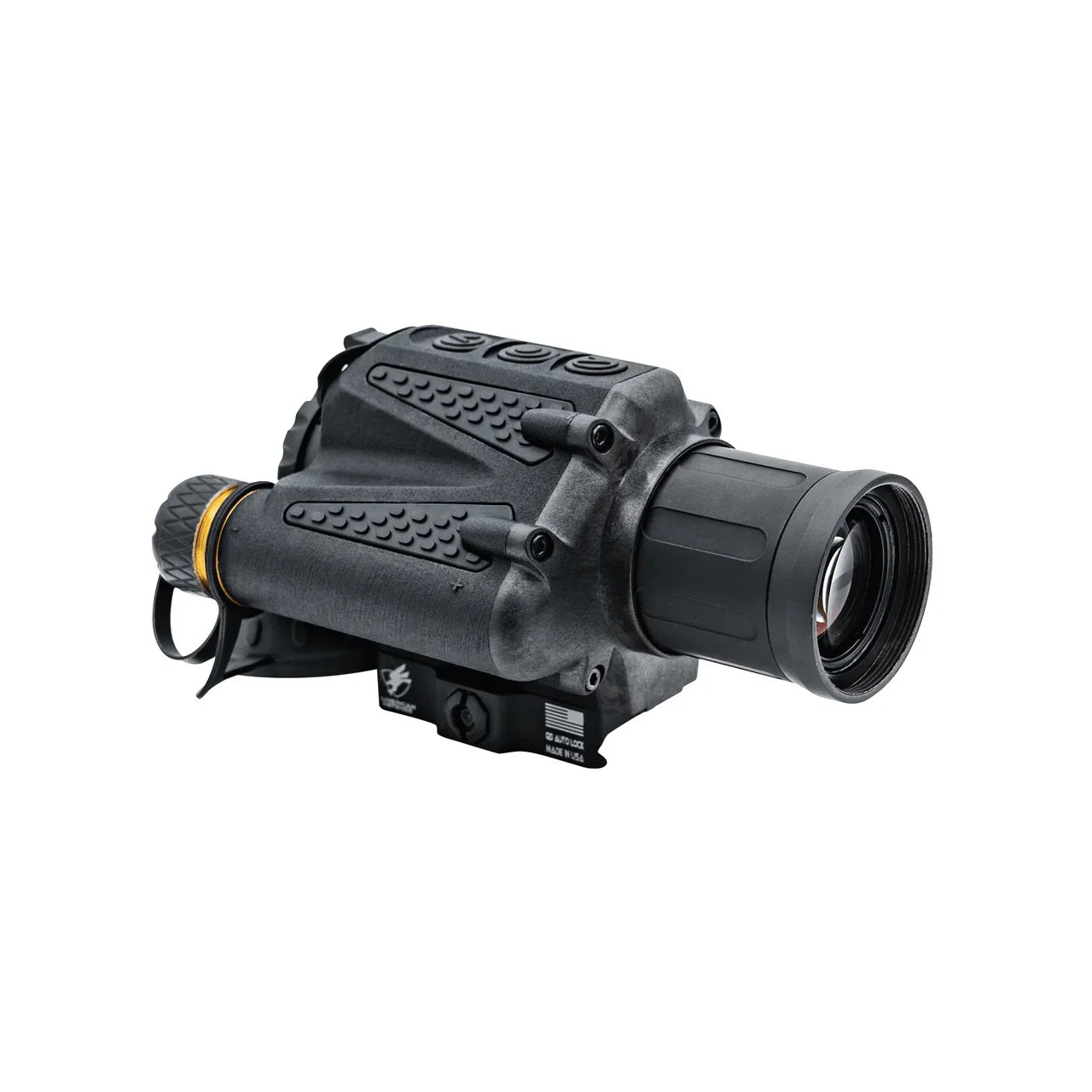

Armasight Jockey 320 Compact Thermal Clip-On Scope

Armasight Jockey 320 Compact Thermal Clip-On Scope


Regular price $ 2,199.00
Regular price Sale price $ 2,199.00
Sale Sold out
Shipping calculated at checkout.
Armasight Jockey 320 Thermal Clip-On Scope 320x240/12um 60Hz Onboard Recording/WiFi (TAVT36CN9JOCK102)
Authorized Dealer
   Due to the nature of this optic, please check with me first for inventory status before ordering.
The Jockey 320 makes no extra demands on your existing 1-6x day scope, working seamlessly with optics up to 5x magnification. This slim, lightweight unit won't have a major impact on your .223/.556, rimfire, airgun or crossbow's handling. Plus, its Iron Wolf thermal technology enables 60Hz frame rate for smooth use, and an exceptional level of image quality. You can capture video or images; via USB streaming view them on compatible devices, like computers or TVs. You'll benefit from the Jockey 320's three-button controls, multiple color palettes, quick detach mount, and long battery life.

Key Features:

  • Multiple Color Palettes
  • Intuitive 3-Button Controls
  • Reticle (for Digital Zoom)
  • 4 Hours Runtime at 20° C
  • Image Detail Enhancement
  • Simple Alignment for Digital Zoom Capabilities
  • Quick Detach Mount Included
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Reticle ON/OFF Selection
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and Global Components


Detector Type: ArmaCORE™ 320x240 12um Thermal Core
Refresh Rate: 60 Hz
Detection Range: 708m on a Human Sized Target
Recognition Range: 177m on a Human Sized Target
Identification Range: 107m on a Human Sized Target
Exit Pupil: 25mm
Field of View: 11.58° x 8.69°
Optical Magnification: 1x unity (recommended for daytime optics with 1x-6x magnification)
Digital Zoom: 1x - 4x
Display: XGA (1024 x 768) OLED
Wireless: None
Graphics: Active On-Screen Graphics and Iconology
Recoil Rating: 5.56cal
Lens System: F/1.00; 19mm manual focus
Rear Collimator: f38mm
Diopter Adjustment: N/A
Power Supply: 2 x CR123A (3V) or 1 x 16650 (3V)
Battery Life: 4 hours at 20° C
Memory: 4 Hours of Video
Image Processing: Digital Enhancement
Environmental Rating: IP67
Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
Dimensions: 174 x 68 x 66mm / 6.8 x 2.7 x 2.4in
Weight: 362g / 0.79lbs
Warranty: 3 years w/ registration
Color: Black

Package Includes:

  • Jockey 320 Compact Thermal Clip-On
  • Quick Detach Mount
  • USB-C Cable
  • Thermal Zeroing Target
  • 2 x CR123A Battery
  • USB Cable
  • Lens Cloth
  • Soft Case
  • Product Manual
