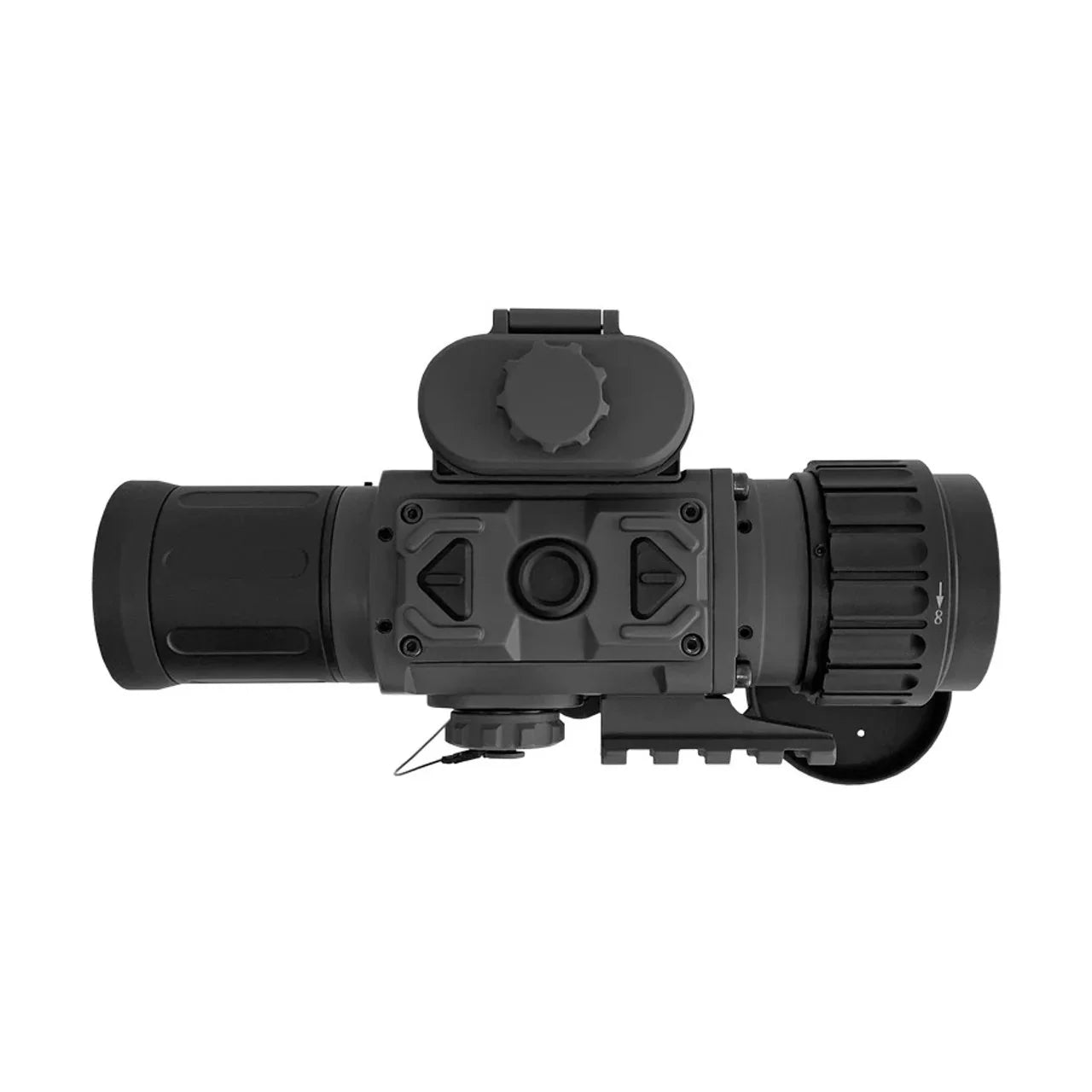

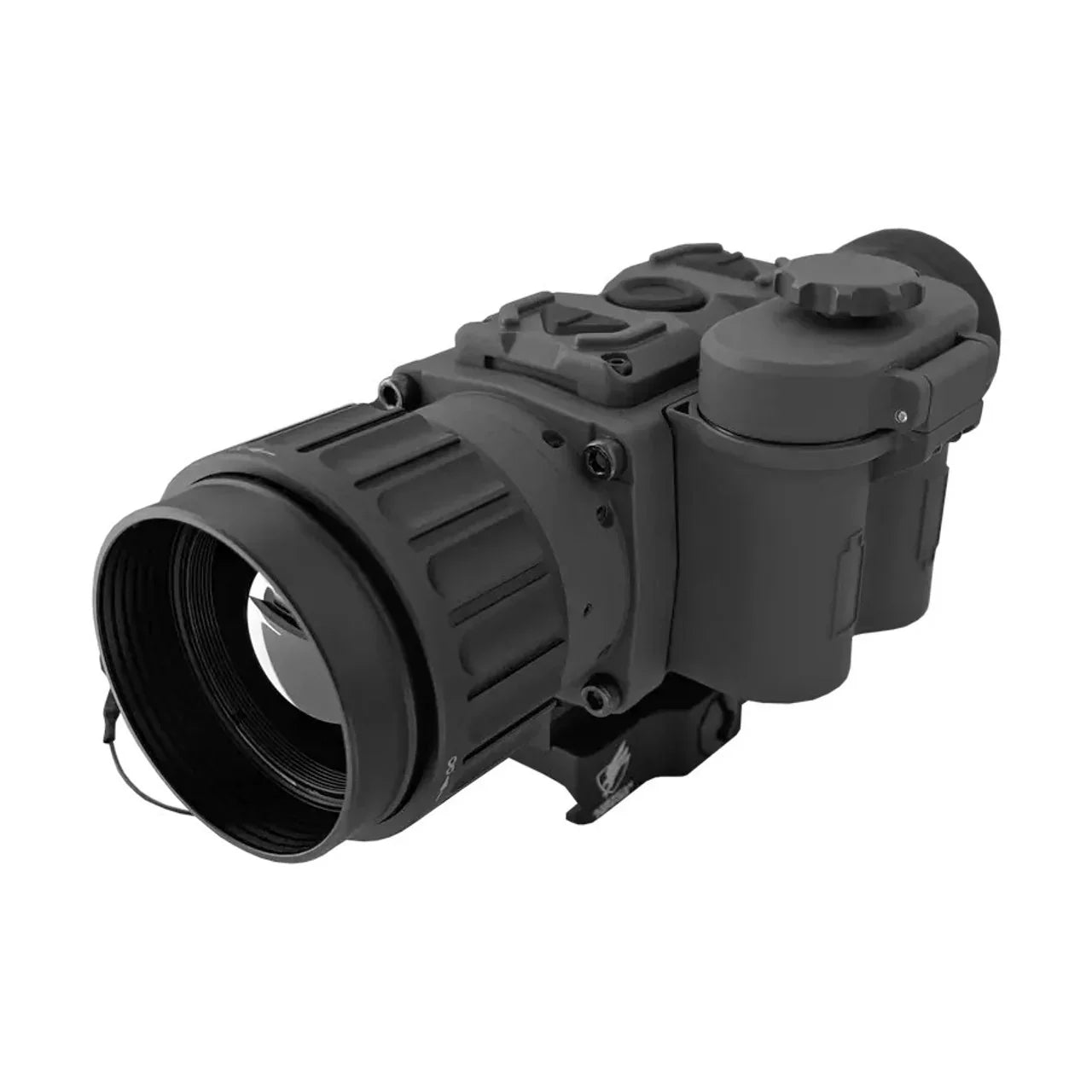

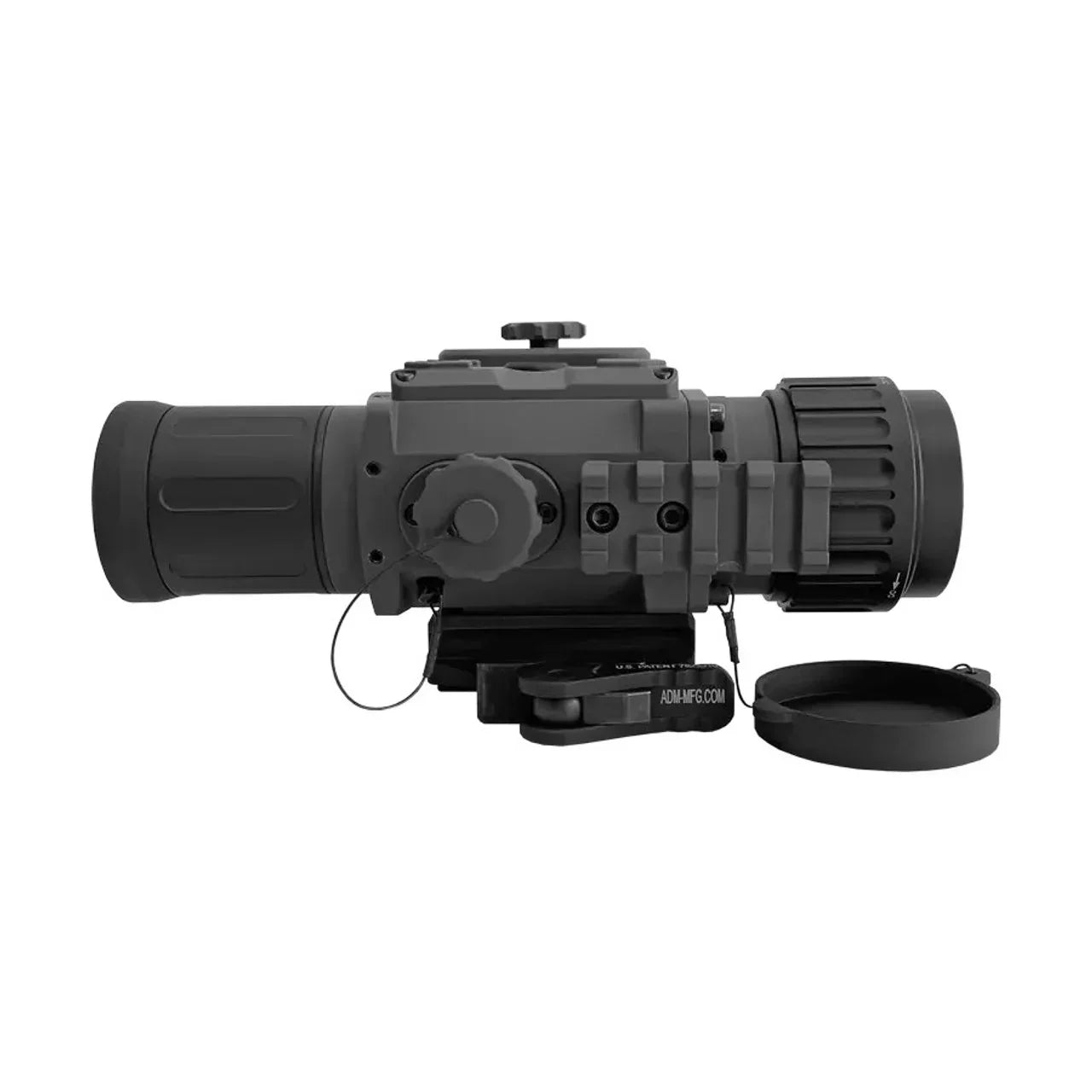

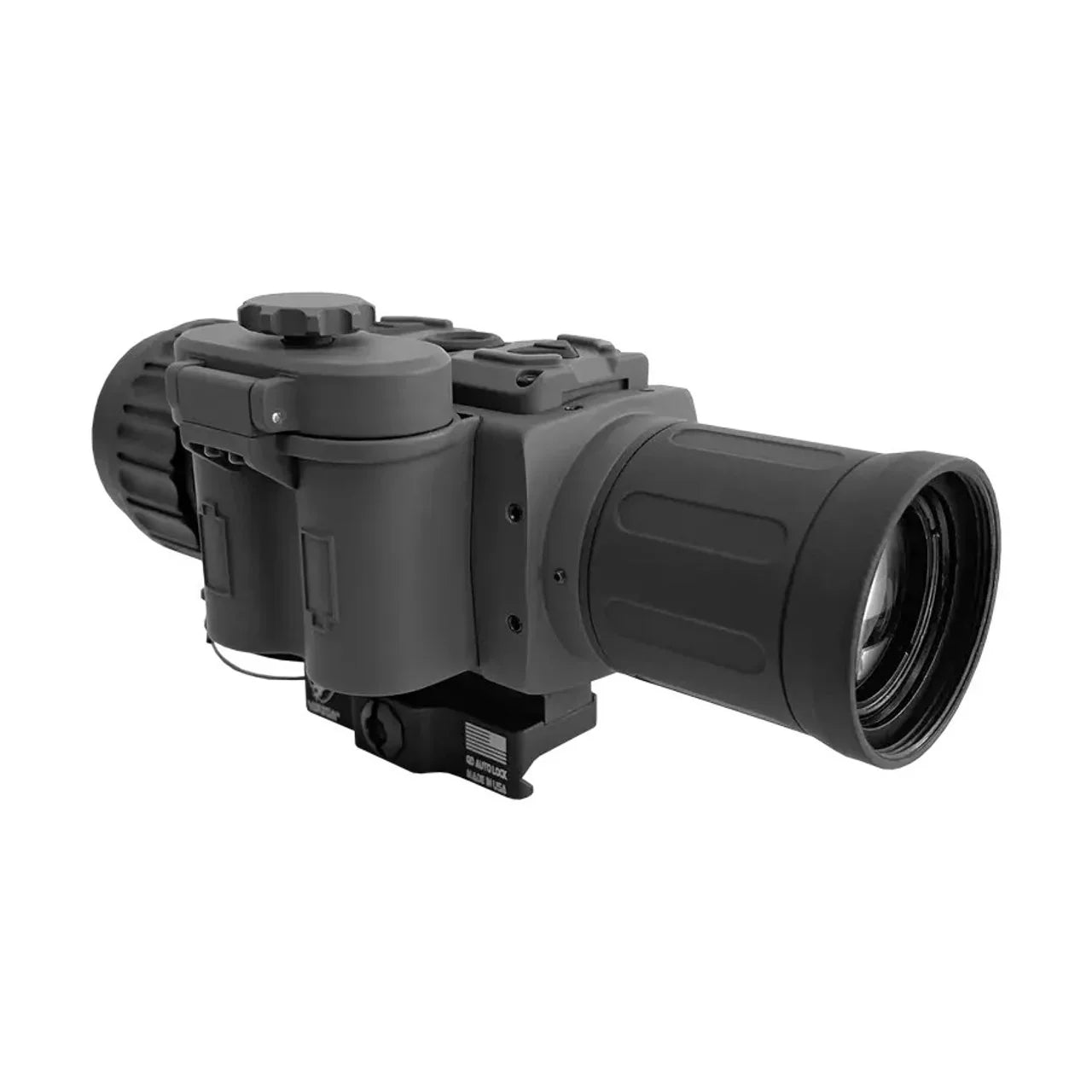

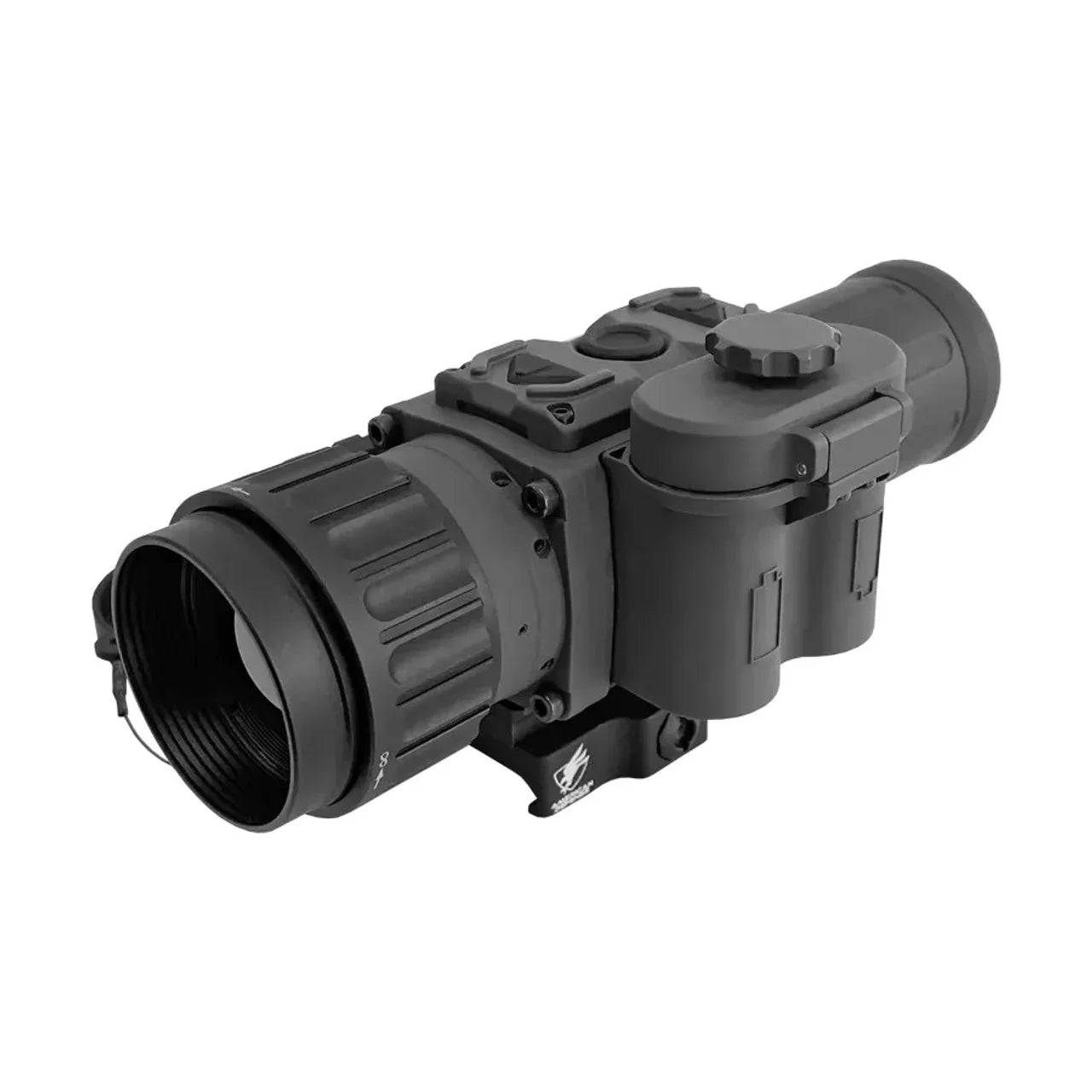

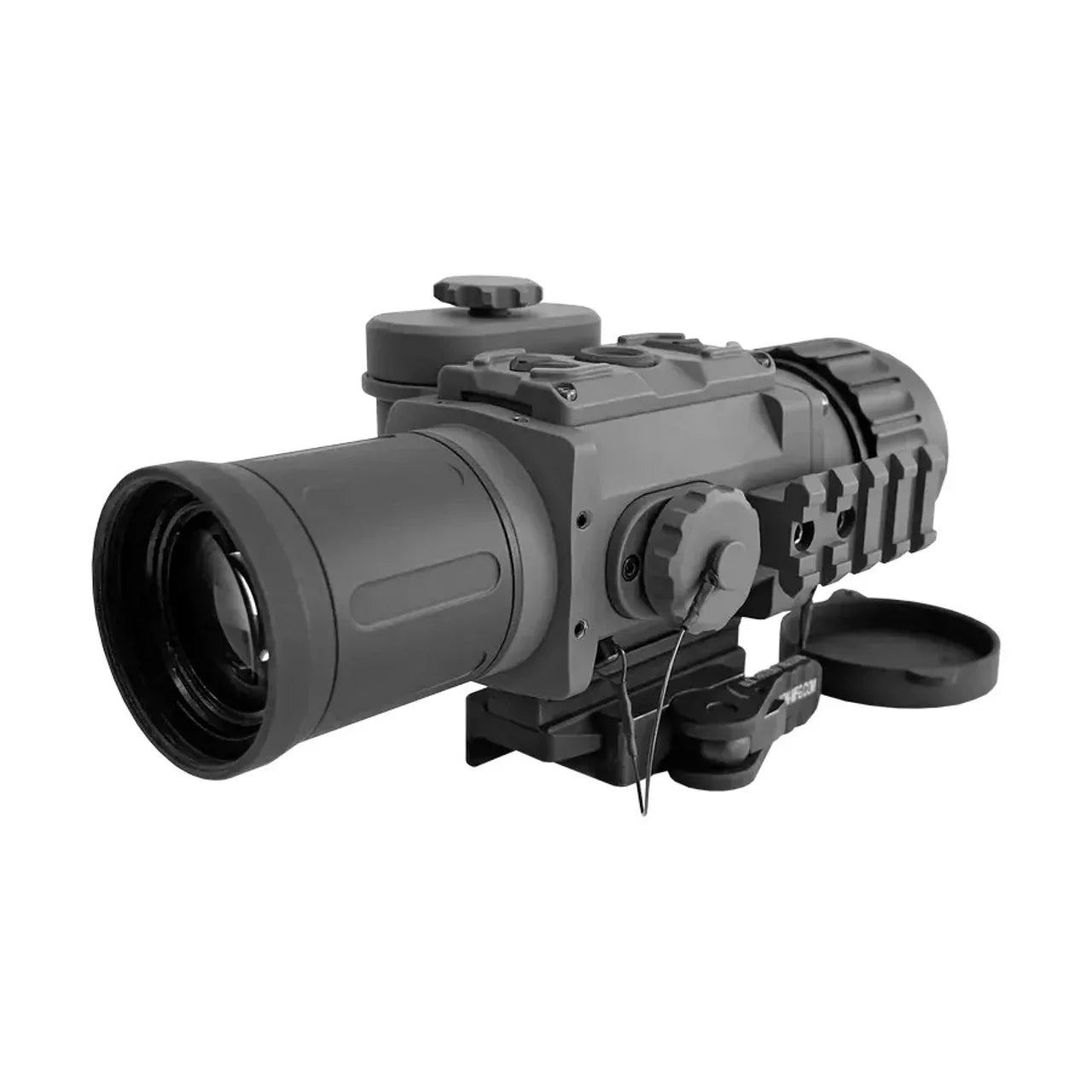

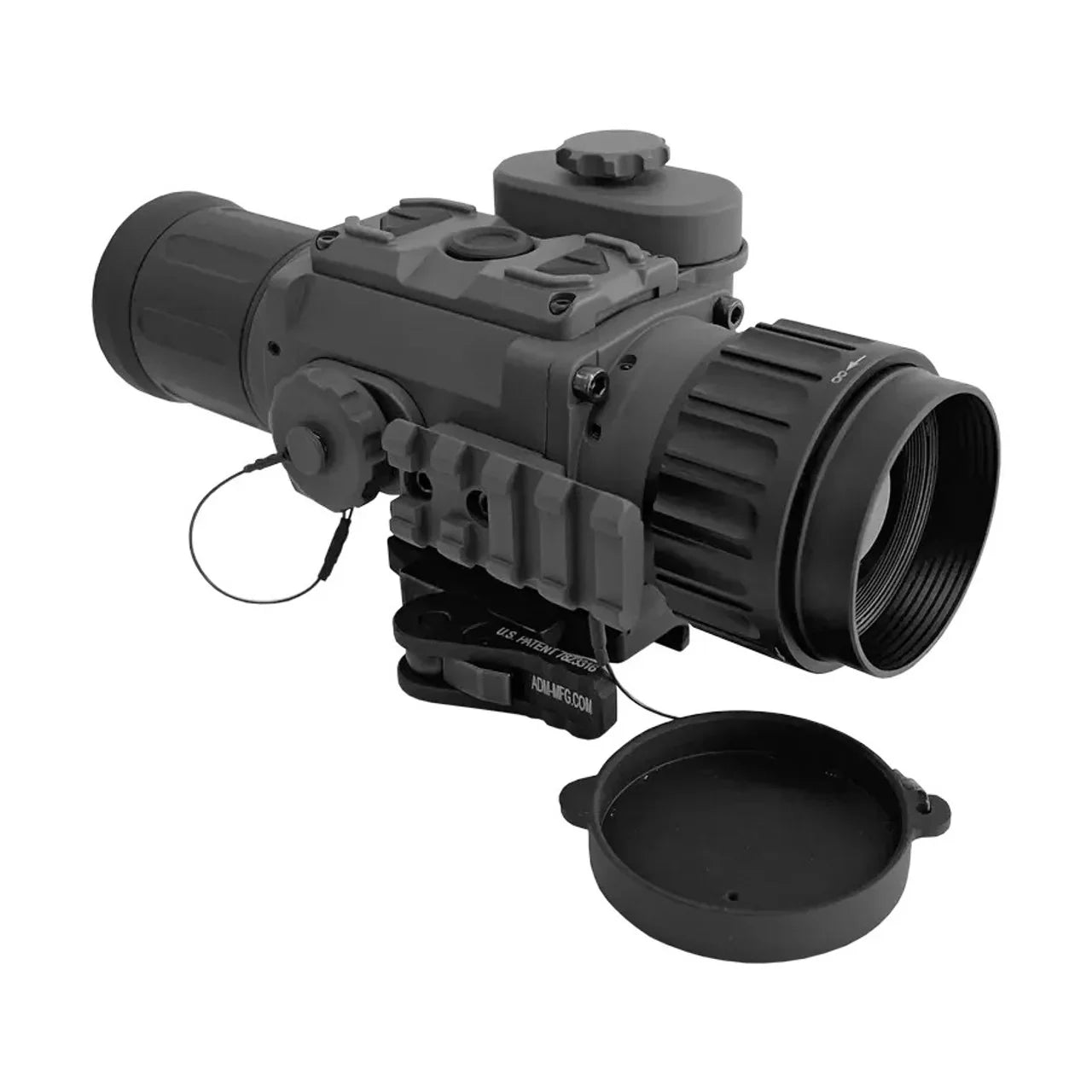

Armasight Operator 640 35mm Thermal Clip-On Scope 640x480/12um 60Hz Onboard Recording/WiFi (TAVT66CN3OPER102)
The Operator 640 Thermal Clip-On enhances any toolkit for military, law enforcement, and hunters alike. Designed for seamless integration, it mounts in front of a 1-6x day scope with no re-zeroing required, making it mission-ready straight out of the box. Powered by the ArmaCORE™ 640x480 thermal sensor and a 35mm germanium lens, the Operator delivers outstanding thermal clarity and a detection range up to 1300 meters, even in total darkness, fog, smoke, or harsh weather.
Built for versatile applications like hunting, patrolling, and overwatch, the Operator 640 offers a wide range of features designed for ease of use in the field. The quick-detach mount allows for rapid attachment or removal, while the intuitive 3-button controls make it simple to operate, even in high-stress environments. With multiple color palettes and image detail enhancement, users can optimize visuals for different scenarios, improving target identification and situational awareness.
The Operator 640’s durability is unmatched, with a high-strength aluminum alloy body that can withstand challenging conditions while remaining lightweight and ergonomic. Designed with long battery life, it provides up to 4 hours of runtime at 20°C, keeping you focused on the mission without interruptions.
Armasight Operator 640 Key Features:
- Video & Image Capture: Easily document and review footage.
- USB-C Connectivity: Stream and view content on external devices.
- Quick-Detach Mount: Fast and secure mounting in any setting.
- Battery Status Indicator: Monitor power levels for reliable use.
- Multiple Color Palettes & Image Enhancements: Customizable to your needs.
The Operator 640 is more than just a thermal optic; it’s a reliable partner in the field, designed for high-performance and enhanced functionality. Count on Armasight’s Operator 640 Thermal Clip-On to give you an edge in any situation, ensuring that you stay mission-ready with top-tier thermal imaging.
Armasight Operator 640 Specifications:
Detector Type: ArmaCORE™ 640 x 480 12um Thermal Core
Refresh Rate: 60 Hz
Thermal Sensitivity: NETD < 40mK
Detection Range: 1,305m on a Human Sized Target
Field of View: 12.6° x 9.4°
Optical Magnification: 1x unity (recommended for daytime optics with 1x – 6x magnification)
Digital Zoom: 1x - 4x
Display: XGA (1024 x 768) OLED
Wireless: None
Graphics: Active On-Screen Graphics and Iconology
Recoil Rating: Up to .50 cal
Lens System: F/1.00; 35mm manual focus
Power Supply: 2 x CR123A (3V)
Battery Life: 4 hours at 20° C
Environmental Rating: IP67
Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
Dimensions: 154 × 82 × 84mm / 6.05 × 3.24 × 3.32in
Weight: 473g / 1.04lbs
Warranty: 3 years w/ registration
Color: Gray
Package Includes:
- Operator Clip-On
- Quick Detach Mount
- USB-C Cable
- Thermal Zeroing Target
- 2 x CR123A Batteries
- Lens Cloth
- Soft Case
- Product Manual
