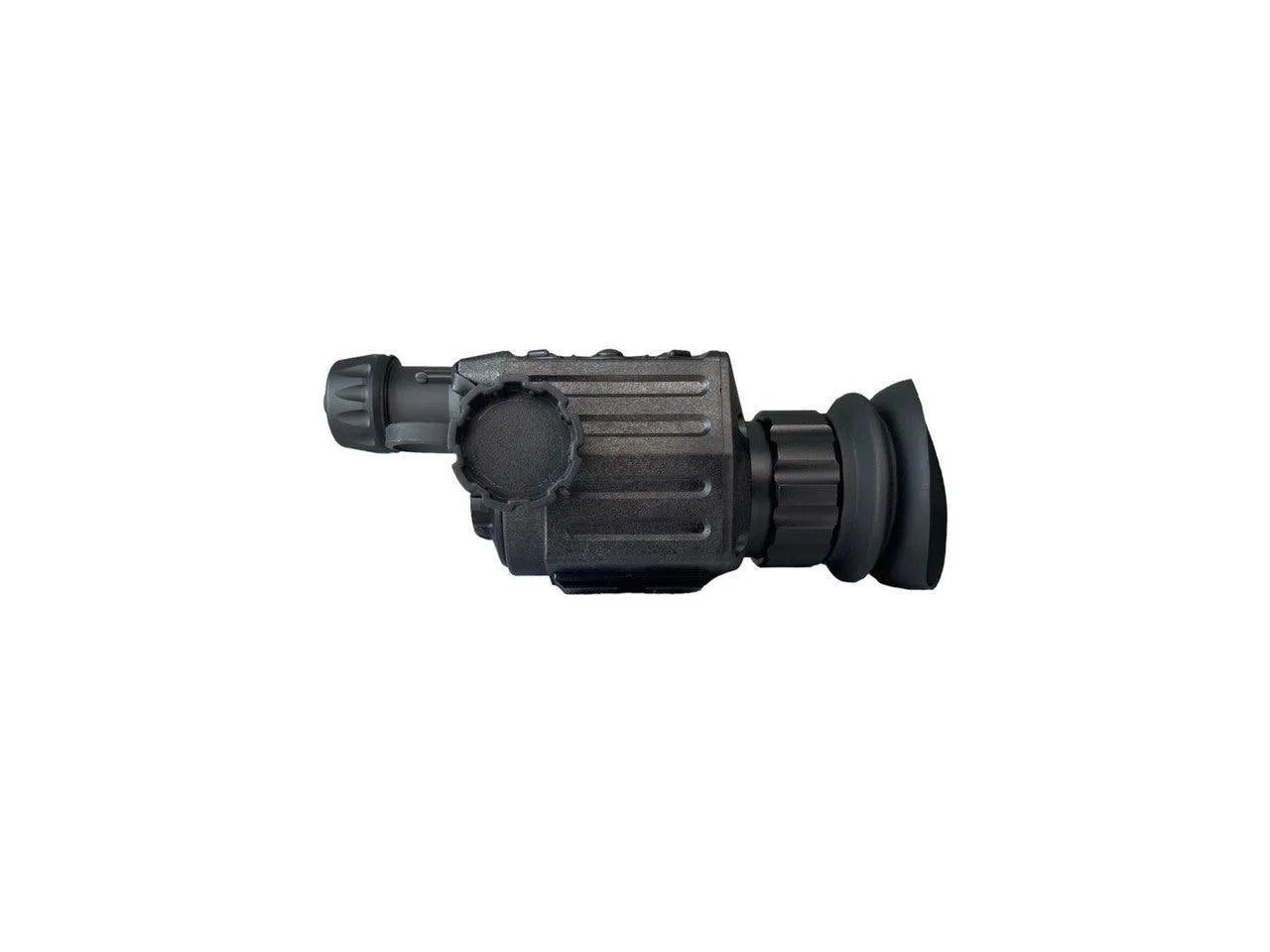

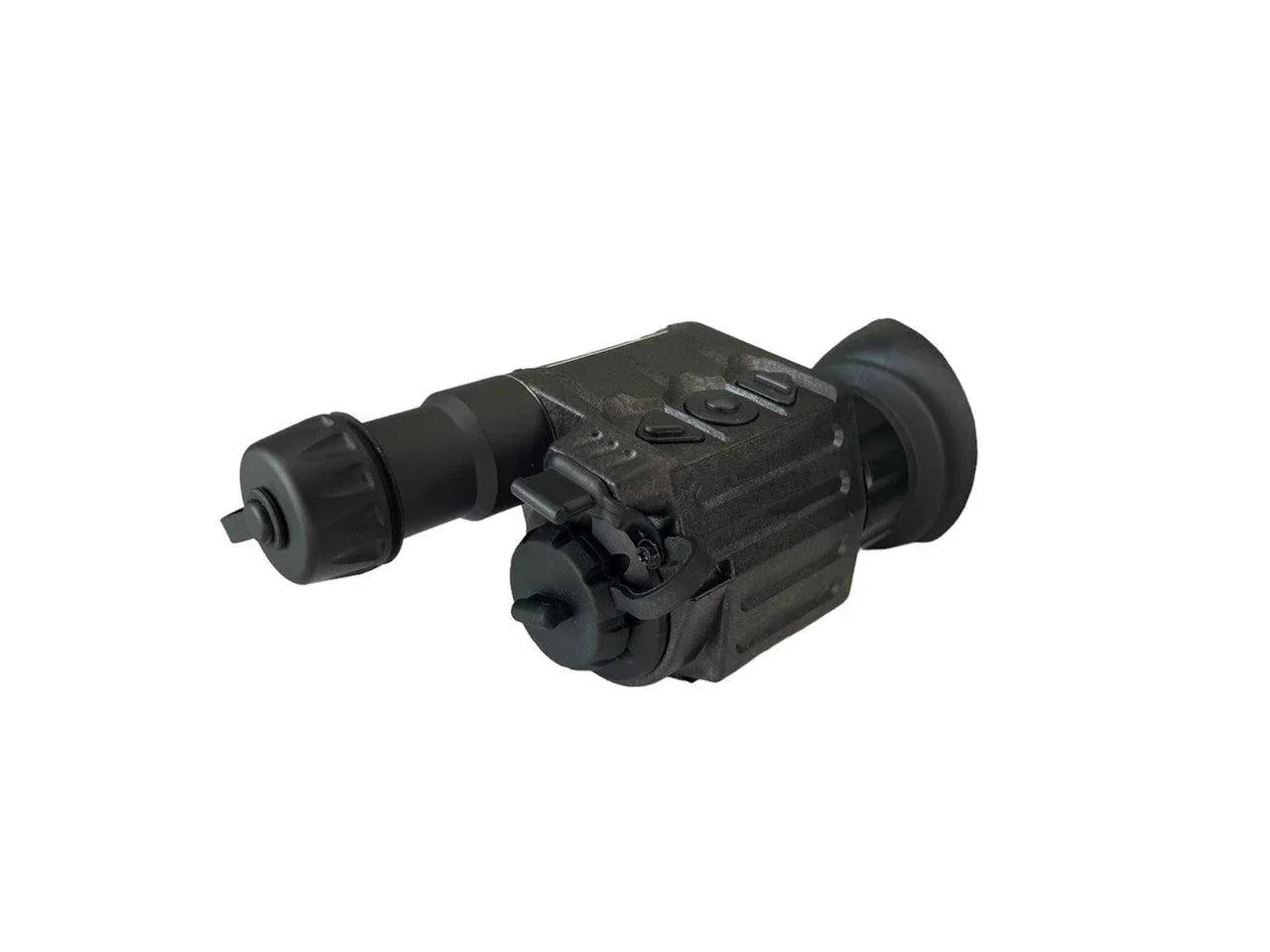

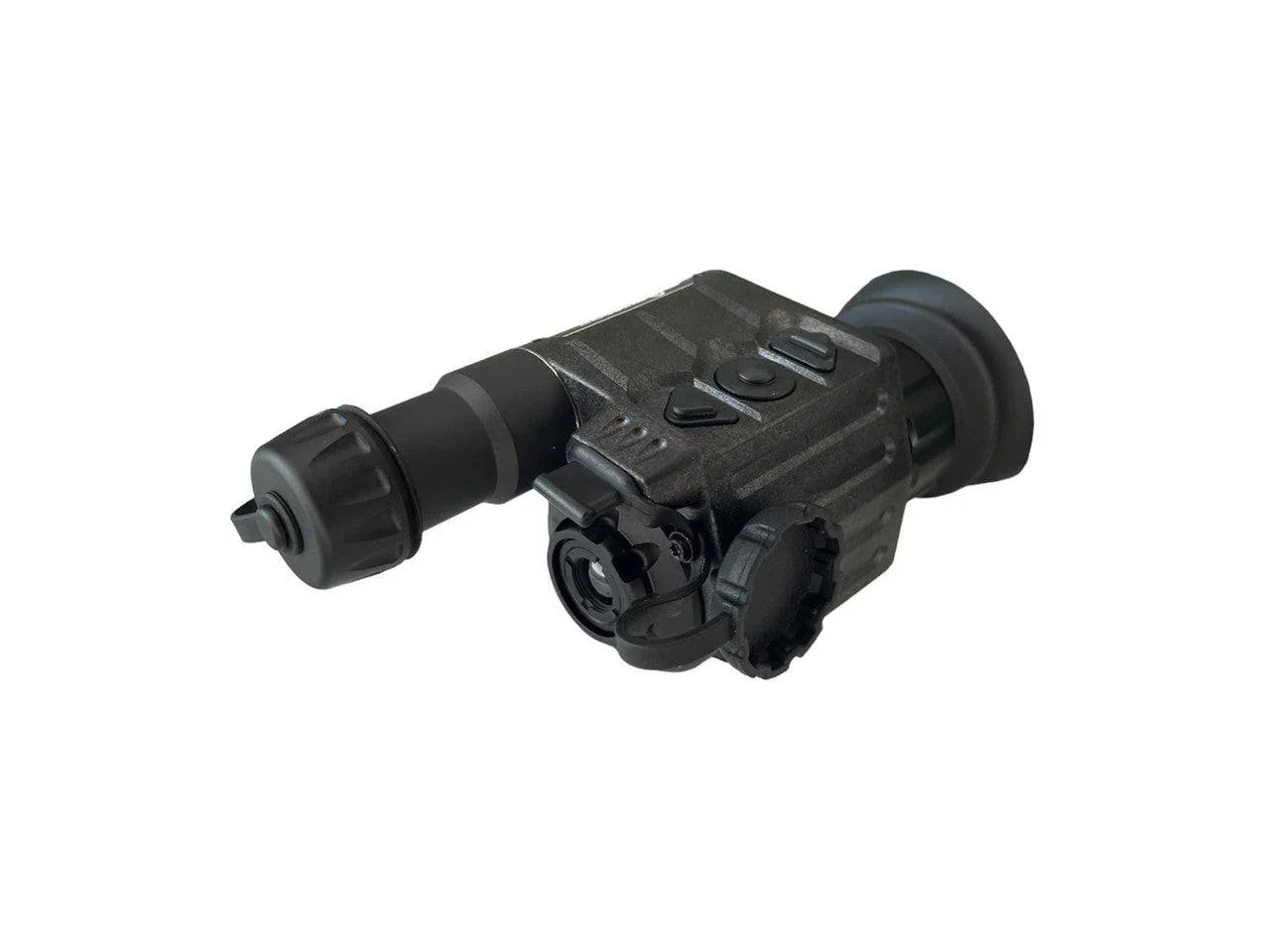

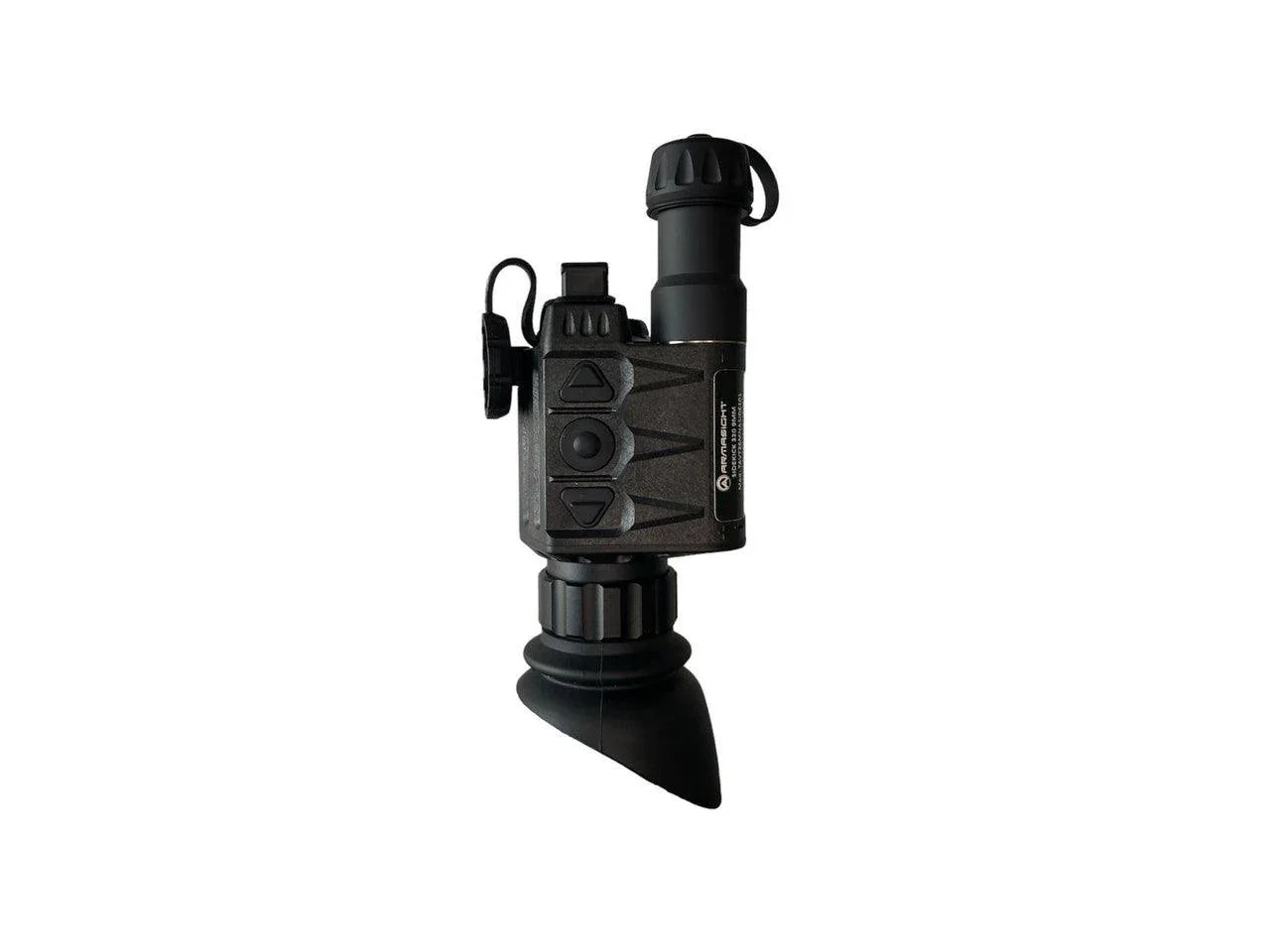

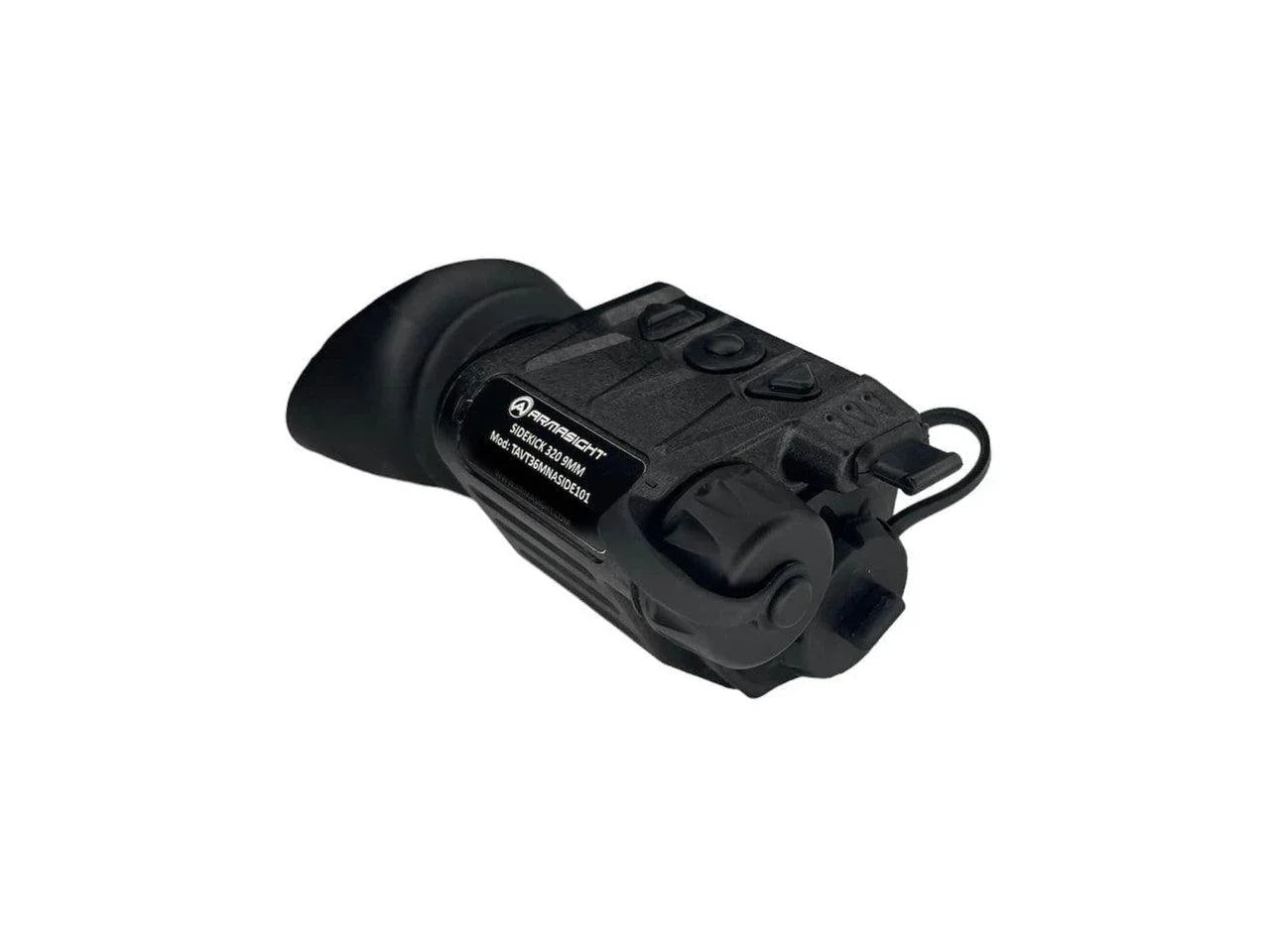

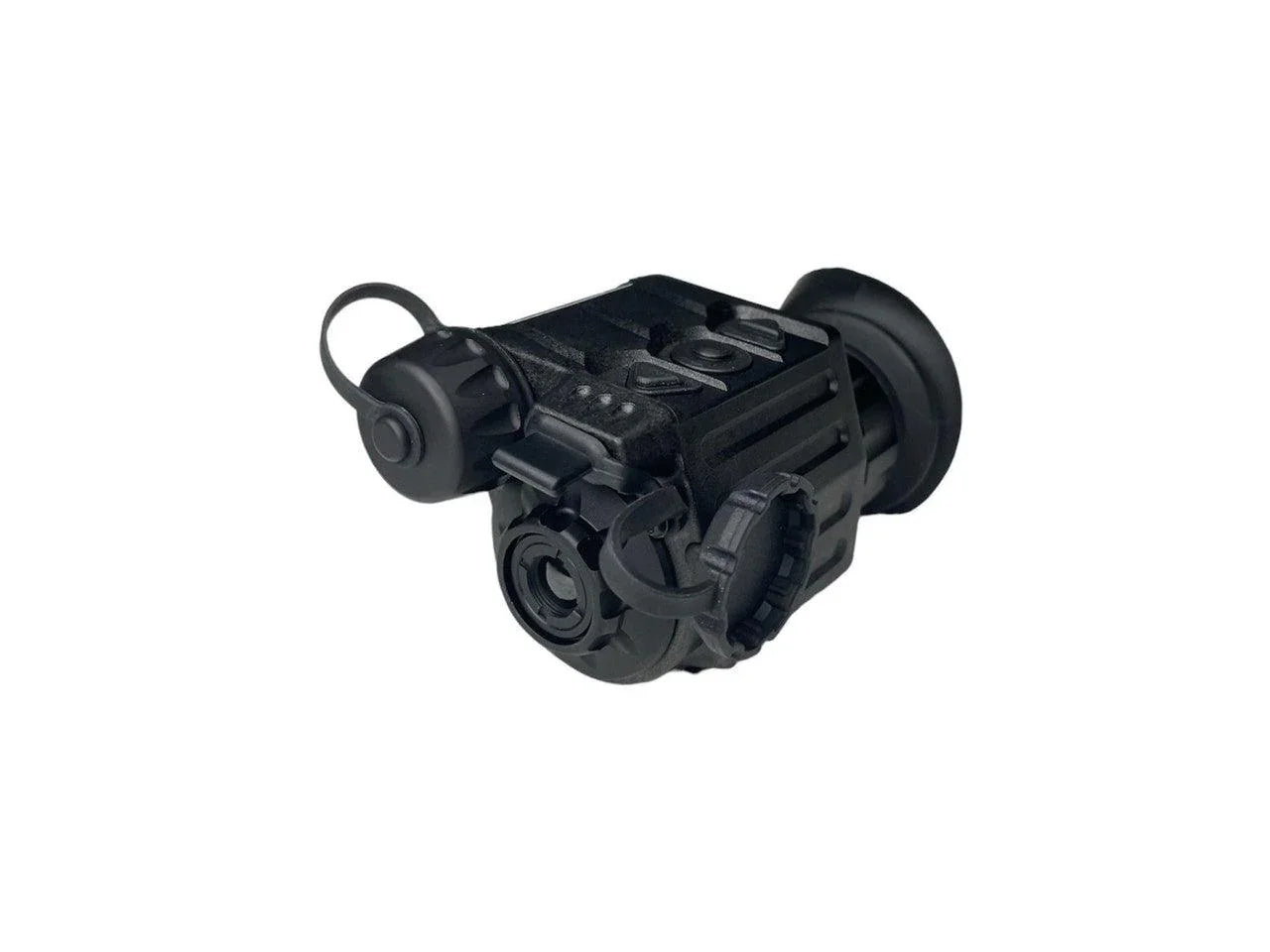

Armasight Sidekick 320 Mini Thermal Monocular

Armasight Sidekick 320 Mini Thermal Monocular


Regular price $ 1,999.00
Regular price Sale price $ 1,999.00
Sale Sold out
Shipping calculated at checkout.

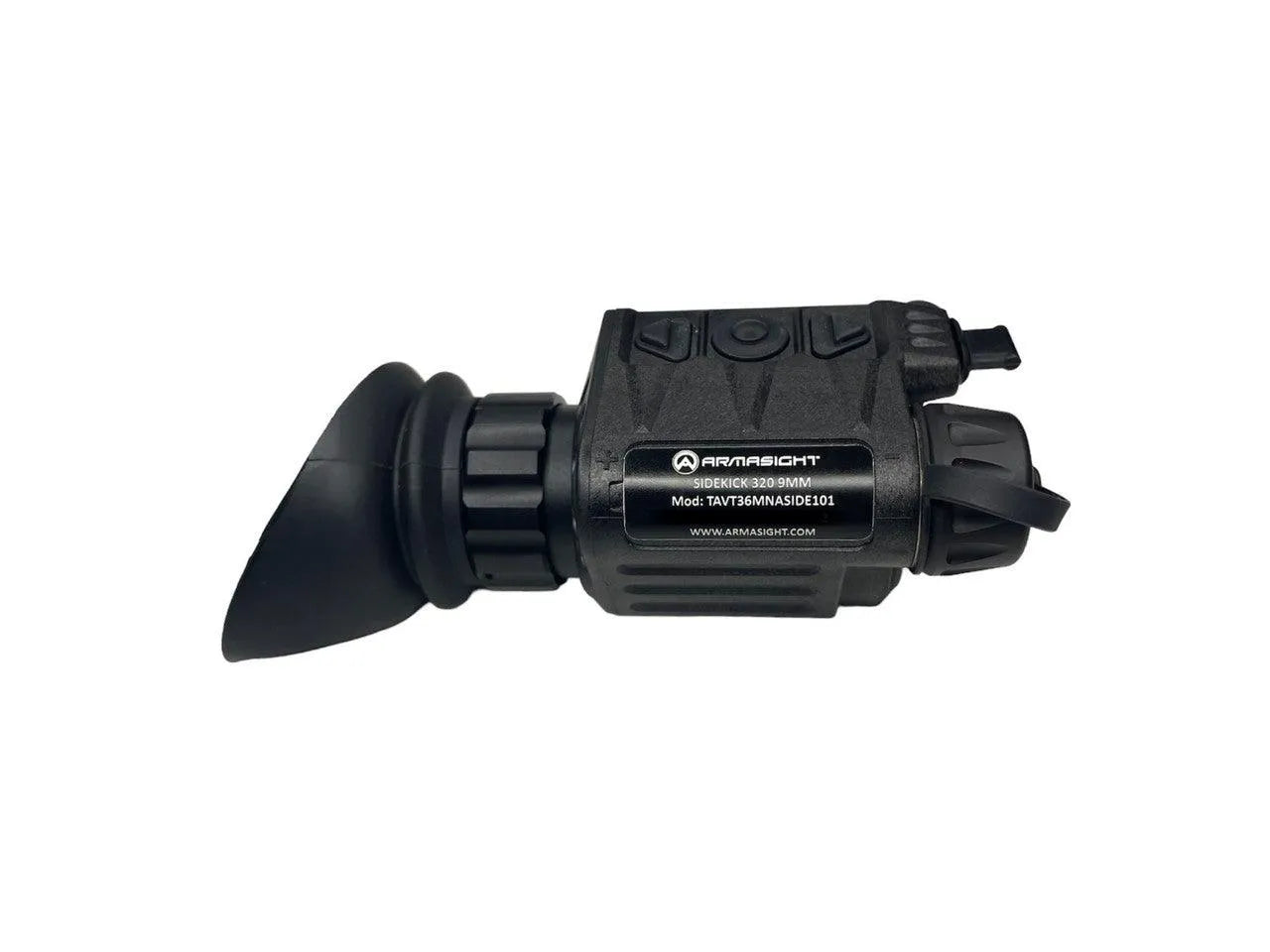

Armasight Sidekick 320 Mini Thermal Monocular 25mm 320x240/12um 60Hz Onboard Recording/WiFi (TAVT36MNASIDE101)
Authorized Dealer
The Sidekick 320, sporting 12 micron technology, is the smallest of its kind in the thermal imaging monocular market. Iron Wolf thermal technology gives the unit an ultra-fast 60Hz rate and unmatched optical clarity. Just 210 grams in weight, this mini-monocular can be handheld or mounted to a helmet or headset using its built-in mini-rail, for hands-free viewing. Its 1024x768 HD OLED display offers an incredibly sharp image, with easily navigable icons providing functional data. 3-button controls make operation a breeze, and one-touch video recording allows users to capture the moment.


Key Features:

  • Multiple color palettes

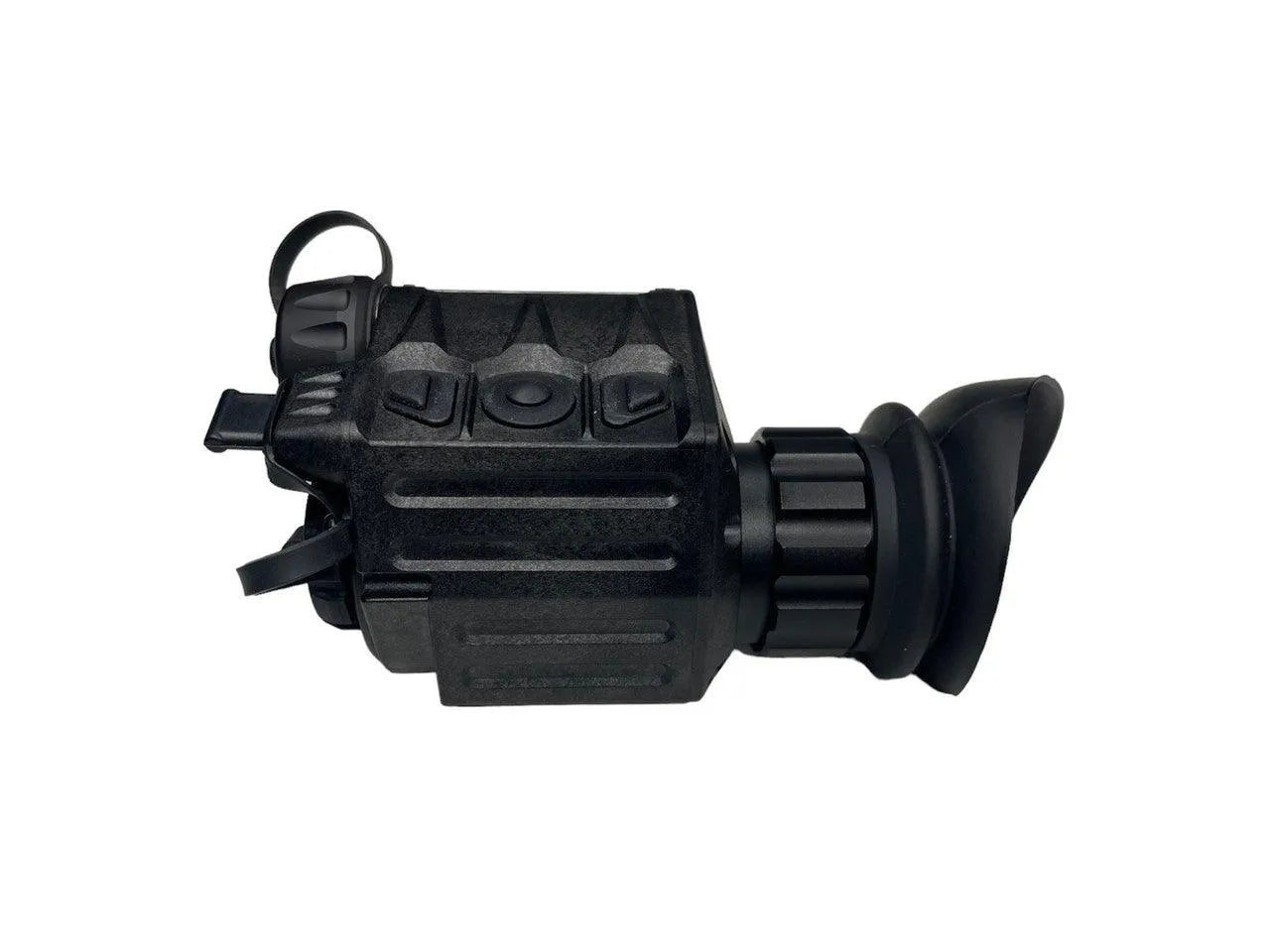

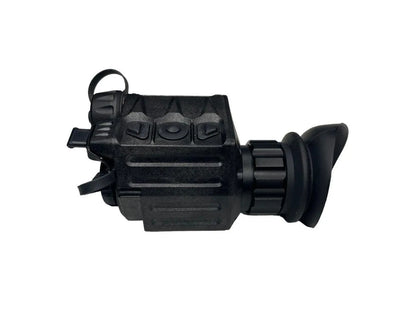

  • Intuitive 3-button control
  • 1 hour runtime on 1 CR123A battery at 20° C
  • Image Detail Enhancement
  • Dovetail Mini-Rail Included for Helmet Mounting (with optional mount)
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Compass
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and global component



    Detector Type: ArmaCORE™ 320x240 12um Thermal Core
    Refresh Rate: 60 Hz
    Detection Range: 331m on a Human Sized Target
    Recognition Range: 85m on a Human Sized Target
    Identification Range: 53m on a Human Sized Target
    Eye Relief: 15mm
    Field of View: 24.18° x 18.13°
    Optical Magnification: 1x
    Digital Zoom: 1x - 4x
    Display: XGA (1024 x 768) AMOLED
    Wireless: None
    Graphics: Active On-Screen Graphics and Iconology
    Lens System: F/1.00; 9.1mm fixed focus
    Diopter Adjustment: -5 to +5 dpt
    Power Supply: 1 x CR123A (3V)
    Battery Life: Up to 1h at 20° C
    Low Battery Indicator: Yes
    Memory: 4 Hours of Video
    Image Processing: Digital Enhancement
    Environmental Rating: IP67
    Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
    Dimensions: 145 x 50 x 65mm / 5.7 x 1.9 x 2.6in
    Weight: 208g / 0.46lbs
    Warranty: 3 years w/ registration
    Color: Black

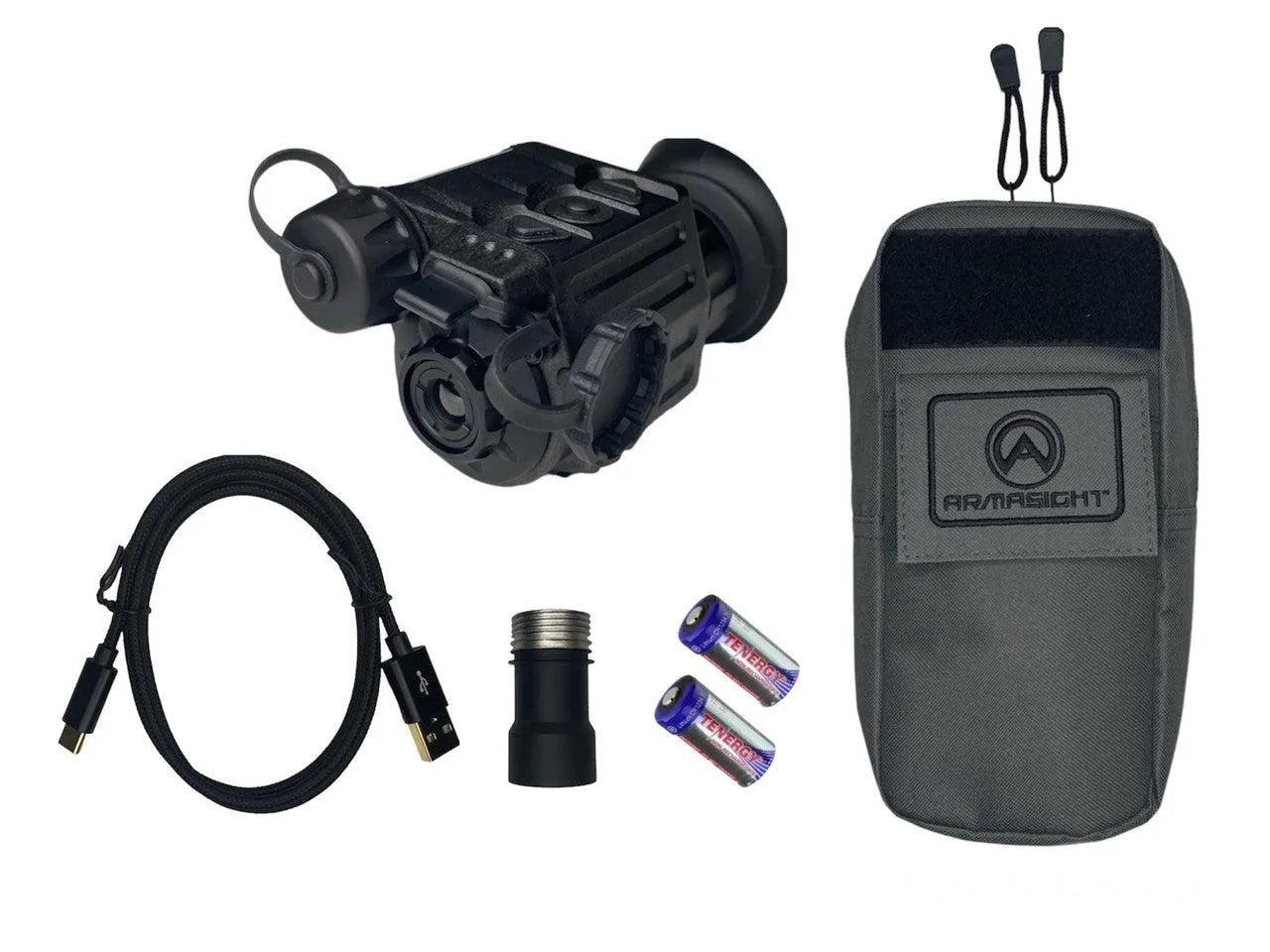

    Package Includes:

    • Sidekick 320 Mini Thermal Monocular
    • 2 x CR123A Battery
    • USB-C Cable
    • Lens Cloth
    • Soft Case
    • Product Manual



    Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
