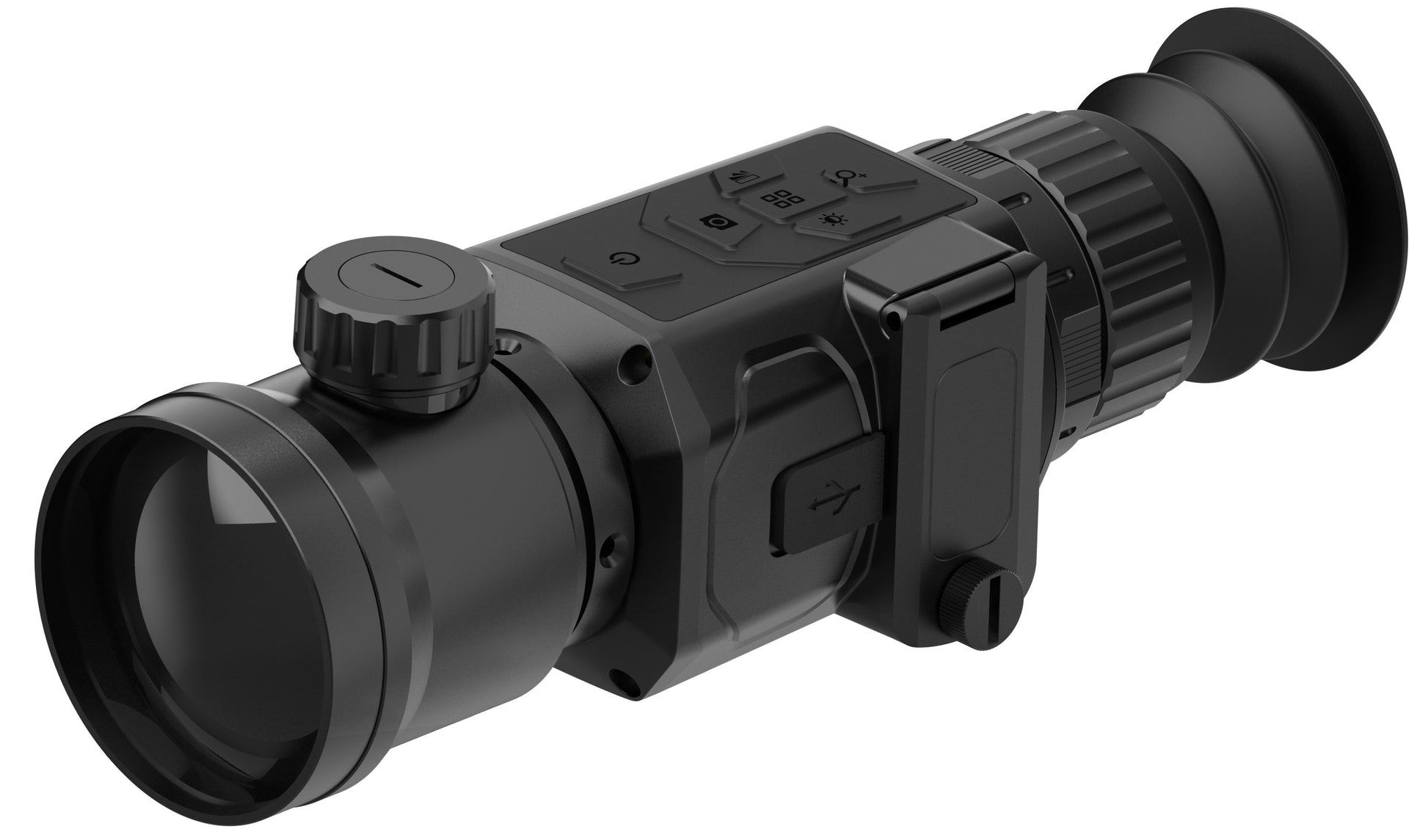

Bering Optics Hogster ZAP 2.8x 35mm 384x288/12um Thermal Scope Built in WiFi
The Bering Optics® HOGSTER ZAP™ Dedicated Medium-Range Compact Thermal scope features an advanced 12μm Vanadium Oxide 384x288 core and a high-quality 100% Germanium Lens, making it ideal for medium- range predator control. Superior optics combined with a precision internal focusing lens mechanism and proprietary electronics create the cutting-edge performance of the scope.
HOGSTER ZAP™ features an intuitive, user-friendly menu to customize settings to the shooter’s needs without disengaging from the target, including BDC and Crosshair reticles. There are a picture-in-picture and zeroing calibration memory functions, digital compass and inclinometer to further enhance the user experience.

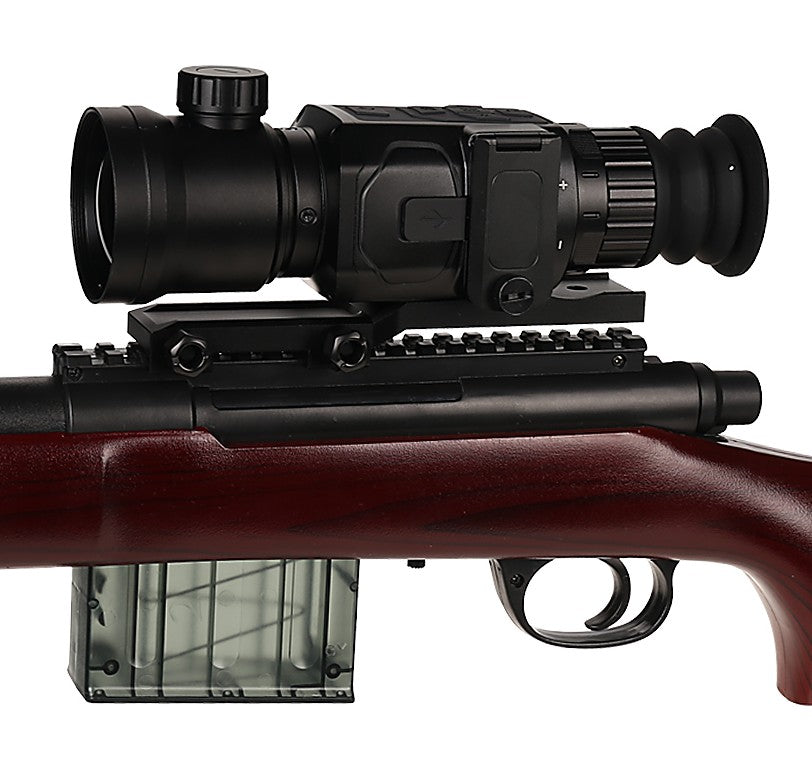

The scope is rated for the .308 caliber and is equipped with a Picatinny rail. Its compact size allows it to be used as a handheld thermal imager for observation.
An optional external 5VDC power supply can be connected via USB-C type port and cable (included).
The scope is nitrogen-purged, water-resistant, dust- and shock-proof.
Bering Optics Hogster ZAP 35mm FEATURES:
• 100% aluminum alloy body
• Superior predator control at medium- distances up to 1000 yards
• Picture-in-Picture function- 2X multiplied image on the top of the display
• Automatic shutter based thermal 12uμ VOx 384x488 core with Auto- or Manual calibration
• Switchable image polarity: White Hot / Black Hot / Red Hot / Iron Hot / Rainbow
• 6 reticle patterns
• 6 color options for each reticle pattern
• Manual control of image sharpness, screen brightness, and image contrast
• Ability to save 5 reticle settings
• An internal focusing lens mechanism
• 5V DC external power supply option via the USB-C type port
• Blind Pixel repair tool option
• Standby mode
• Digital Compass
• Digital zoom rapid movement X2, X3, X4
• Inclinometer
• Battery status indicator
• Nitrogen purged
• Video out
• 16Gb internal memory
• Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
• Timer
• Freeze Function for one shot zero
• Picatinny mount with guaranteed zero retention
• 4-year manufacturer’s transferable warranty on parts and labor
The HOGINATOR application is designed to configure the ballistic reticle #9 of the Super Yoter LRF at the preselected ranges. This setup ensures that the user has the most accurate reticle based on the rifle and ammo combination to quickly engage the target.
Bering Optics Hogster ZAP 35mm Specifications:
|
Optical Magnification, x
|
2.8
|
|
Digital Multiplication
|
2X, 3X, 4X
|
|
Objective Lens system
|
35mmF/1.1
|
|
Angular FOV at Optical Magnification (horizontal x vertical), degrees
|
H 7.5° x V5.7°
|
|
Linear FOV at Optical Magnification @ 100yrds/90m (Horizontal x Vertical), yd/m
|
H 13.1 / 11.7 x V 10 / 9
|
|
Eye relief, mm
|
40mm
|
|
Focus range, yard
|
4 to infinity
|
|
Diopter Adjustment, D
|
-4; +4
|
|
Core resolution, pxl
|
384x288
|
|
Pixel pitch, μm
|
12
|
|
Start-up time, min., sec.
|
8
|
|
Thermal Sensitivity (NETD), mK
|
<35
|
|
Display type and resolution, pxl
|
AMOLED 1440x1080
|
|
Detection Range, yd (Target size: Running Hog L16 & H19), approx., yd/m
|
1000 / 900
|
|
Dimensions, in/mm
|
7.87”x2.6”x2.83” / 200x66x73
|
|
Weight without mount and batteries, but with eyepiece and lens cap, oz/g
|
23.3 / 660
|
|
Power supply
|
3.7V 18350 rechargeable (two) or 5V DC
|
|
Estimated battery life, hours
|
5 with two 3.7V 18350 2800mAh
|
|
Operating temperature, typical, °F
|
-4°F to +122°F
|
|
Water intrusion
|
IP66
|
|
Humidity, %
|
up to 96%
|
NOTE: *Battery life may vary depending on battery capacity, ambient temperature, and the number of product features activated (Wi-Fi, video recording, brightness settings).
KIT INCLUDES
HOGSTER ZAP 384x288 12μm Thermal Sight
Video-out or external power supply Type C USB cable
Picatinny Mount with screws
Two 3.7V 18350 1400mAh rechargeable batteries
Batteries charger
Front lens protective cap
Eyepiece rubber eye guard
Soft Carrying Case
Lens Cleaning Cloth
Instructions manual
