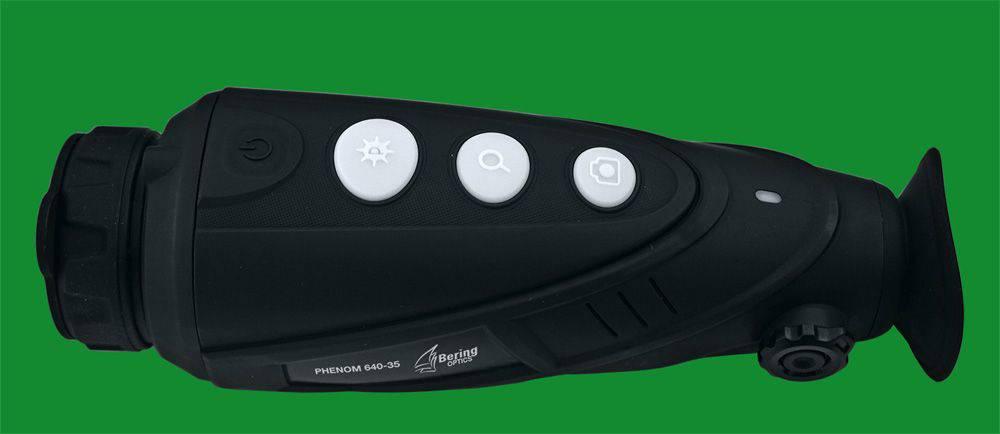

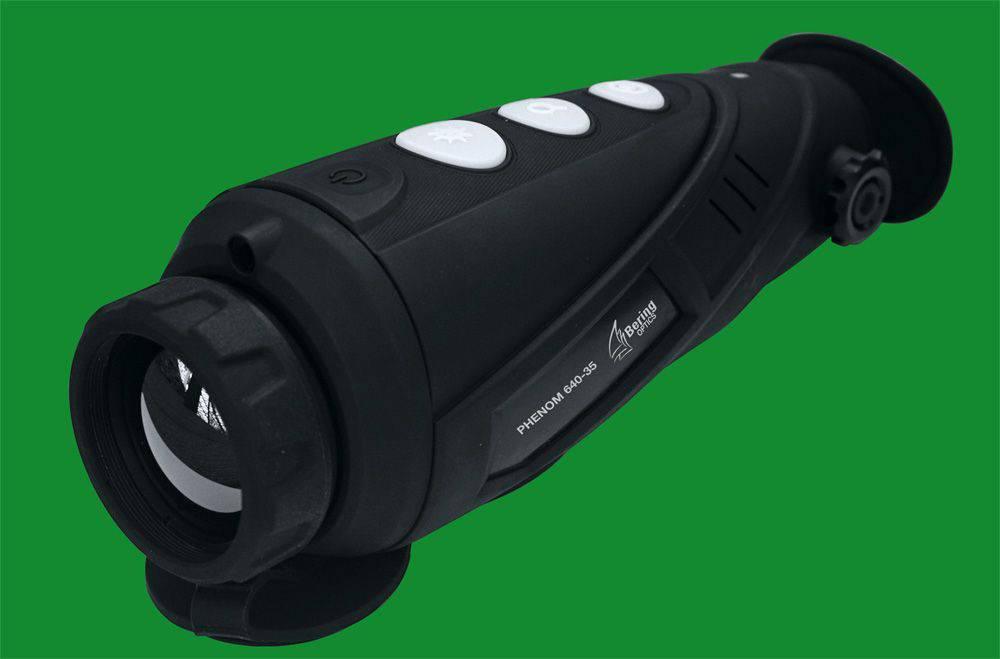

Bering Optics Phenom 640 35mm Thermal Monocular
Bering Optics Phenom 640 35mm Thermal Monocular
SKU:BE46235
Couldn't load pickup availability
Bering Optics Phenom 640 2.0x35mm Thermal Monocular w/Wi-Fi, VOx 640x480 - 12um Core, 50Hz (BE46235)
|
AUTHORIZED DEALER |
Designed for demanding users across a range of fields, the Bering Optics PHENOM 640-35 Thermal imager combines a sensitive Vanadium Oxide LWIR core with automatic shutter, a 1280x980pxl HD OLED display and a 35mm Germanium lens. This handheld device can detect thermal output from a vehicle up to two miles away, in any environment, day or night. Ideal for hunting, patrolling, law enforcement, navigation, and rescue operations, this advanced device offers unparalleled performance.
Bering Optics Phenom 640 35mm Features:
Superior for hogs and predator control at medium- and long-range distances
Picture-in-picture mode with doubled magnification of the observed image
Automatic shatter based VOx thermal core
High Definition 1280 x 980px OLED display
Precise Lens focusing mechanism

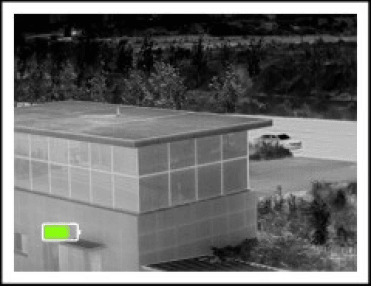

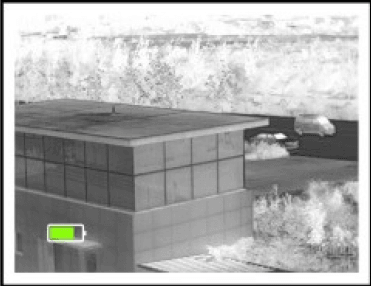

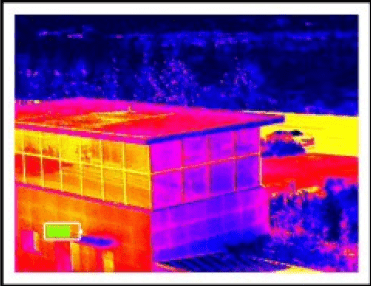

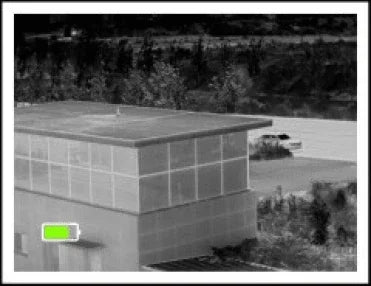

Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot

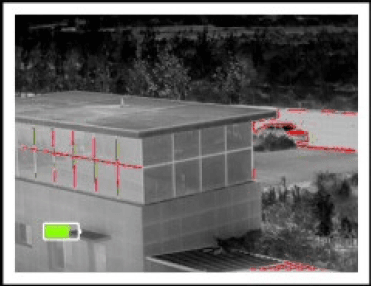

Hot Spot Detection Mark
Built-in Stadiametric Rangefinder
Brightness adjustment
2X, 4X Digital Multiplication
Rugged, compact and lightweight
Easy to use controls
Water-resistant, dustproof and drop impact (1 yard/meter) proof body
Nitrogen-purged
Built-in rechargeable battery with 5-hour run time
Quick battery recharge via computer or 5V DC adaptor
Power save and standby modes
Low-Battery Indicator
Analog Video Out
8GB capacity snapshot storage

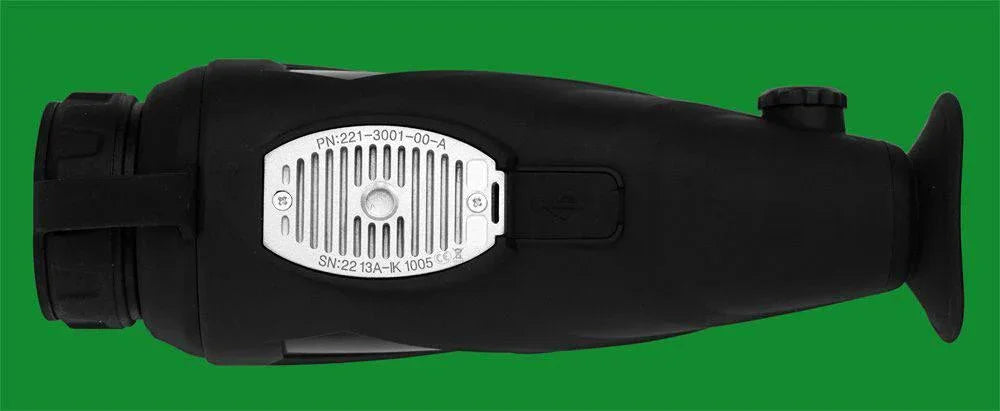

Tripod mountable, built-in ¼” tripod socket
|
|
Bering Optics Phenom 640 35mm Specifications
|
Product Modification |
PHENOM 640-35 |
|||
|
Product SKU# |
BE46236 |
|||
|
Optical Magnification, x |
2.0x |
|||
|
Digital Magnification, x |
4.0x, 8.0x |
|||
|
Objective lens system |
35mmF/1.0 |
|||
|
Angular FOV at 2.0x, degree |
17° x 13° |
|||
|
Eye relief, mm |
14 |
|||
|
Focus range, yds / m |
2 / 0.6 to infinity |
|||
|
Diopter setting, dpt |
-3 to +4 |
|||
|
Core resolution, pxl |
640 x 480 |
|||
|
Pixel pitch, µm |
12 |
|||
|
Image refresh rate, Hz |
50 |
|||
|
Thermal Sensitivity (NETD), mK |
< 50 |
|||
|
Display type and resolution, pxl |
OLED SXGA 1280x980 |
|||
|
Start-up time, max., sec. |
5 |
|||
|
Object type and size, approx., ft² / m² |
|
|
||
|
Detection, approx., yds/m |
1475 / 1350 |
3500 / 3200 |
||
|
Recognition, approx., yds/m |
385 / 350 |
875 / 800 |
||
|
Dimensions, in/ mm |
7.32" x 2.6" x 2.6" / 186 x 65 x 65 |
|||
|
Weight, approx., oz/g |
14.1 / 400 |
|||
|
Power supply standard |
Li-on cell rechargeable battery |
|||
|
External DC Input |
5V DC/2A (Micro USB) |
|||
|
Est. battery operation on single charge, hour |
Up to 5 |
|||
|
Operating temperature, °F/°С |
-4 to +122 / -20 to +50 |
|||
|
Water intrusion |
IP67 |
|||
|
Humidity, % |
Up tо 93% |
|||
8 / 0.75
25.8 / 2.4IN THE BOX:
- PHENOM 640-35 Thermal Monocular
- Front lens protective cap
- Soft carrying pouch
- Rubber eyecup
- Battery recharge cable with Mini USB port connector
- Video cable
- Lens cleaning cloth
- Instruction manual
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
