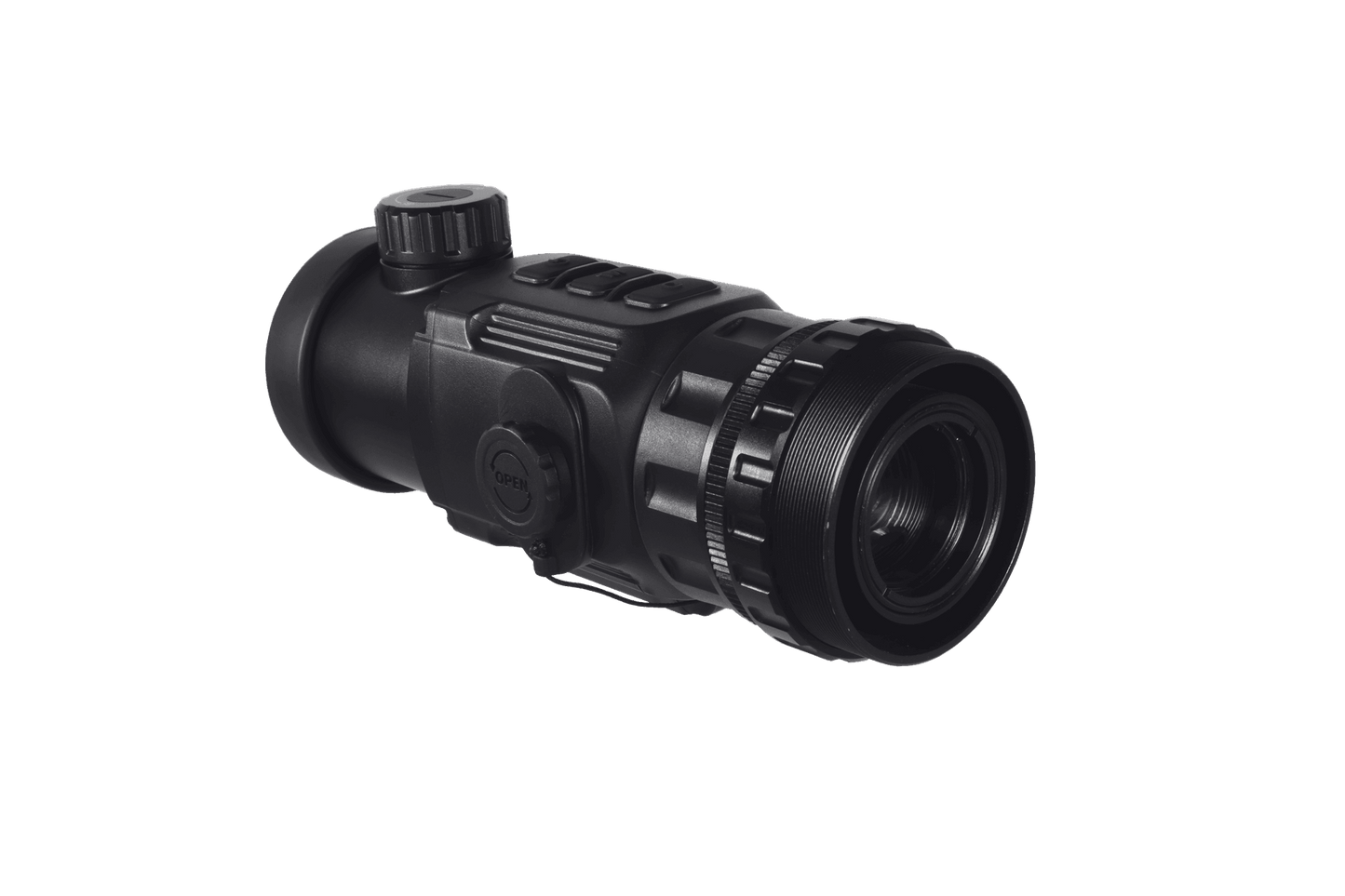

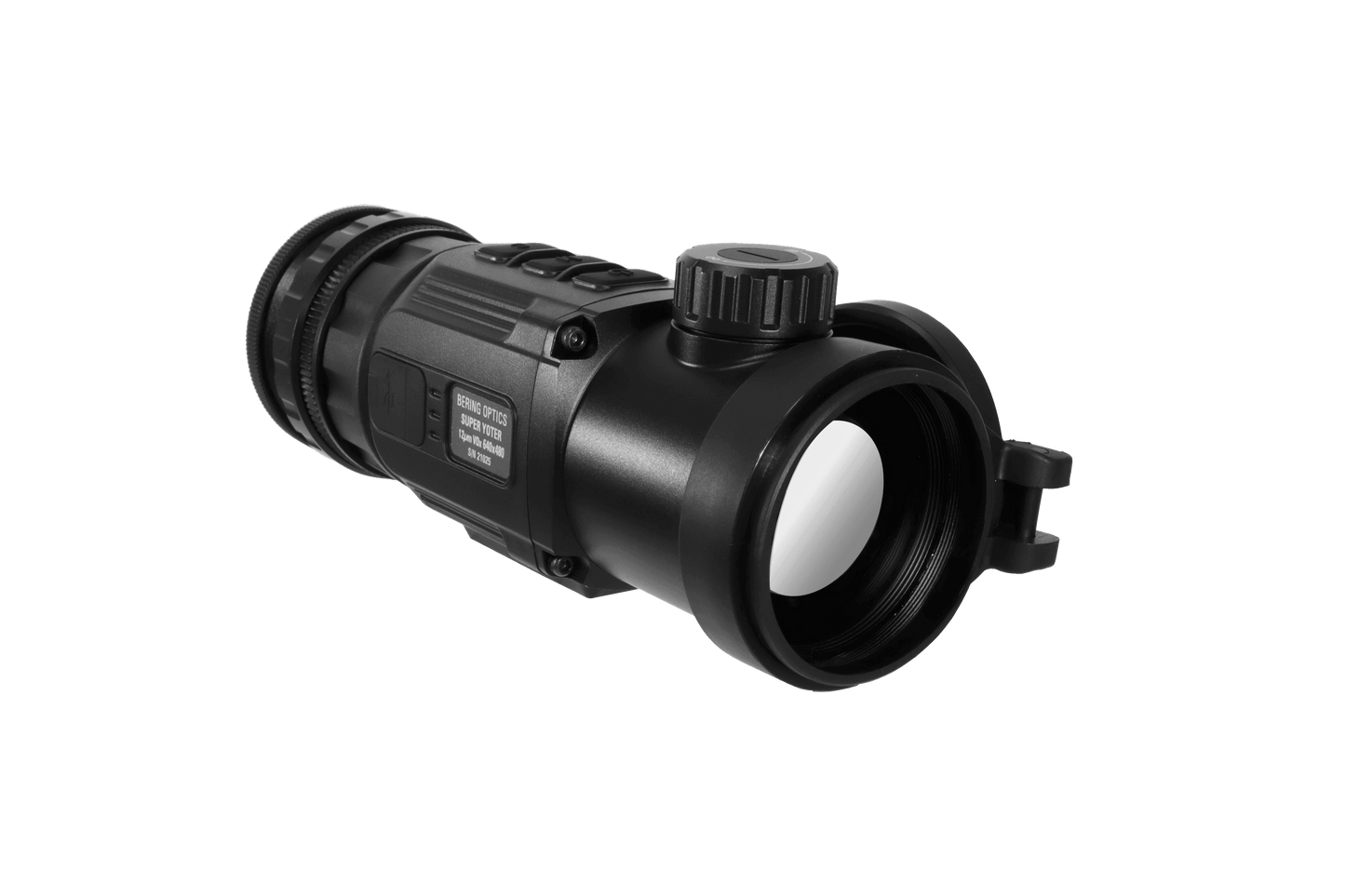

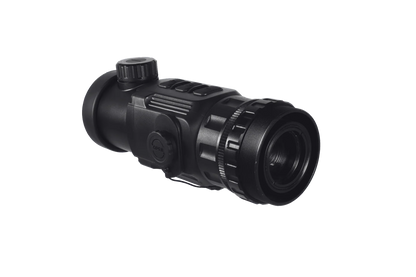

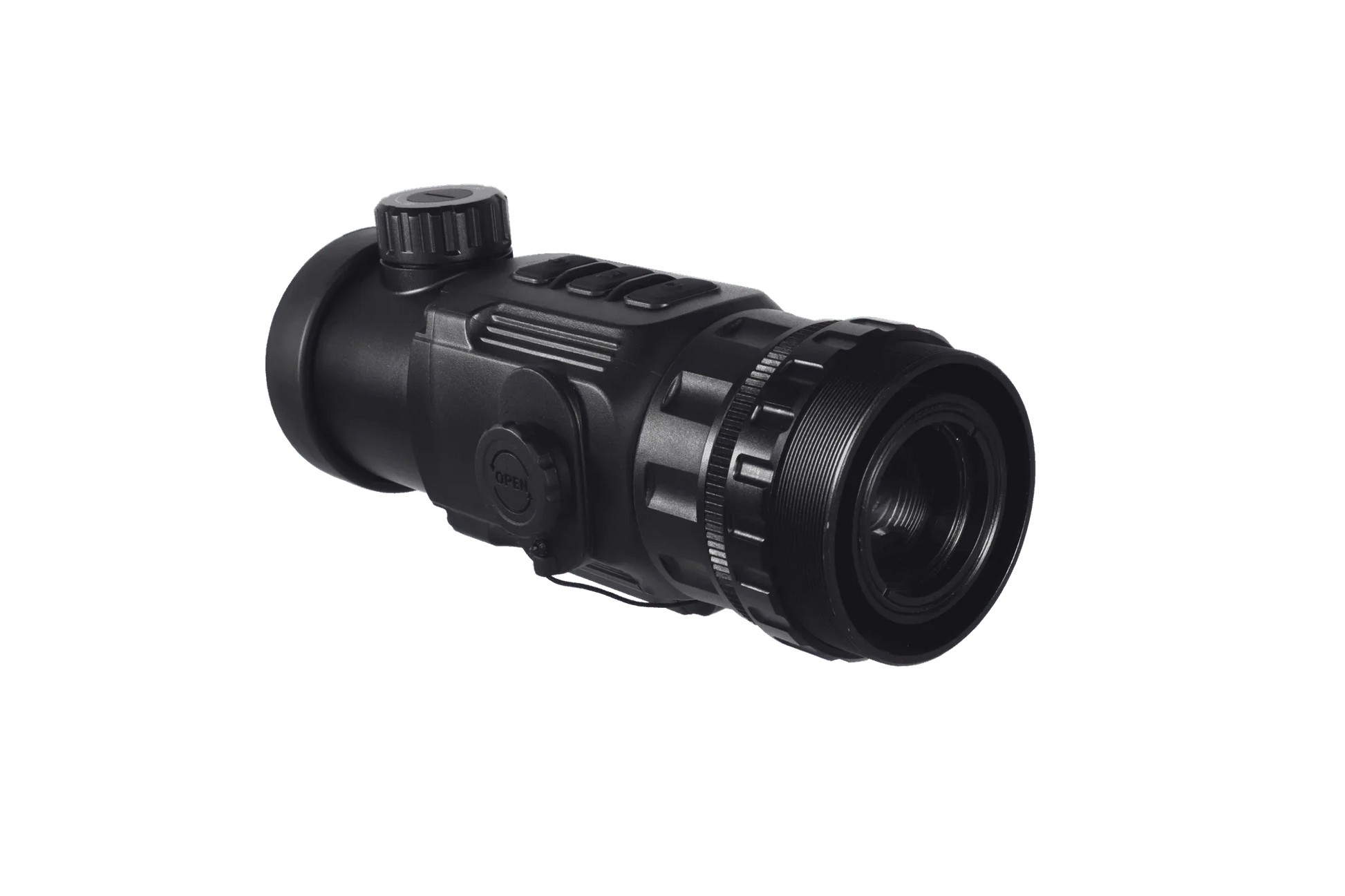

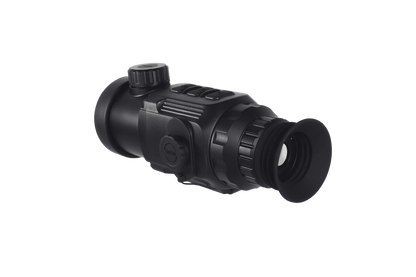

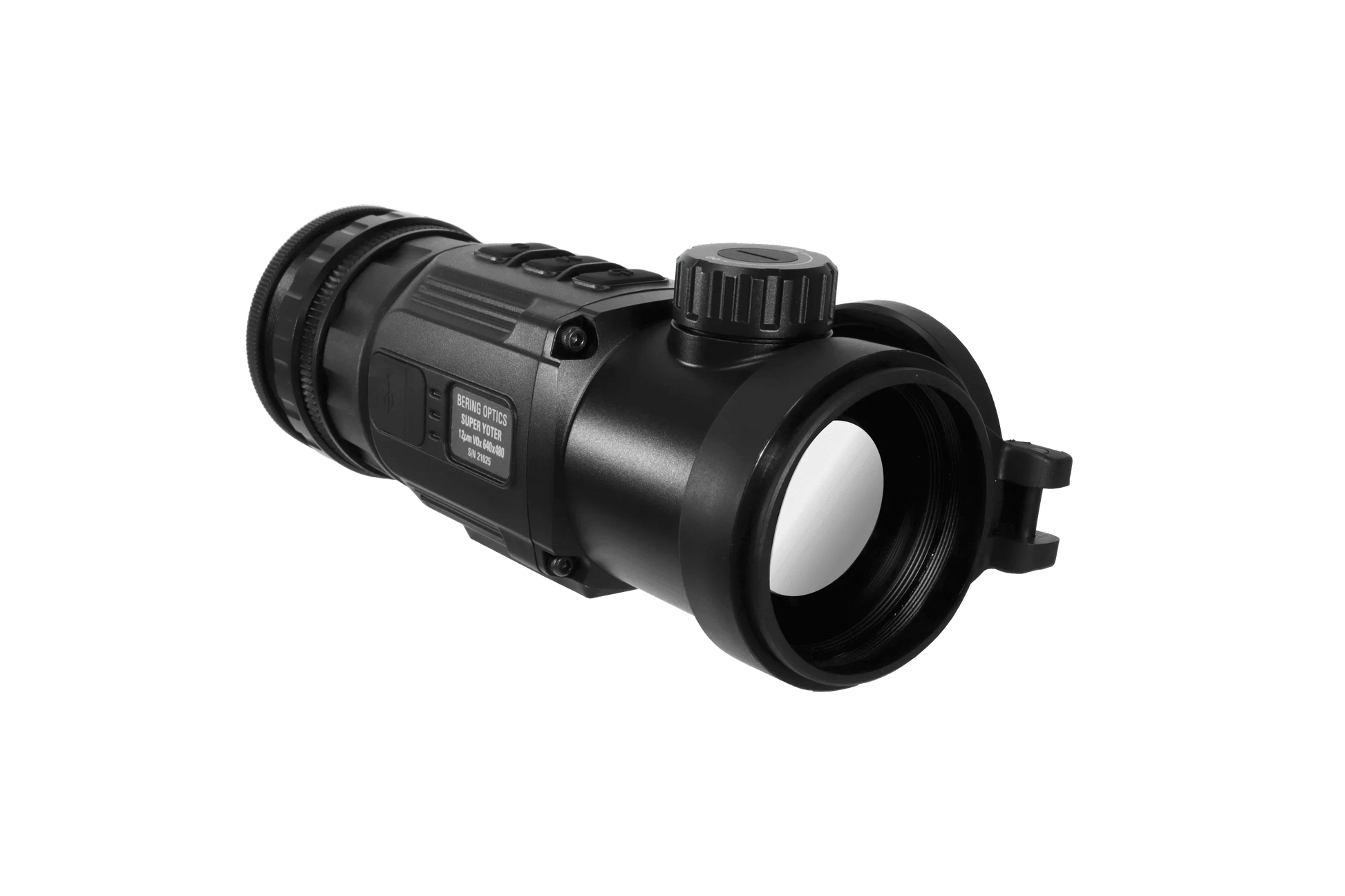

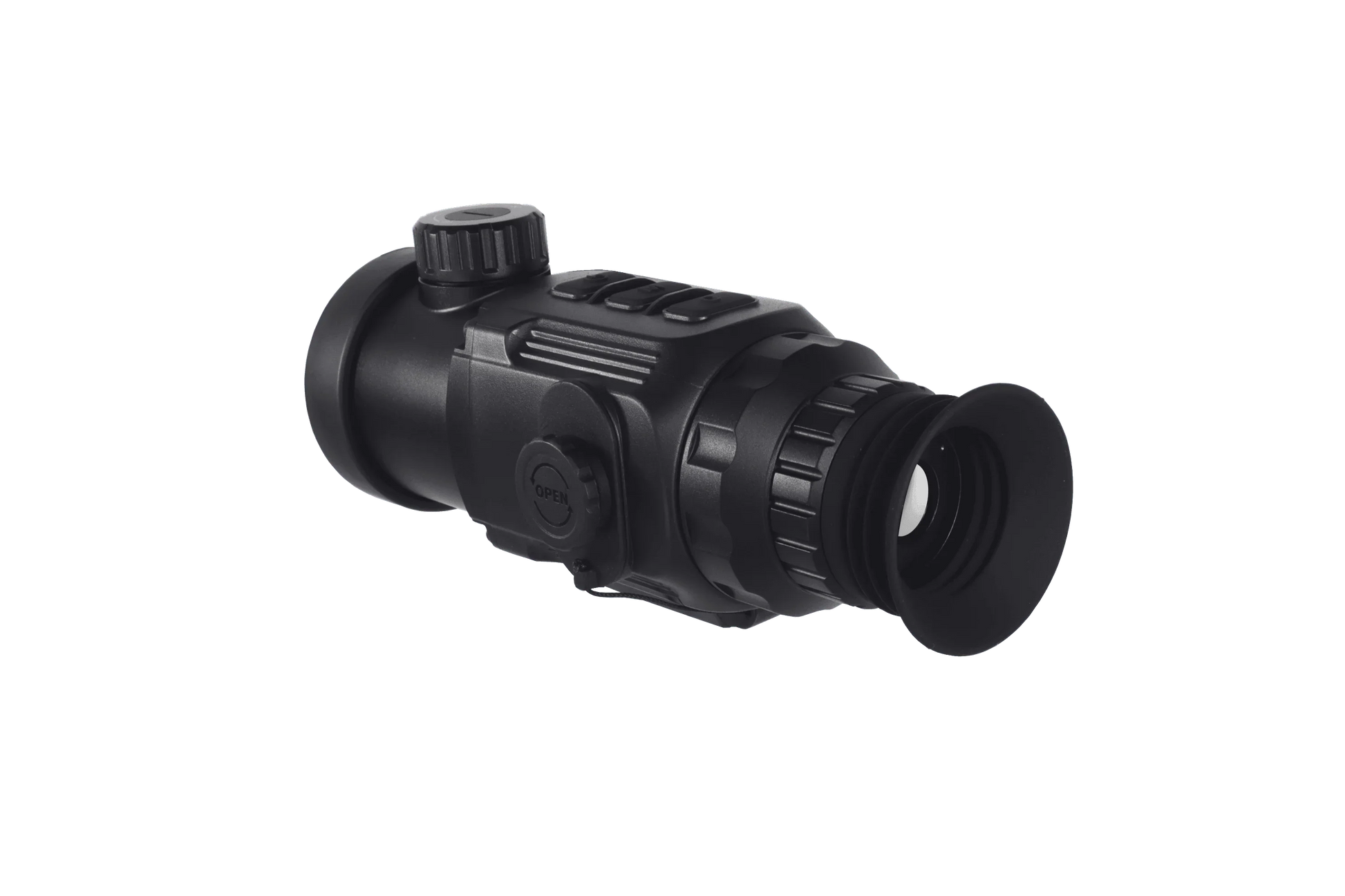

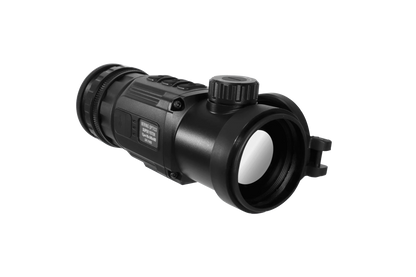

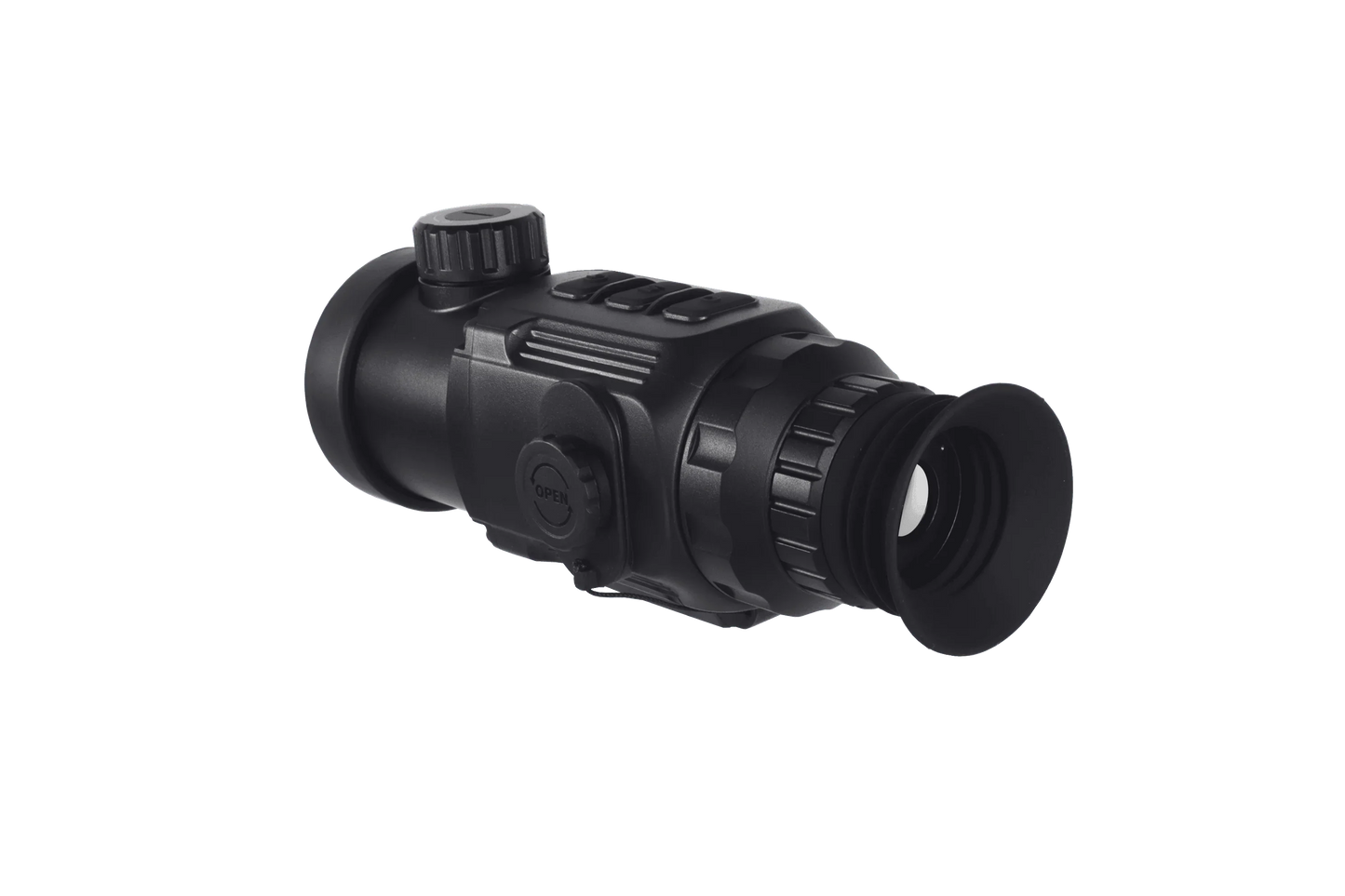

Bering Optics Super YOTER-C Dedicated Ultra-Compact Long-Range Thermal Clip-On Scope 640x480/12um 50Hz 50mm BE46155

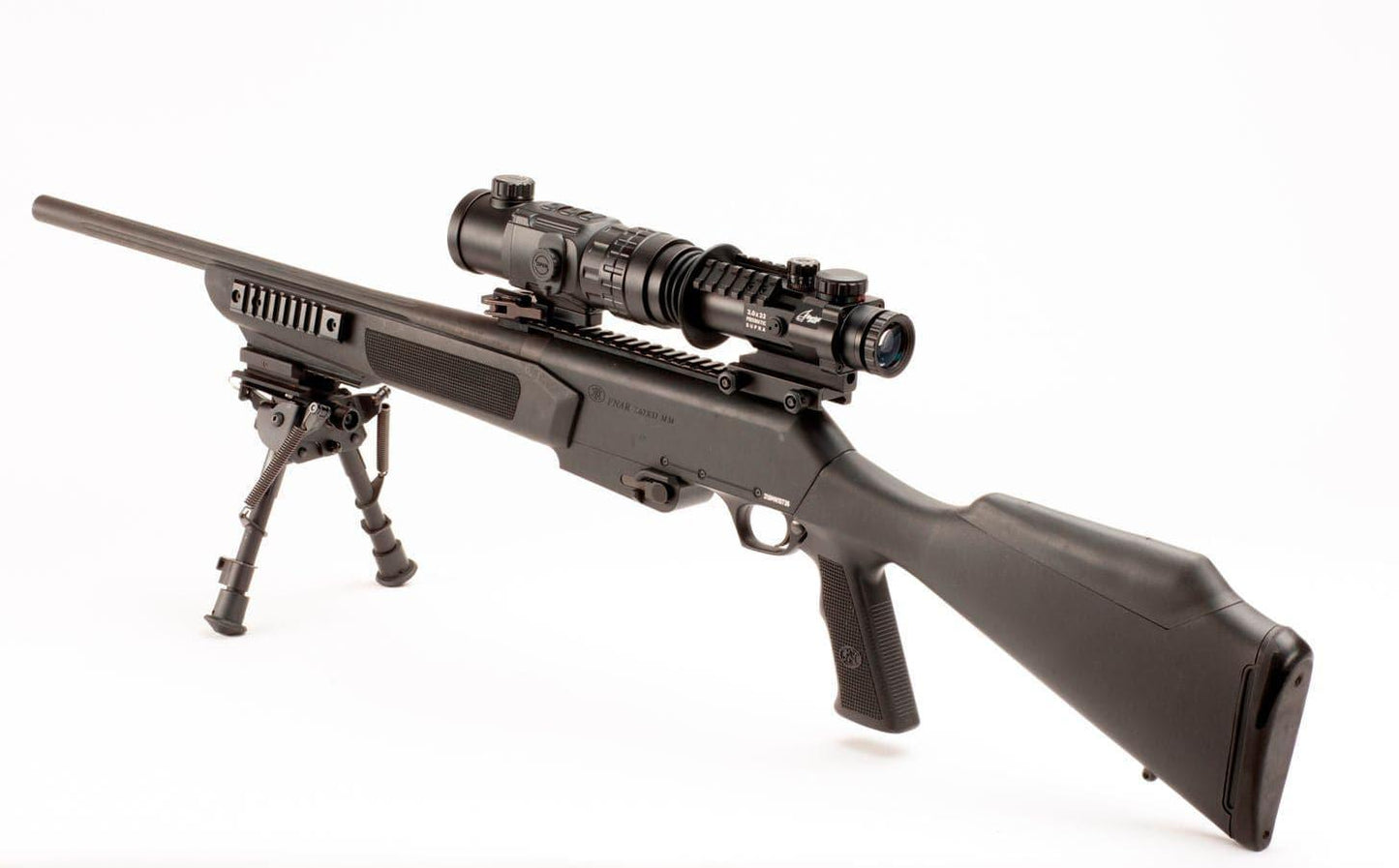

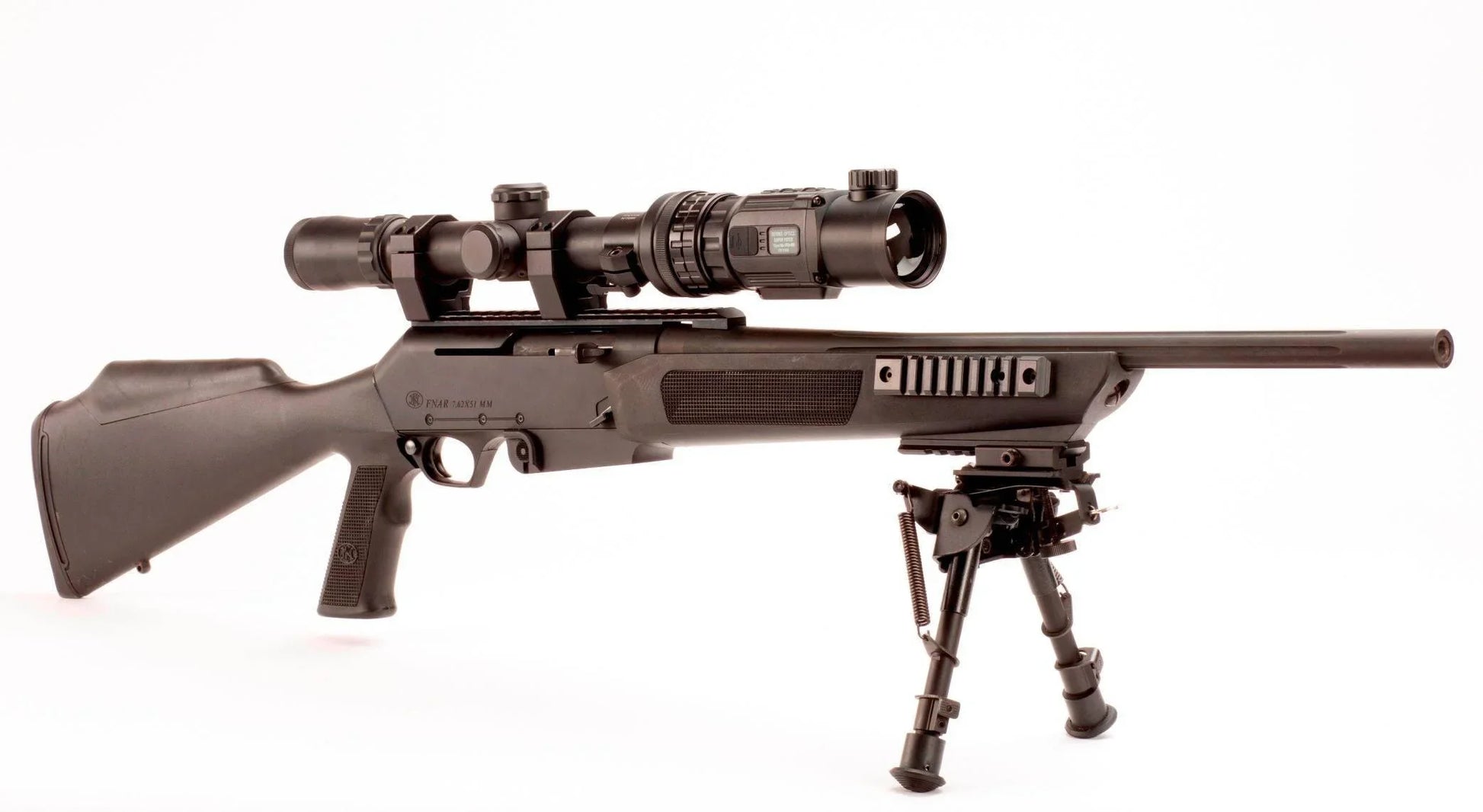

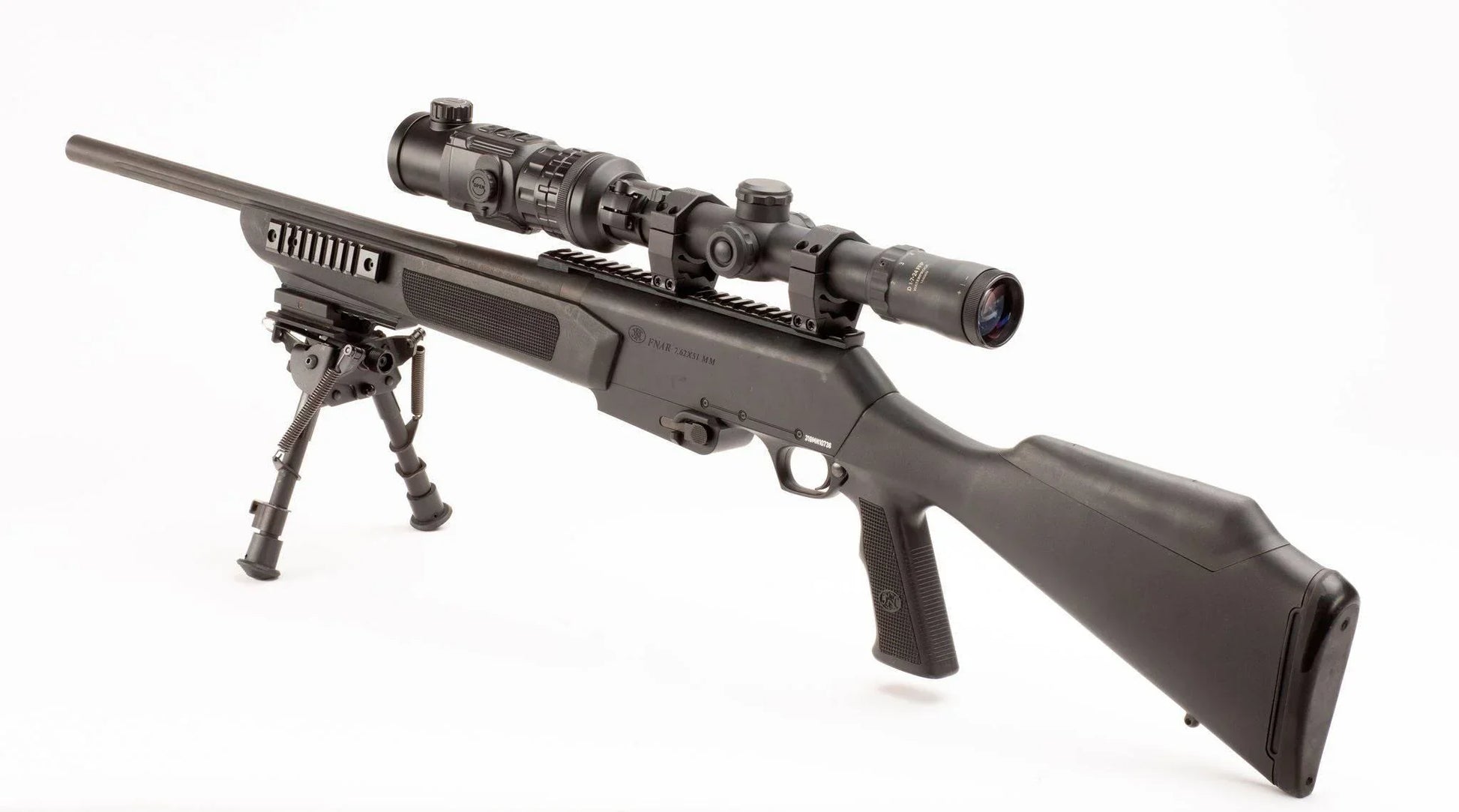

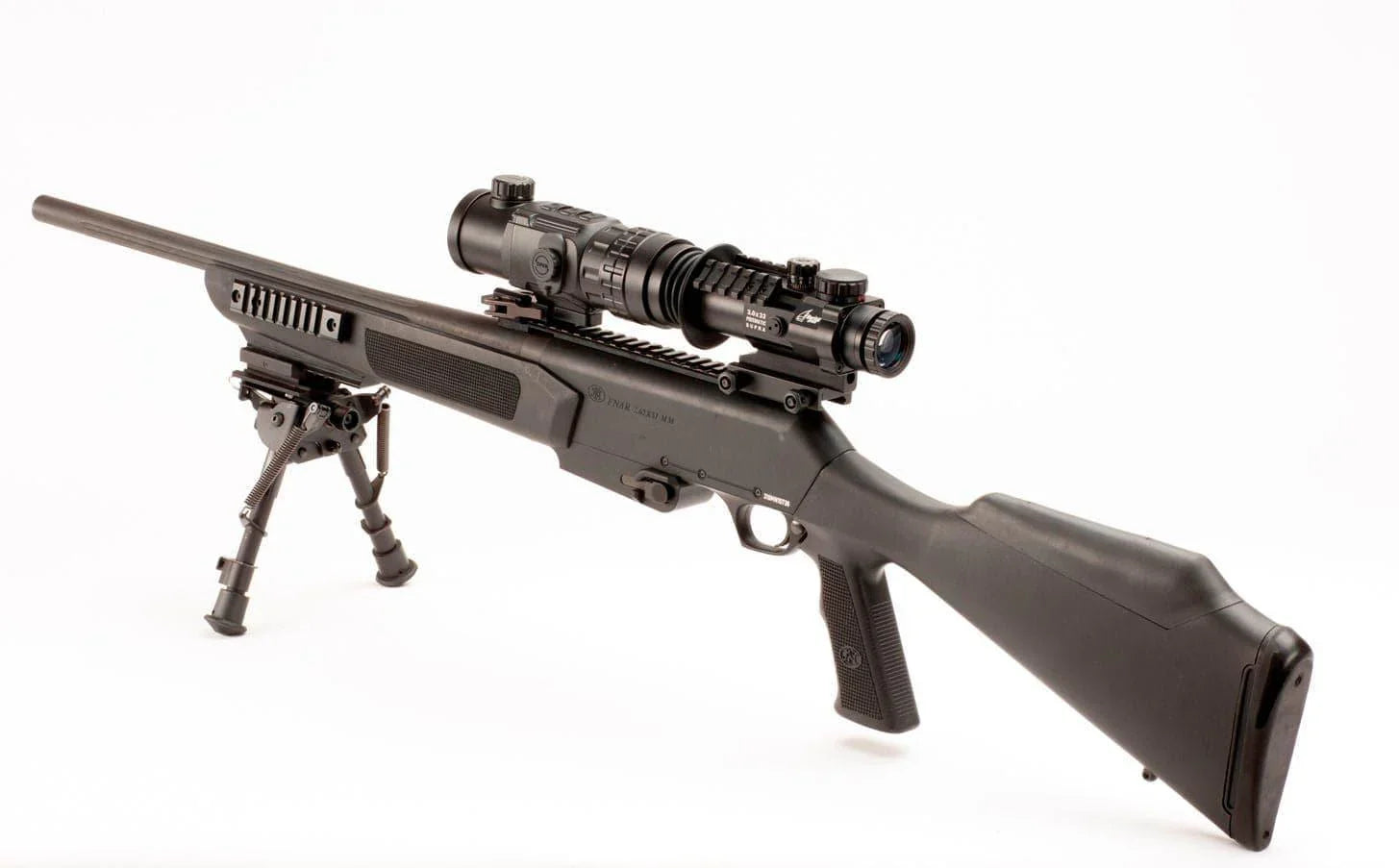

The Bering Optics SUPER YOTER C™ Universal Thermal Clip-On stands out with its advanced 12μm Vanadium Oxide (VOx) 640x480 resolution and proprietary electronics, making it unrivaled in the thermal clip-on market. Equipped with a high-performance 50mm Germanium lens, it is specifically designed for medium to long-distance predator control, particularly for coyote hunting. Lightweight and compact, this thermal device is built with predator hunters in mind, and can also be outfitted with a Quick Release Weaver Mount (SKU# 80990), allowing it to be used with conventional tactical sights such as prismatics.
The SUPER YOTER C™ features an easy-to-navigate menu, switchable image polarity memory, and the ability to store up to four gun profiles. Its tactile control buttons ensure seamless operation in pitch-black conditions. The unit is nitrogen purged, waterproof, dustproof, and shockproof, capable of handling recoil from magnum calibers like .338 Win Mag, .30-06 Sprg, and .300 H&H. This rugged design makes it action-ready for use in varied lighting conditions and harsh environments, including those with dust, haze, fog, or high humidity.
Bering Optics Super YOTER-C Features:
• Superior for hogs, coyote and predator control at medium- and long-range distances
• Rugged, compact and lightweight
• Excellent performer in high humidity conditions

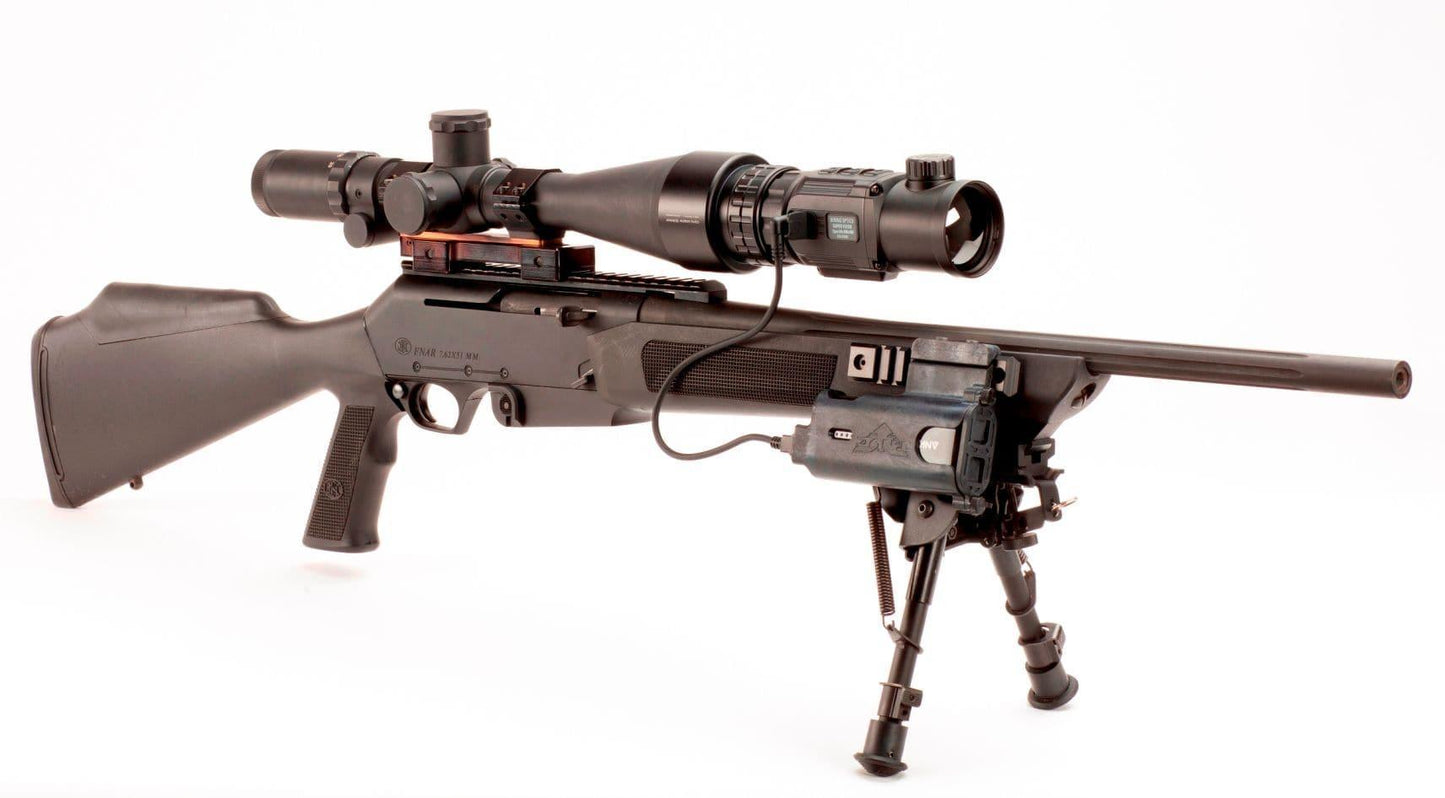

• Mountable in front of scopes with lens diameters ranging from 24mm to 64mm
• Optimal with 2.0x to 18.0x day time scopes
• Can be used with heavy recoil weapons, including 30-06 Spring Mag., .300 H&H, .375 H&H

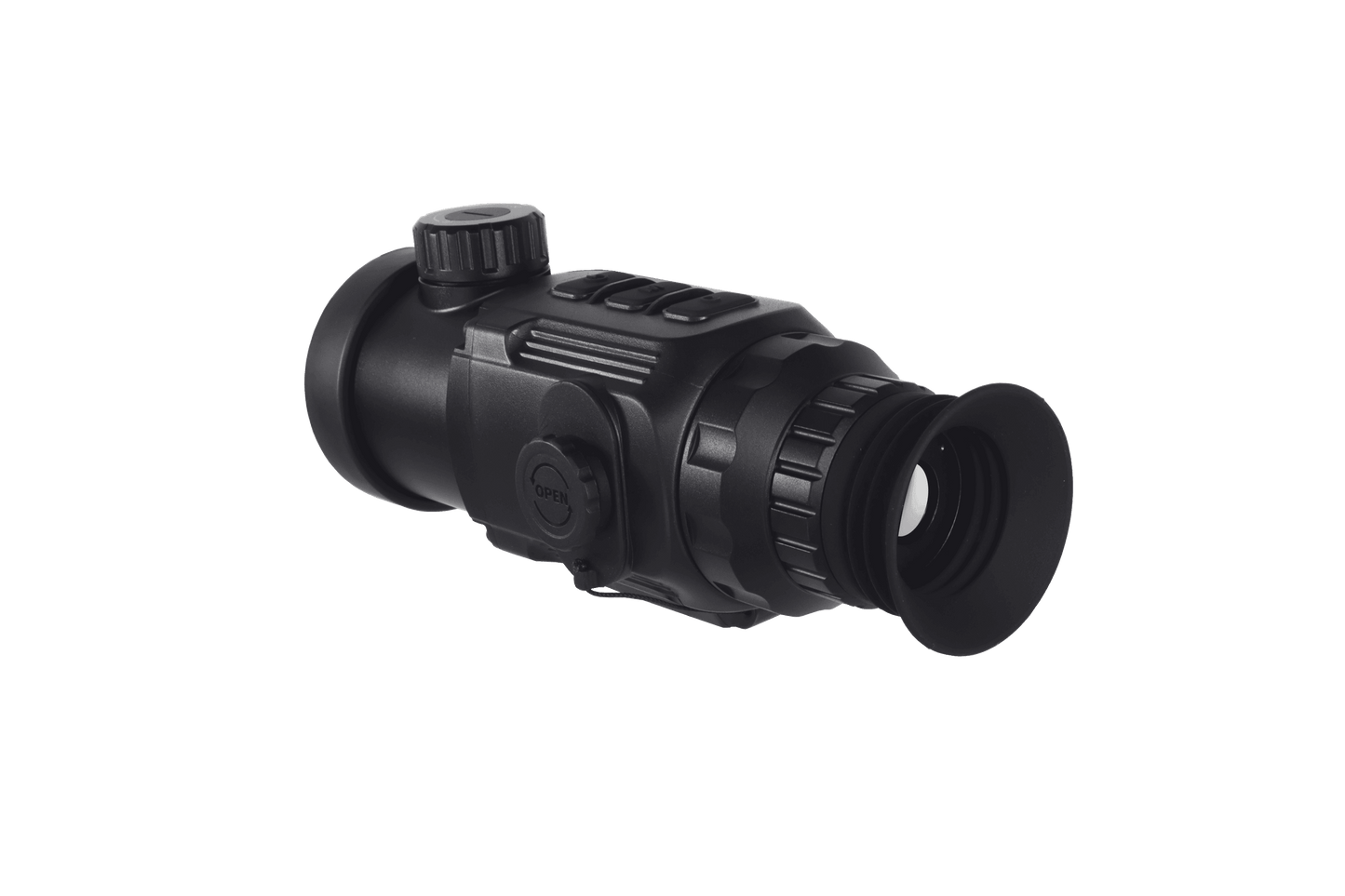

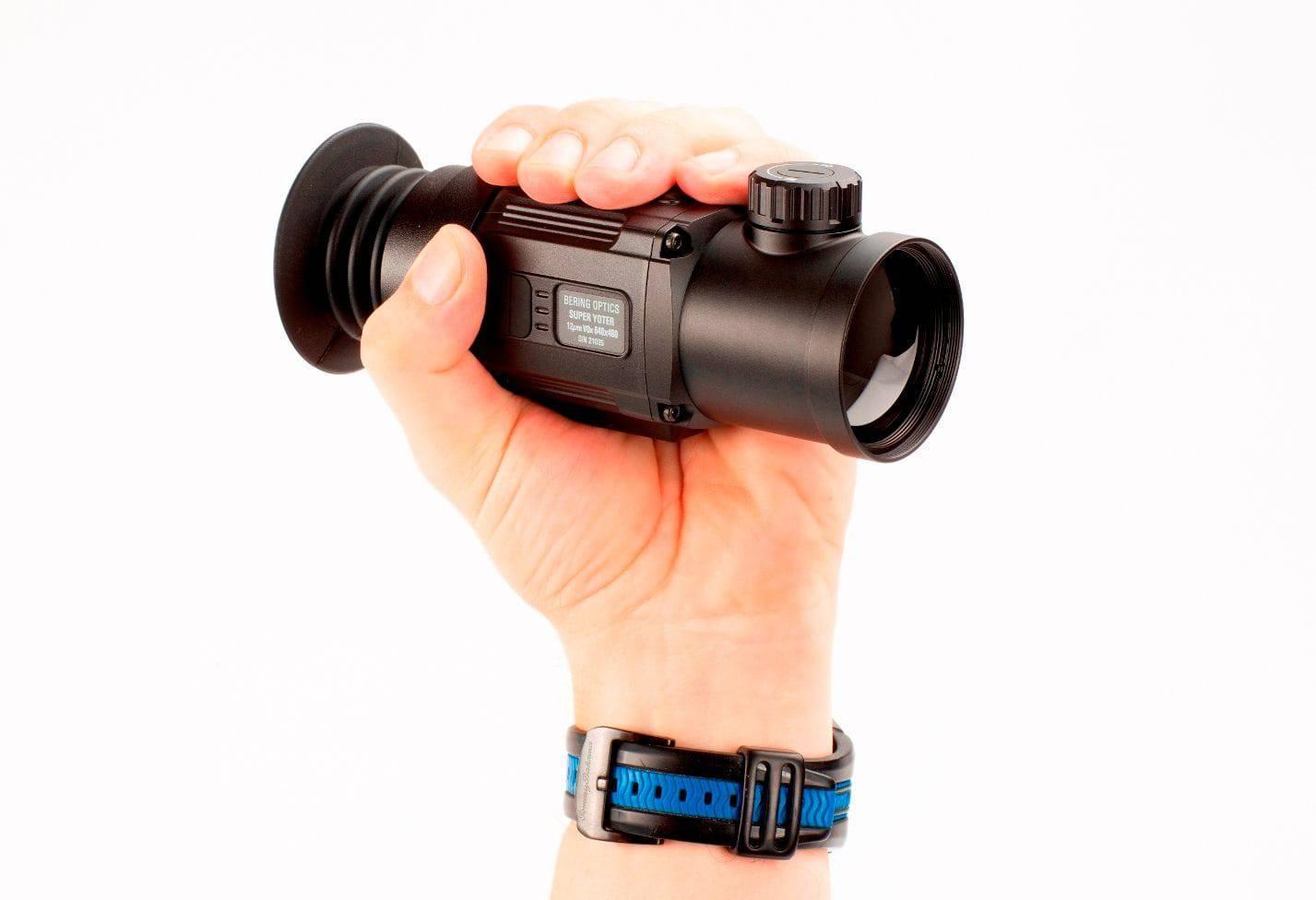

• Convertible to the 4.0x - 16.0x hand held Thermal scanner when coupled with a detachable eye piece
• 12µm Vanadium Oxide (VOx) 640x480 core with Manual calibration
• Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
• Manual control of the image sharpness and screen brightness
• Ability to center the screen with respect to the viewed reticle
• Ability to save zeroing data of 4 gun profiles
• Precise internal lens focusing mechanism
• High resolution 1024x768 OLED Display
• 5V DC external power supply option via a Type-C USB port
• Blind Pixel repair tool
• Standby mode
• Digital Compass
• Inclinometer
• Battery status indicator
• Nitrogen purged
• Video out
• 4 years warranty
Bering Optics Super YOTER-C SPECIFICATIONS
|
Product Modification
|
SUPER YOTER 640x480
|
|
Product SKU#
|
BE46155
|
|
Optical Magnification in the Clip-on mode, x
|
1.0x
|
|
Digital Multiplication, X
|
1X, 2X, 4X
|
|
Optical Magnification in the Thermal Viewer mode, x
|
4.0x, 8.0x, 16.0x
|
|
Objective Lens system
|
50mmF/1.0
|
|
Angular FOV at 1.0x (horizontal x vertical), degree
|
8.8° x 7.0°
|
|
Eye relief, mm (hand held mode / clip-on mode)
|
20 / 30
|
|
Exit Pupil, mm (hand held mode / clip-on mode)
|
6 / 25
|
|
Focus range, approx., yds / m
|
2 / 1.85 to infinity
|
|
Diopter Adjustment, D (hand held mode only)
|
-5: +5
|
|
Core resolution, pxl
|
640x480
|
|
Pixel pitch, µm
|
12
|
|
Image refresh rate, Hz
|
50
|
|
Thermal Sensitivity (NETD), mK
|
≤ 50
|
|
Display type and resolution, pxl
|
OLED 1024x768
|
|
Start-up time, min., sec.
|
5
|
|
Object type and size, approx., ft² / m²
|
8 / 0.75
|
25.8 / 2.4
|
|
Detection, approx.*, yds / m
|
2500 / 2290
|
3300 / 3000
|
|
Recognition, approx.*, yds / m
|
450 / 400
|
800 / 730
|
|
Identification, approx.*, yds / m
|
250 / 230
|
550 / 500
|
|
Dimensions w/out adaptor, in / mm (hand held mode / clip-on mode)
|
6.61"x2.72"x2.95" / 168x69x75
7.10"x2.72"x2.95" / 180x69x75
|
|
Weight, approx., oz/g (hand held mode / clip-on mode)
|
15.6 / 442 /
18.4 / 522
|
|
Power supply standard
|
CR123 (two)
|
|
Estimated battery life, hour
|
up to 4
|
|
Operating temperature, °F/°С
|
-4° to +122° / -20° to +50°
|
|
Water intrusion
|
IP66
|
|
Humidity, %
|
Up to 98%
|
KIT INCLUDES:
SUPER YOTER C™ 12μm VOx 640x480 Thermal Clip on
QR Weapon Mount with 2 screws BE80990
Front lens flip up protective cap
Soft Carrying Case
Lens Cleaning Cloth
Instruction manual
Video out Type C USB cable
Two CR123 Batteris
Additional Info:
Part 1. General Info - https://www.youtube.com/watch?v=WJU_f5qOGYY
Part 2. How to Zero the system Day Optic & Clip On - https://www.youtube.com/watch?v=qbAfJNqjQxk
Part 3. Calibrating Digital Zoom and Shot Accuracy - https://www.youtube.com/watch?v=7RgiqFzKfZE
Part 4. How to install the Bering Optics Super Yoter-C using the Throw Lever Adapter to Telescopic Day Scope - https://www.youtube.com/watch?v=qbAfJNqjQxk&t=978s
Part 5. Rail Mounted in front of Prismatic Sight - https://www.youtube.com/watch?v=nhC3e9FIoVs
