Bering Optics SUPER YOTER-R LRF 50mm Thermal Scope

Bering Optics SUPER YOTER-R LRF 3.0-24.0x50mm 640x480/12um Thermal Scope



AUTHORIZED DEALER



The revolutionary SUPER YOTER-R LRF 3.0–24.0x50mm Thermal Weapon Sight boasts a 12uμ VOx 640x480 core with a remarkable NETD ≤35mk, along with a newly constructed rigid Aluminum-Magnesium Alloy body and a trusted Tactical Quick-Detach mount by LaRue Tactical (BE46550L) or Bering Optics (BE46550T).

The SUPER YOTER LRF™ 3.0–24.0x50mm offers unique features, such as the ability to be powered by a range of batteries, including 1.5V Li-ion, 1.2V NiCad, 1.2V NiMH, or standard 1.5V AA Alkaline batteries. An optional external 5VDC power source can be connected using a 1-foot cable (included) with a shock- and dust-proof magnetic port. With such a variety of power sources, users will have the flexibility and assurance that their scope is always prepared for the hunt.

Bering Optics SUPER YOTER-R LRF 50mm Thermal Scope features its newest BDC Reticle #9 with manual hashtags adjustment and a companion Reticle Customization App downloadable on mobile devices.

The 32GB built-in memory for capturing videos/photos (up to 5 hrs) and sound recording capability provide excellent footage. This energy-efficient precision laser rangefinder offers convenient Constant Scan Mode, and has a range of up to 1200 yards and accuracy of 1 yard.

Bering Optics SUPER YOTER-R LRF 50mm FEATURES

• Superior predator control at medium- and long-range distances above 1000 yards

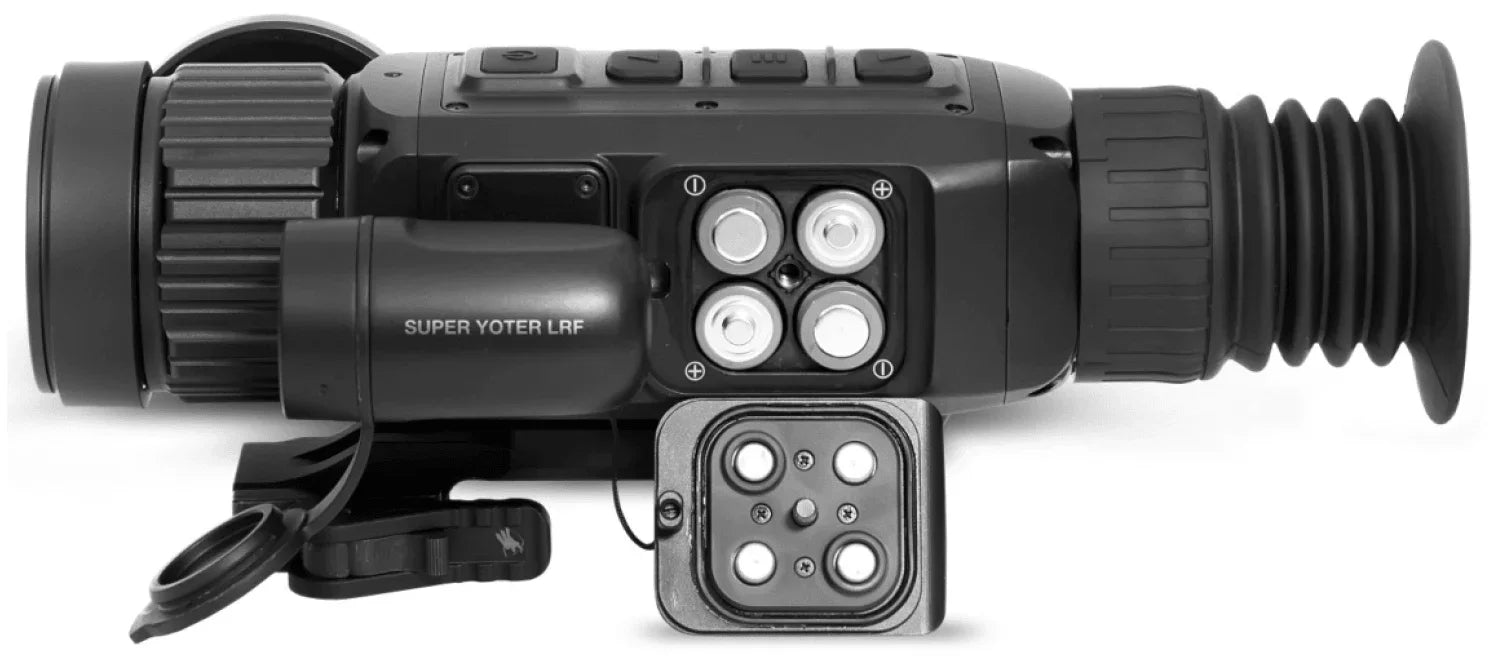

• Powered with rechargeable 1.5V Li-ion, 1.2V NiCad, 1.2V NiMH or 1.5V AA Alkaline batteries

• Laser Rangefinder to measure distances up to 1200 yards with exceptional accuracy ±1 yard

• 9 reticle patterns, including 4 BDC-type reticles

• Customized Reticle #9 with manually adjustable hashtags

• Reticle Customization App

• Excellent performer in high humidity

• Able to withstand strong recoil up to 6000 J.

• Picture-in-Picture function- 2X multiplied image on the top of the display

• Automatic shutter based thermal 12uμ VOx 640x480 core with Auto- or Manual calibration

• Switchable image polarity: White Hot / Black Hot / Red Hot / Rainbow / Highlight

• 4 color options for each reticle pattern

• Precise W/E adjustment increments is 0.54” at 3.0x (native magnification)

• Manual control of image sharpness, screen brightness, and image contrast

• Manual control image background balance of white (Cool or Warm) background

• Ability to save 4 profiles of zeroing calibration data

• A precise lens-focusing mechanism

• 5V DC external power supply option via the Magnetic port

• Blind Pixel repair tool option

• Standby mode

• Digital Compass

• Digital zoom rapid movement mode

• Digital zoom with 0.5x magnification movement mode

• Inclinometer

• Battery status indicator

• Nitrogen purged

• Video out

• 32Gb internal memory

• Built-in internal recording function in .mp4 (video) and .jpeg (image) formats

• Built-in microphone

• Timer

• Freeze Function for one shot zero

• Build-in magnetic port for video output and 5V DC external power connection

• Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)

• Quick-Detach (QD) Tactical lockable Picatinny mount (BE46550T) with guaranteed zero retention

• LaRue Tactical® Quick-Detach (QD) lockable mount (BE46550L) with guaranteed zero retention

• 4-year manufacturer’s transferable warranty on parts and labor

APPS app for Apple or for Android.

The HOGINATOR application is designed to configure the ballistic reticle #9 of the Super Yoter LRF at the preselected ranges. This setup ensures that the user has the most accurate reticle based on the rifle and ammo combination to quickly engage the target.

Bering Optics SUPER YOTER-R LRF 50mm Specifications

Product Modification

SUPER YOTER LRF

Product SKU#

BE46550T / BE46550L

Optical Magnification, x

3.0x

Digital Multiplication, X

2X, 3X, 4X, 6X, 8X

Objective lens system

50mmF/1.0

Angular FOV at 3.0x (horizontal x vertical), degree

9.0° x 7.0°

Eye relief, mm

46

Focus range, yard

1 to infinity

Diopter Adjustment, D

-5: +5

Reticle W/E increment value per pxl at a distance of 100m (110yds)

0.54” at 3.0x magnification

Core resolution, pxl

640 x 480

Pixel pitch, μm

12

Image refresh rate, Hz

50

Thermal Sensitivity (NETD), mK

≤ 35

Display type and resolution, pxl

OLED 1024 x 768

Start-up time, typical, sec.

20

Object type and size, approx., ft² / m²

Hog 7.5 / 0.7

Coyote 5.5 / 0.5

Detection, approx., yds / m

1650 /1500

1200 /1100

Recognition, approx., yds / m

990 /900

770 /700

Dimensions with QR mount, approx., in / mm

10.12 x 4.05 x 3.31 / 257 x 103 x 84

Weight w/out batteries, approx., oz/g

28 / 782

Power supply

1.5V rechargeable AA (four) or 1.2V rechargeable AA (four) or 1.5V non-rechargeable AA (four) or 5V DC Magnetic port

Estimated battery life without LRF (at 72°F) *, hour

1.5V Li-ion 3000mAh, 4.0

1.2V NiMH 2800mAh, 3.5

1.2V NiCad 2300mAh, 1.0

1.5V AA Alkaline 2.0

Operating temperature, typical, °F/°С

-14° to +122° / -25° to +50°

Water intrusion

IP67

Humidity, %

up to 98%

NOTE: *Battery life may vary depending on battery capacity, ambient temperature, and the number of product features activated (Wi-Fi, video recording, brightness settings).



KIT INCLUDES

• SUPER YOTER LRF™ 3.0-24.0x50mm, 12uμ VOx 640x480 Thermal Weapon Sight

• Standard QD mount or Larue Tactical QD mount

• Front lens protective cap

• Rubber eye guard

• 4pcs of 1.5V AA batteries

• Magnetic cable

• 2pcs Self-Heated target

• Carrying Case with a shoulder strap

• Lens Cleaning Cloth

• Instruction Manual

OPTIONAL ACCESSORIES

• 4pcs rechargeable 1.5V Li-ion 3000mAh batteries

• Charger for 1.5V Li-ion rechargeable batteries

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
