ELCAN SpecterDR Rifle Scope 1X-4X BLACK (5.56) CX5395 Reticle, ARMS Mnt, ARD, FC DFOV4-B146-C10
The ELCAN SpecterDR 1x/4x is a cutting-edge dual-role optical sight designed with integrated Picatinny rails, ambidextrous magnification throw levers, enhanced battery covers, and durable CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE).

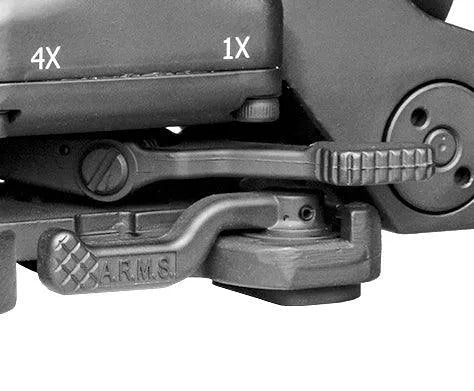

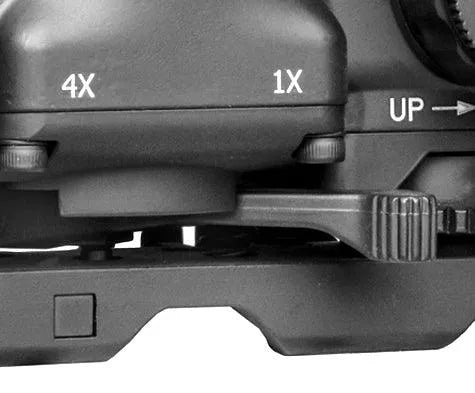

As the world’s first true dual-field-of-view combat optical sight, the SpecterDR 1-4x allows users to switch seamlessly from a 4x magnified sight to a 1x CQB sight with a simple throw of a lever. Unlike traditional zoom optics, it offers an optimized optical path and maintains identical eye relief in both magnification modes.
Users can choose between illuminating the full crosshair or just a bright red dot in the center, depending on the scenario. In 1x mode, the SpecterDR boasts the largest field of view in the industry for close-quarter engagements. In 4x mode, it provides a generous field of view, long eye relief, and the ELCAN reputation for crystal-clear image quality.
Designed to meet the demands of modern professional use, the SpecterDR 1-4x is the ultimate single solution for both medium-range and CQB engagements.
Optional XOPTEK™ Micro Reflex Sight

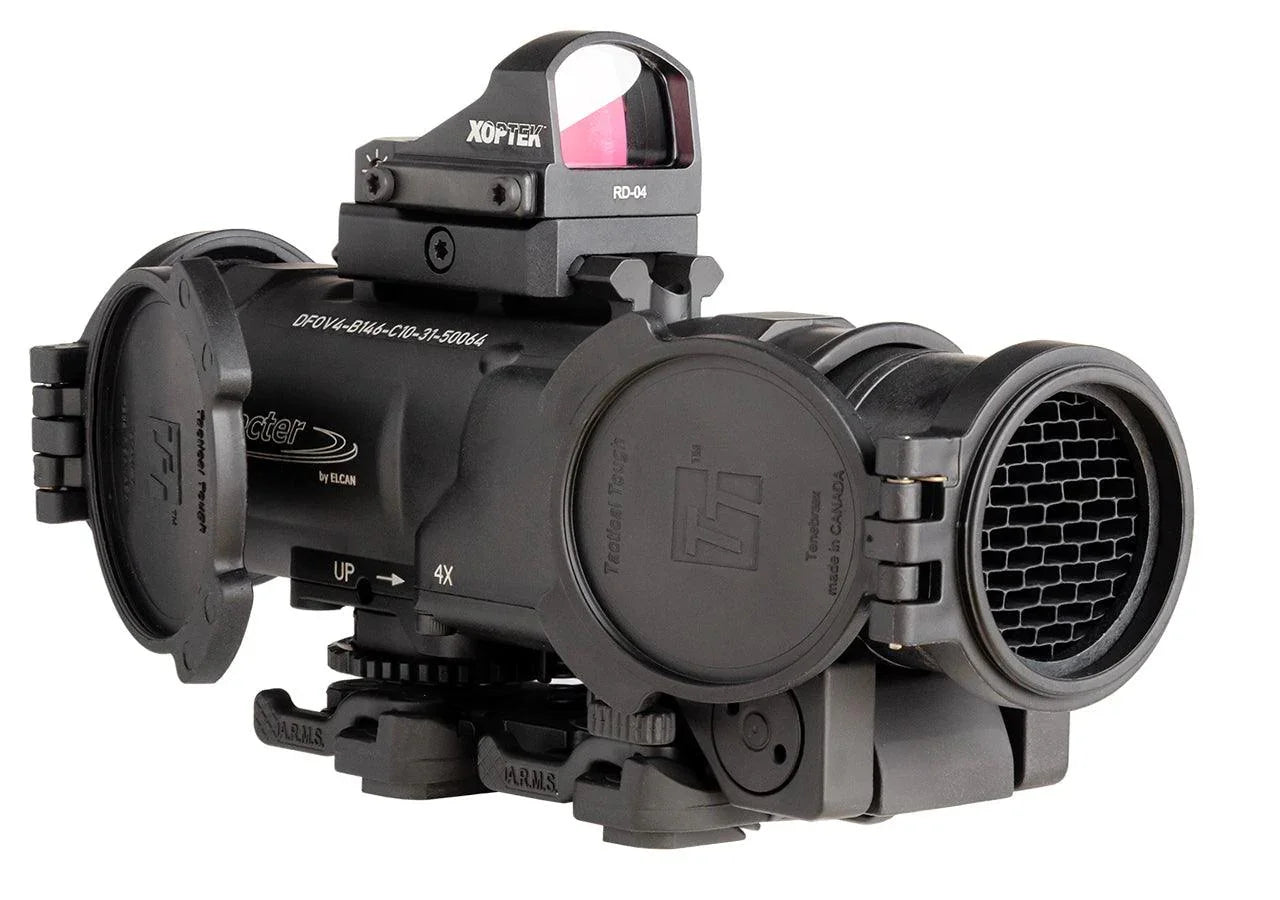

Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1-4. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user's field of view to act as a precise aiming point for close to mid-range targets.
ELCAN SpecterDR Specifications:
|
Feature
|
Specification
|
|
Magnification
|
4x / 1x
|
|
Length
|
153mm nominal
|
|
Width
|
68mm nominal
|
|
Height
|
72mm nominal
|
|
Weight
|
655g nominal
|
|
Reticle
|
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
|
|
Aiming Dot diameter
|
1.5 MoA @ 4x, 6 MoA @ 1x
|
|
Ballistic correction:
|
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
|
|
DFOV14-C1:
|

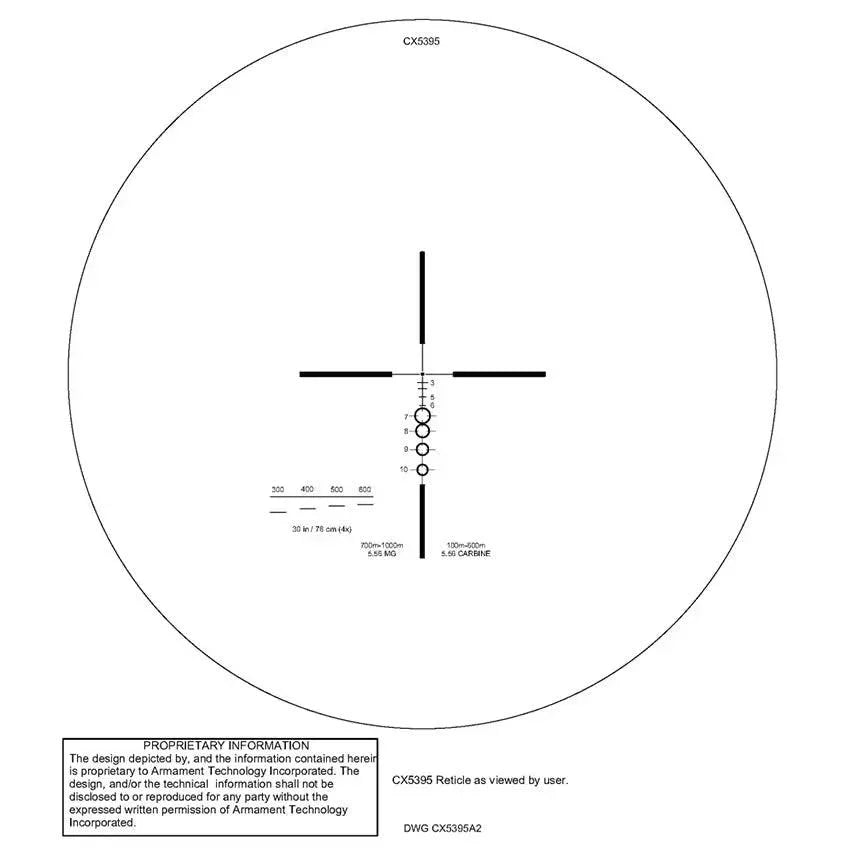

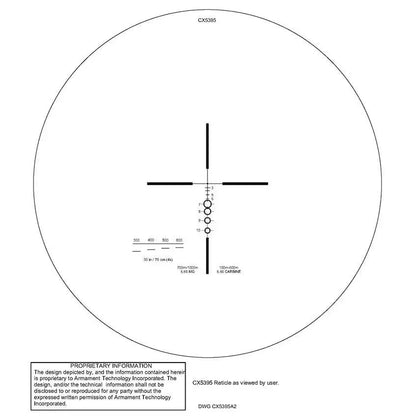

CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG
|
|
DFOV14-C2:
|
CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG
|
|
CQB offset
|
<44mm @ 60m
|
|
Field of View
|
26 deg @ 1x, 6.5 deg @ 4x
|
|
FoV @4x
|
11.4 m @ 100 m (34.2 ft @ 100 yds)
|
|
FoV @1x
|
48.8 m @ 100 m (146.3 ft @ 100 yds)
|
|
Illumination source
|
Battery-powered LED
|
|
Crosshair illumination
|
5 settings, AN/PVS-22 compatible
|
|
Red Dot illumination
|
5 settings, AN/PVS-22 compatible
|
|
Eye Relief
|
70mm
|
|
Entrance pupil
|
32mm
|
|
Exit pupil
|
8mm
|
|
Nominal focus
|
150m @ 4x, 70m @ 1x
|
|
Fixed focus range
|
20m to infinity
|
|
Battery type
|
CR2032 (3v Lithium)
|
|
Battery life
|
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
|
|
Exterior finish
|
CERAKOTE® performance finish in Black or Flat Dark Earth (FDE)
|
|
Adjustment resolution
|
0.5 minute of angle
|
|
Adjustment range
|
120 minutes of angle
|
|
Base requirement
|
Mil-Std-1913 ‘Picatinny Rail’
|
|
Attachment
|
A.R.M.S. Levers
|
|
Shockproof:
|
450 g’s
|
