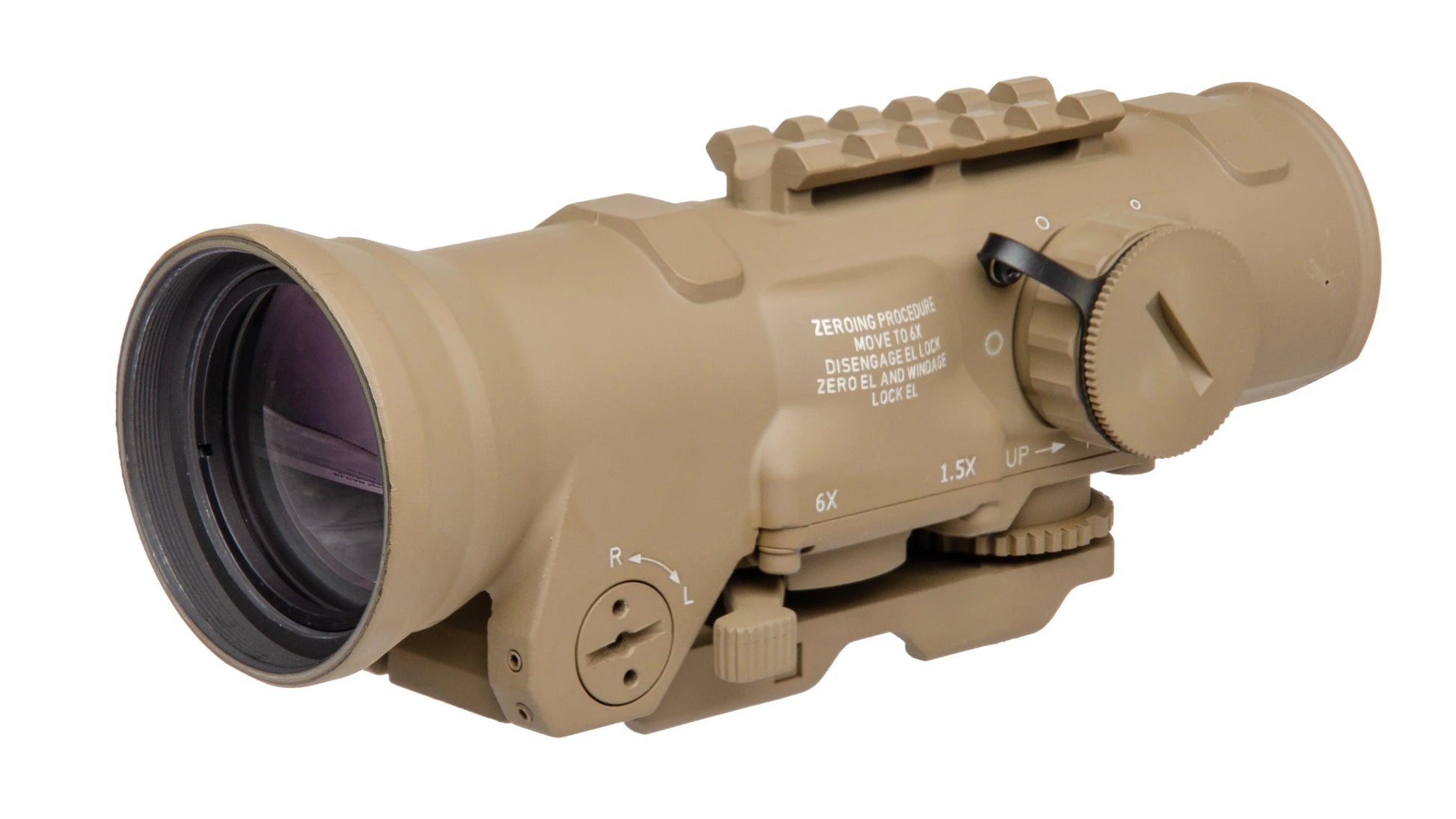

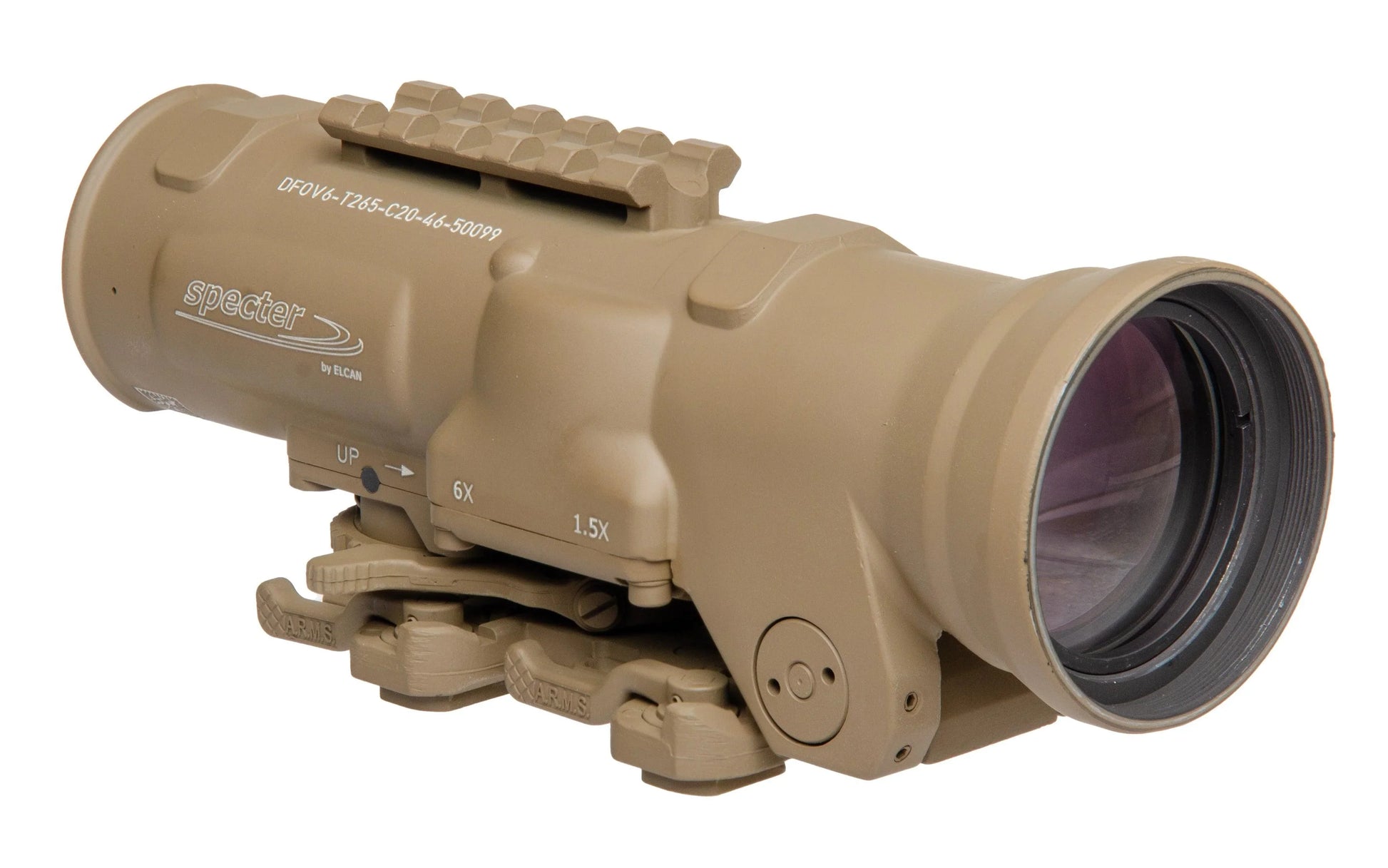

ELCAN SpecterDR Rifle Scope 1.5-6X TAN (5.56) CX5455 Reticle, ARMS Mnt, ARD, FC DFOV6-T265-C10
The ELCAN SpecterDR 1.5x/6x is a second-generation dual-role optical sight, offering enhanced magnification and features for long-range precision and close-quarters versatility. Equipped with integrated Picatinny rails, ambidextrous magnification throw levers, improved battery covers, and durable CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE), this sight is built for demanding conditions.
Based on the battle-proven SpecterDR design, the SpecterDR 1.5x/6x delivers higher magnification for extended engagement ranges while maintaining a wide field of view in 1.5x CQB mode. It features ELCAN’s renowned crystal-clear optics and generous eye relief, making it ideal for designated marksman rifles and long-range applications. The magnification can be instantly switched between 1.5x and 6x with the throw of a lever.
For user adaptability, the sight offers the option to illuminate either the entire crosshair or just a brilliant red dot in the center. The reticles are etched in glass, ensuring visibility even in case of battery failure or an EMP event, providing reliable performance under any circumstances.
Optional XOPTEK™ Micro Reflex Sight
Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1x/4x. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user's field of view to act as a precise aiming point for close to mid-range targets.
The SpecterDR family offers the best single solution for Long Range and CQB engagements and is designed to withstand the rigors of modern professional use.
ELCAN SpecterDR Specifications:
|
Feature
|
Specification
|
|
Magnification
|
6x / 1.5x
|
|
Length
|
183mm nominal
|
|
Width
|
69mm nominal
|
|
Height
|
73mm nominal
|
|
Weight
|
715g nominal
|
|
Reticle
|
Dual-thickness ballistic crosshair with user-selectable red dot and VSOR rangefinder
|
|
Aiming Dot diameter
|
1.5 MoA @ 6x, 6 MoA @ 1.5x
|
|
Ballistic correction:
|
|
|
DFOV156-C1:
|

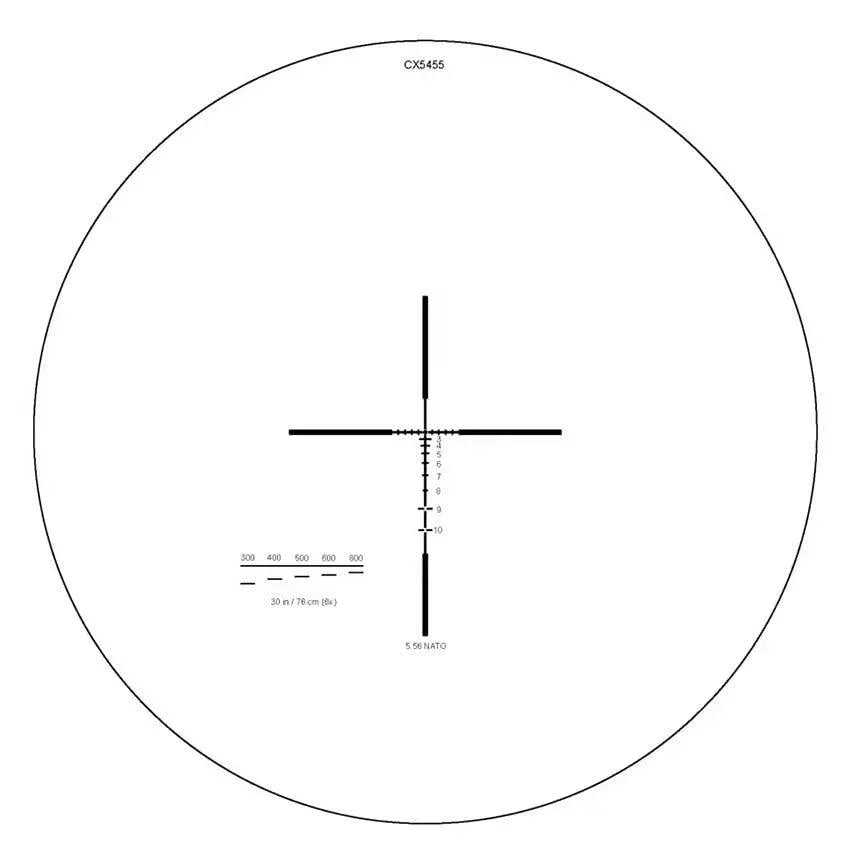

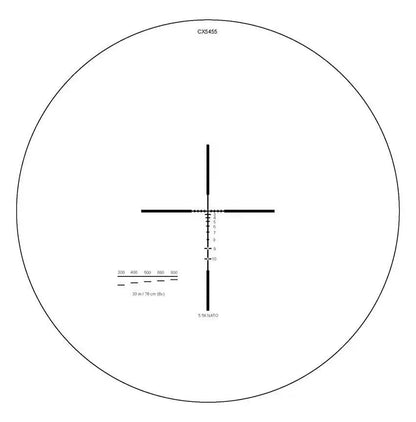

CX5455 reticle: 100-1000m for 5.56 NATO
|
|
DFOV156-C2:
|
CX5456 reticle: 100-1000m for 7.62 NATO
|
|
CQB offset
|
<44mm @ 60m
|
|
Field of View
|
16 deg @ 1.5x, 4 deg @ 6x
|
|
FoV @ 6x
|
7 m @ 100 m (21 ft @ 100 yds)
|
|
FoV @ 1.5x
|
28.7 m @ 100 m (86 ft @ 100 yds)
|
|
Illumination source
|
Battery-powered LED
|
|
Crosshair illumination
|
5 settings, AN/PVS-22 night vision compatible
|
|
Red Dot illumination
|
5 settings, AN/PVS-22 night vision compatible
|
|
Eye Relief
|
70 mm
|
|
Entrance pupil
|
42mm
|
|
Exit pupil
|
7mm
|
|
Nominal focus
|
300m @ 6x, 105m @ 1.5x
|
|
Fixed focus range
|
20m to infinity
|
|
Battery type
|
CR2032 (3v Lithium)
|
|
Battery life
|
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
|
|
Exterior finish
|
CERAKOTE® performance finish in Black or Flat Dark Earth (FDE)
|
|
Adjustment resolution
|
0.5 minute of angle
|
|
Adjustment range
|
120 minutes of angle
|
|
Base requirement
|
Mil-Std-1913 ?Picatinny Rail? (Weaver compatible)
|
|
Attachment
|
ARMS Levers
|
|
Shockproof:
|
450 g's
|
|
Available accessorys
|

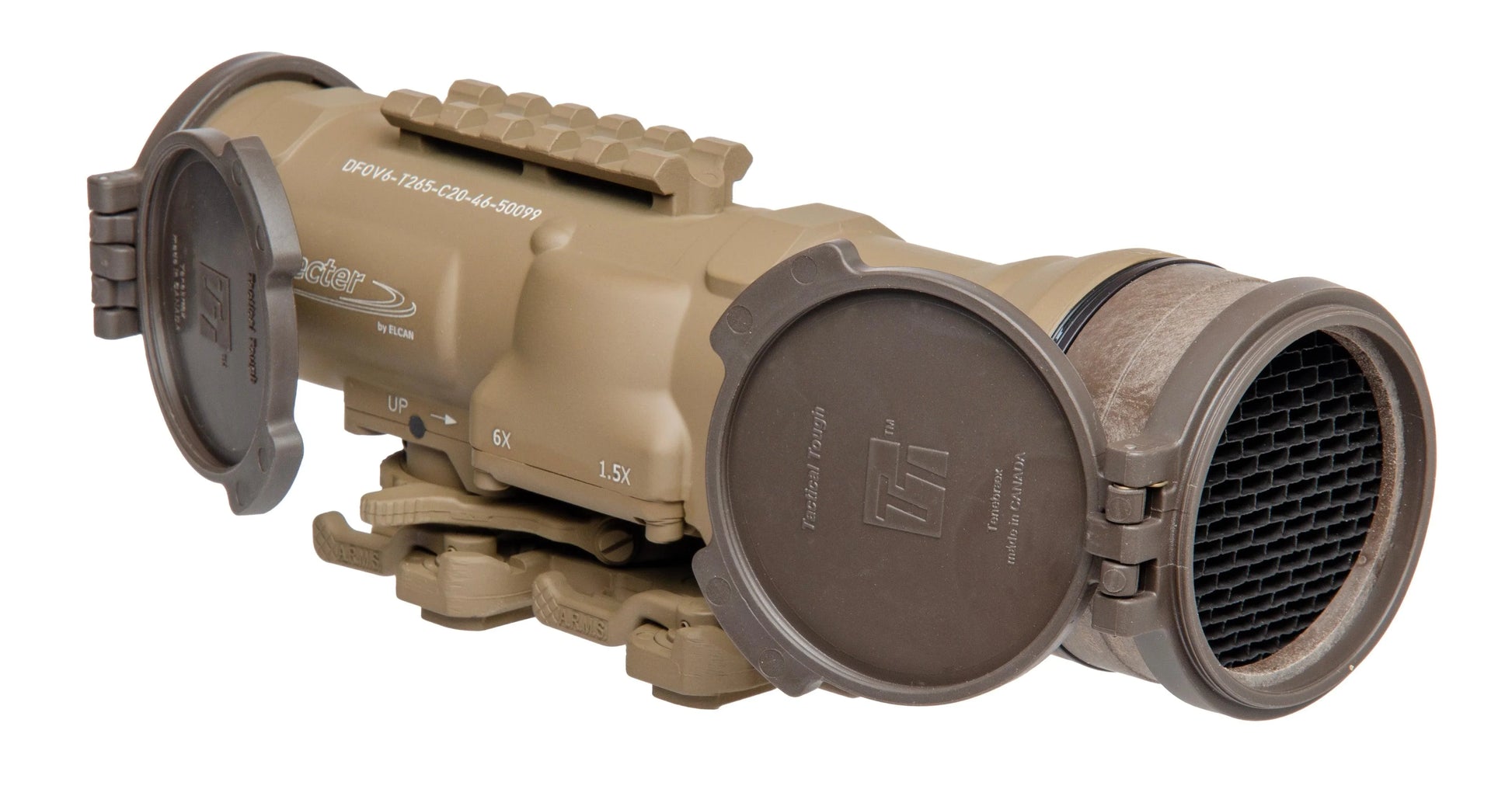

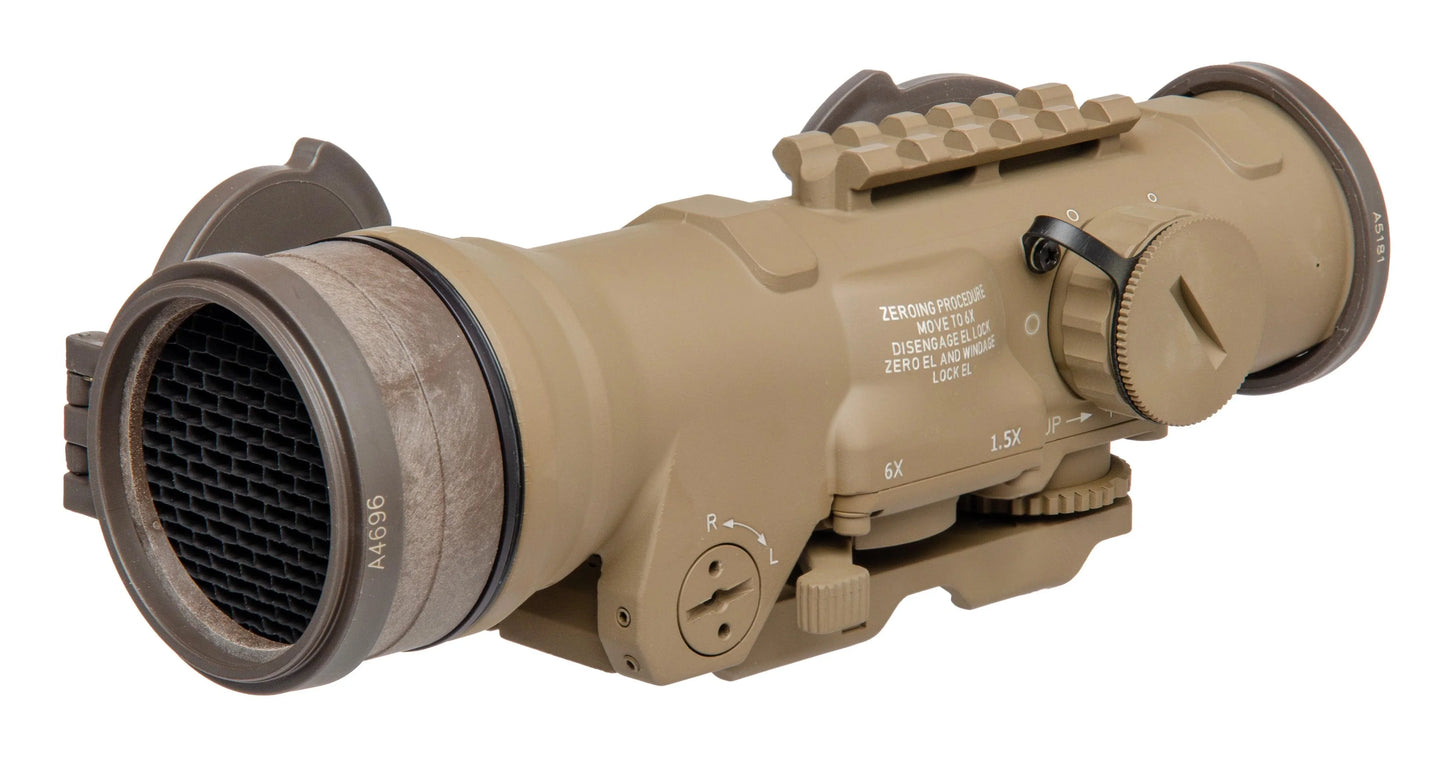

ARD (Anti-Reflection Device) Flip Covers
|
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
