SKU:DFOV4-B146-C20
Couldn't load pickup availability

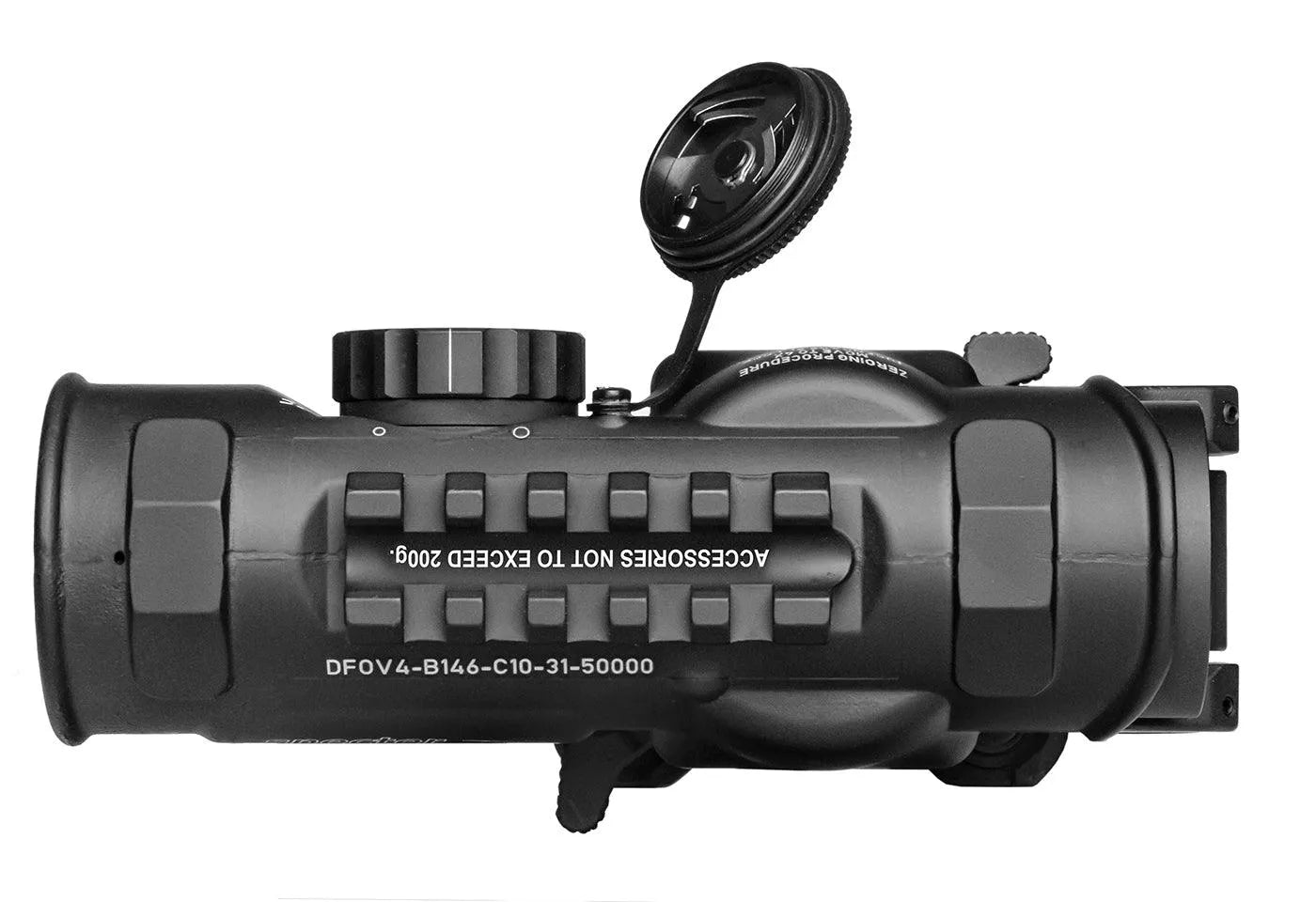

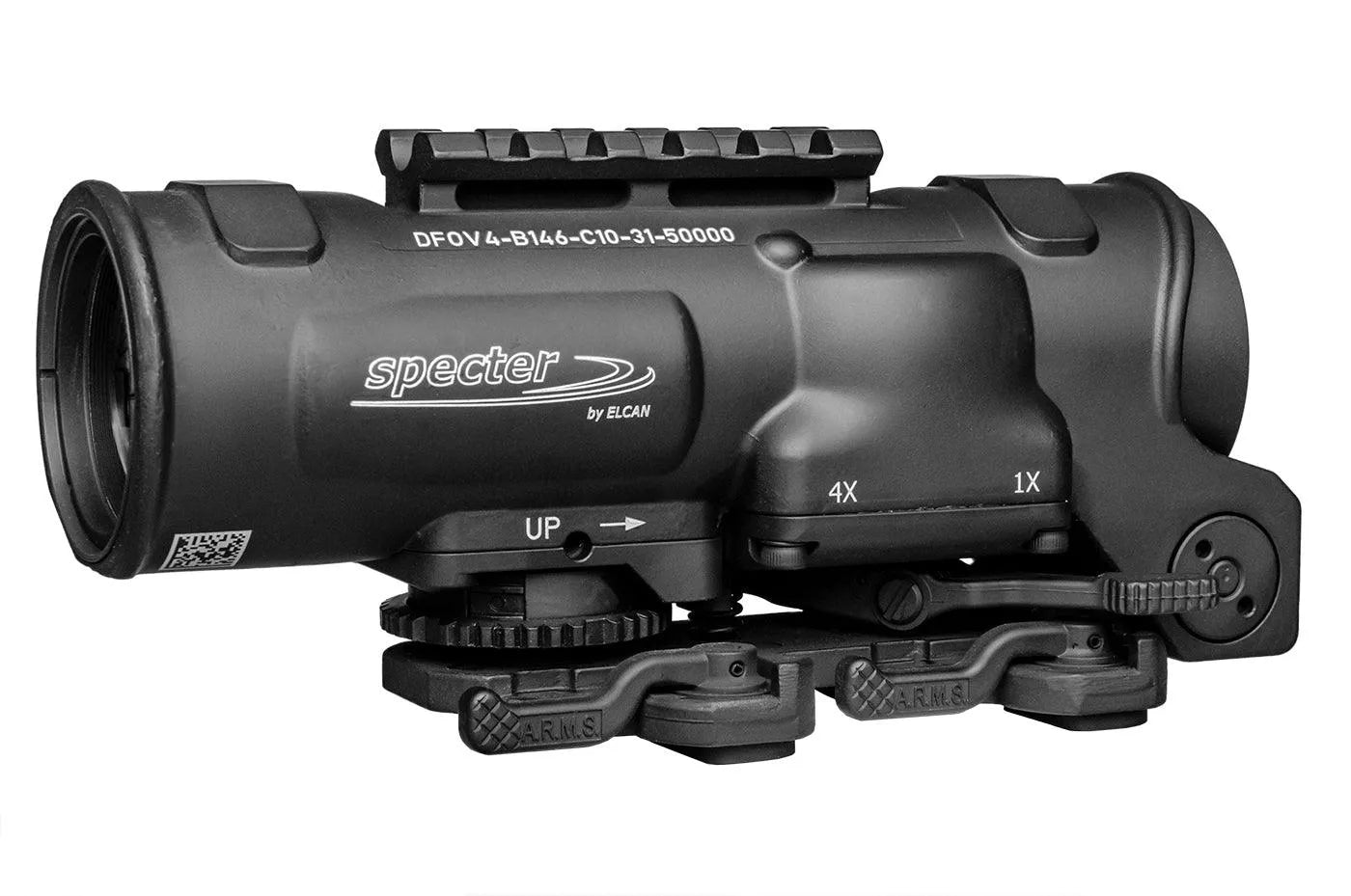

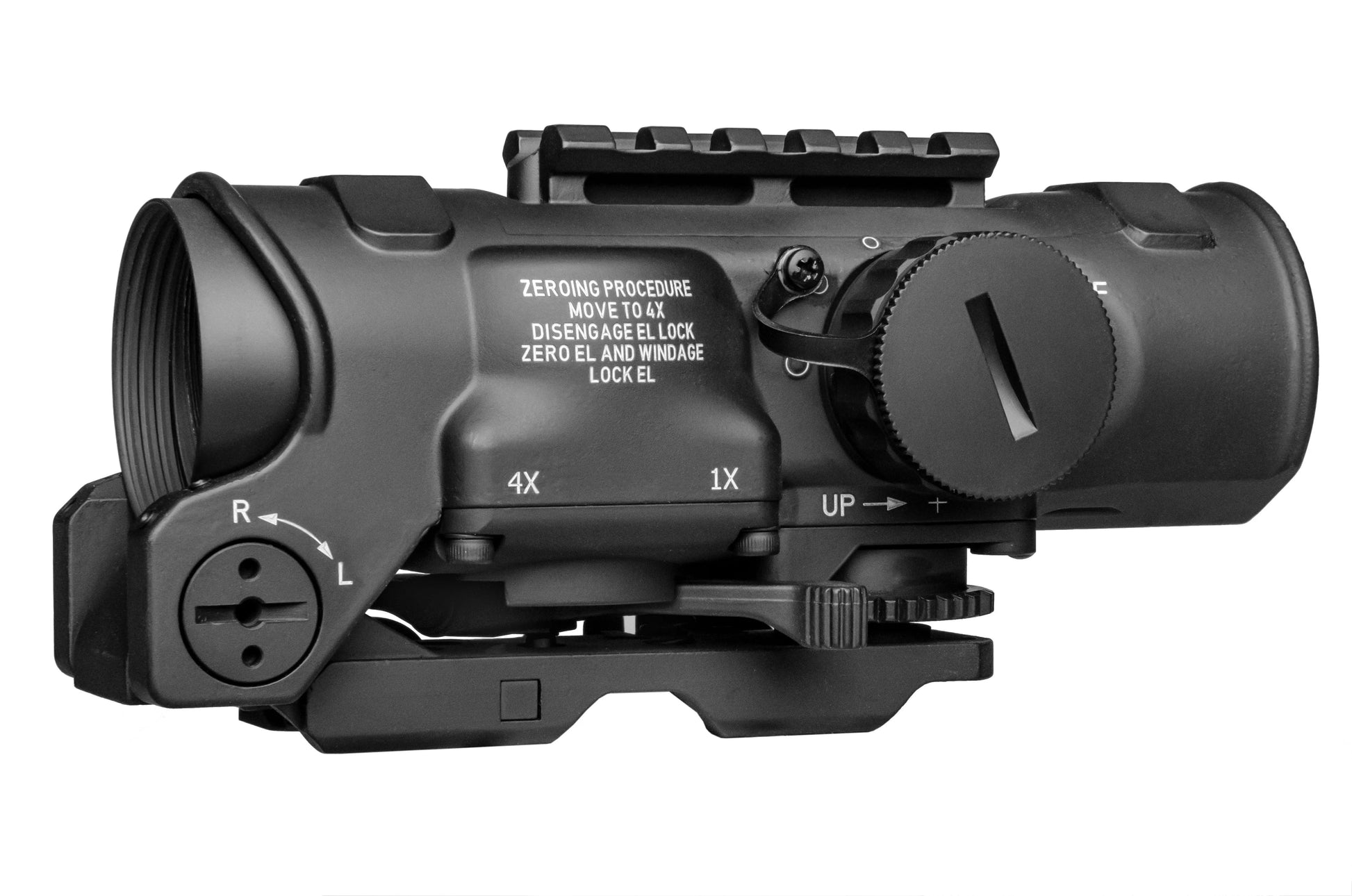

The ELCAN SpecterDR 1.5x/6x is a second-generation dual-role optical sight, offering enhanced magnification and features for long-range precision and close-quarters versatility. Equipped with integrated Picatinny rails, ambidextrous magnification throw levers, improved battery covers, and durable CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE), this sight is built for demanding conditions.

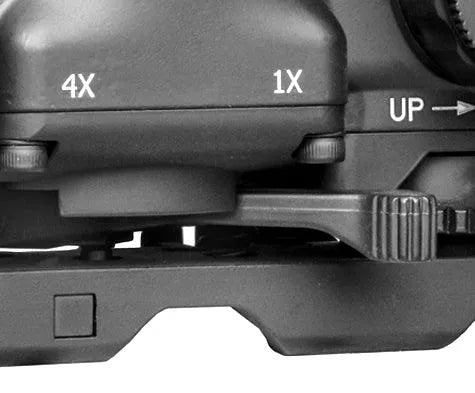

Based on the battle-proven SpecterDR design, the SpecterDR 1.5x/6x delivers higher magnification for extended engagement ranges while maintaining a wide field of view in 1.5x CQB mode. It features ELCAN’s renowned crystal-clear optics and generous eye relief, making it ideal for designated marksman rifles and long-range applications. The magnification can be instantly switched between 1.5x and 6x with the throw of a lever.
For user adaptability, the sight offers the option to illuminate either the entire crosshair or just a brilliant red dot in the center. The reticles are etched in glass, ensuring visibility even in case of battery failure or an EMP event, providing reliable performance under any circumstances.

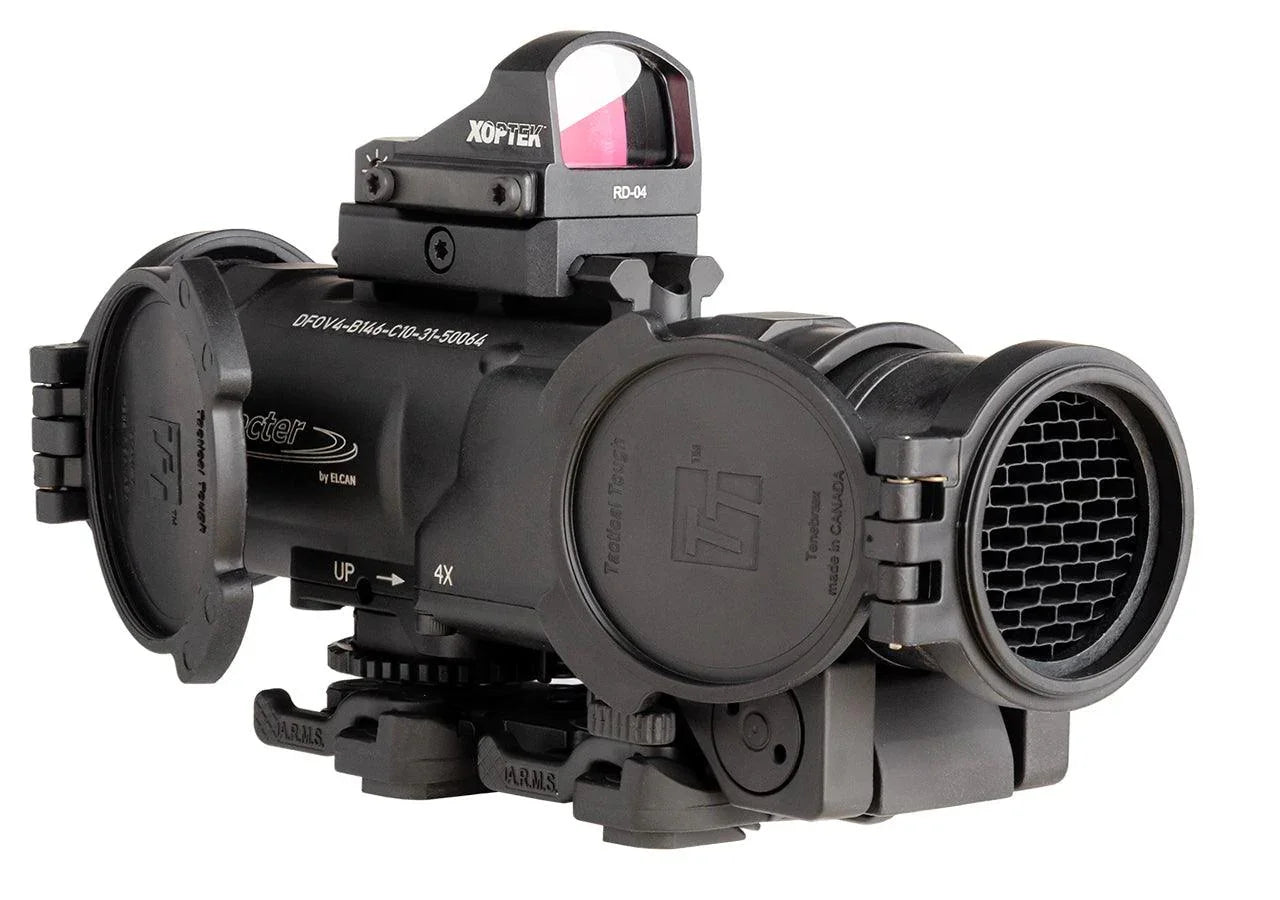

Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1-4. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user's field of view to act as a precise aiming point for close to mid-range targets.
ELCAN SpecterDR Specifications:
Feature |
Specification |
Magnification |
4x / 1x |
Length |
153mm nominal |
Width |
68mm nominal |
Height |
72mm nominal |
Weight |
655g nominal |
Reticle |
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
Aiming Dot diameter |
1.5 MoA @ 4x, 6 MoA @ 1x |
Ballistic correction: |
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
DFOV14-C1: |
CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG |
DFOV14-C2: |

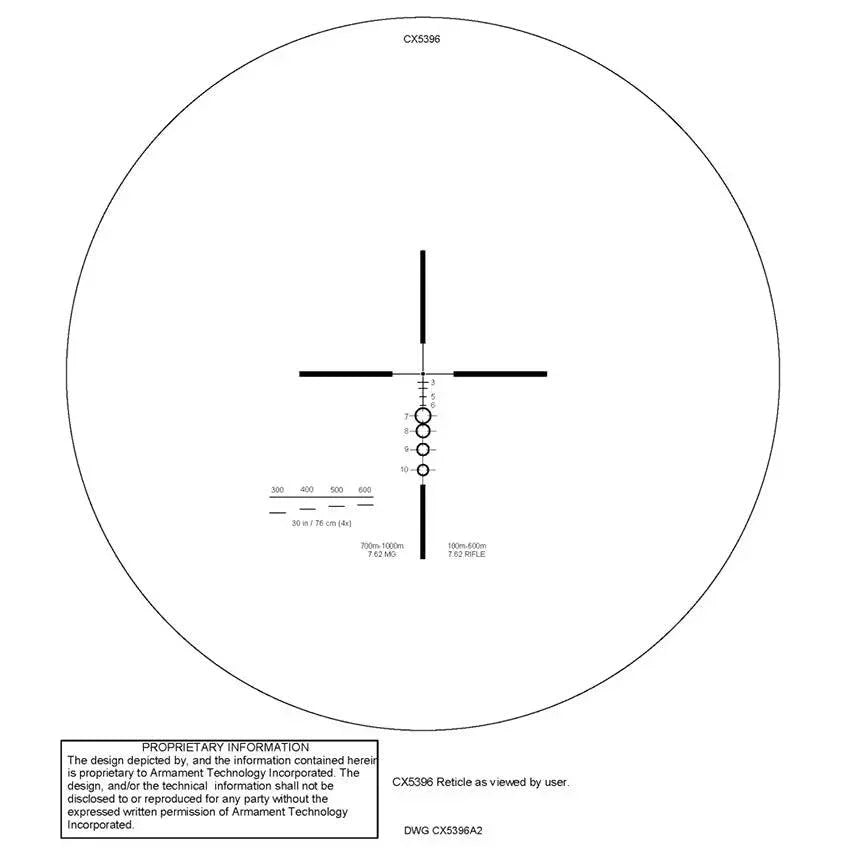

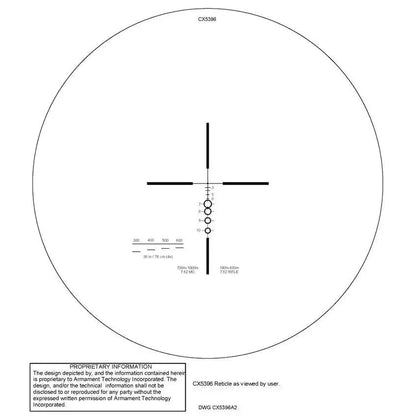

CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG |
CQB offset |
<44mm @ 60m |
Field of View |
26 deg @ 1x, 6.5 deg @ 4x |
FoV @4x |
11.4 m @ 100 m (34.2 ft @ 100 yds) |
FoV @1x |
48.8 m @ 100 m (146.3 ft @ 100 yds) |
Illumination source |
Battery-powered LED |
Crosshair illumination |
5 settings, AN/PVS-22 compatible |
Red Dot illumination |
5 settings, AN/PVS-22 compatible |
Eye Relief |
70mm |
Entrance pupil |
32mm |
Exit pupil |
8mm |
Nominal focus |
150m @ 4x, 70m @ 1x |
Fixed focus range |
20m to infinity |
Battery type |
CR2032 (3v Lithium) |
Battery life |
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting |
Exterior finish |
CERAKOTE® performance finish in Black or Flat Dark Earth (FDE) |
Adjustment resolution |
0.5 minute of angle |
Adjustment range |
120 minutes of angle |
Base requirement |
Mil-Std-1913 ‘Picatinny Rail’ |
Attachment |

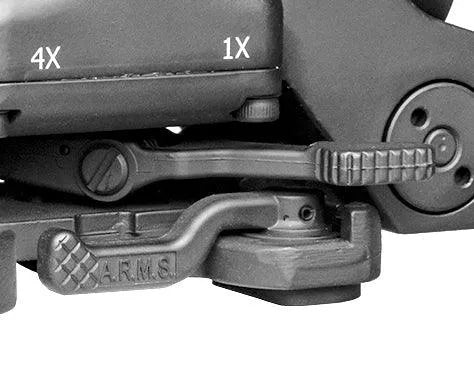

A.R.M.S. Levers |
Shockproof: |
450 g’s |
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
