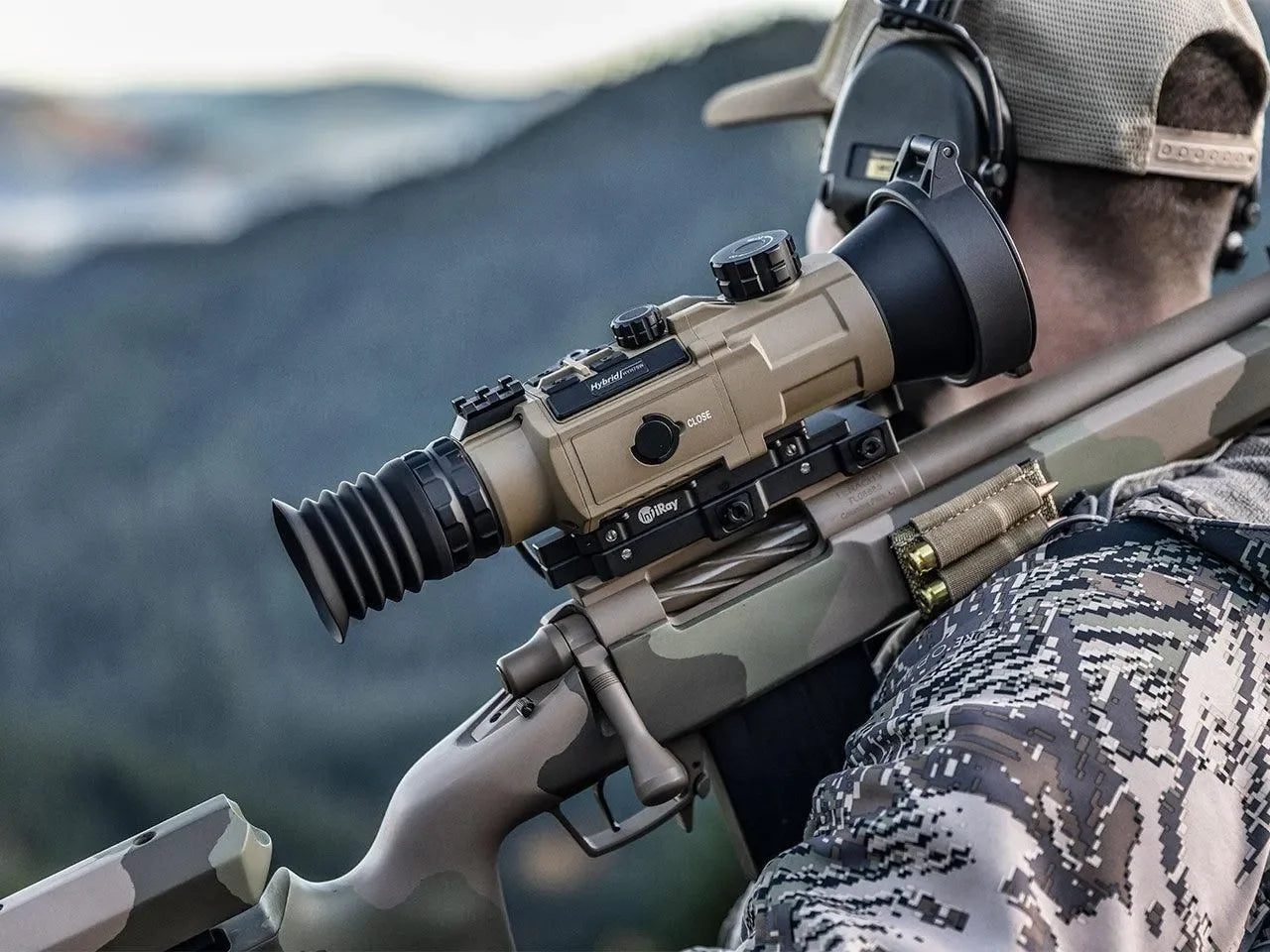

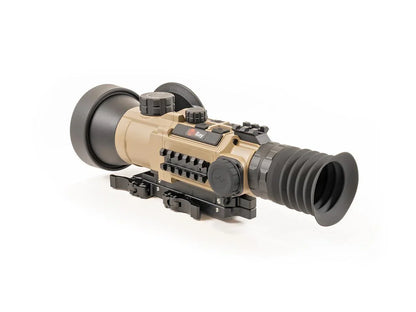

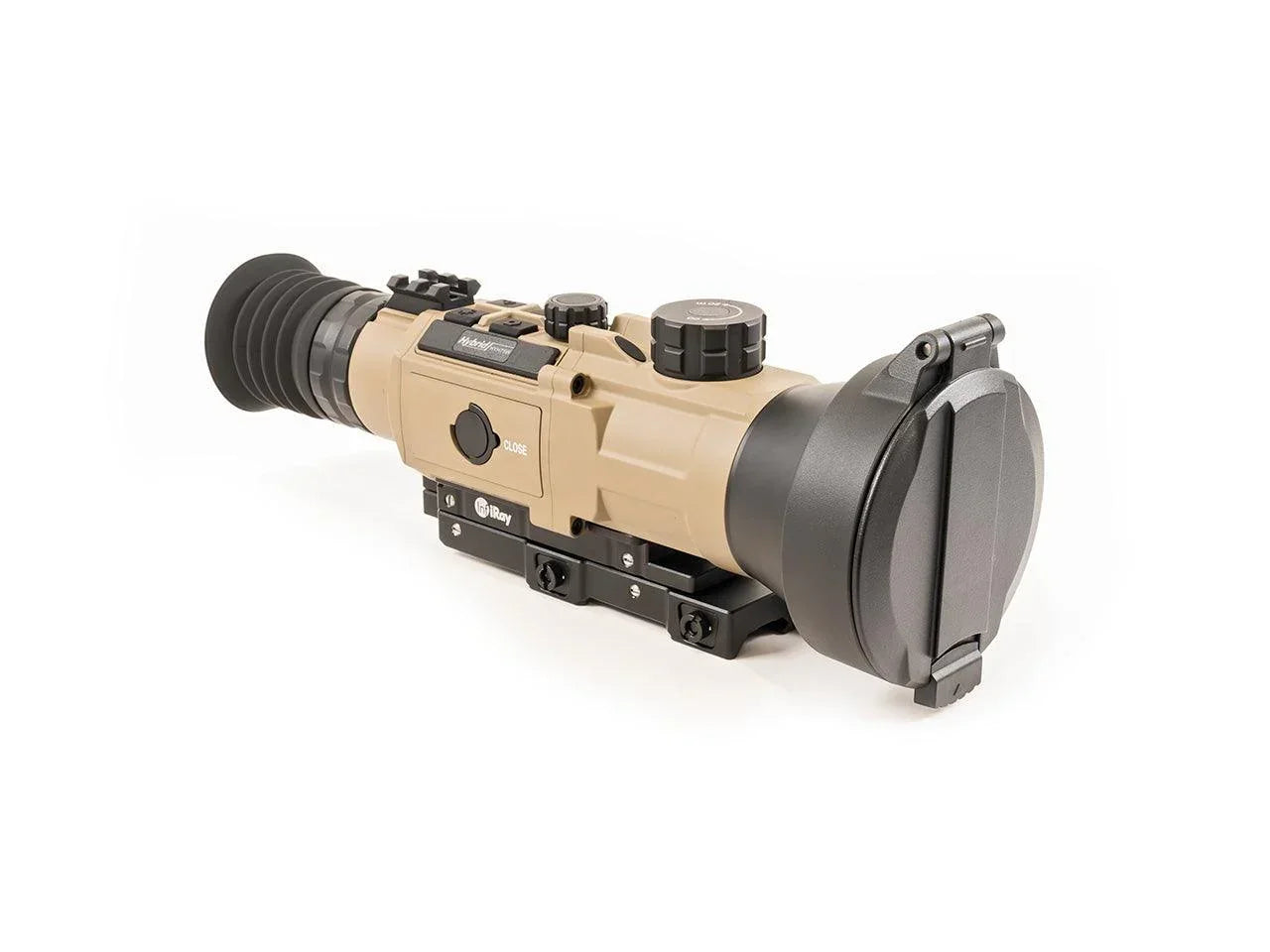

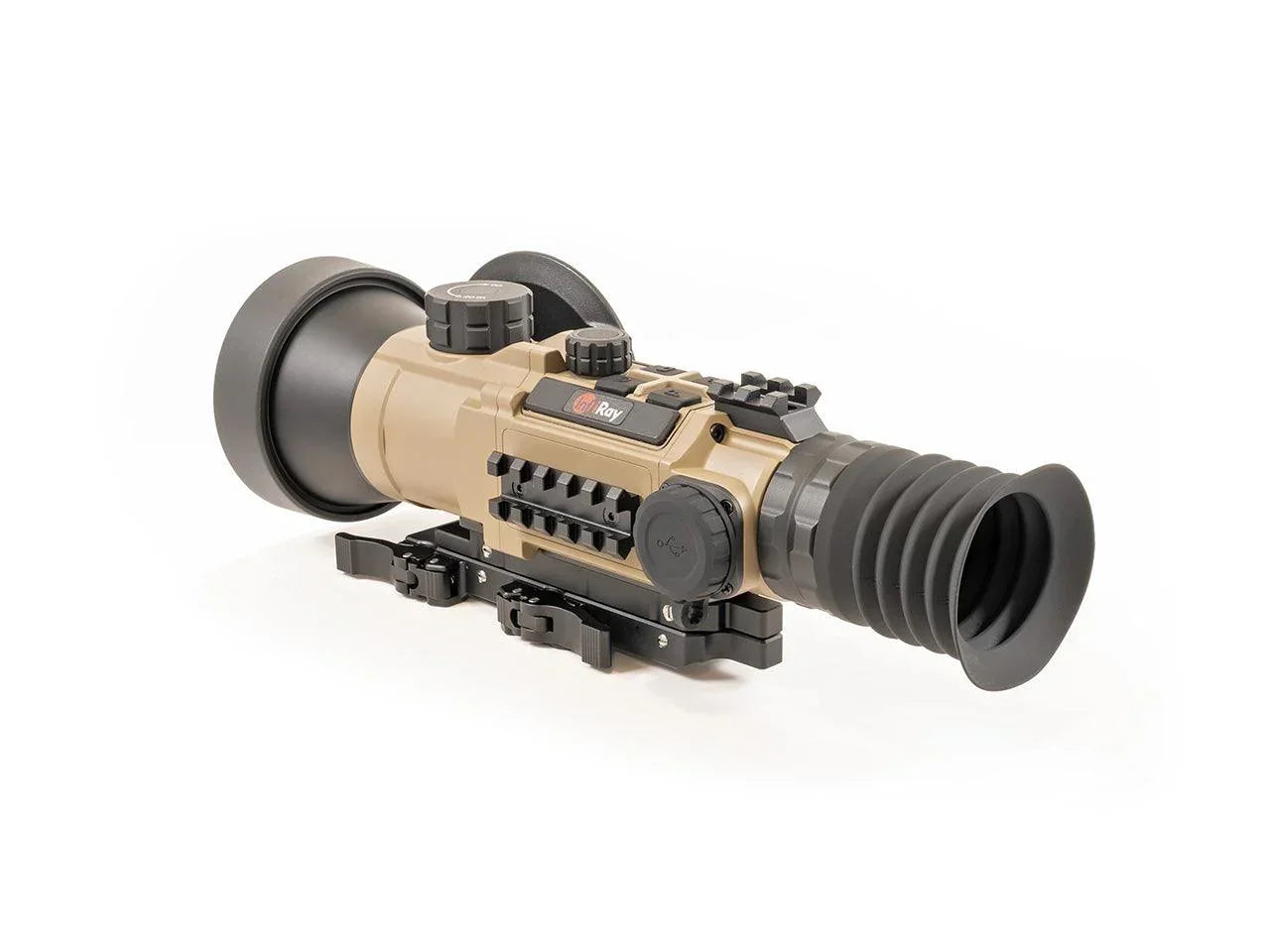

InfiRay Outdoor RICO HYBRID 640 4X 75mm Multi-Function Thermal Weapon Sight/Clip On IRAY-HYH75W

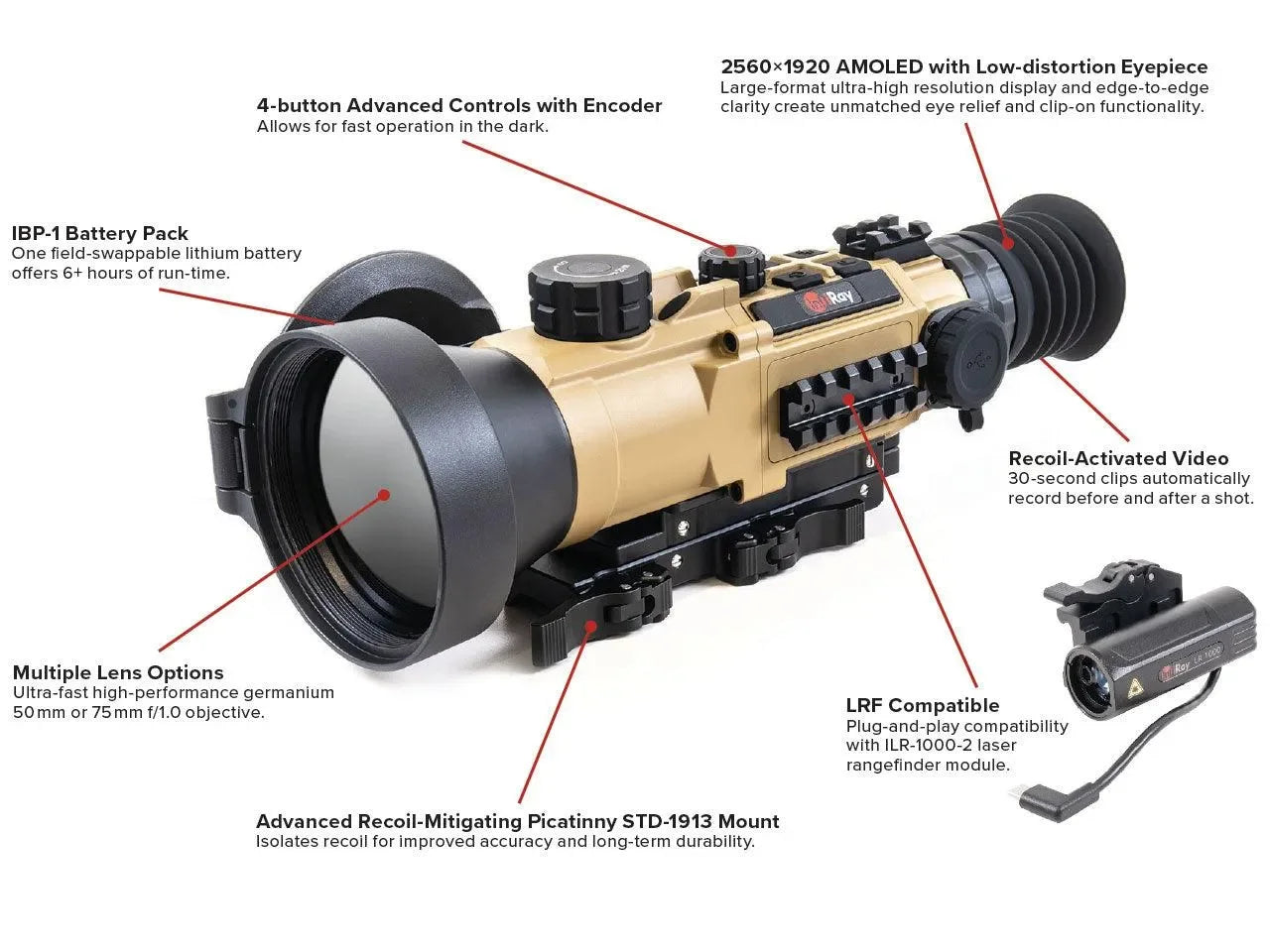

The InfiRay Outdoor RICO HYBRID seamlessly combines the functions of a thermal clip-on and a thermal weapon sight, offering unmatched versatility and performance. It features an impressive 3,600-yard detection range as a dedicated thermal sight, or it can be used with day optics up to 10× magnification as an inline clip-on. The HYBRID's low-distortion orthoscopic eyepiece, paired with a 1.03-inch large-format 2560×1920 display, ensures comfortable, clear viewing in both dedicated and clip-on modes, while maintaining high pixel density and resolution.
In addition to its dual functionality, the HYBRID introduces advanced capabilities, such as compatibility with a 1,000-yard laser rangefinder, a custom reticle generator, Bluetooth remote control, and an onboard ballistic solver.
The ILR-1000-2 Laser Rangefinder (AC82) connects to the HYBRID via USB-C, providing real-time range data. This data can be integrated with user-supplied ballistics information to apply hold-over adjustments on a custom reticle for precision targeting.
Please Note: Both the HYH50W and HYH75W models use the IBP-1 type battery (4400mAh). The IBP-1 batteryincluded with the HYH50W is the same as the one used in the RICO Mk1 and RICO Pro Series. However, the HYH75W comes with an enhanced IBP-1 battery that features an FDE ceramic-coated finish and improved ingress protection. While the HYH75W can run on the original IBP-1 battery, it will not maintain IP67 weatherproof status in that configuration. For optimal performance, always use the batteries that shipped with your product.
InfiRay Outdoor RICO HYBRID HYH75W Features:
|
Device Technology:
|
Thermal Imaging
|
|
Objective Focal Length:
|
75mm
|
|
Sensor Pixel Size:
|
12μm
|
|
Sensor Frame Rate:
|
50hz
|
|
Detection Range:
|
3600 Yards
|
|
Sensor Resolution:
|
640×512
|
|
Optical Magnification:
|
4X
|
|
Digital Magnification:
|
8X, stepped
|
|
Onboard Recording:
|
Yes
|
Data Sheet
InfiRay Outdoor RICO HYBRID HYH75W Specifications:
SENSOR
Resolution 640x512
Pixel Size 12 μm
Frame Rate 50hz
Sensor Sensitivity ≤25 mK
Image Processing MATRIX III
Core InfiRay Micro II 640
OPTICS
Objective Lens 75 mm f/1.0
Magnification 4x
Digital Zoom 8x
Field of View 5.9 x 4.4
Detection Range 3600 Yards
Display Type 1.03-inch Large-format AMOLED
Display Resolution 2560x1920
Color Palettes White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
Reticle Types 9 (7 Static, 1 DIY, 1 BDC)
Reticle Colors Black, White, Red, Green, Blue
Mounting System Picatinny MIL-STD 1913 Rail
P.I.P. Yes
Rangefinder ILR-1000-2 LRF (Optional/Not Included)
Eye Relief 60 mm
Diopter Range -4 to +2
ELECTRONICS
Onboard Recording Video, Recoil-Activated Video, and Image
Onboard Storage 64 GB
Wireless Connectivity Image and Video via App.
Data/Power Connector USB-C
Power Supply USB-C External, IBP-1H Li-ion Battery Pack (6+ Hours)
Start Up Time <10 Seconds, Instant from Standby
PHYSICAL
Size 12.20” x 4.13” x 3.58”
Weight 45.08 Oz
ENVIRONMENTAL/WARRANTY
Warranty 5 Years
Housing Material Magnesium
Ingress Protection IP67
Operation Temperature -4F~122F
Max. Recoil 1000 g/s. (300 Win./7mm Mag)

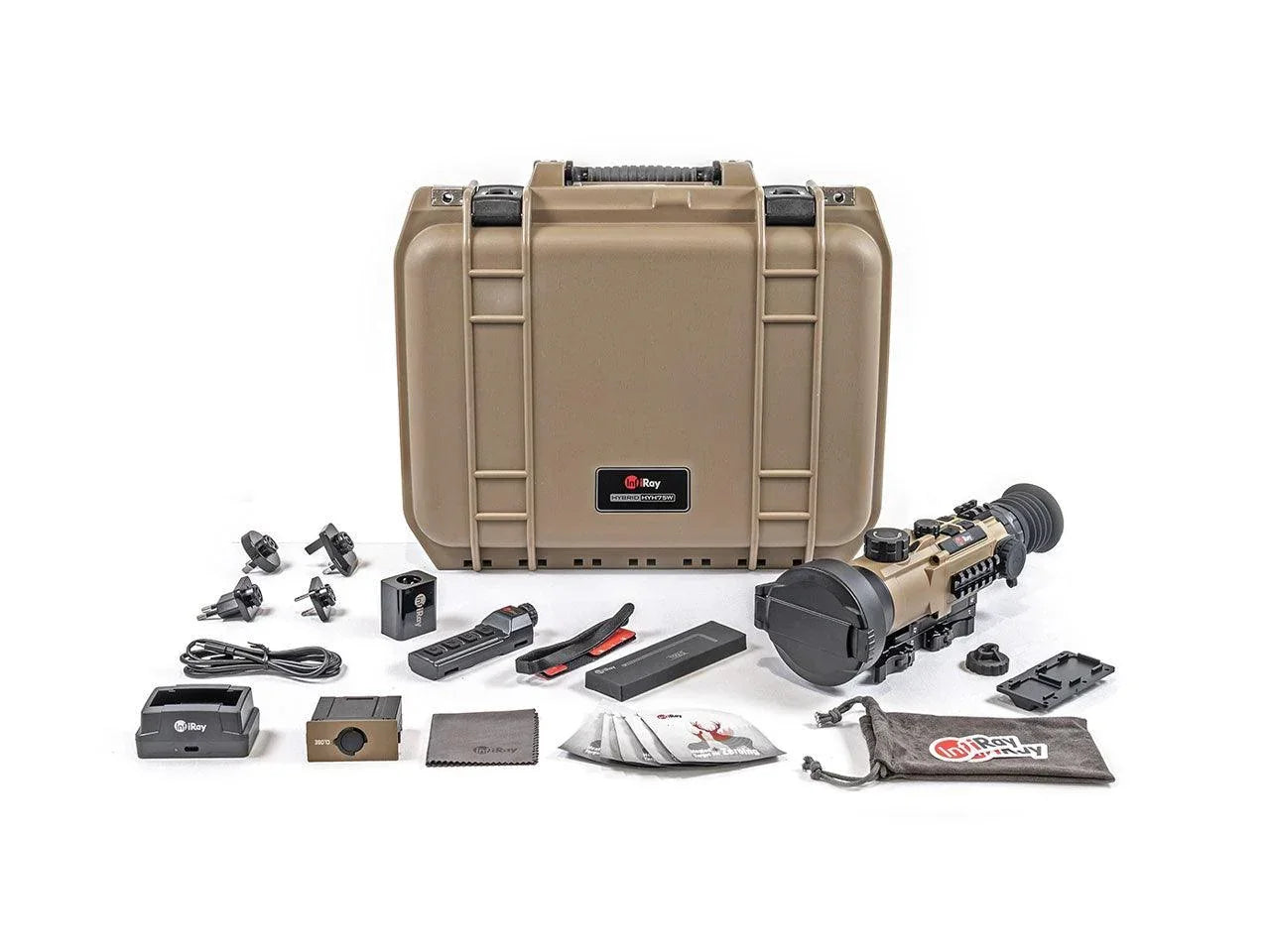

The RICO HYBRID HYH75W rifle scope ships with everything you need to get out and hunt.
• 75mm Objective Lens Cap
• Standard Rubber Eyeguard

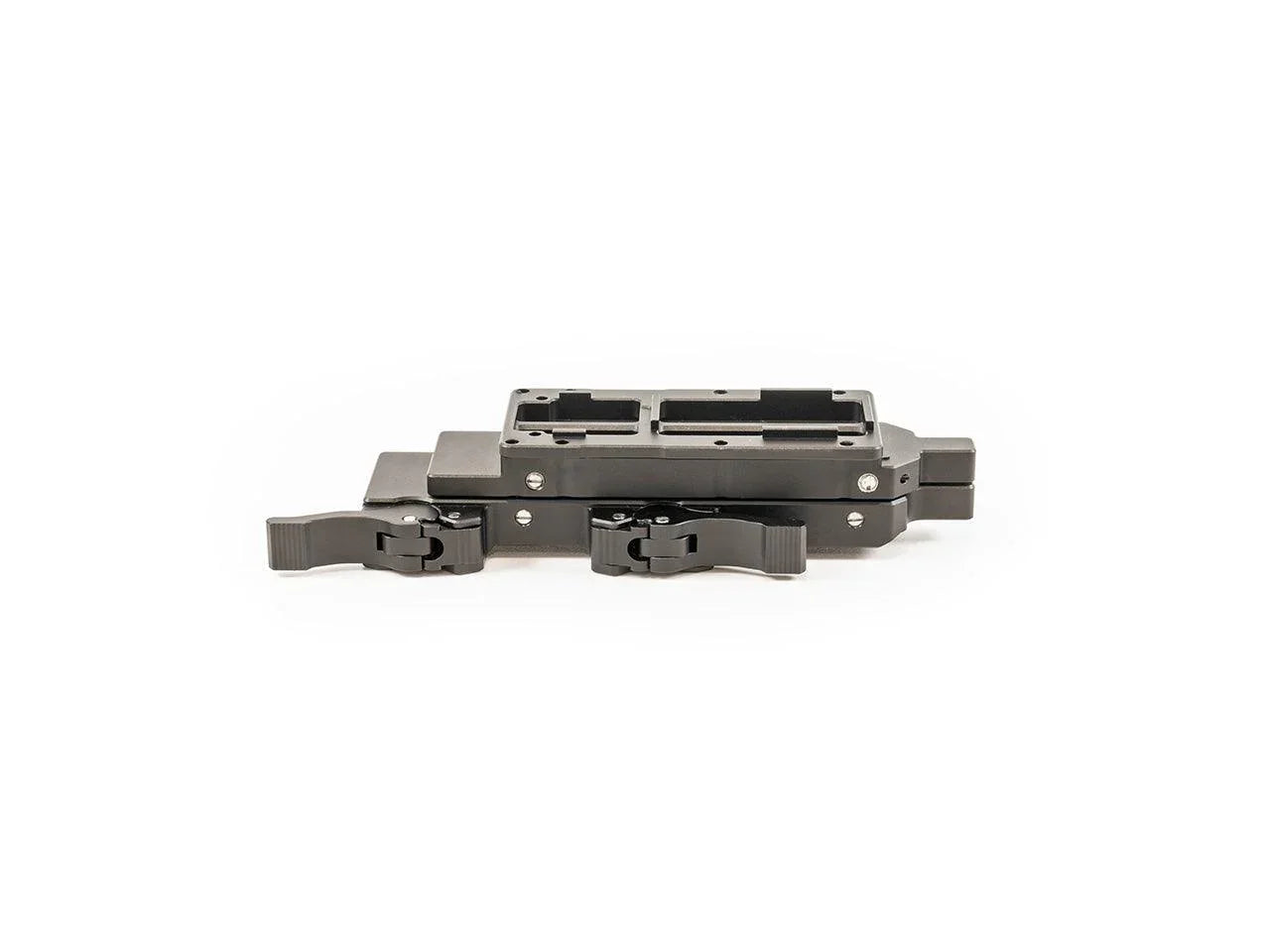

• IRAY-AC107 Advanced Recoil-Mitigating Picatinny Mount for RICO HYBRID
• Adapter Bracket
• M3 and M5 Screws for the Mount and Adapter
• 2.5mm and 3mm Hex Keys and Spanner Tool
• Bluetooth Remote Control
• USB-C to Analog RCA/USB Cable 36”
• IBP-1H Battery 4400 mAh
• IBC-1 Battery Charger
• USB Power Adapter
• Hard Case
• Lens Cloth
• User Manual
