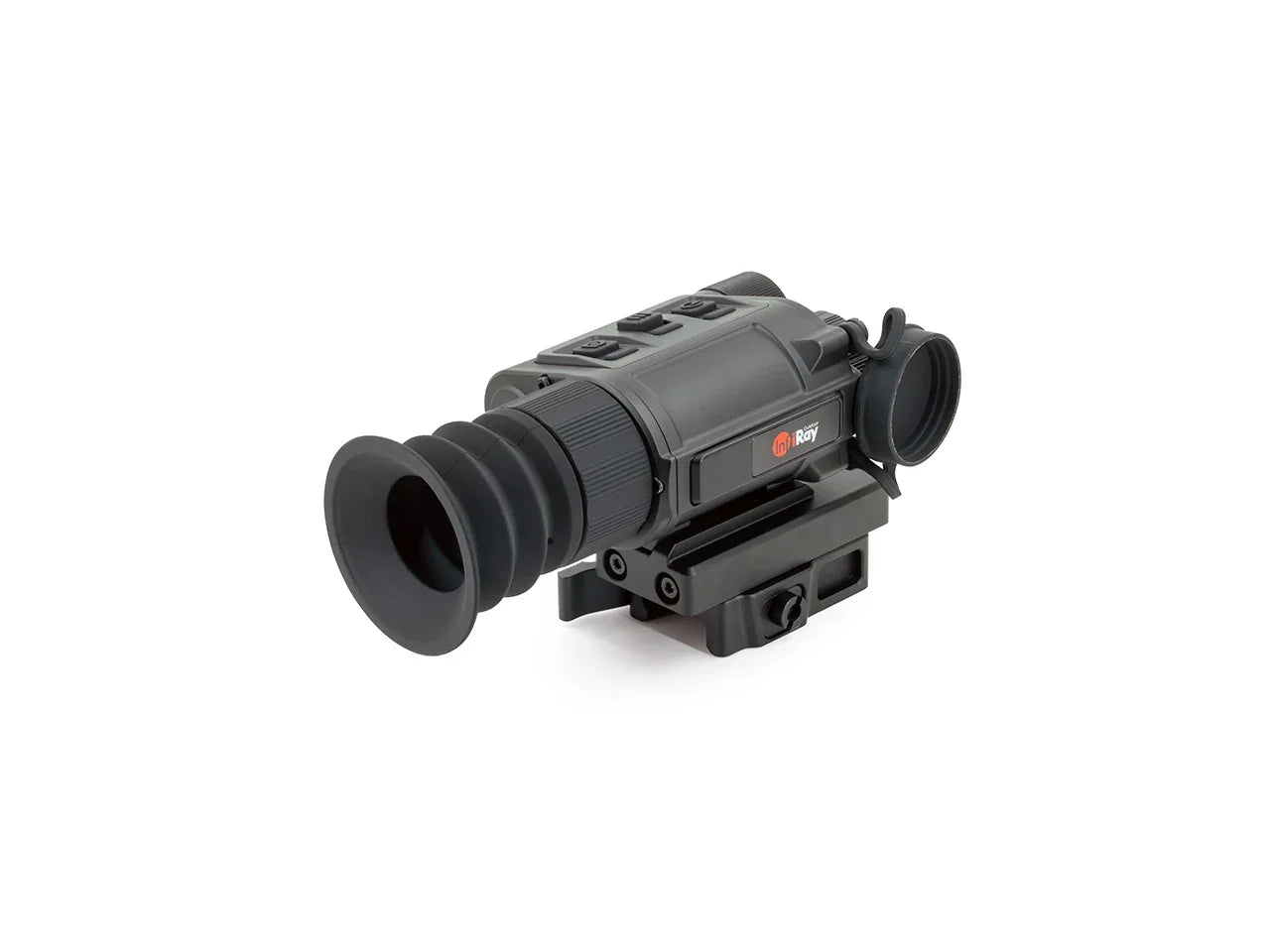

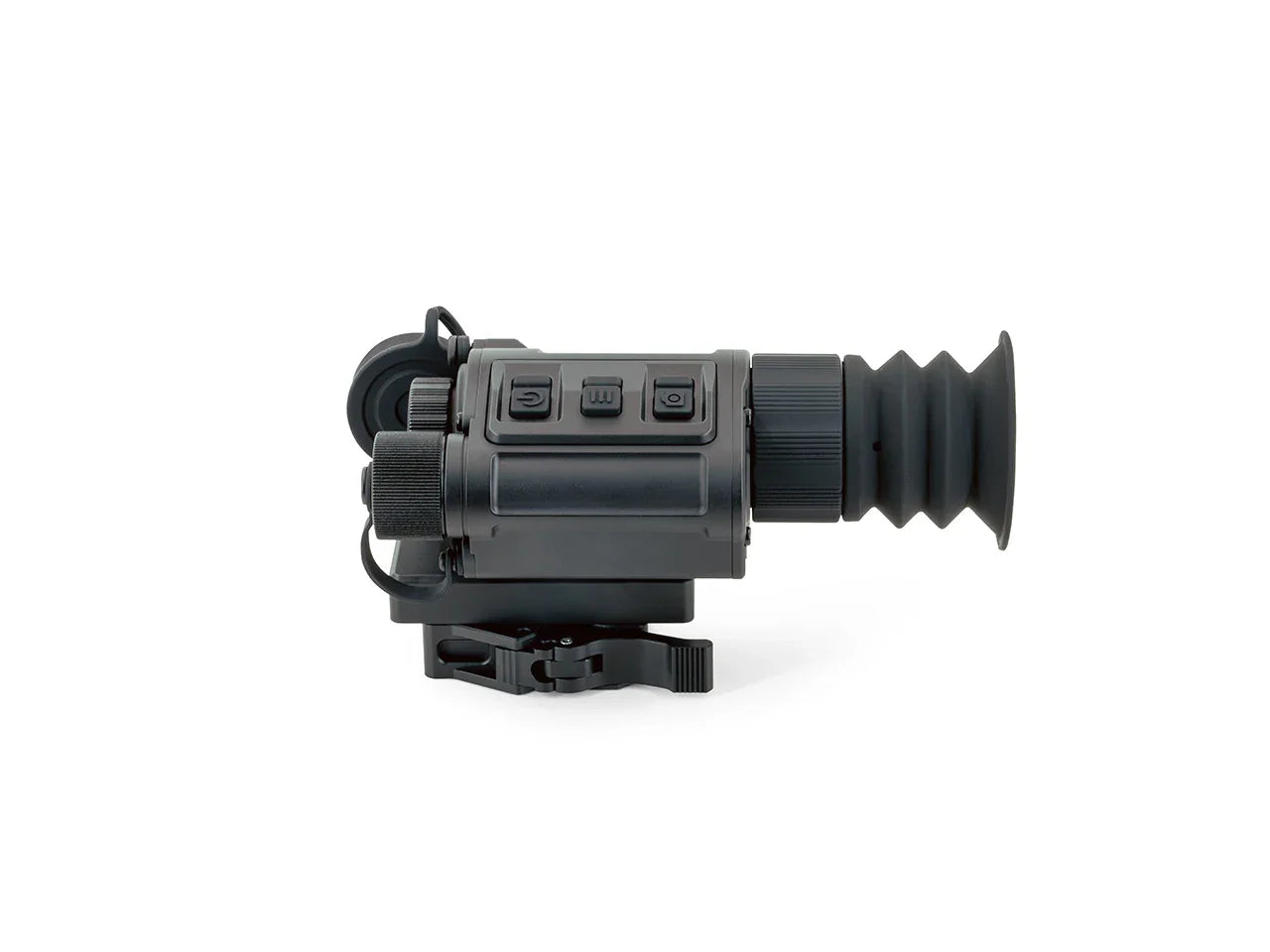

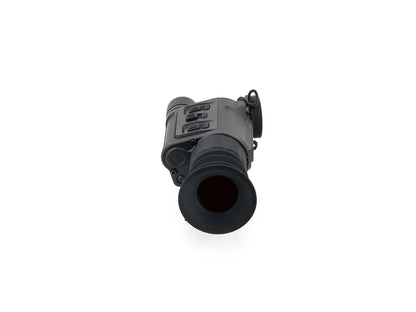

InfiRay Outdoor RICO MICRO V2 384x288 12 Micron 60hz 25mm Multi-Purpose Thermal Monocular IRAY-RL25V2
Authorized Dealer

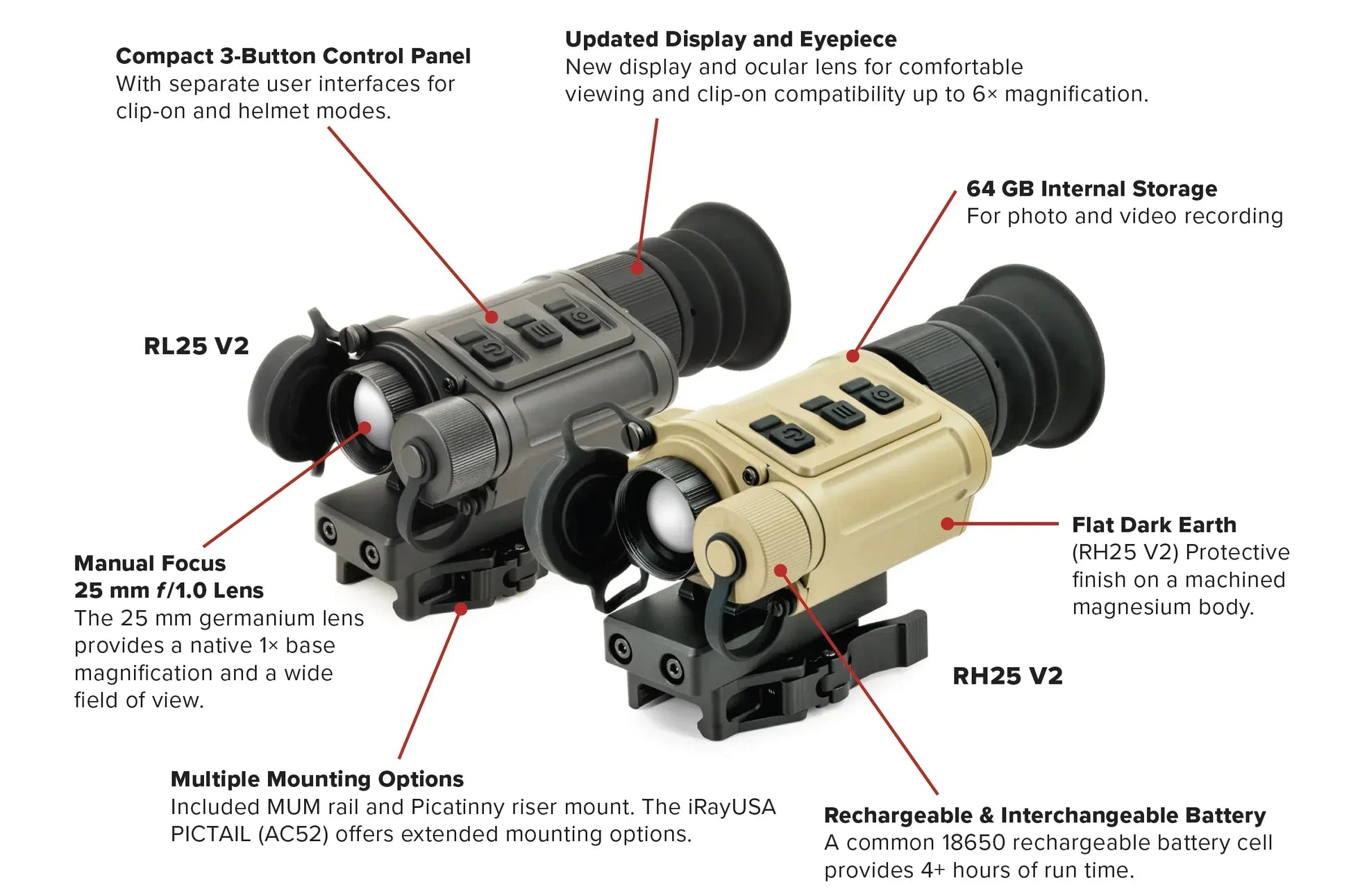

In its second generation, our most popular family of thermal optics has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight, or thermal clip-on. New models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file tranfser and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440x1080 AMOLED display and is paired with a new eyepiece that oers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification. The MICRO V2 also uses InfiRay’s latest 12 μm sensor, an improved NETD rating of 18mK, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.

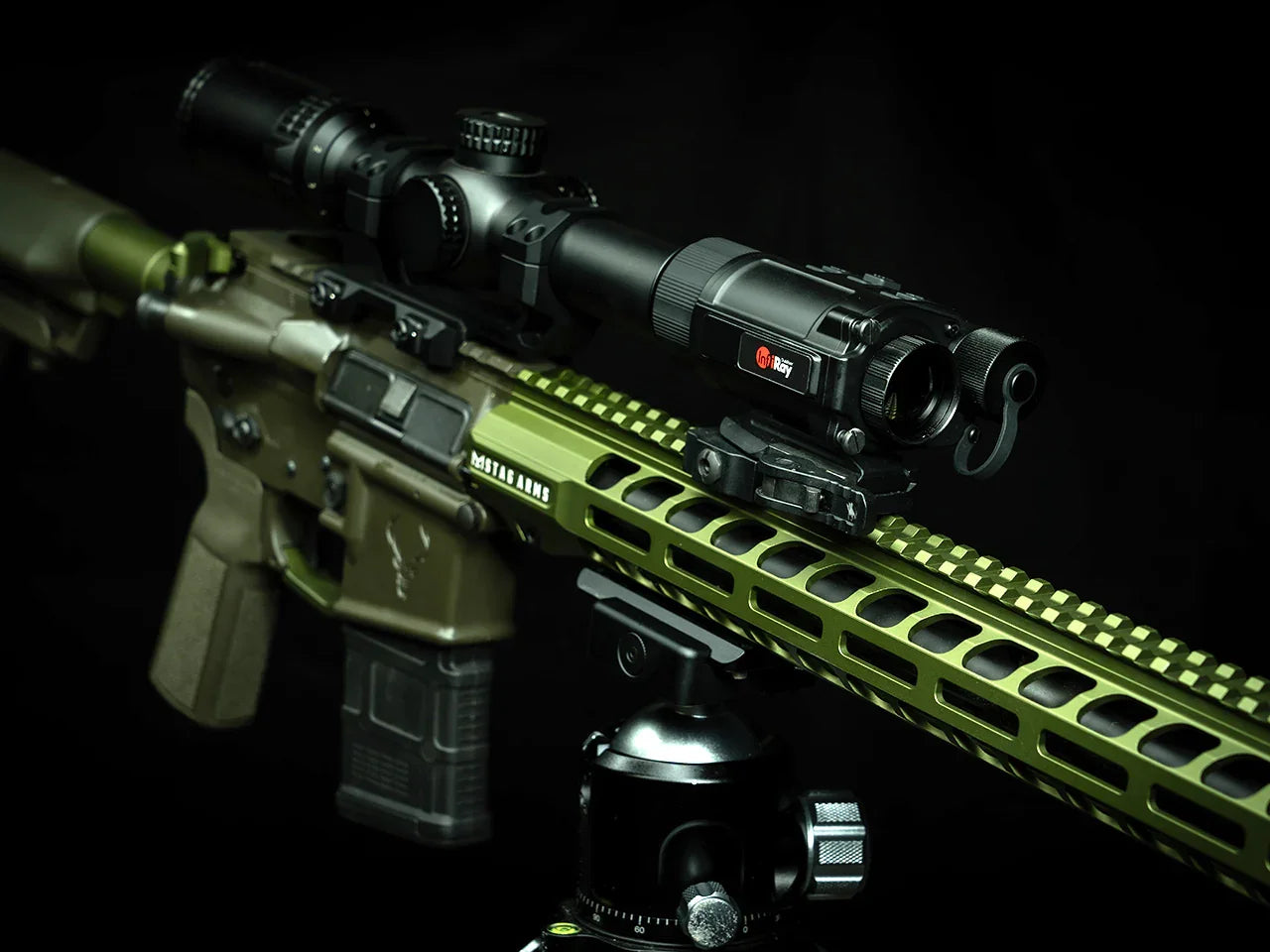

Building upon the success of the original RICO MICRO series we have made several improvements and upgrades to give the RH25 and RL25 even more value. These models now feature a faster 60hz refresh rate, .15mK sensitivity, larger 1440x1080 display, better eye relief, recoil-activated video, and Bluetooth remote functionality. Both models can be used as a handheld scanner, a dedicated scope, a clip-on, or mounted to a helmet.
InfiRay Outdoor RICO MICRO V2 RL25 Features:
• High-performance 12 .m InfiRay Micro II thermal sensor
• High-resolution AMOLED display
• Maximum .15 mK sensitivity
• 1x to 4x digital zoom magnification
• 1375 yard detection range
• 60hz image refresh rate
• Recoil activated video
• 64 GB internal storage
• Record up to 1600 images and 40 hours of video
• Built-in Wi-Fi module
• Mobile device App compatible
• Built-in microphone
• Digital compass
• Multiple zero profiles and ranges
• Multiple reticle types and color options
• Defective pixel correction
• Extended eye relief
• Cold and warm image temperature options
• Lightweight and compact design
InfiRay Outdoor RICO MICRO V2 RL25 Specifications:
SENSOR
Resolution 384x288
Pixel Size 12 .m
Frame Rate 60hz
Image Processing MATRIX III
Sensor Sensitivity .18 mK
Core InfiRay Micro II 384
OPTICS
Objective Lens 25 mm f/1.0
Magnification 2.28x
Digital Zoom 4x
Field of View 10.5° x 7.9°
Detection Range 1375 Yards
Display Type AMOLED
Display Resolution 1440x1080

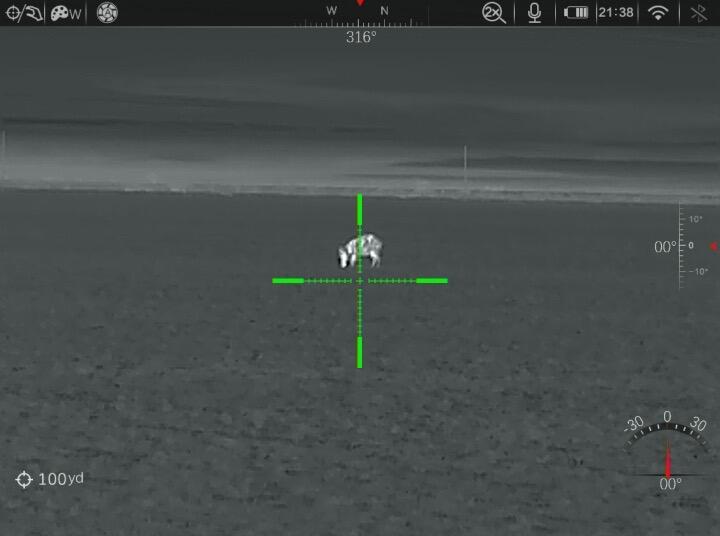

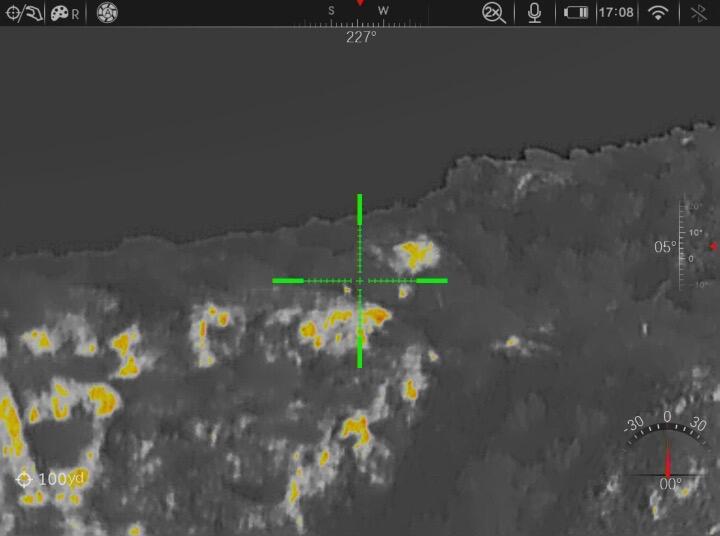

Color Palettes White Hot, Black Hot, Red Hot, Color
Reticle Types 7
Reticle Colors Black, White, Red, Green
Mounting System MUM Rail, Picatinny MIL-STD-1913 Rail,
PICTAIL (Optional/Not Included)
Working Modes Standalone, Handheld, Helmet, Clip-on
P.I.P No
Rangefinder No
Eye Relief 45 mm
Diopter Range -5 to +2
ELECTRONICS
Onboard Recording Video, Recoil-Activated Video, and Image
Onboard Storage 64 GB
Wireless Connectivity Video and Image via App.
Data Connector USB-C

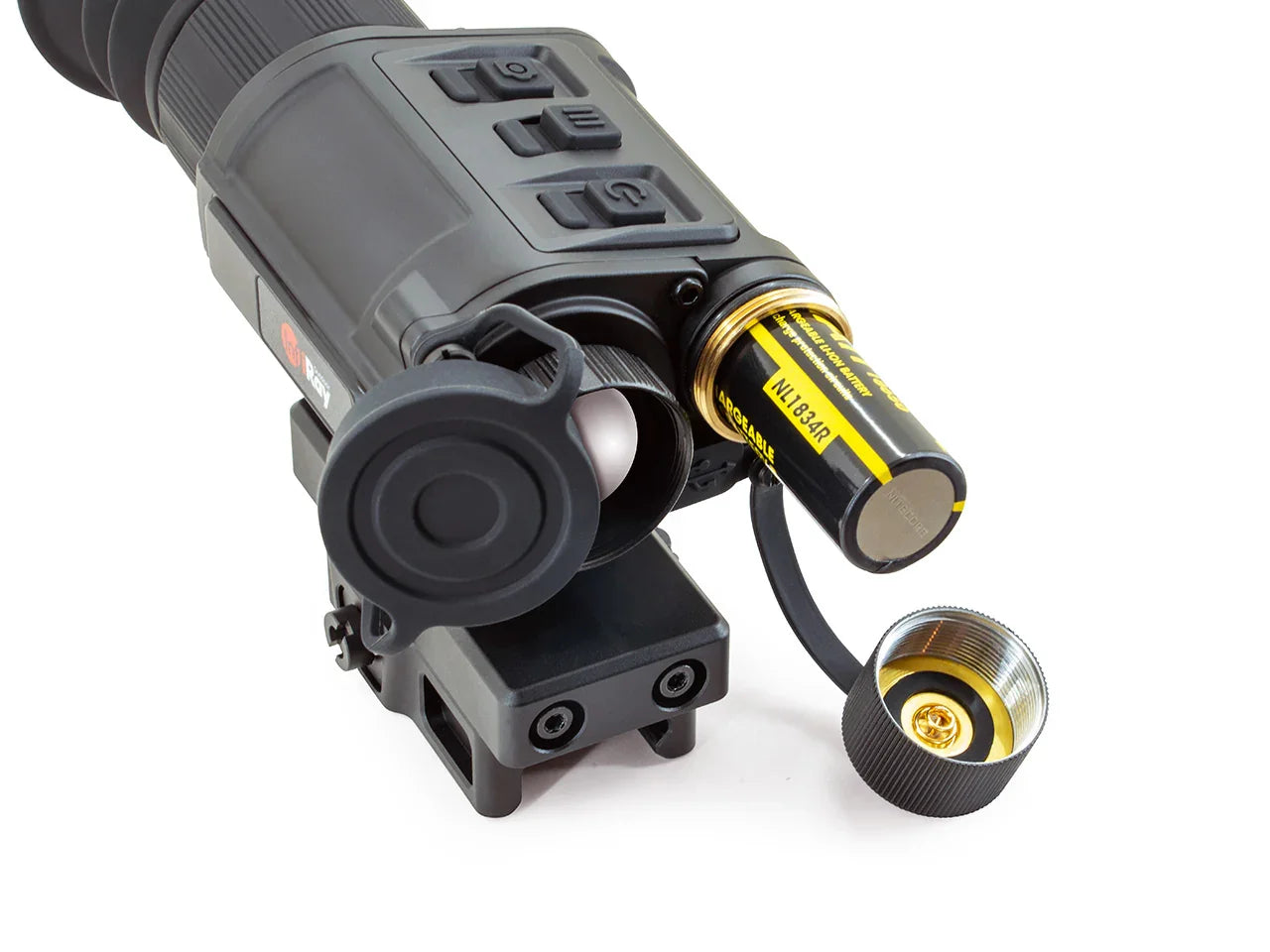

Power Supply 18650 Batteries x2 (6.5+ Hours Each)
Start Up Time .5 Seconds, Instant from Standby
PHYSICAL
Size 4.52” x 2.55” x 1.88”
Weight 11.3 Oz
Housing Color Black
ENVIRONMENTAL/WARRANTY
Warranty 5 Years
Housing Material Magnesium
Ingress Protection IP67
Operation Temperature -4°F~122°F
Max. Recoil 1000 g/s° (300 Win./7mm Mag)

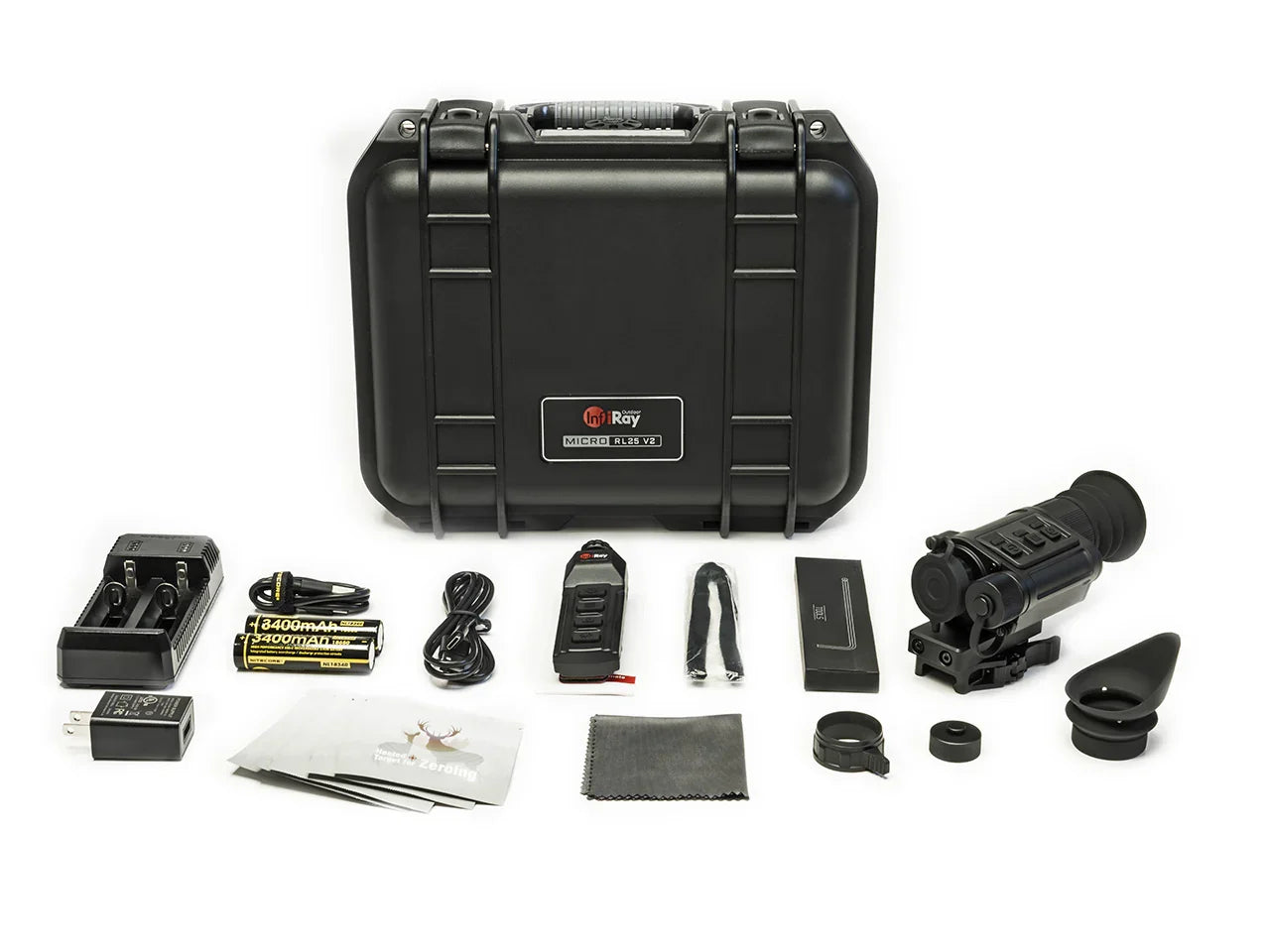

The RICO MICRO V2 Series ships with everything you need to get out and hunt. The included items are as follows:
• 25mm Objective Lens Cap
• Eyeguards x2
• OEM Rifle Mount (1.93 inch)
• M4x8mm Flat Head Screws (2)
• 2.5mm and 3mm Hex Keys
• Lens Lever
• Bluetooth Remote
• 18650 Batteries x2
• 18650 Battery Charger
• Battery Cap for Short 18650 Battery
• USB-C Cable
• USB Power Adapter
• Hard Case
• Lens Cloth
• User Manual
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
