KNIGHTS LR Socom PVS-30 Gen 3 Night Vision Clip-On

KNIGHTS LR Socom PVS-30 Gen 3 ITT Pinnacle Night Vision Clip-On AN/PVS-30 Gated

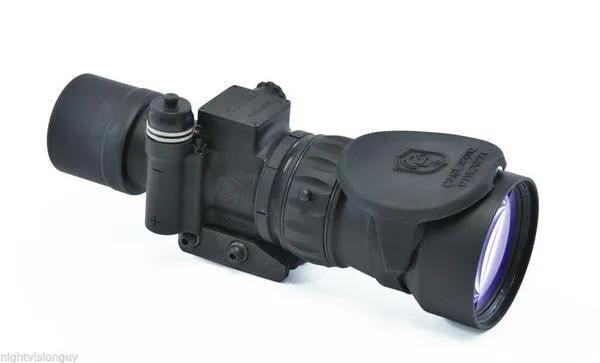

The AN/PVS-30 UNS™ LR LP clip-on Weapon Sight represents the latest in Gen 3 night vision technology, designed for seamless attachment to a Picatinny rail. This sight is ideal for long-range rifles used in frontline combat and is currently in production for the US Army’s Semi-Automatic Sniper System (SASS) and other long-range rifles. Knight Vision’s patented technology ensures that your existing day scope’s boresight remains accurate, with no disruption to your optics, eye relief, or cheek weld.

Featuring a refractive lens and a lightweight design, the AN/PVS-30 provides excellent light collection and a 24-hour battery life. The patented Single Interchangeable Battery (SIB) technology allows users to power the device using either CR123 or AA batteries, and even depleted flashlight batteries can provide several hours of operation. This makes it a versatile and reliable choice for extended missions.

KNIGHTS LR Socom PVS-30 SPECIFICATIONS (Preliminary)

SIZE:

9.6” (244 mm) long

WEIGHT:

2.9 lbs. (1.32 kg)

FINISH:

Flat Black Matte or Desert Sand Brown, Corrosion Resistant

CONTROLS:

On/Off Gain Control Knob, Focus Ring

POWER:

One standard AA battery, or one DL123 battery (Single Interchangeable Battery™)

BATTERY LIFE:

AA Exceeds 24 hours, DL123 battery exceeds 36 hours

MOUNT:

KAC 26597 for Quick Attach /Detach to MIl-STD-1913 Rail or equivalent mounting surface

WATERPROOF:

3 ft. for 4 hours

OPTICAL CHARACTERISTICS

Lens Design:

120MM Refractive Telephoto Lens

Magnification:

Unity

Focus Range:

20 Meters to Infinity

Bore sight:

Patented (US Patent 7,142,357) alignment technology proven in thousands of delivered sniper sights

Image Intensification:

ITT GEN 3 pinnacle tube “USA only” GEN 3: FOM Restricted tubes available for export

PERFORMANCE CHARACTERISTICS

Range:

Recognize a Standing Man under Starlight: >800 m

Recognize a Standing Man under ¼ Moon: >1000 m

Recognize a Vehicle under Starlight: >1000 m

Recognize a Vehicle under ¼ Moon: >1500 m

Bore Sight:

Factory Bore Sight to within .5 MOA of alignment to the day scope point of impact

Bore Sight Retention:

<0.5 MOA over 300 rounds, 300 WIN MAG firing Schedule

Weapons Certification:

Tested for use on weapons up to and including .50 caliber rifles

Cheek Weld:

Unchanged

Eye Relief:

Unchanged

Bullet Impact:

Unchanged

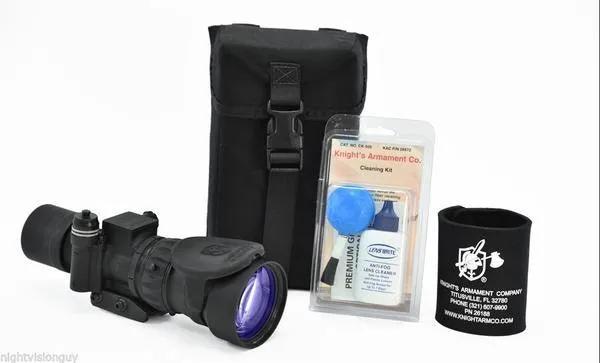

KIT INCLUDES: AN/PVS-30 UNS, SOFT CARRY CASE, OBJECTIVE LENS CAP, PICATINNY RAIL MOUNT, OPERATORS MANUAL, OPERATORS CARD,SHROUD & 2 AA
