Luna Optics Digital Tactical Day-Night Vision Monocular LN-DTM1

Luna Optics Digital Tactical Day-Night Vision Monocular LN-DTM1


Regular price $ 499.95
Regular price Sale price $ 499.95
Sale Sold out
Shipping calculated at checkout.
Luna Optics Digital Tactical Day-Night Vision Monocular with 1920x1080 Full-HD CMOS Sensor LN-DTM1
Authorized Dealer

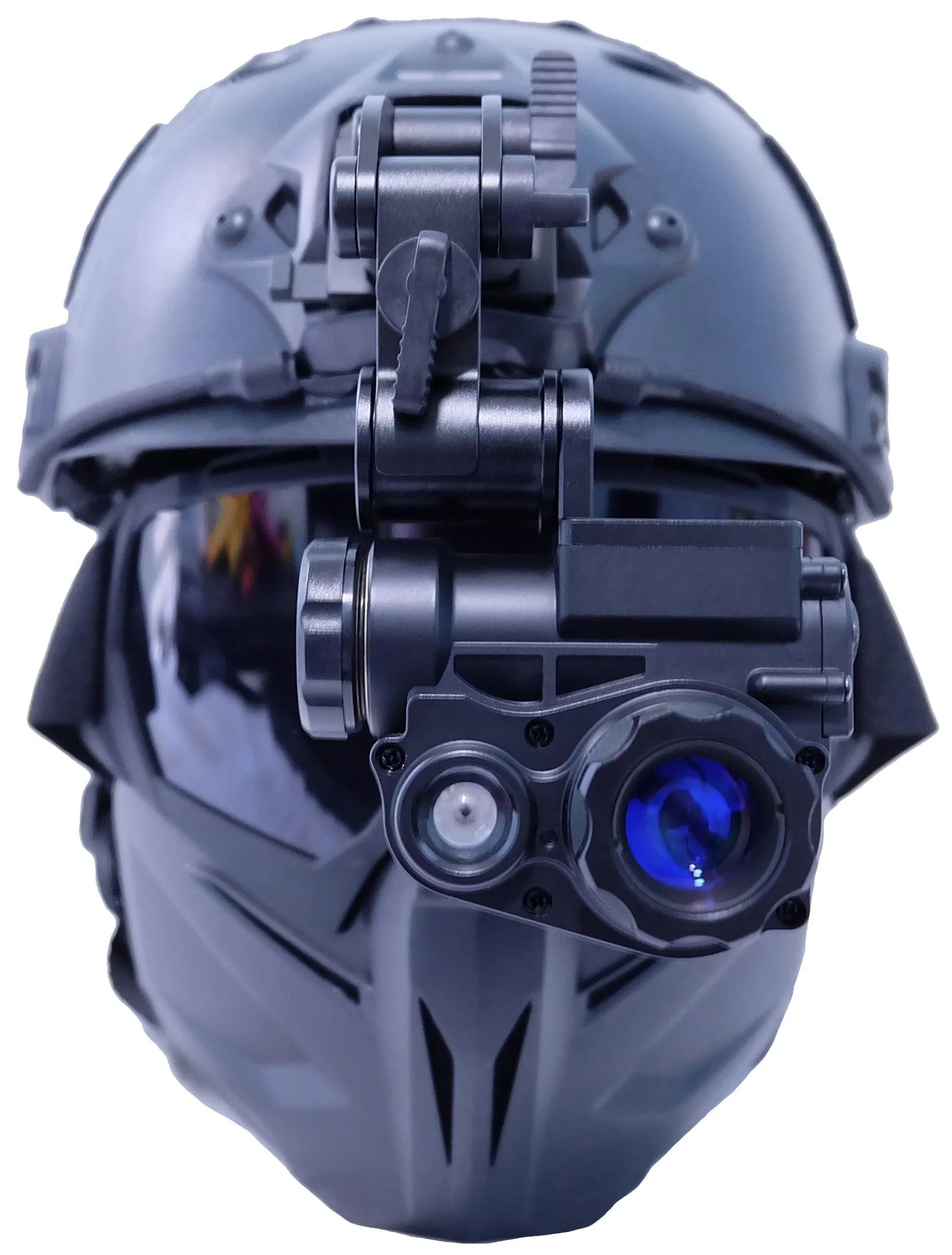

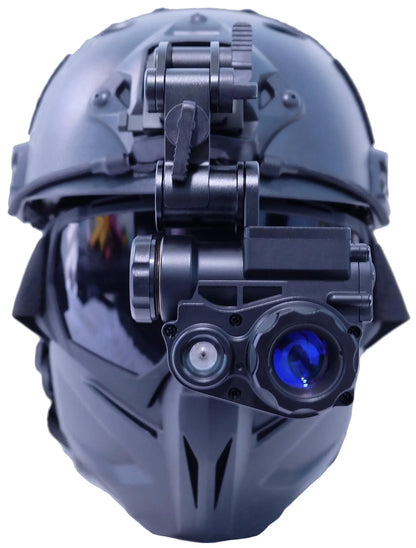

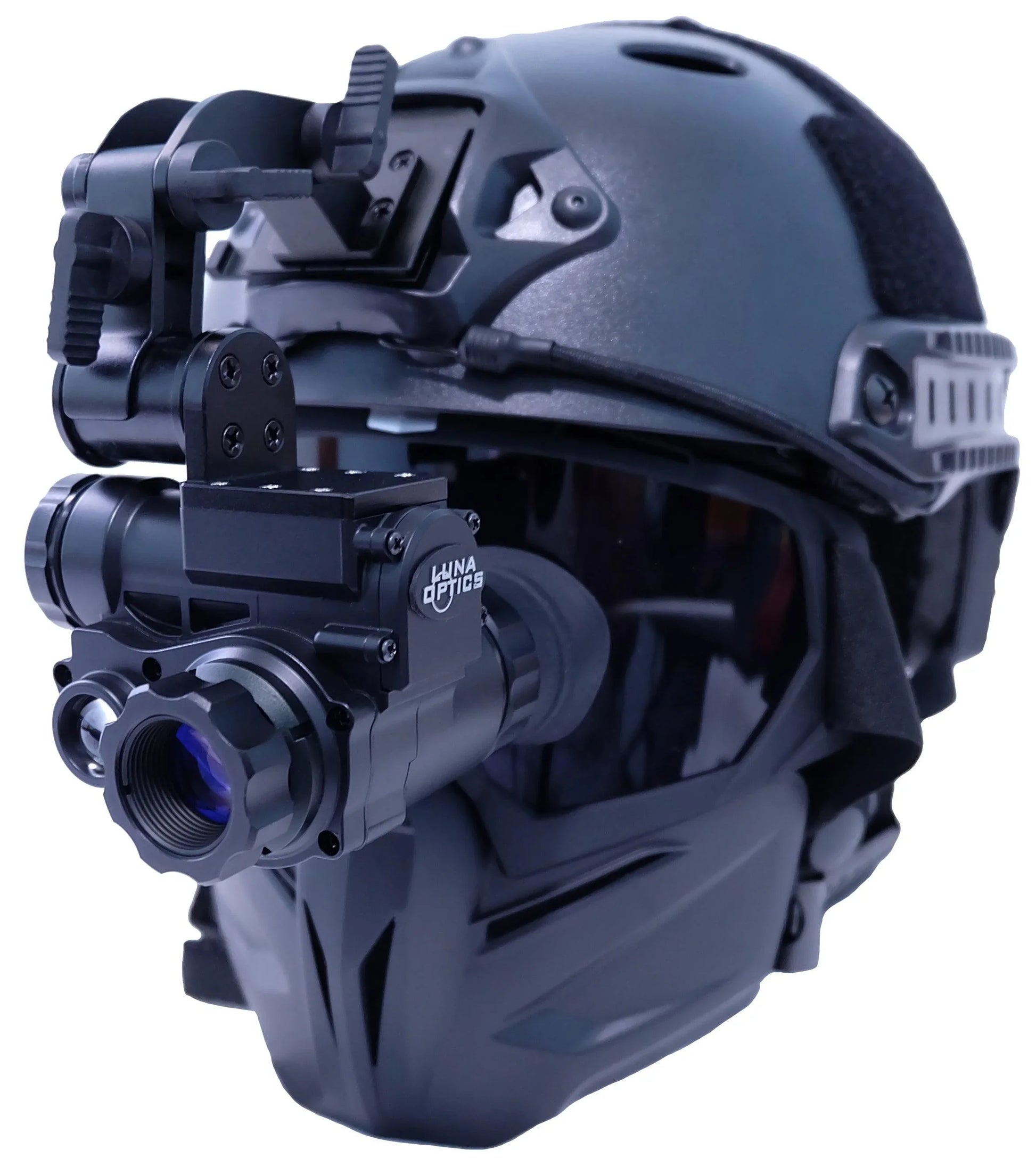

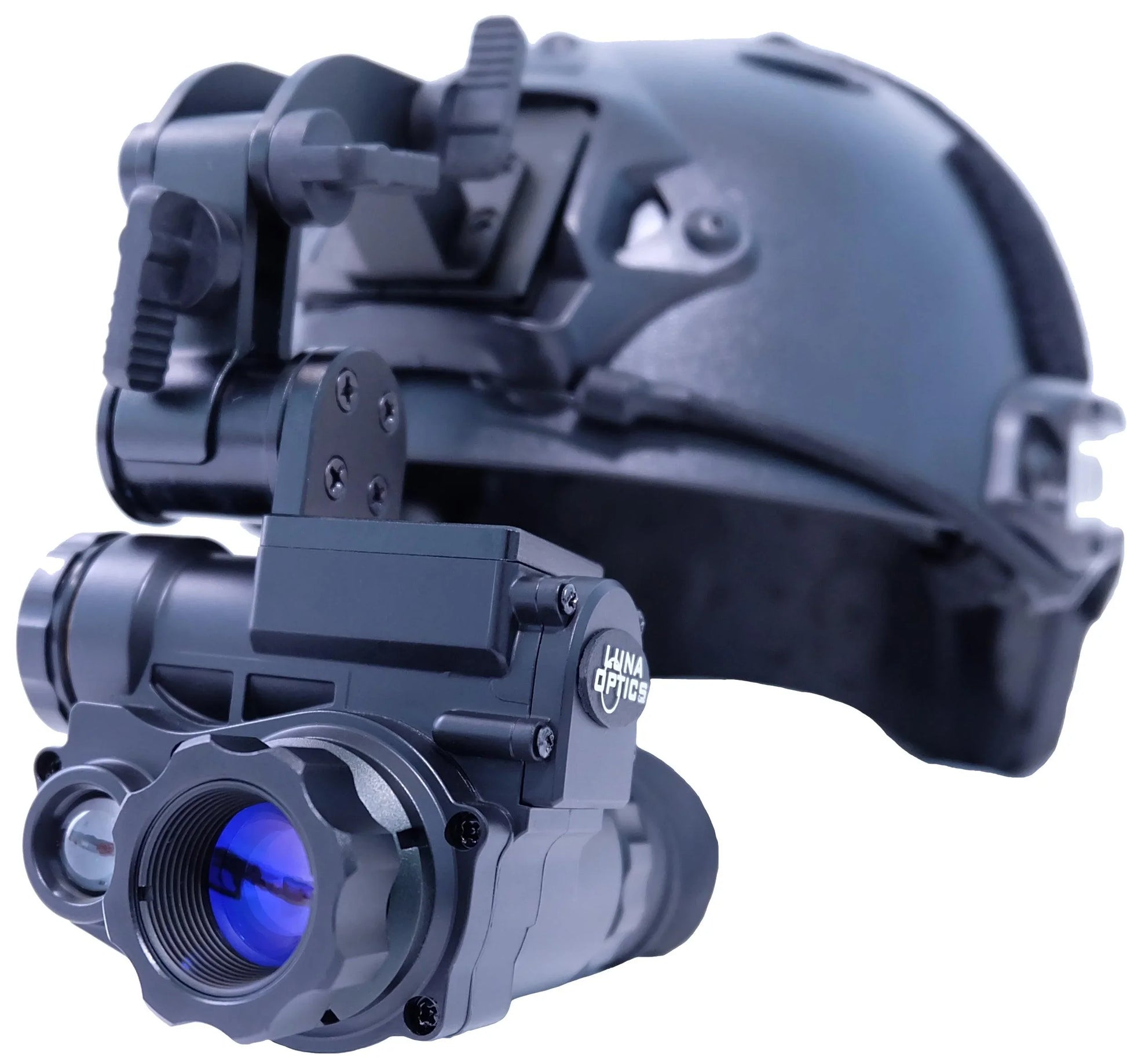

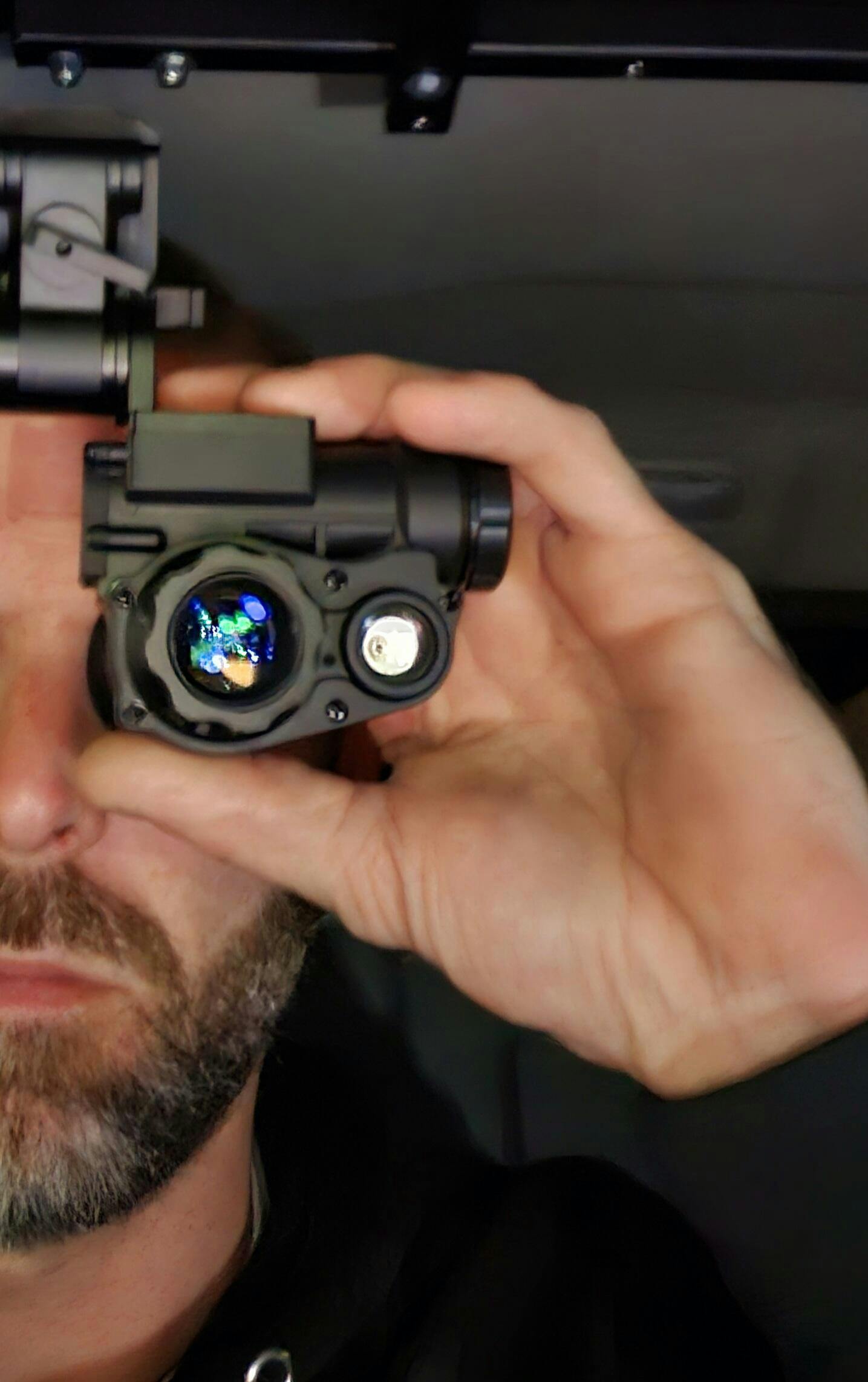

LN-DTM1 takes the latest in digital technology and fully applies it to tactical field operations. Palm-size dimensions and weighing only 237g (8.4oz) this monocular is perfect for hands-free use. Comes standard with the helmet mounting gear (fits to standard VAS NVG Helmet Shroud) this device can be mounted either for left or right eye viewing. With the ground-breaking 1920x1080-pixel Full-HD CMOS sensor, and a widescreen HD display, you will get an unparalleled viewing experience either in monochrome black-and-white or state-of-the-art, 'Night Vision Green Phosphor color. Unique “backlit technology” allows for close-up viewing and identification in near total darkness while staying 100% covert (without activating the built-in IR illuminator).

Your unique experience with this tactical digital night device does not end with its optical and electronic capabilities. Able to withstand some of the most brutal outdoor temperatures (-40°F to 131°F) and operate for up to 3.5 hours on readily available single 18650 rechargeable battery, featuring user selectable auto power shut off, this monocular can become a faithful companion on your night or daytime tactical mission for years to come.


Sensor, Display, Wi-Fi

  • 1920x1080 Full-HD CMOS digital sensor with backlit technology
  • Allows for safe day and night observations.
  • 0001lux rating.
  • HD image display delivers vivid images.
  • B&W and Night Vision Green Phosphor color modes
  • Wi-Fi live streaming to iOS or Android

Optics, Illuminator

  • IR illuminator with 100m (109yds night range
  • 18mm, f/1.0, all-glass optical system
  • Infrared Film Lens Coating
  • 1x optical image for hands-free operation.
  • 6x maximum digital magnification

Build and Ergonomics

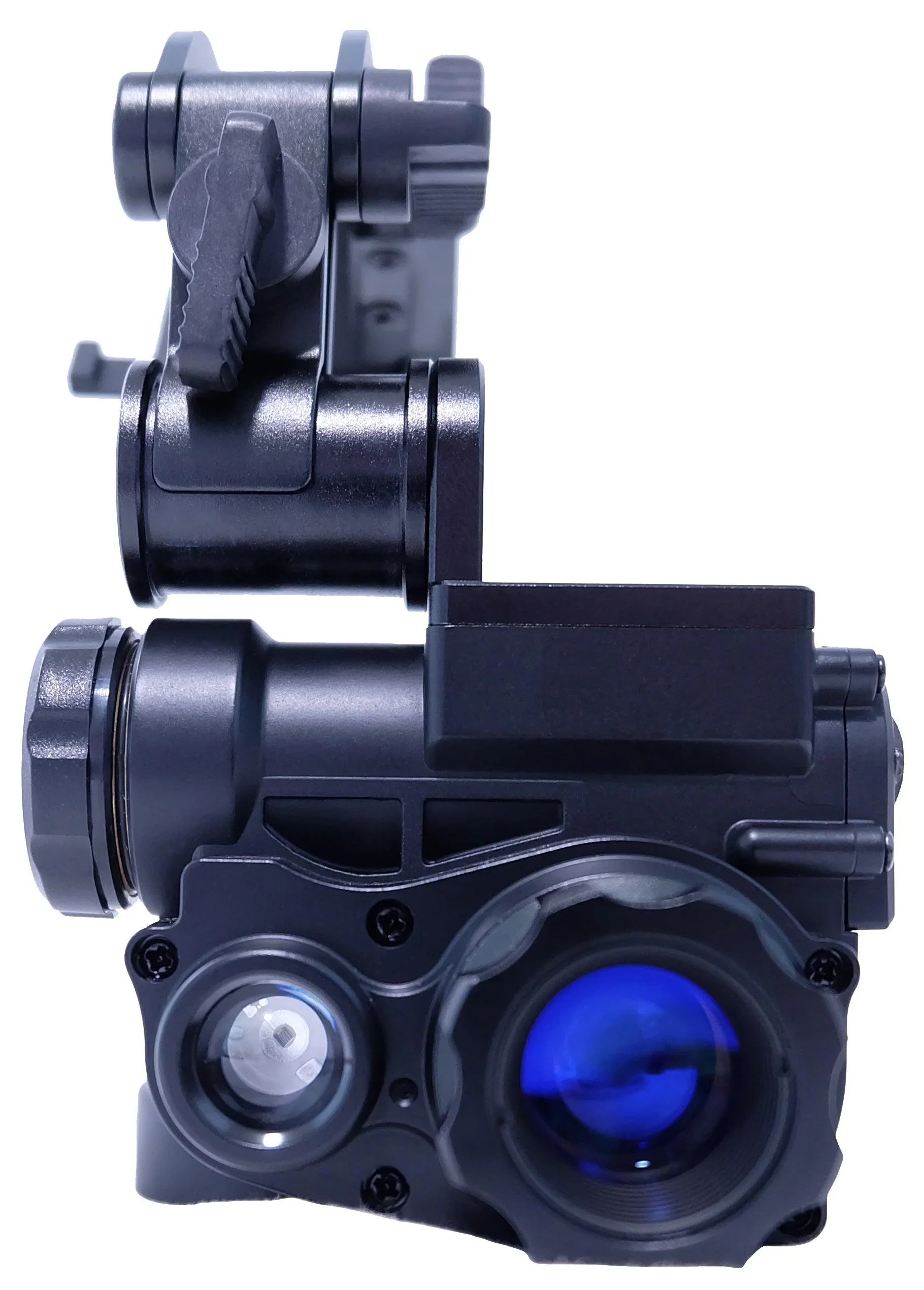

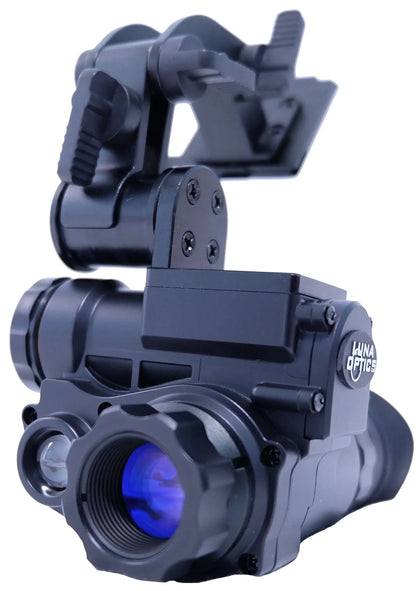

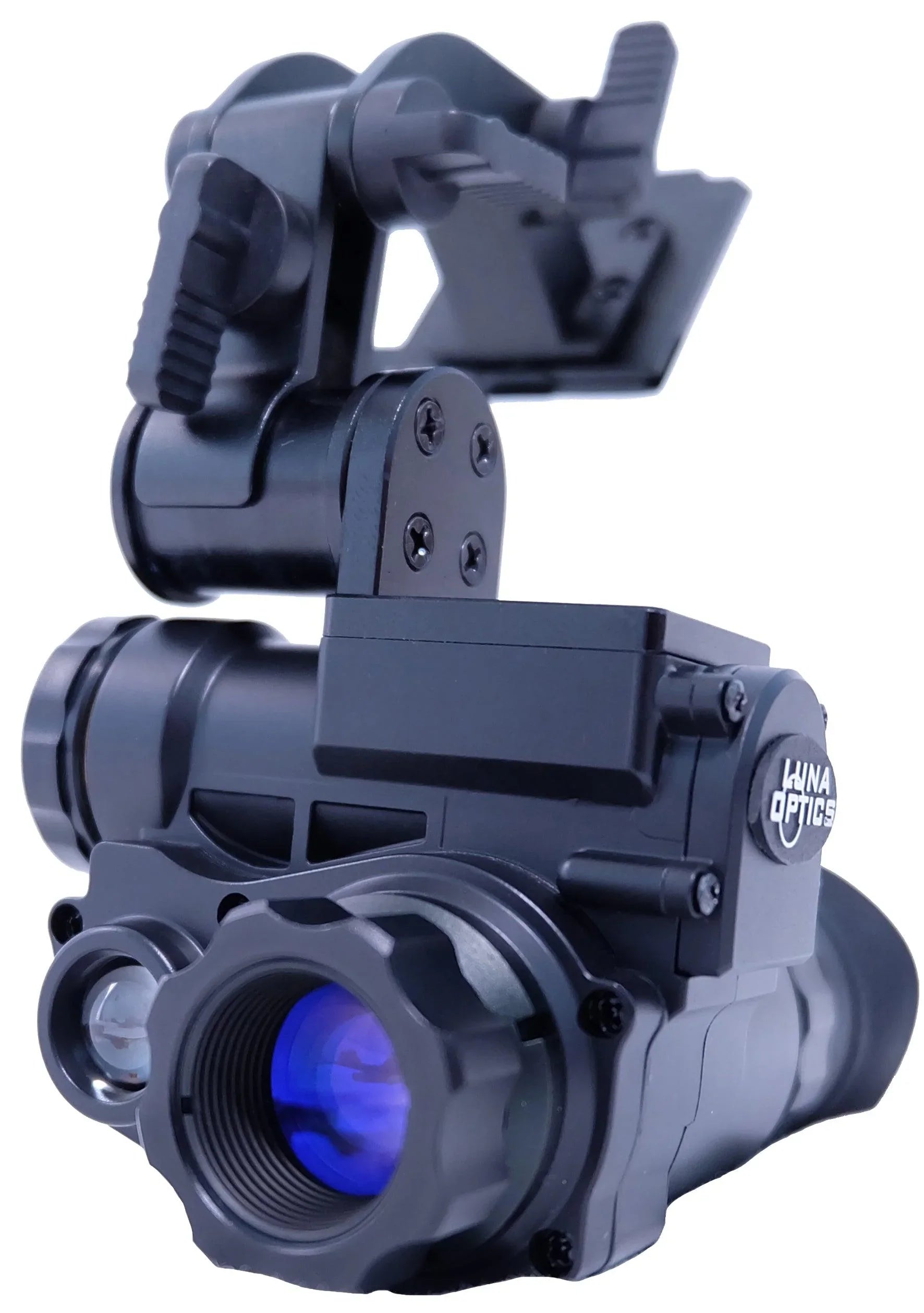

  • Helmet mounting gear is included.
  • -40°F to 131°F operating temperature
  • Palm-sized dimensions
  • Luna Optics Two-Year Limited Warranty


Sensor Type


Sensor Resolution

Sensor Light Sensitivity



Sensor Color Modes

Backlit Technology

White Balance

Wi-Fi Transmitter

Mobile Compatibility


Objective Lens Diameter

Objective lens Focal Lenth

Lens Coating

Diopter Adjustment

Ocular Eye Relief

Exit Pupil

Minimum Focusing Distance

Nighttime Visibility Range

Integral IR Illuminator

Field of View


Battery Type

Maximum Operating Voltage

Operating Time (battery)

Auto Power Shutoff

Operating Temperature

Operating Humidity

Storage Temperature


Weight w/o Battery

CMOS, Full-HD digital sensor with Backlit Technology

1920x1080 pixels

0.0001 lux

1280x720 LCD HD widescreen

0.38 in (0.97 cm)

B&W, Night Vision Green Phosphor

Yes / Up to 3m (10ft)



iOS, Android



20mm, f/1.0

Ultra-Wide Band Infrared Film




18cm (7”)

600m (654yds) at Full Moon

Yes, 850nm (3 power levels)

26° x 15º at 1x Optical Magnification


One 3.7V 18650 type


3.5 hours, IR off

3min / 5min / 10min / OFF

-40°F to 131°F (-40°C to +55°C)


-58°F to 158°F (-50°C to +70°C)

100 x 78 x 65 mm (3.9” x 3.1” x 2.6”)

237g (8.4 Oz)

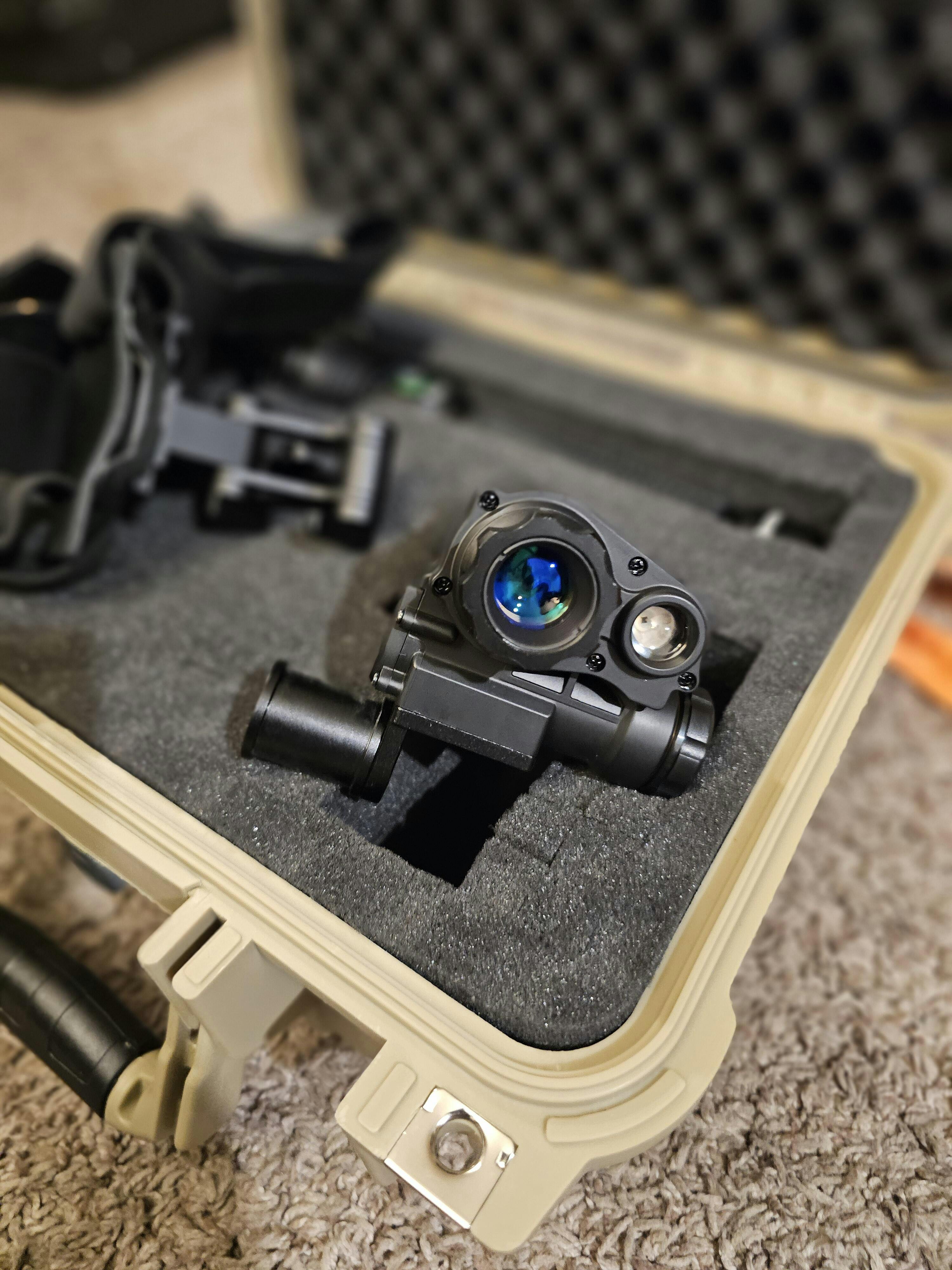

Included Accessories: a soft carry case, fully adjustable helmet mounting gear, left/right eye setup clasp, battery charger with USB cable.

Helmet and mask are not included
