N-Vision Optics PVS-14 Night Vision Monocular, Generation 3 Alpha Image Intensifier (PVS14A)
AUTHORIZED DEALER

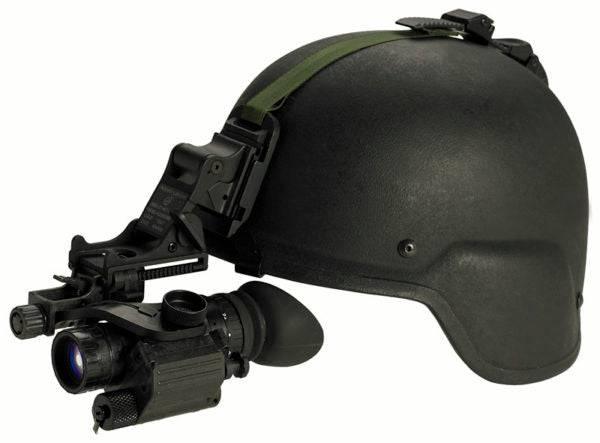

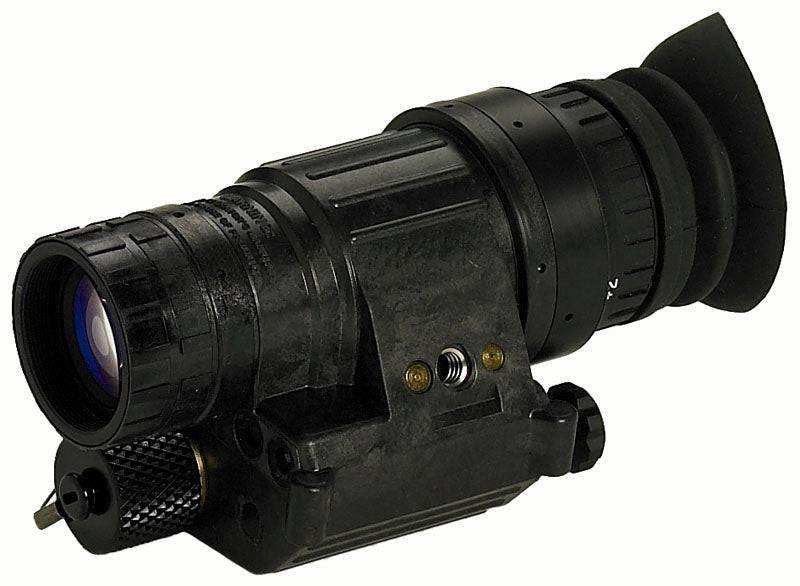

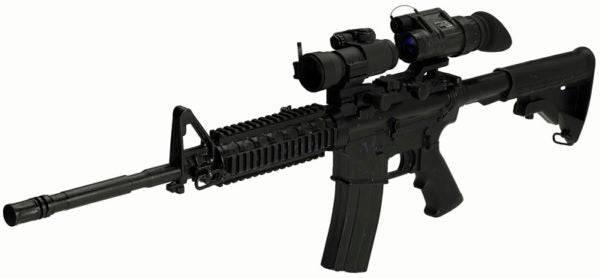

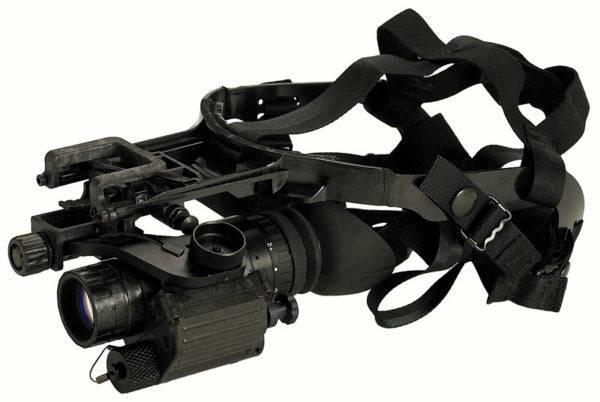

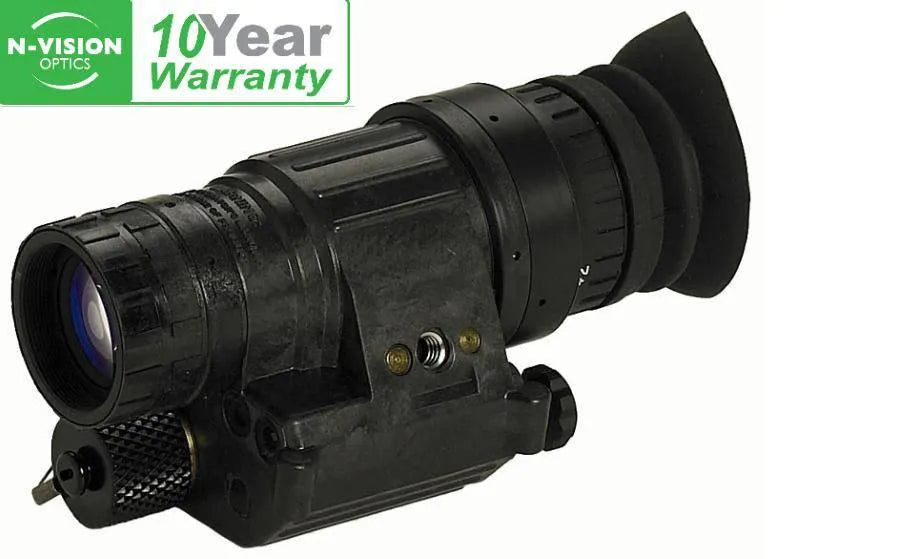

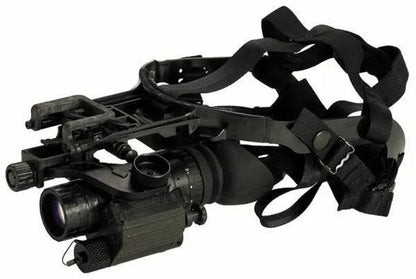

The N-Vision Optics PVS-14 PVS14A Monocular is a multi-purpose, Generation 3 night vision device used by militaries and government agencies worldwide. It features a U.S.-manufactured image intensifier tube with variable gain control and bright light automatic shut off. This monocular can be used handheld, head/helmet mounted, or weapon mounted, and comes with a J-arm adapter, sacrificial window, demist shield, eyecup, lens cap, neckcord, soft carry case, lens cleaning paper, battery, and manual. Plus, N-Vision Optics provides a 10-year warranty on the PVS-14 to domestic customers.
Features:
- Variable gain control
- Single AA battery
- Hand-held, helmet-mountable or weapon-mountable
- Automatic brightness control (ABC)
- Built-in IR Illuminator
General Specifications:
Generation |
3 |
---|---|
Range Focus |
25 cm to infinity |
Diopter Focus |
-6 to +2 |
Field of View |
40˚ |
Operating Temperature |
-51˚ C to +50˚C |
Storage Temperature |
-51˚ C to +85˚C |
Weight (w/out battery) |
320 g/ 11.3 oz |
Size |
4.5 L x 2 W x 2.25 H (inches) |
Battery |
1 AA |
Generation 3 Alpha Auto-Gated Image Intensifier
Resolution, min | 64 lp/mm | ||
Signal to Noise, min | 25 | ||
Halo, | <1.25 | ||
Dark Spots | |||
Size | Zone 1 | Zone 2 | Zone 3 |
>.009-.012 | 0 | 0 | 0 |
>.006-.009 | 0 | 1 | 2 |
.003-.006 | 0 | 2 | 2 |

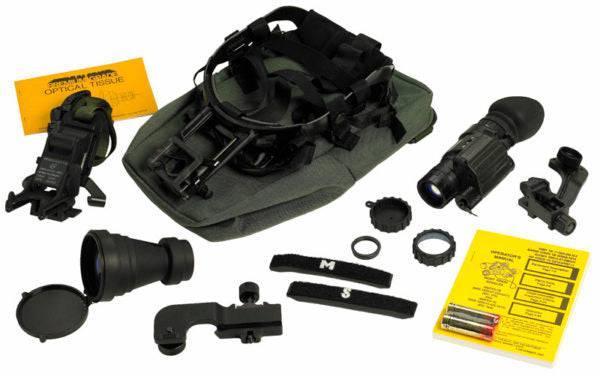

Each units ships with: adapter (j-arm), sacrificial window, demist shield, eyecup, lens cap, neckcord, soft carry case, lens cleaning paper, battery, user manual.

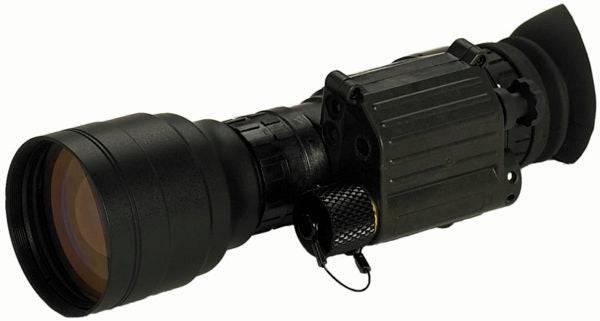

Optional N-Vision Optics accessories such as dual mounts, weapon mounts, and magnifier lenses make the PVS-14 extremely versatile.
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
