N-Vision Optics PVS-14 Night Vision Monocular Gen 3 PVS14AH

N-Vision Optics PVS-14 Night Vision Monocular Gen 3 PVS14AH

SKU:PVS14AH

Regular price $ 3,265.00
Regular price $ 3,615.00 Sale price $ 3,265.00
Sale Sold out
Shipping calculated at checkout.

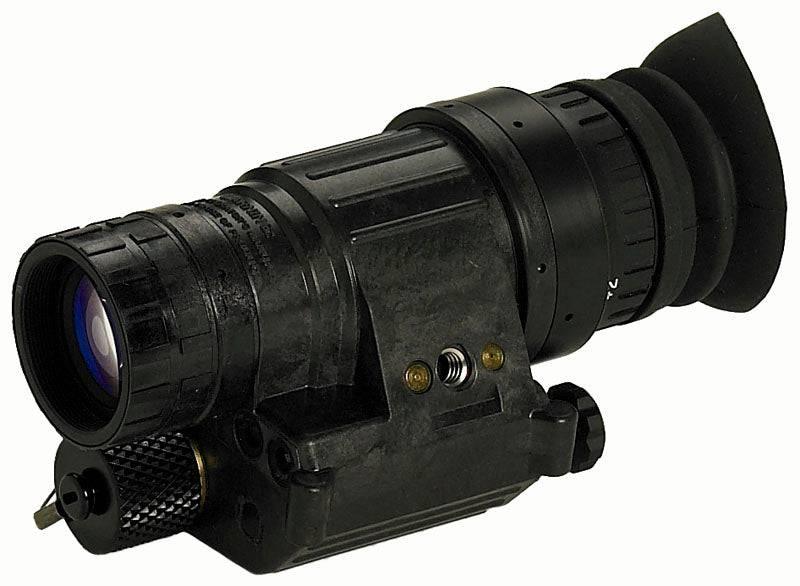

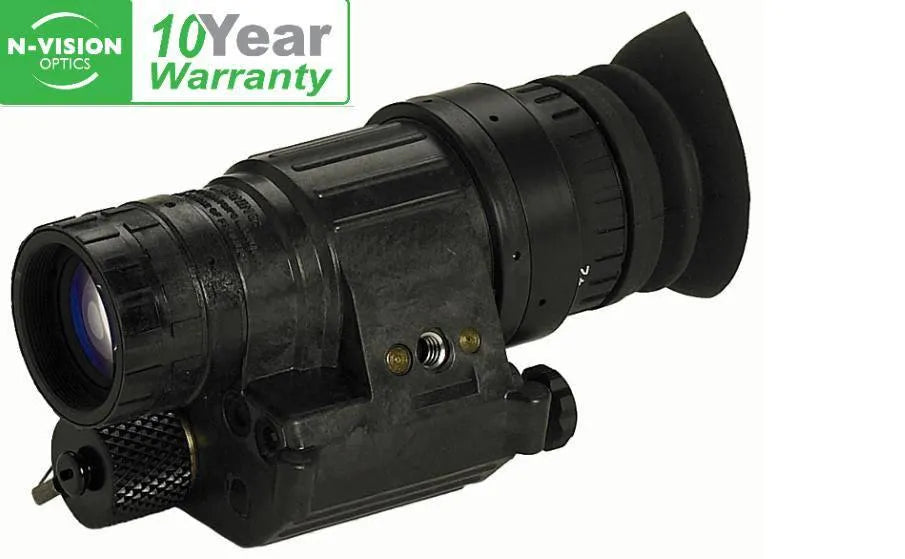

N-Vision Optics PVS-14 Night Vision Monocular, Generation 3 Hand Selected Alpha Auto-Gated Image Intensifier (PVS14AH)



The PVS-14AH is a versatile, multi-purpose night vision monocular used by militaries and government agencies worldwide. It is equipped with Generation 3 White Phosphor Auto-Gated Image Intensifier Tubes made in the U.S., offering variable gain control and automatic bright light shutoff for optimal performance in various lighting conditions. The PVS-14 can be used in multiple configurations, including handheld, head/helmet-mounted, or weapon-mounted.

With optional N-Vision Optics accessories such as dual mounts, weapon mounts, and magnifier lenses, the PVS-14 becomes even more adaptable for different missions and environments.

PVS14AH Features:

  • Variable gain control
  • Single AA battery

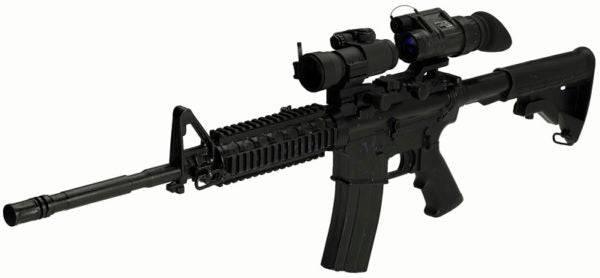

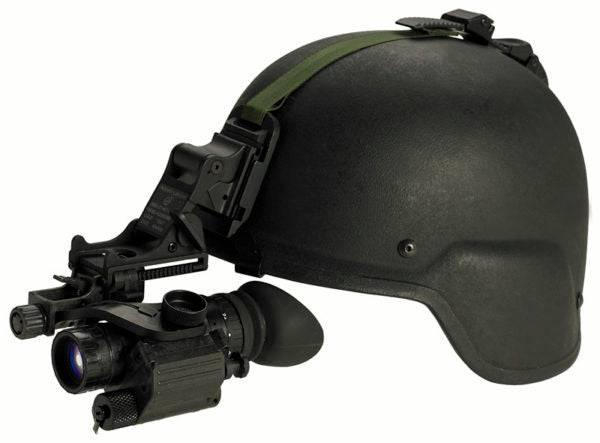

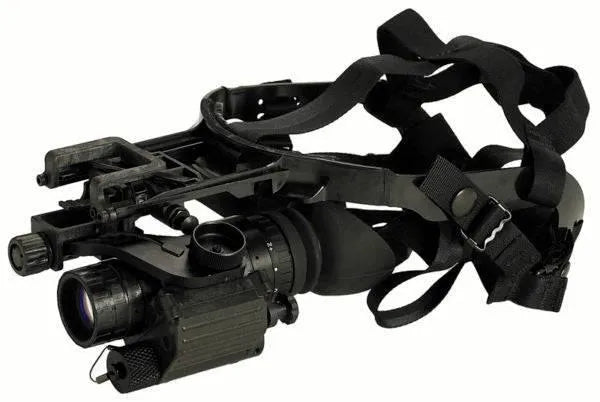

  • Hand-held, helmet-mountable or weapon-mountable
  • Automatic brightness control (ABC)
  • Built-in IR Illuminator

PVS14AH General Specifications:

Generation

3

Range Focus

25 cm to infinity

Diopter Focus

-6 to +2

Field of View

40˚

Operating Temperature

-51˚ C to +50˚C

Storage Temperature

-51˚ C to +85˚C

Weight (w/out battery)

320 g/ 11.3 oz

Size

4.5 L x 2 W x 2.25 H (inches)

Battery

1 AA


Generation 3 Hand Selected Alpha-Gated Image Intensifier

Resolution, min

64 lp/mm





Signal to Noise, min

25





Halo,

<1.25





Dark Spots







Size

Zone 1

Zone 2

Zone 3

>.009-.012

0

0

0

>.006-.009

0

0

1

.003-.006

0

0

2

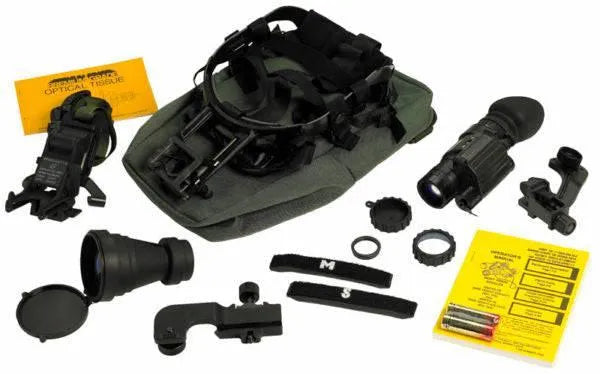

Each units ships with: adapter (j-arm), sacrificial window, demist shield, eyecup, lens cap, neckcord, soft carry case, lens cleaning paper, battery, user manual.

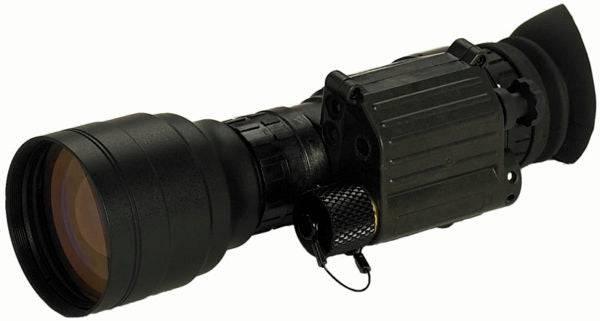

Optional N-Vision Optics accessories such as dual mounts, weapon mounts, and magnifier lenses make the PVS-14 extremely versatile.

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
