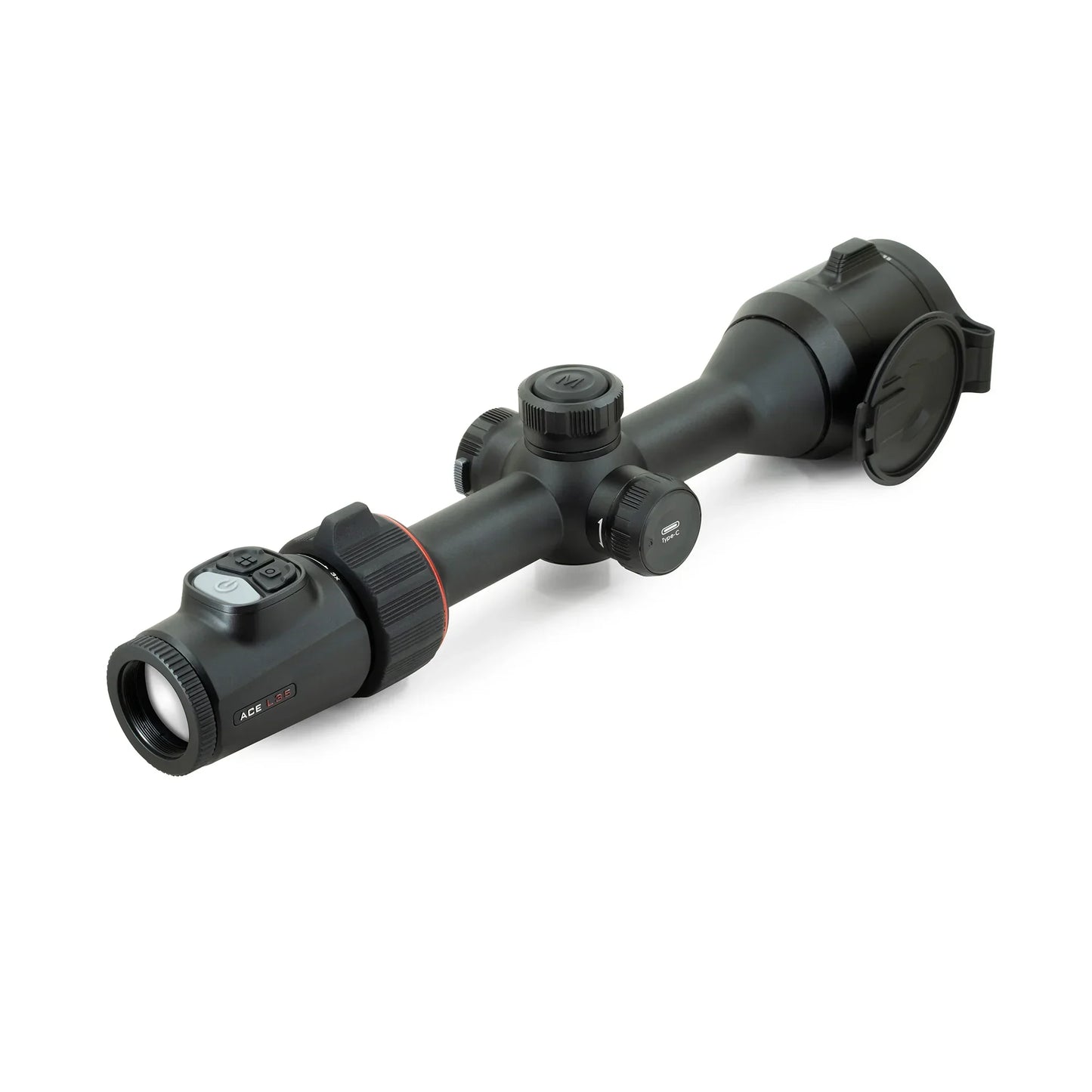

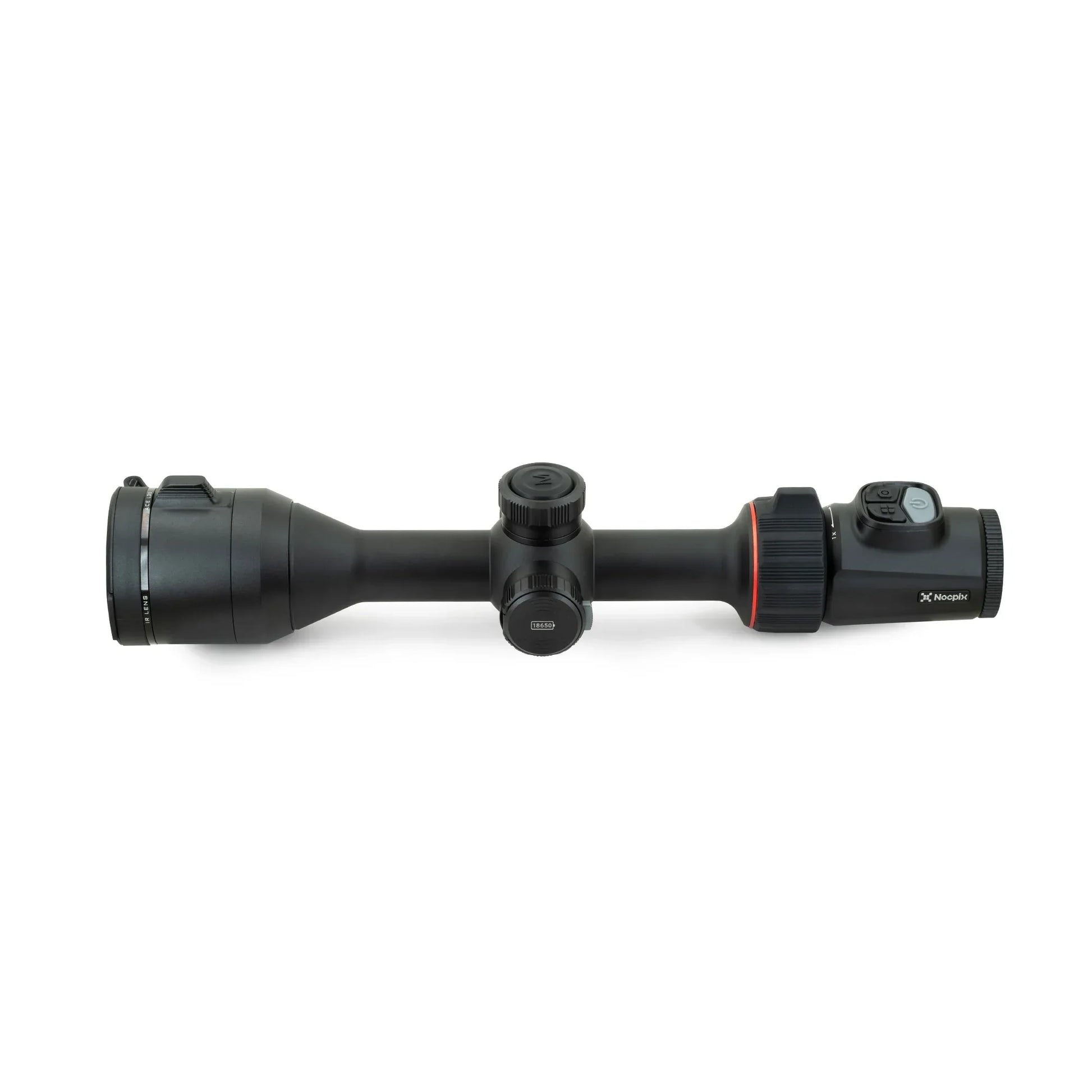

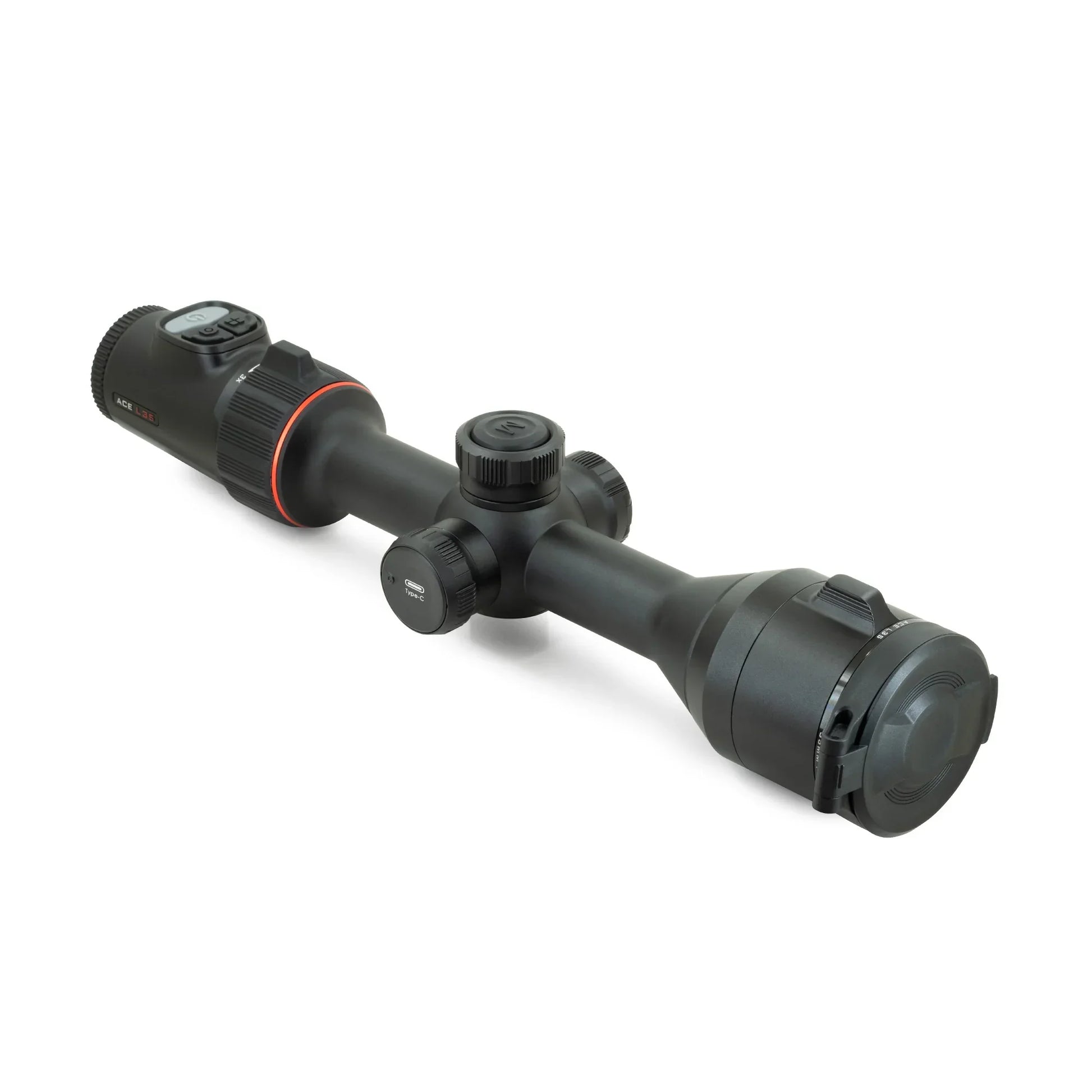

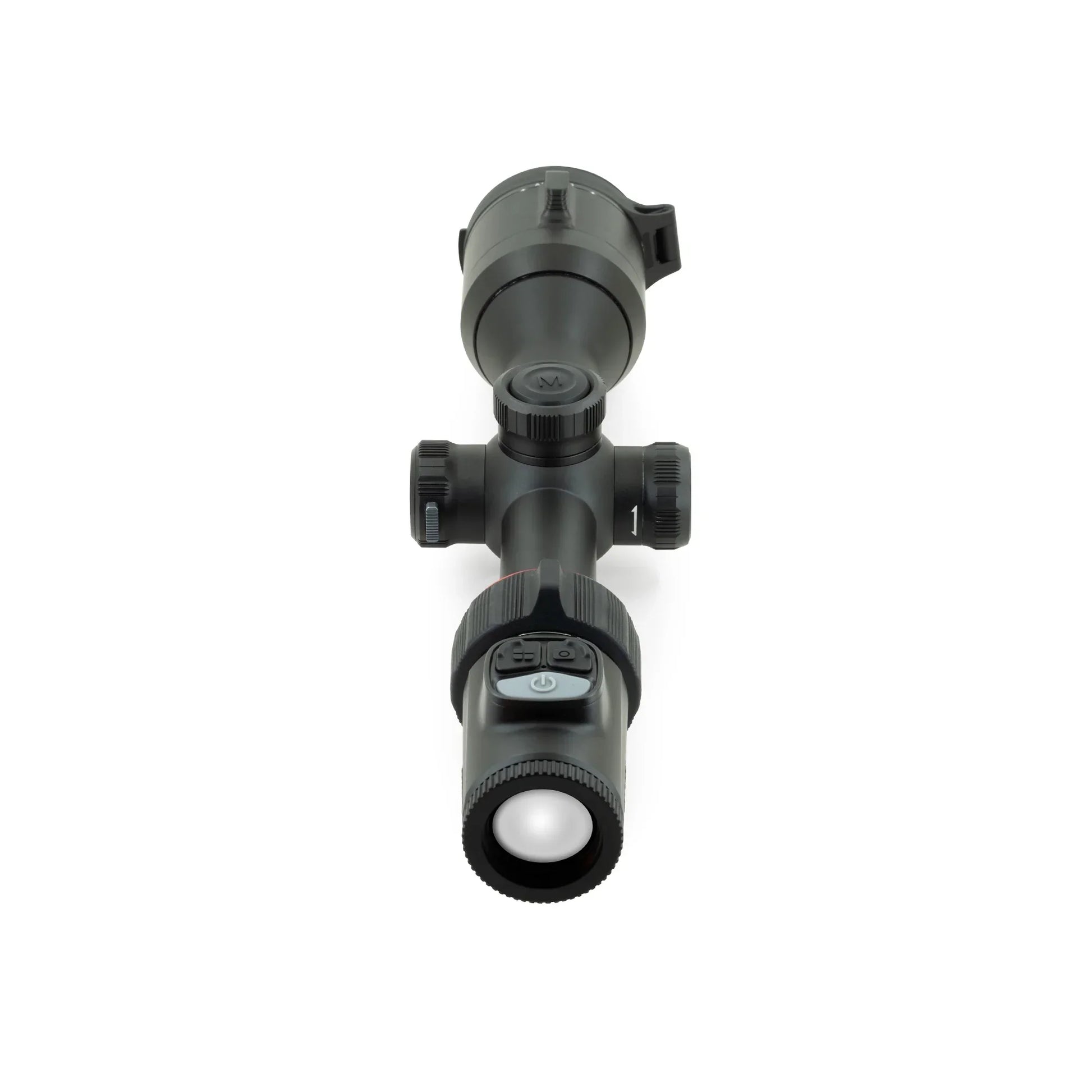

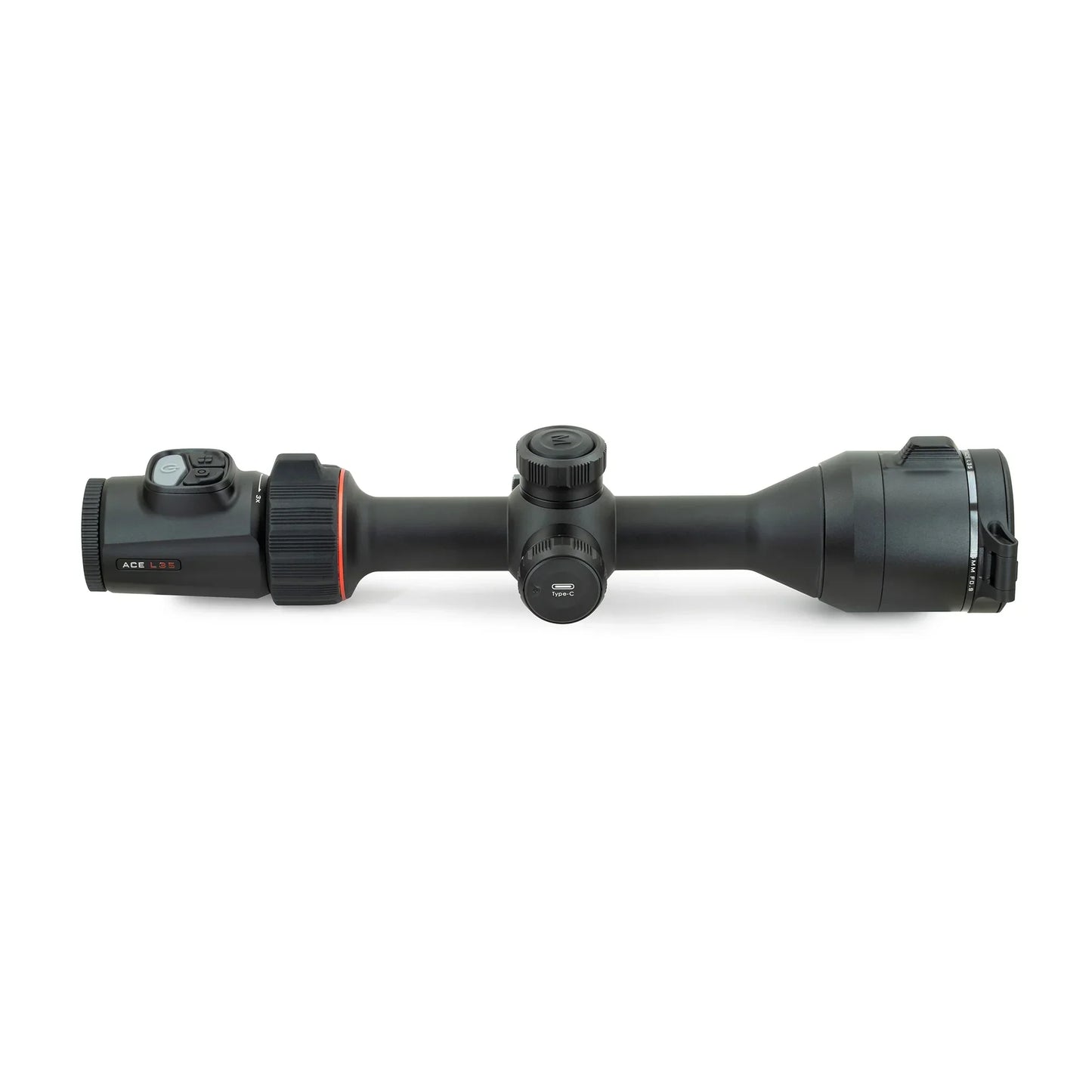

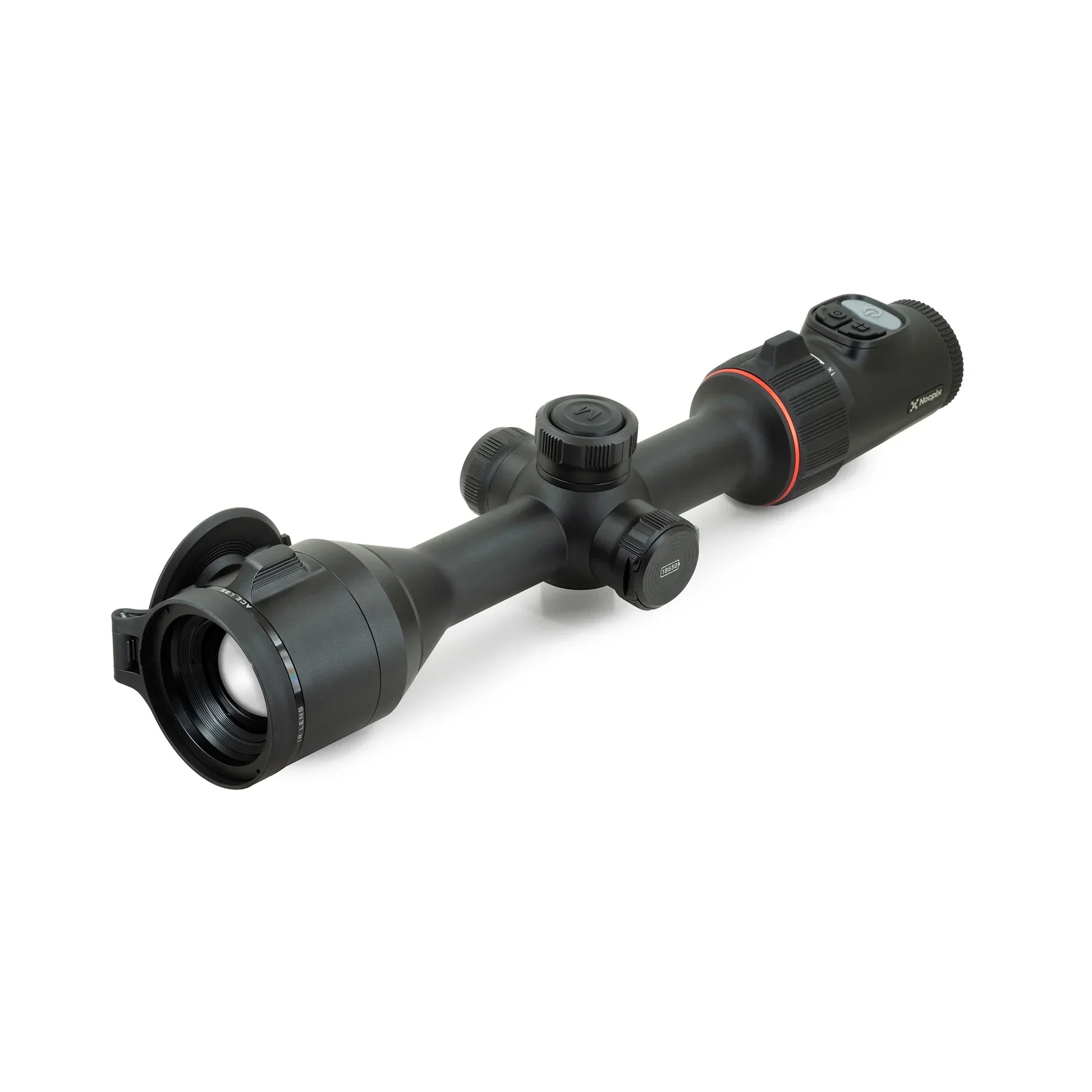

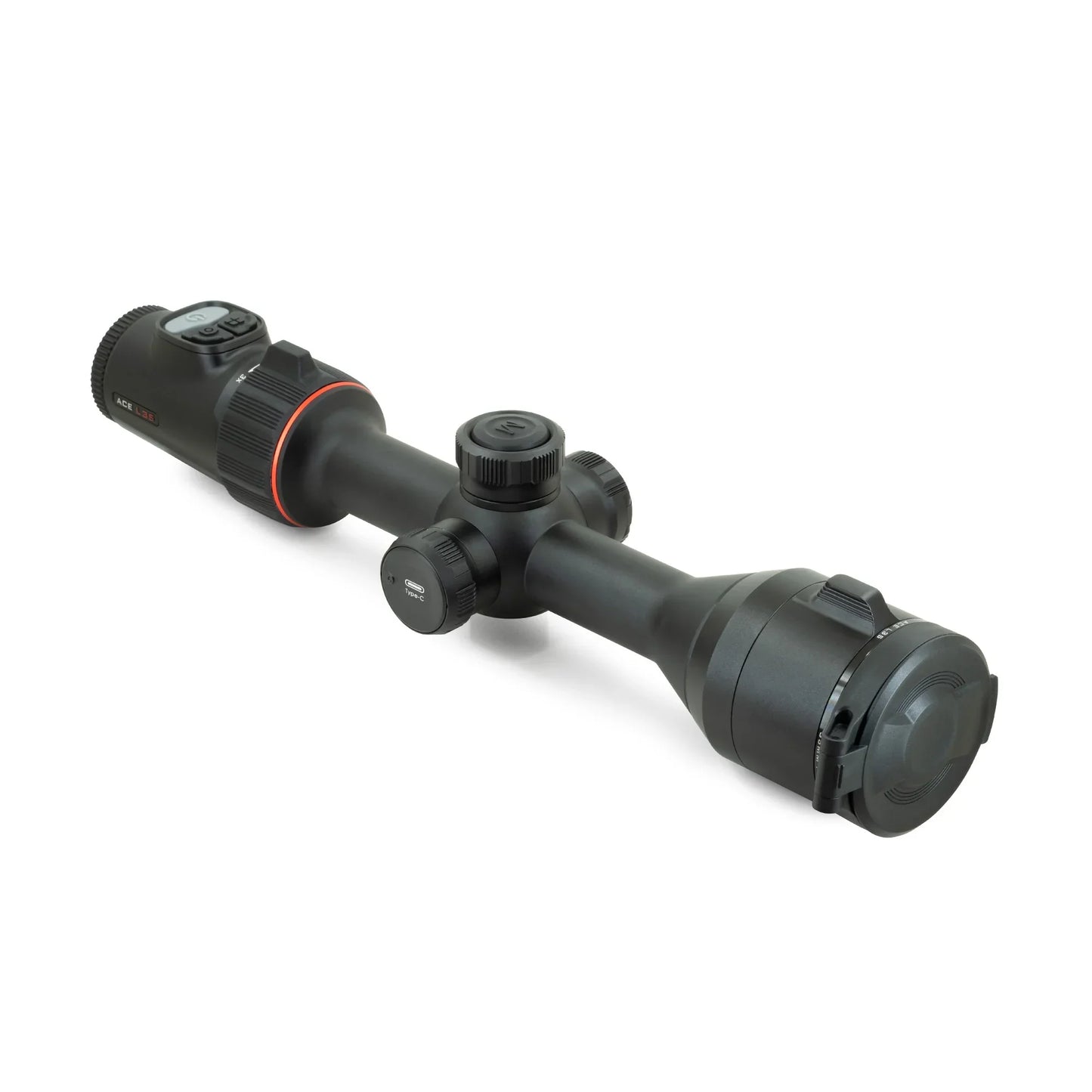

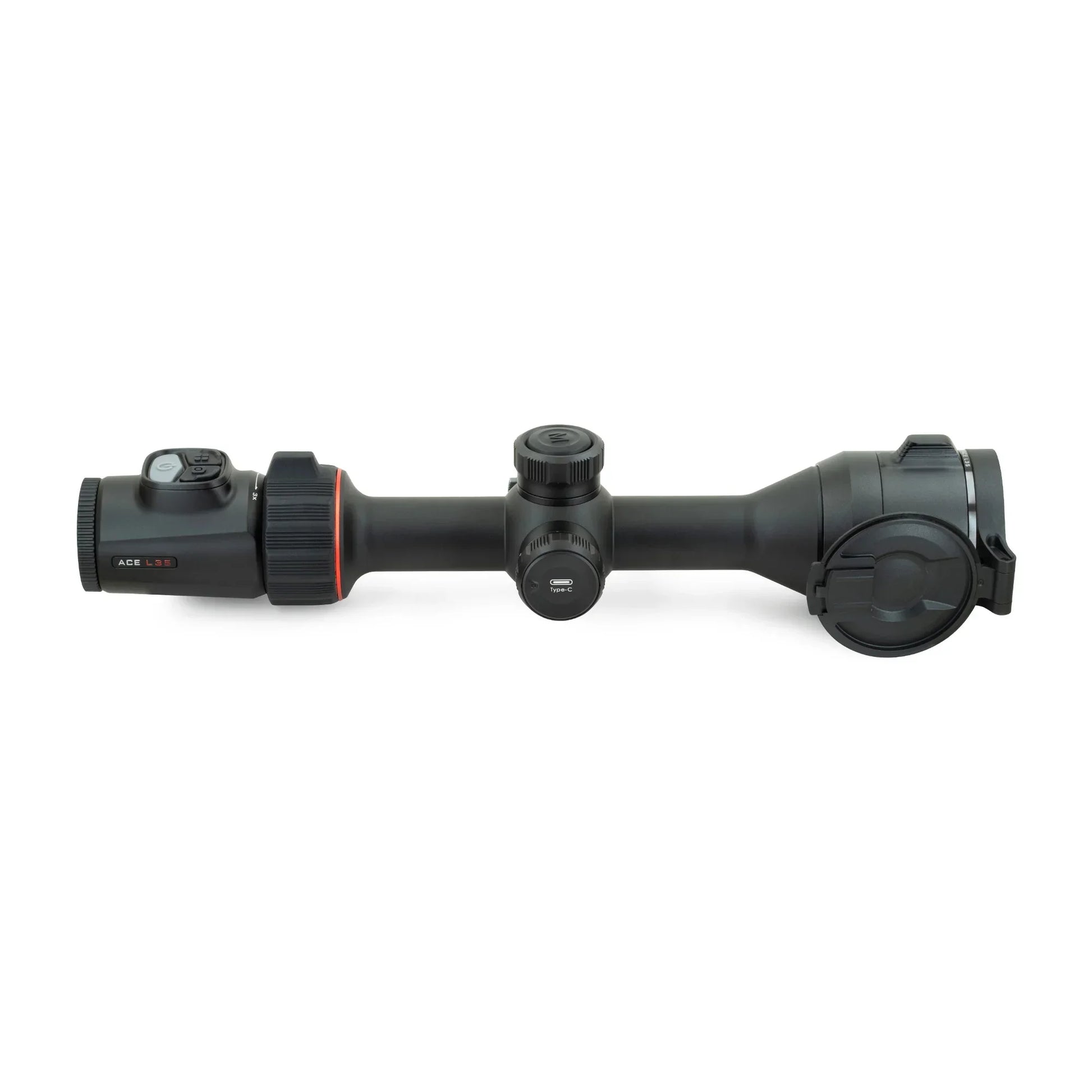

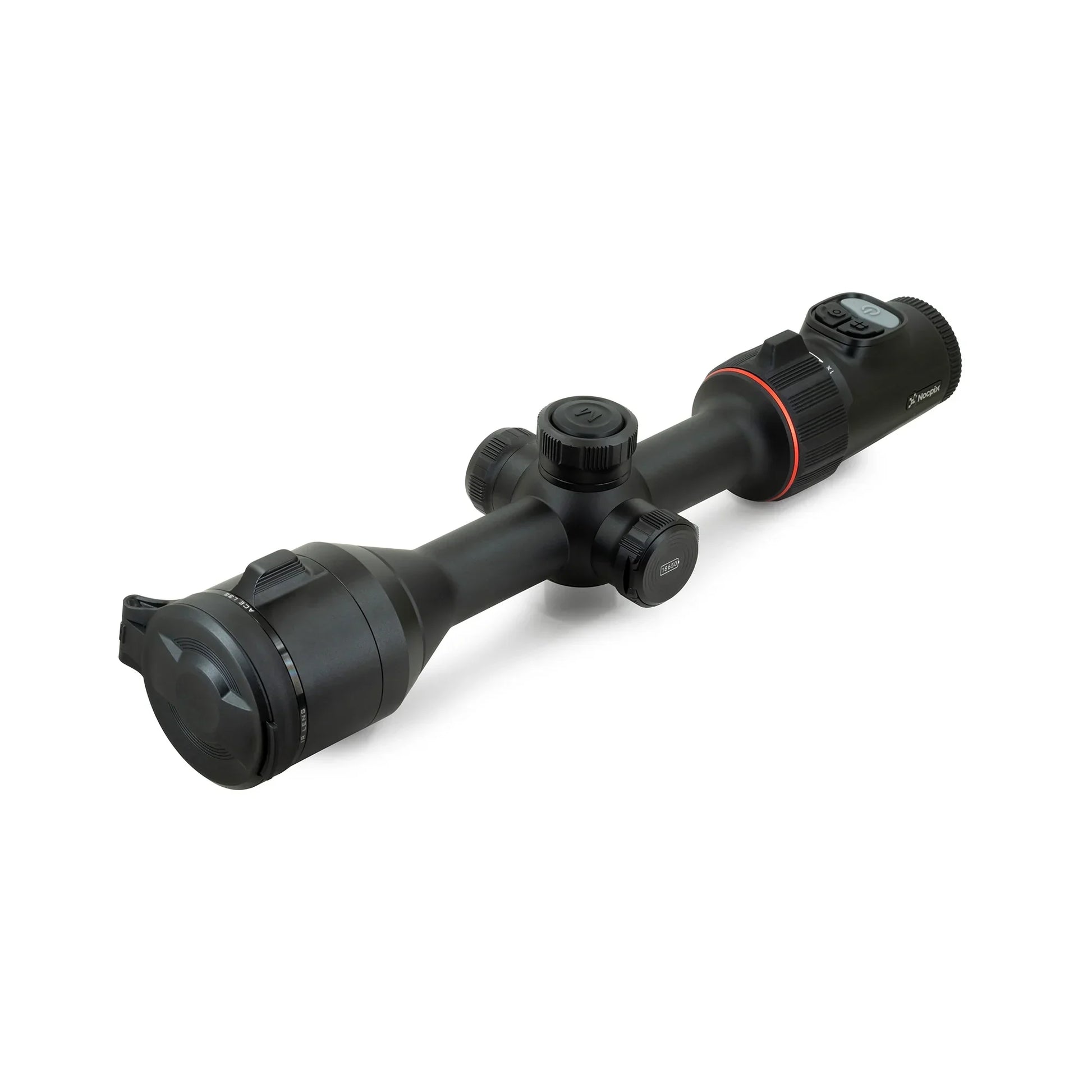

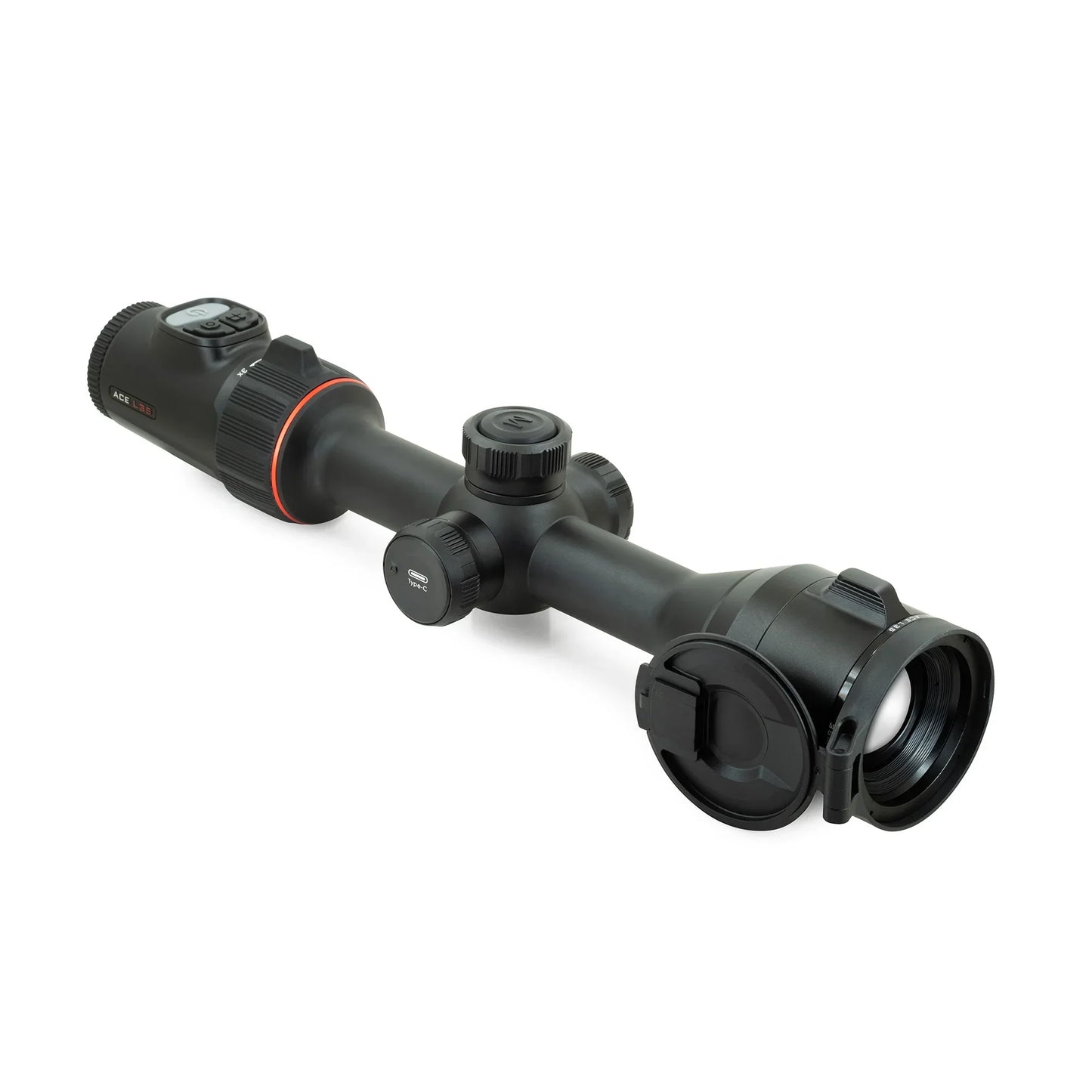

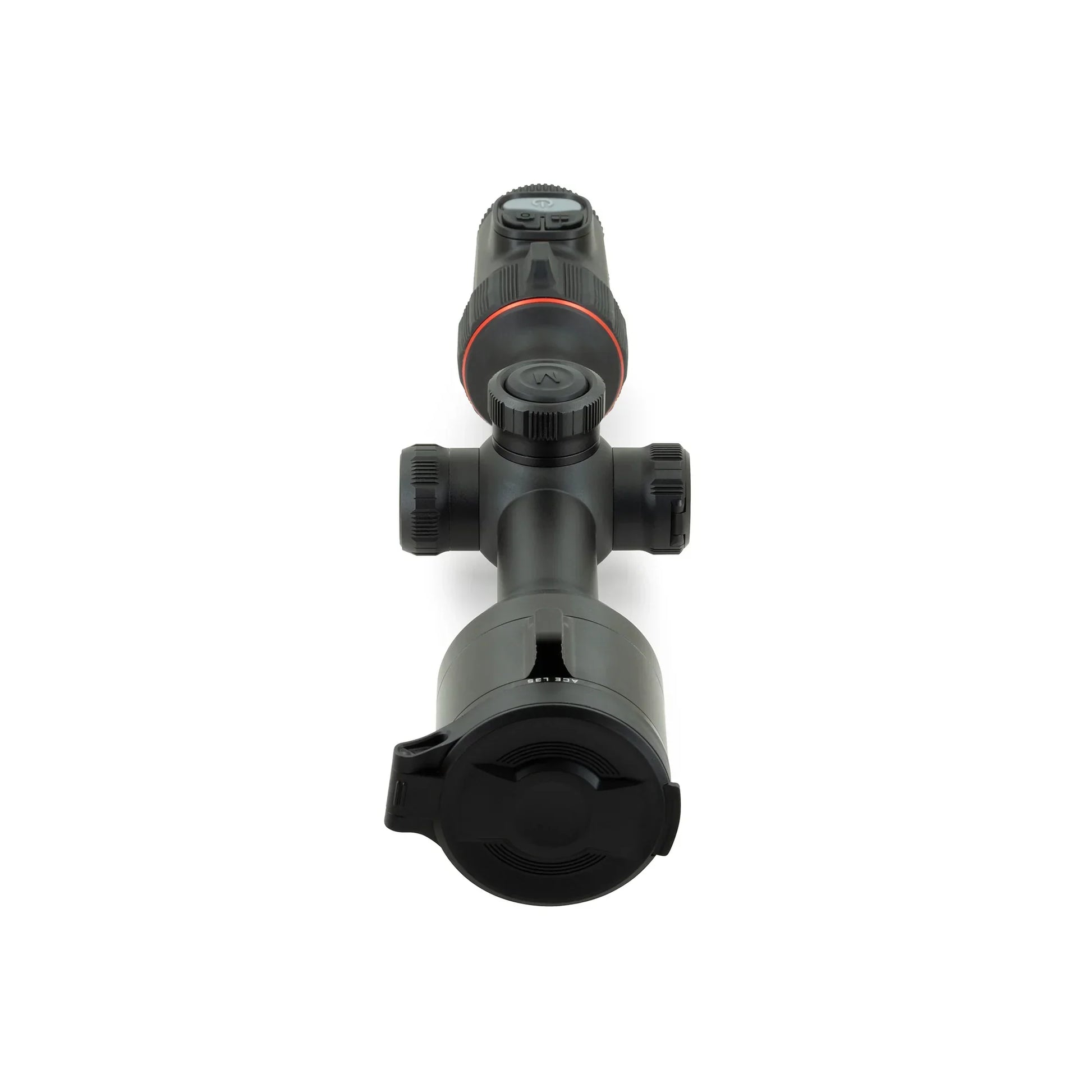

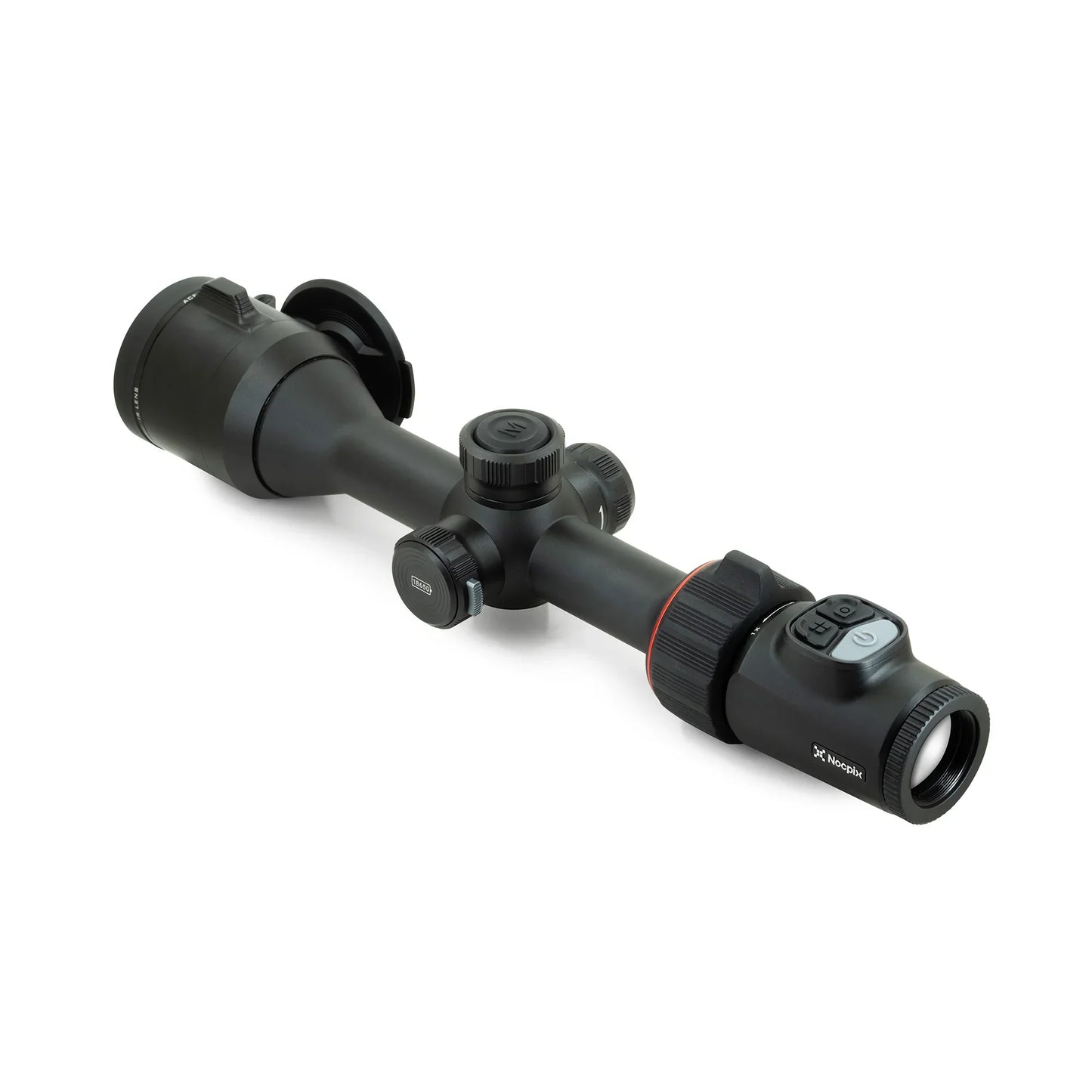

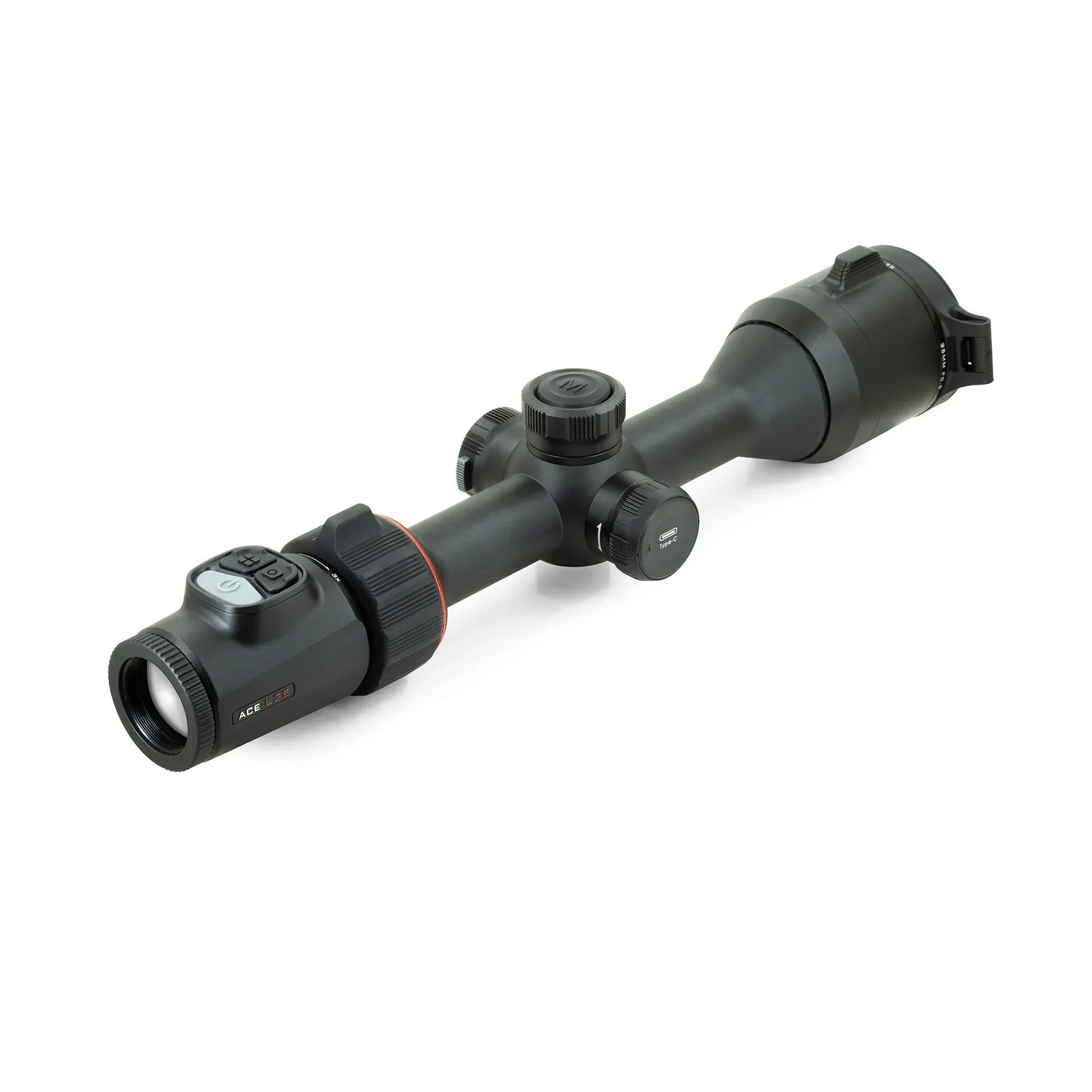

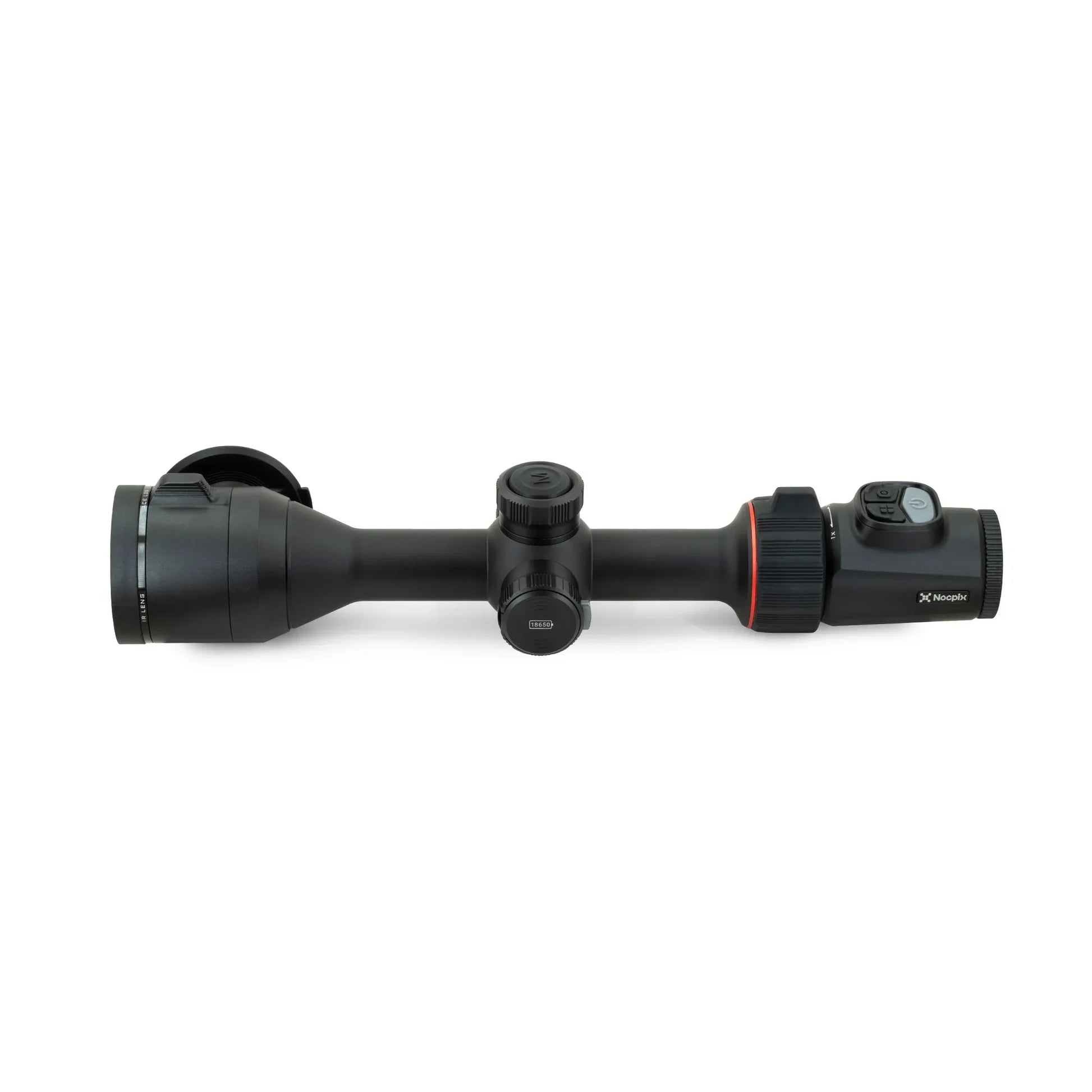

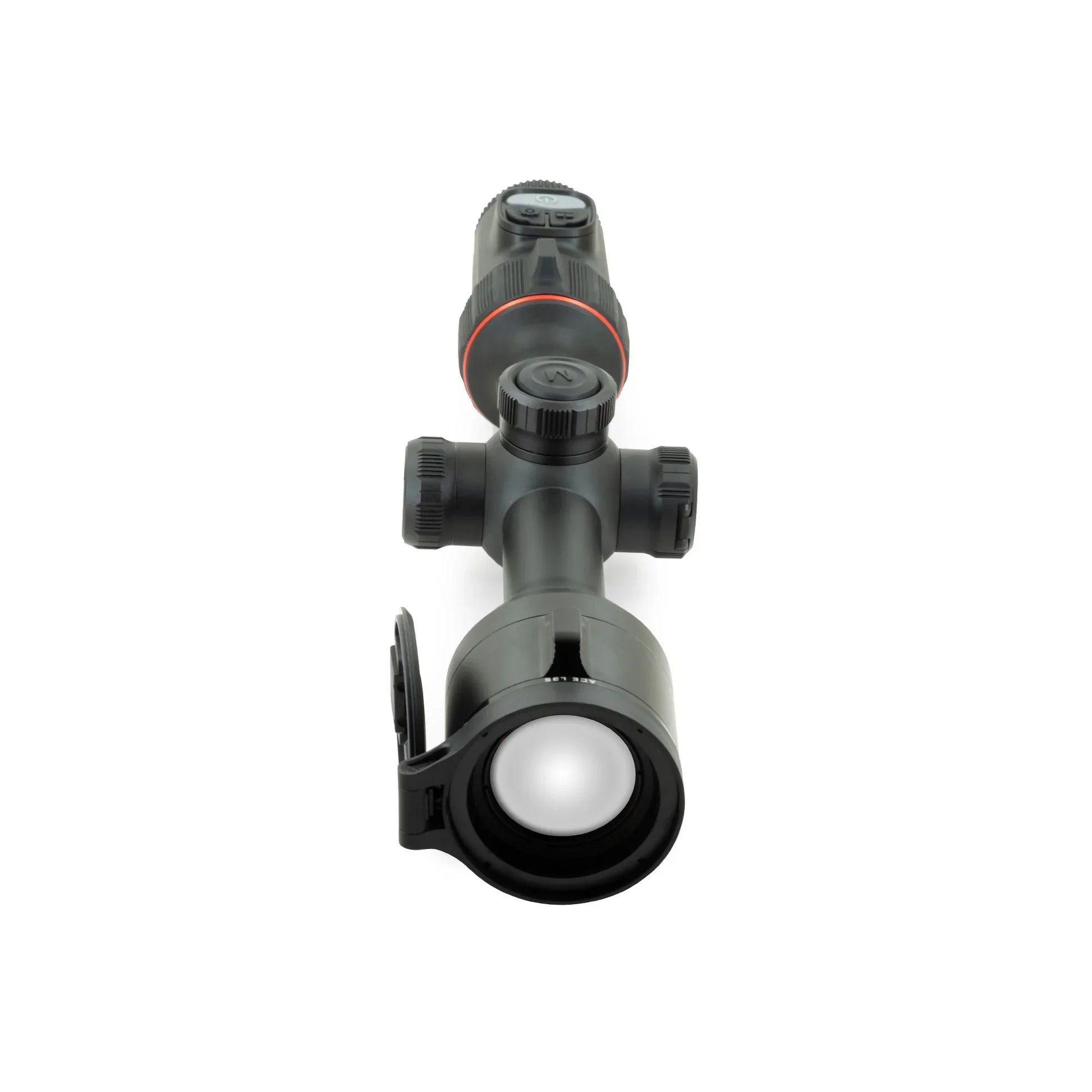

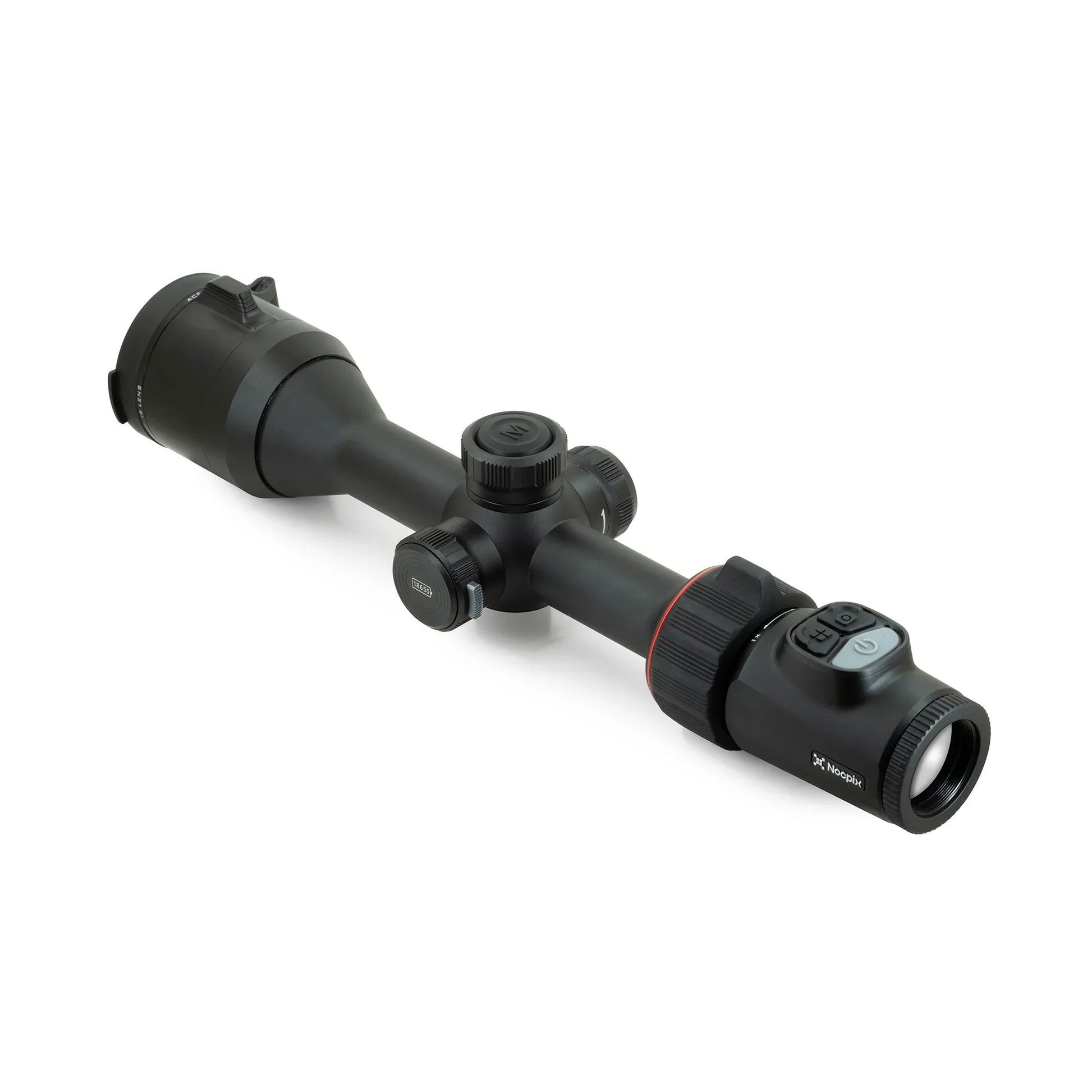

Nocpix ACE Optical Zoom Optimized Thermal Scope 384 L35

Nocpix ACE Optical Zoom Optimized Thermal Scope 384 L35

SKU:ACE-L35

Regular price $ 2,499.00
Regular price Sale price $ 2,499.00
Sale Sold out
Shipping calculated at checkout.

Nocpix ACE Optical Zoom Optimized Thermal Scope 384x288 35mm 3X ACE-L35



The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 18 mK NETD sensor for an incredibly detailed and precise image.

New for 2025, the ACE L35 offers a more affordable option in the ACE line for predator and hog hunters who don't require a laser rangefinder or higher resolution sensor. Packing tremendous value, the ACE L35 retains all other features of ACE line of thermal rifle scopes.

Nocpix ACE L35 Features:

  • Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.

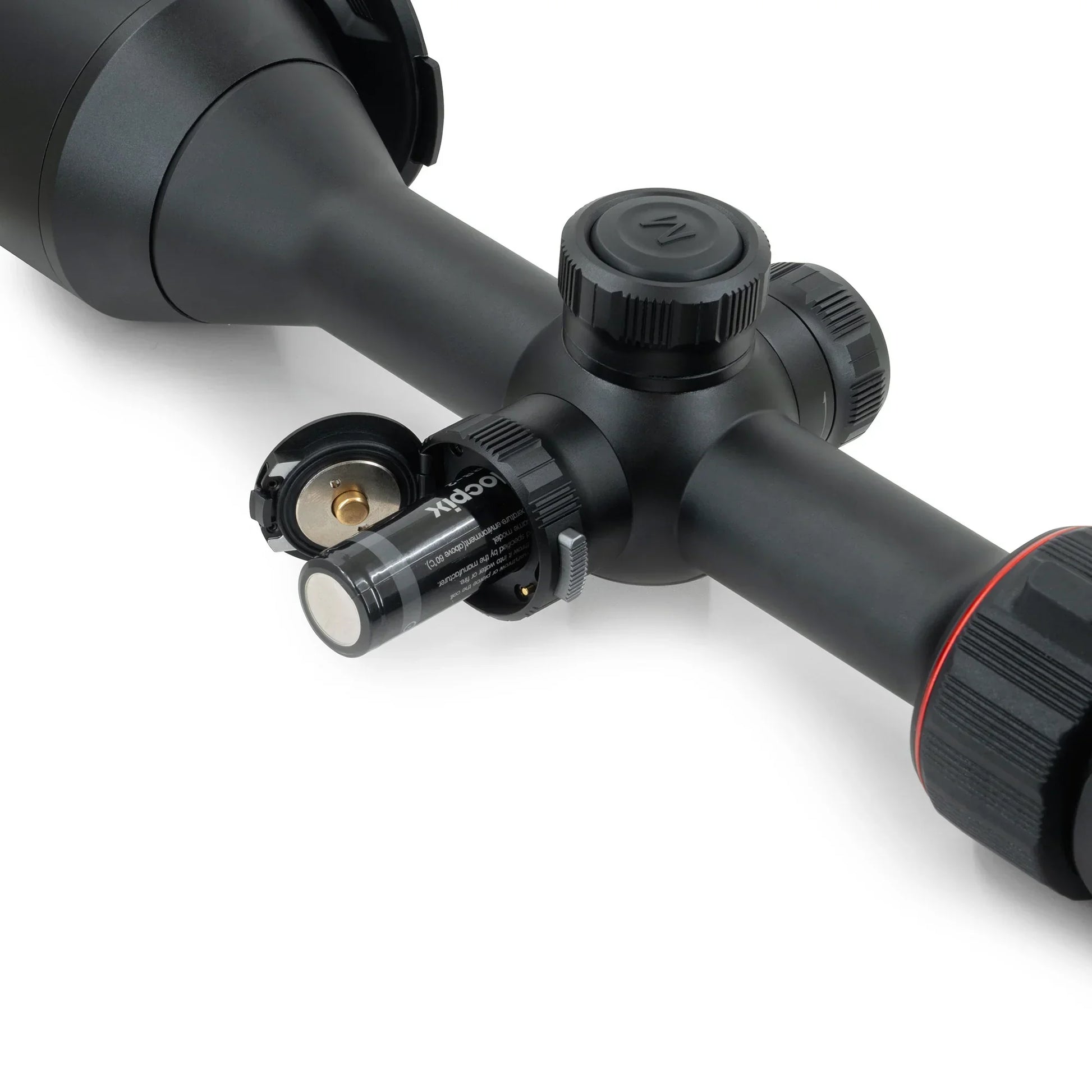

  • Uses common 18650 style rechargeable batteries.
  • A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
  • Charge through the unit with a unique lock-out USB-C port design.
  • 5 Year Warranty

Nocpix ACE L35 Specifications:

SENSOR

Resolution 384x288

Pixel Size 12 μm

Frame Rate 60 Hz

Sensor Sensitivity ≤18 mK

Image Processing Reality+

Core Nocpix 384

OPTICS

Objective Lens 35 mm f/0.9

Native Magnification 3x

Digital Zoom 4x

Field of View 7.5° x 5.7°

Detection Range 1,970 yards

Display Type 1.03-inch Large-format AMOLED

Display Resolution 2560x2560

Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet

Picture-in-Picture Yes

Rangefinder None

Eye Relief 50 mm

Diopter Range -5 to +5

ELECTRONICS

Onboard Recording Video and Image

Onboard Storage 32 GB

Wireless Connectivity Image and Video via App.

Data/Power Connector USB-C

Power Supply USB-C External, Built-In Battery, 18650 Batteries x2

Max. Operating Time 7+ Hours

Start Up Time <10 Seconds, Instant from Standby

PHYSICAL

Size 13.78” x 3.54” x 2.44”

Weight 37.0 oz.

ENVIRONMENTAL & WARRANTY

Warranty 5 Years

Housing Material T-6063 Aluminum

Ingress Protection IP67

Operation Temperature -4°F~122°F

The Nocpix ACE ships with everything you need to get out and hunt.

35mm Objective Lens Cap

QD Mount

Standard Rubber Eyeguard

18650 Battery ×2

Battery Charger

USB-C Cable for Data/Video

Soft Case and Straps

Lens Cloth

User Manual
