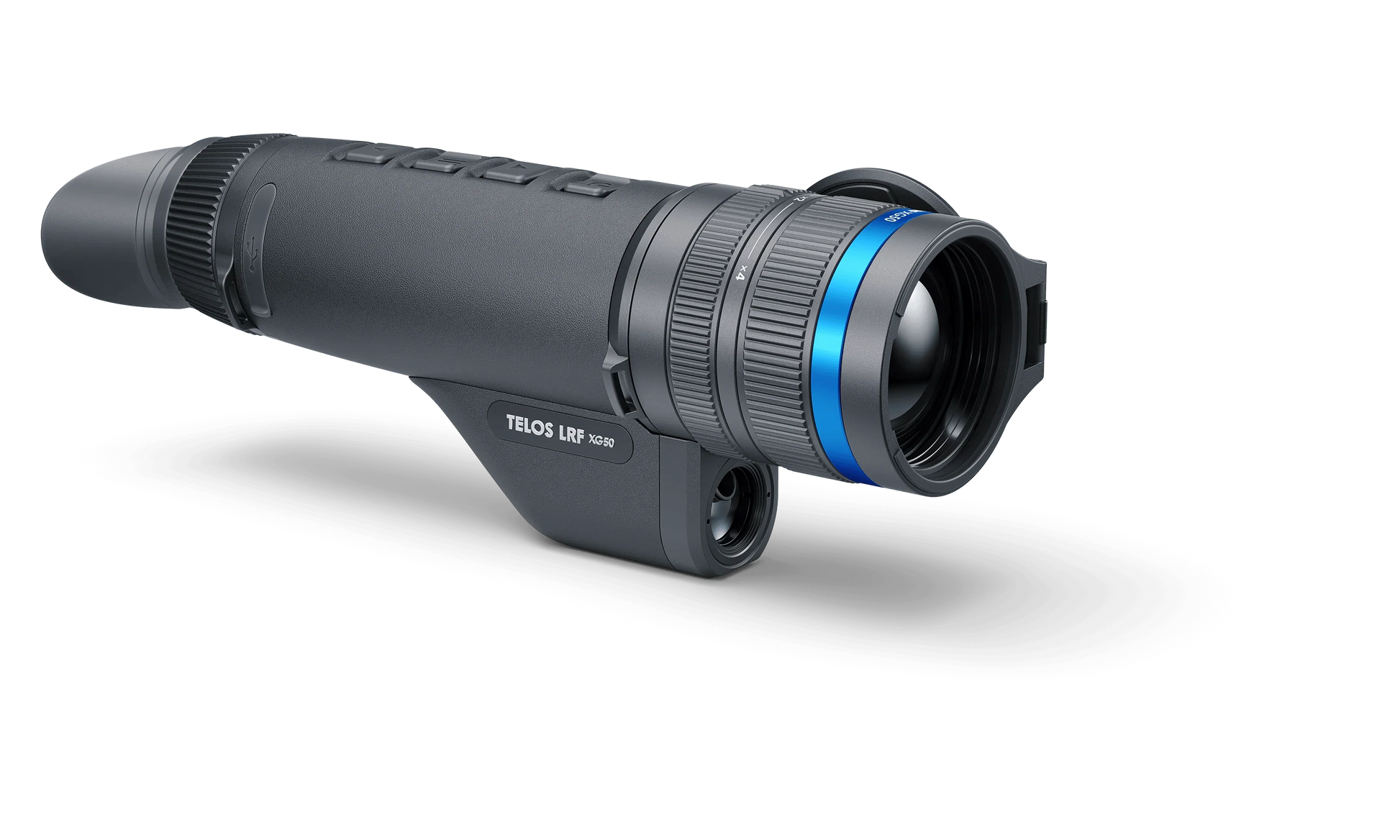

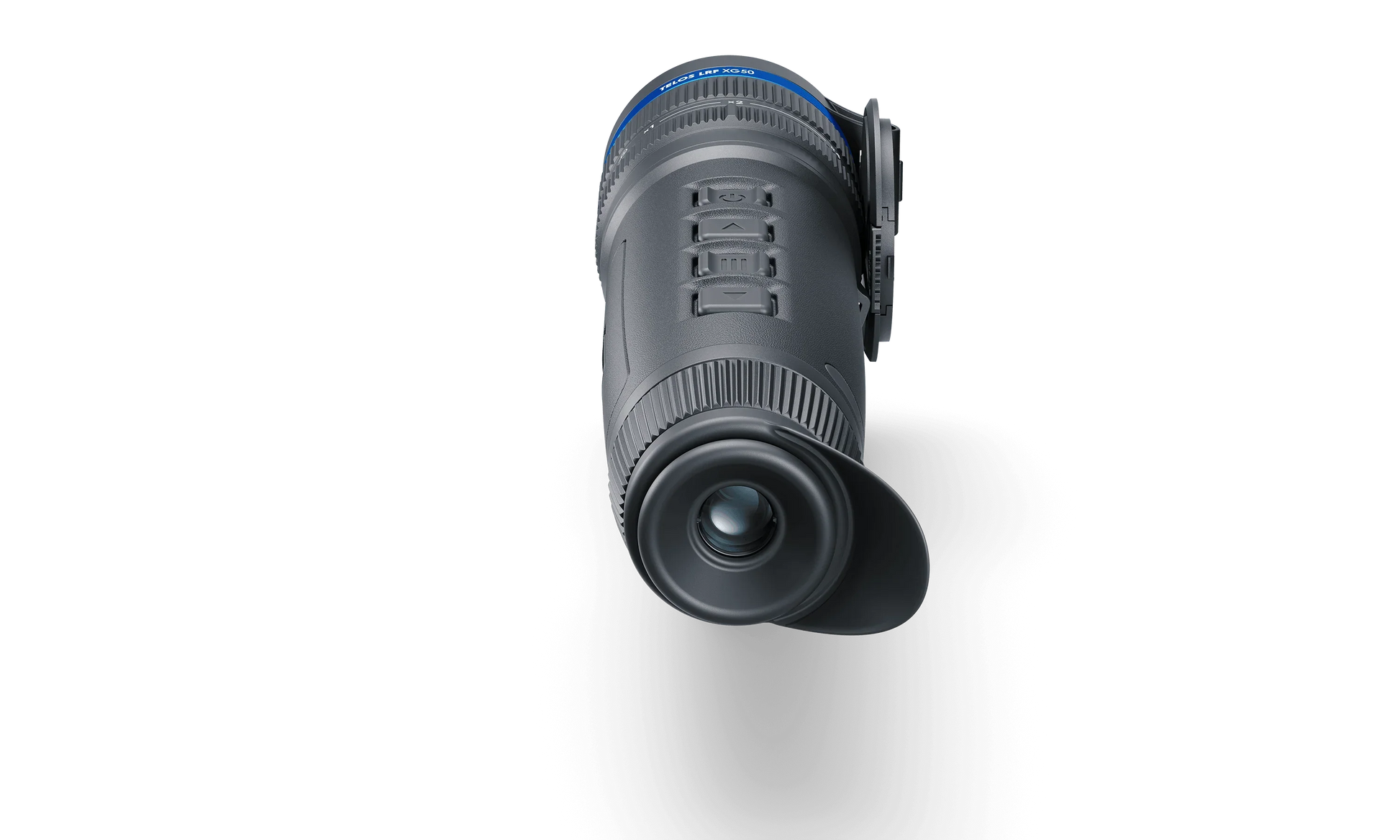

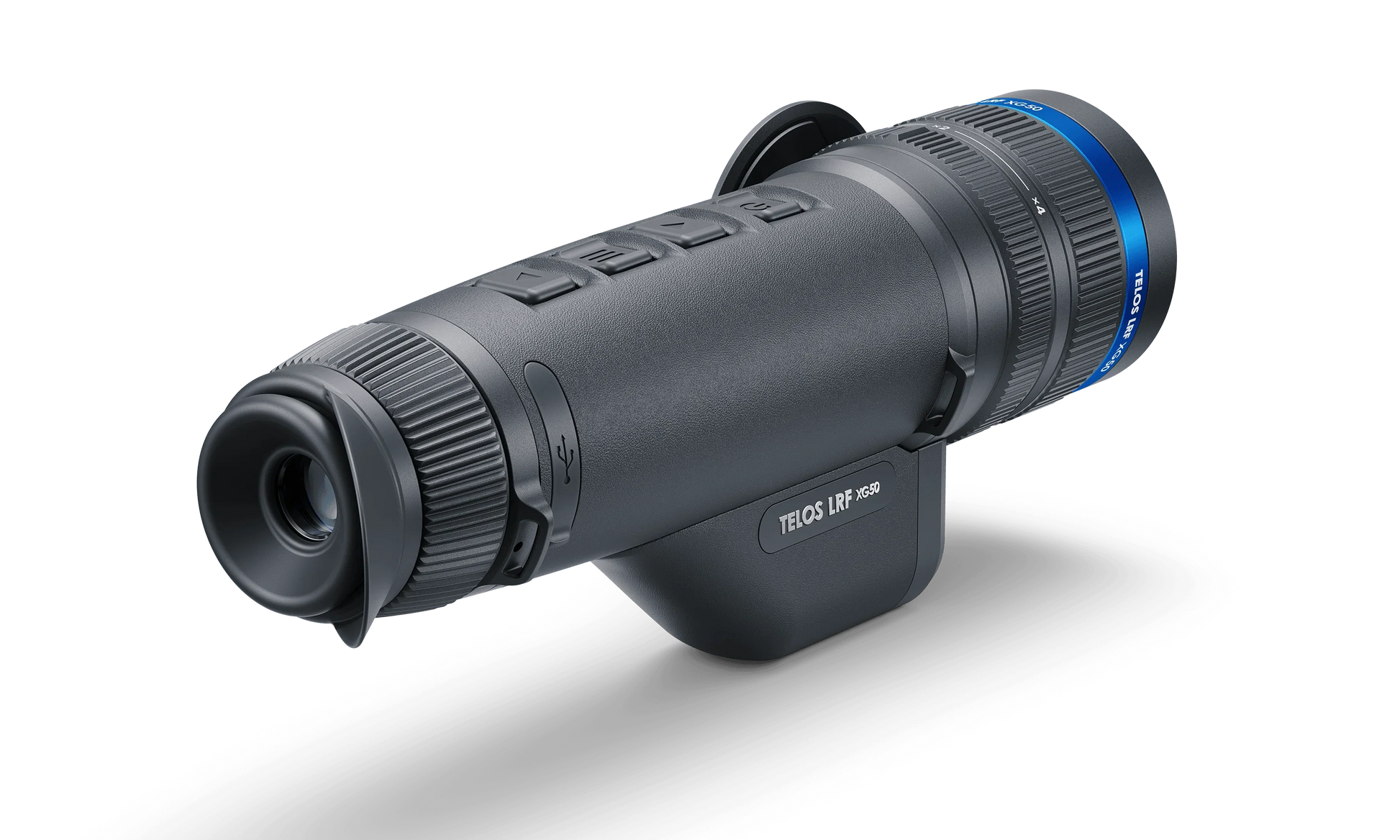

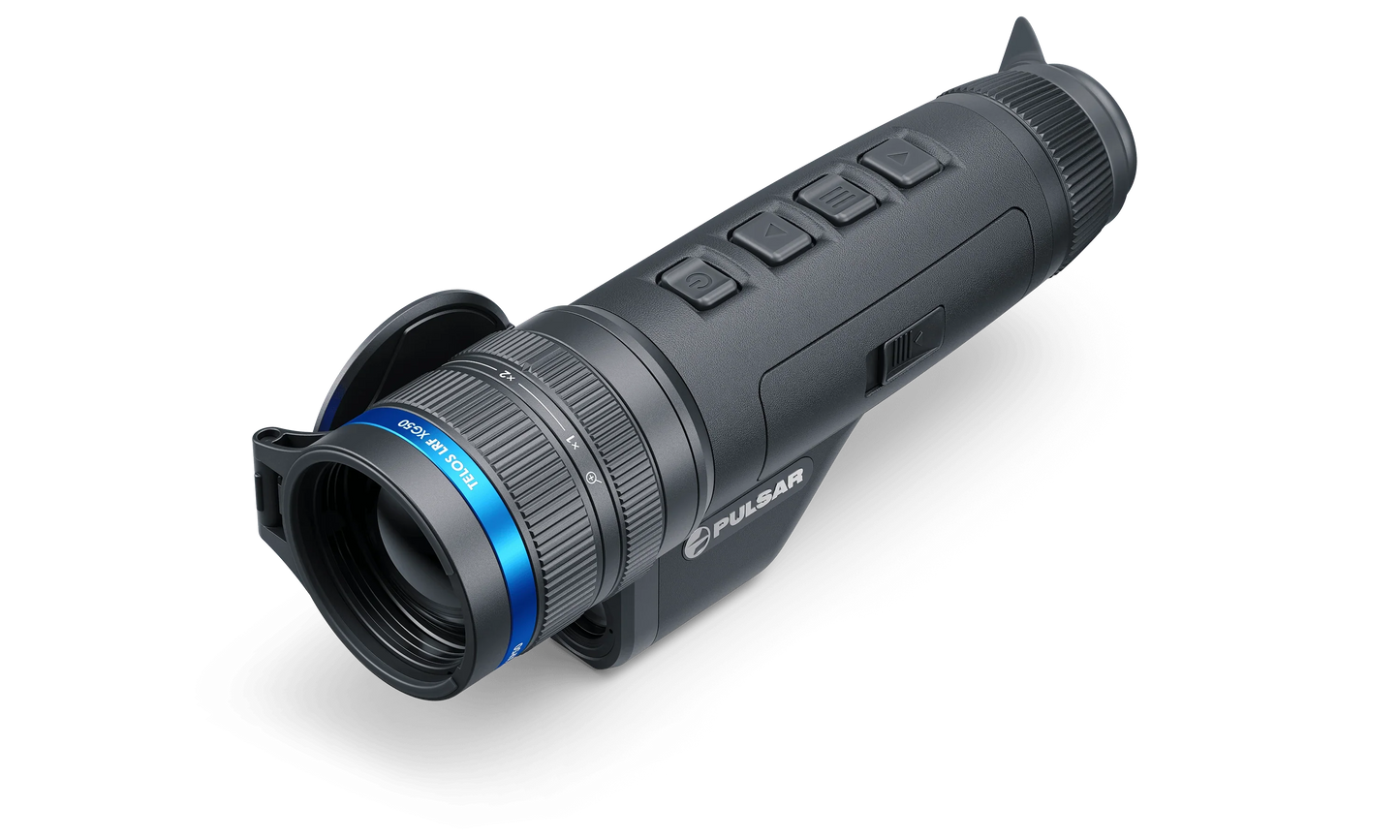

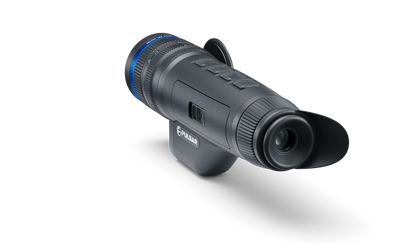

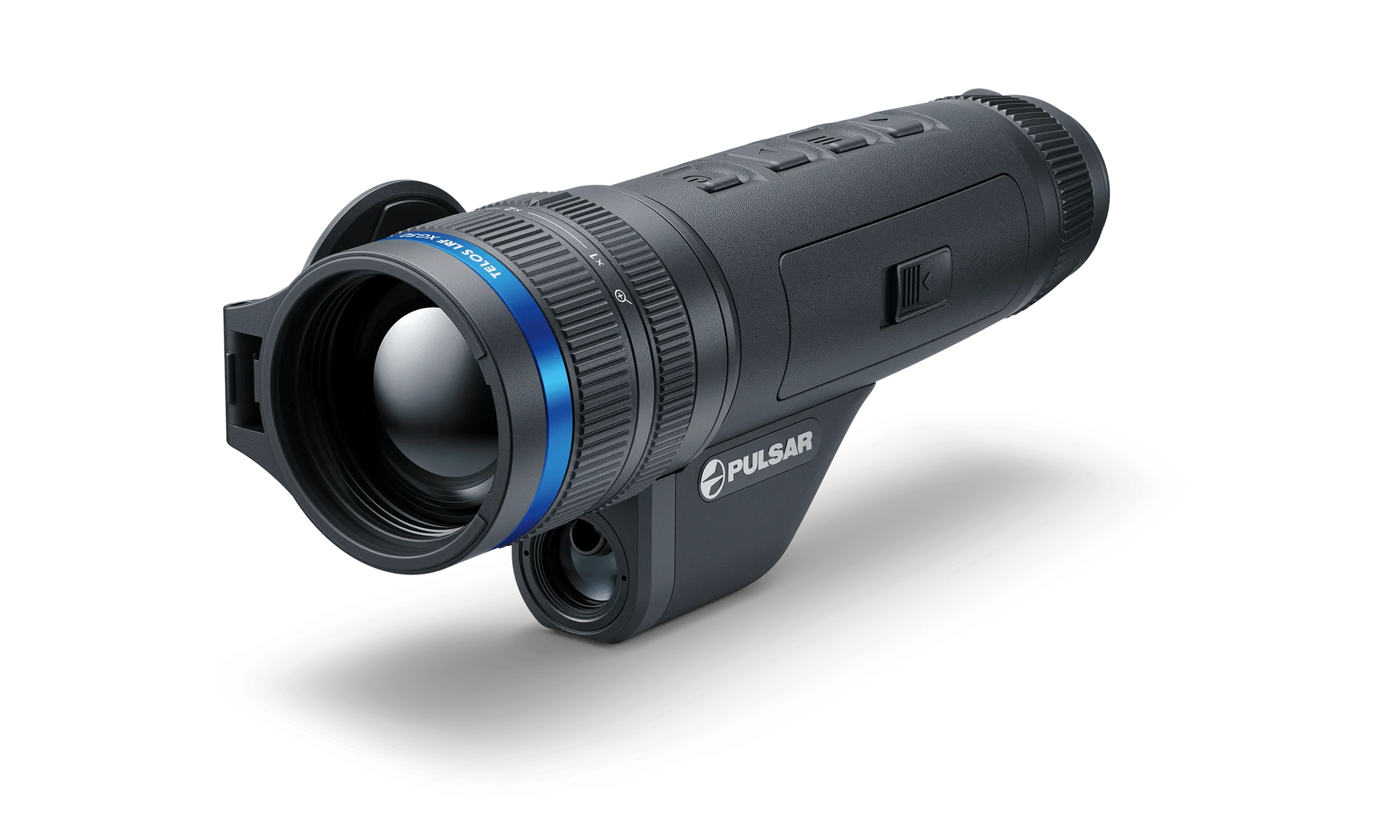

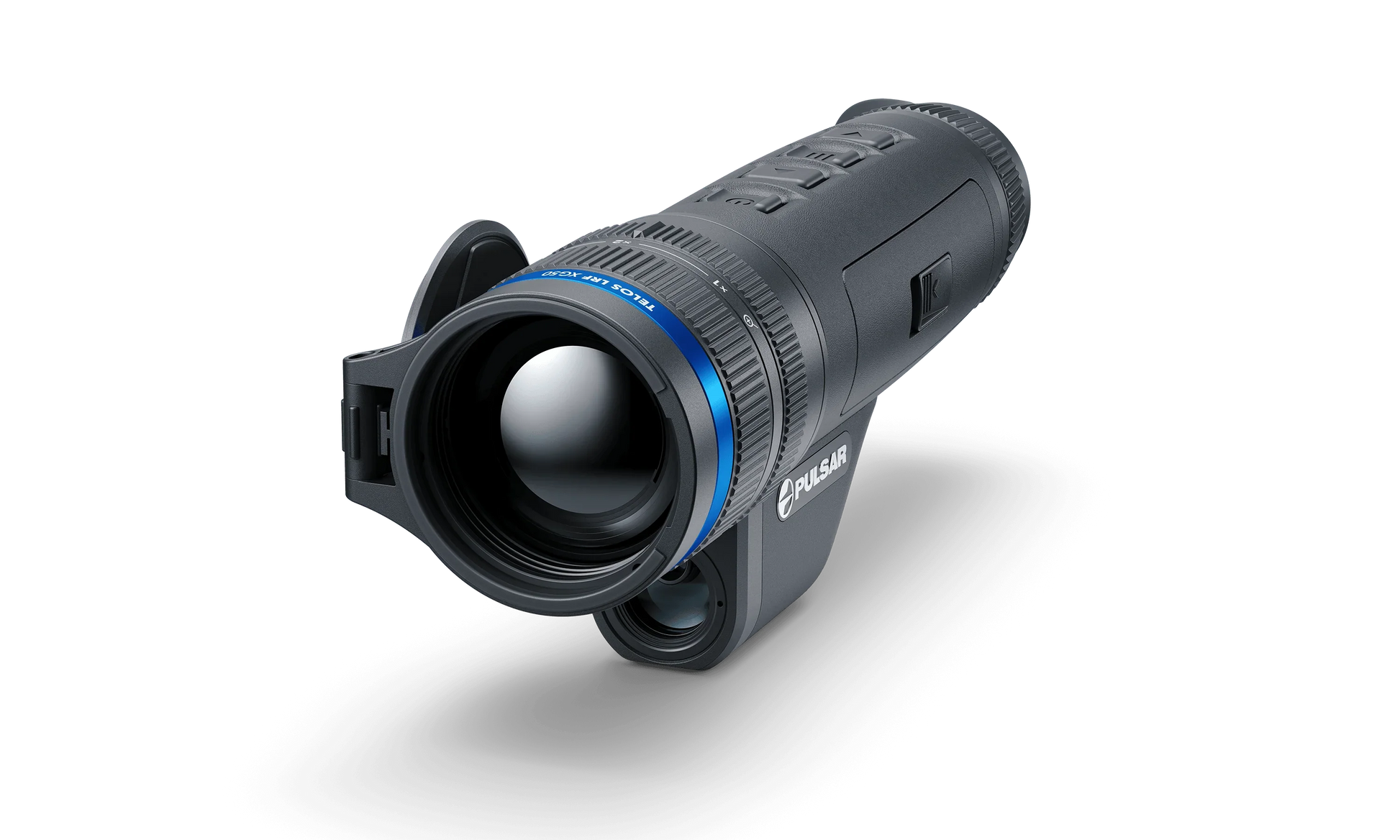

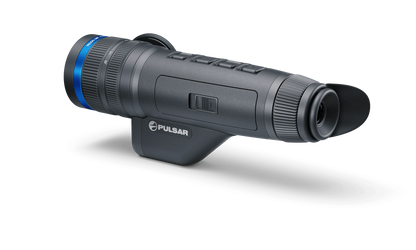

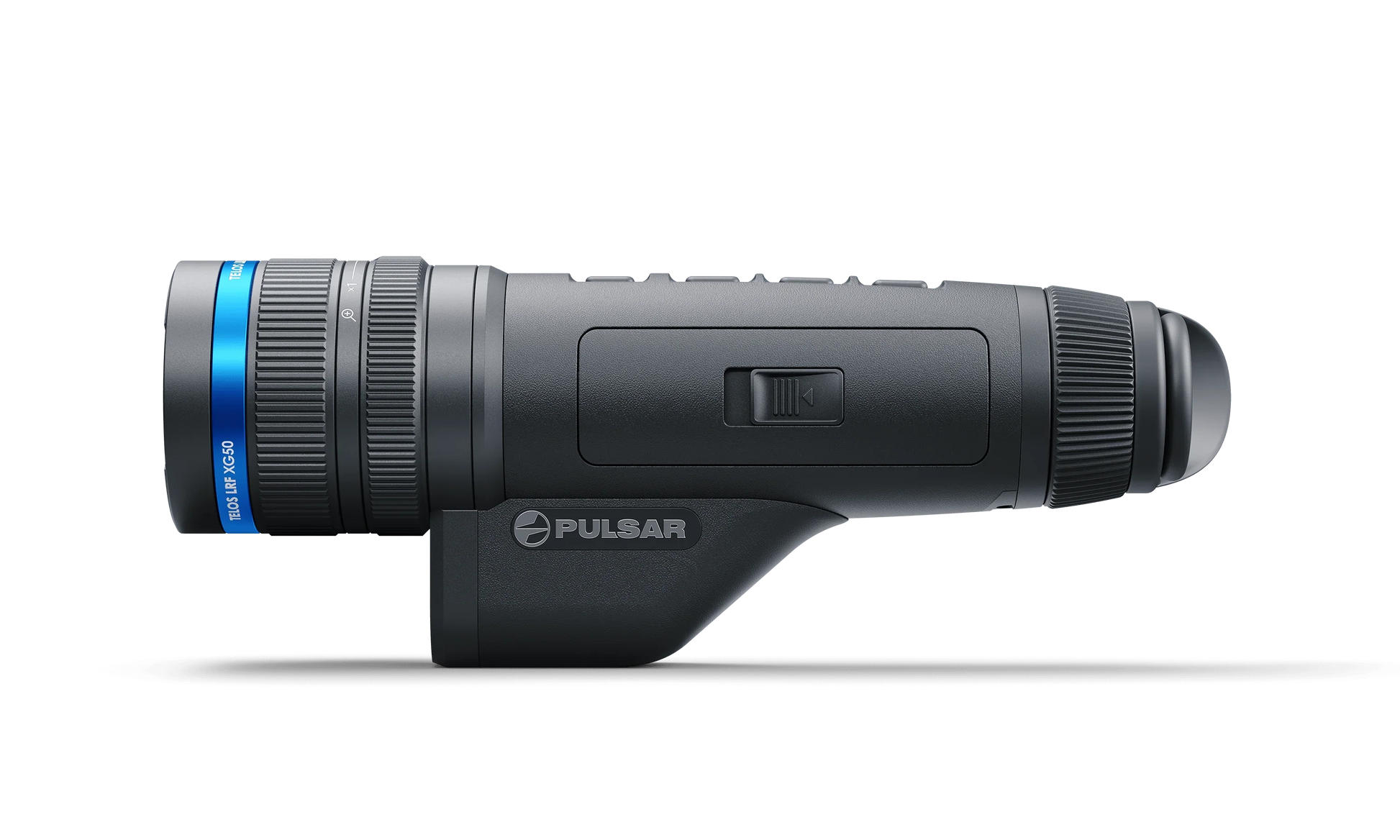

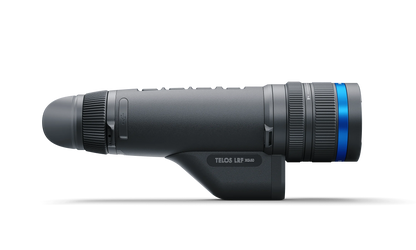

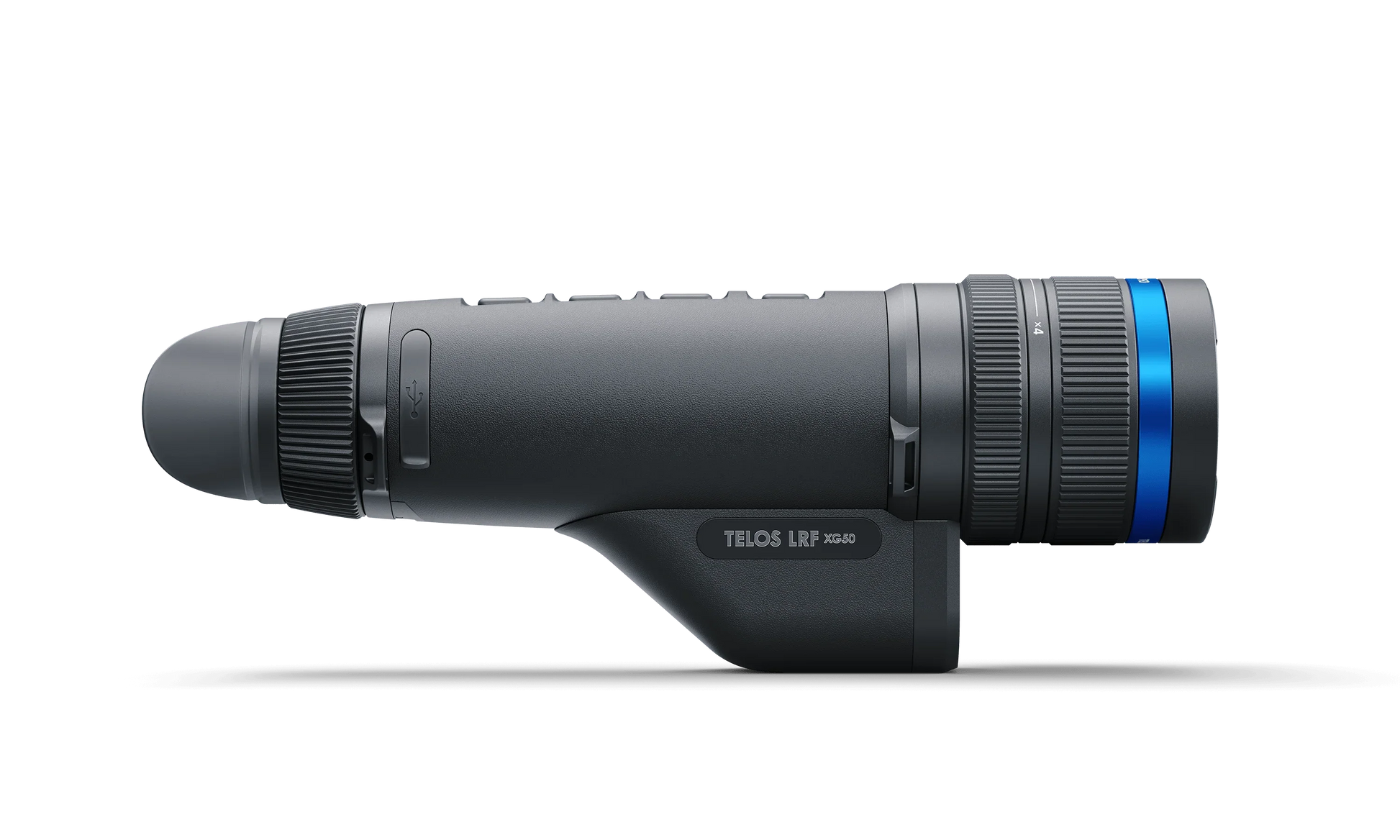

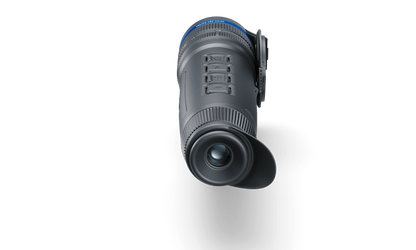

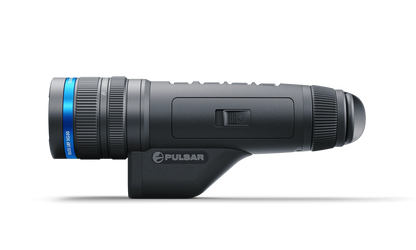

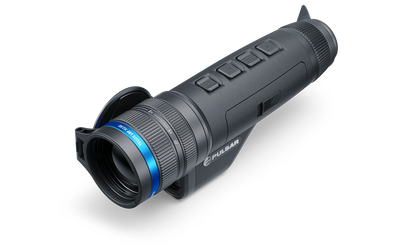

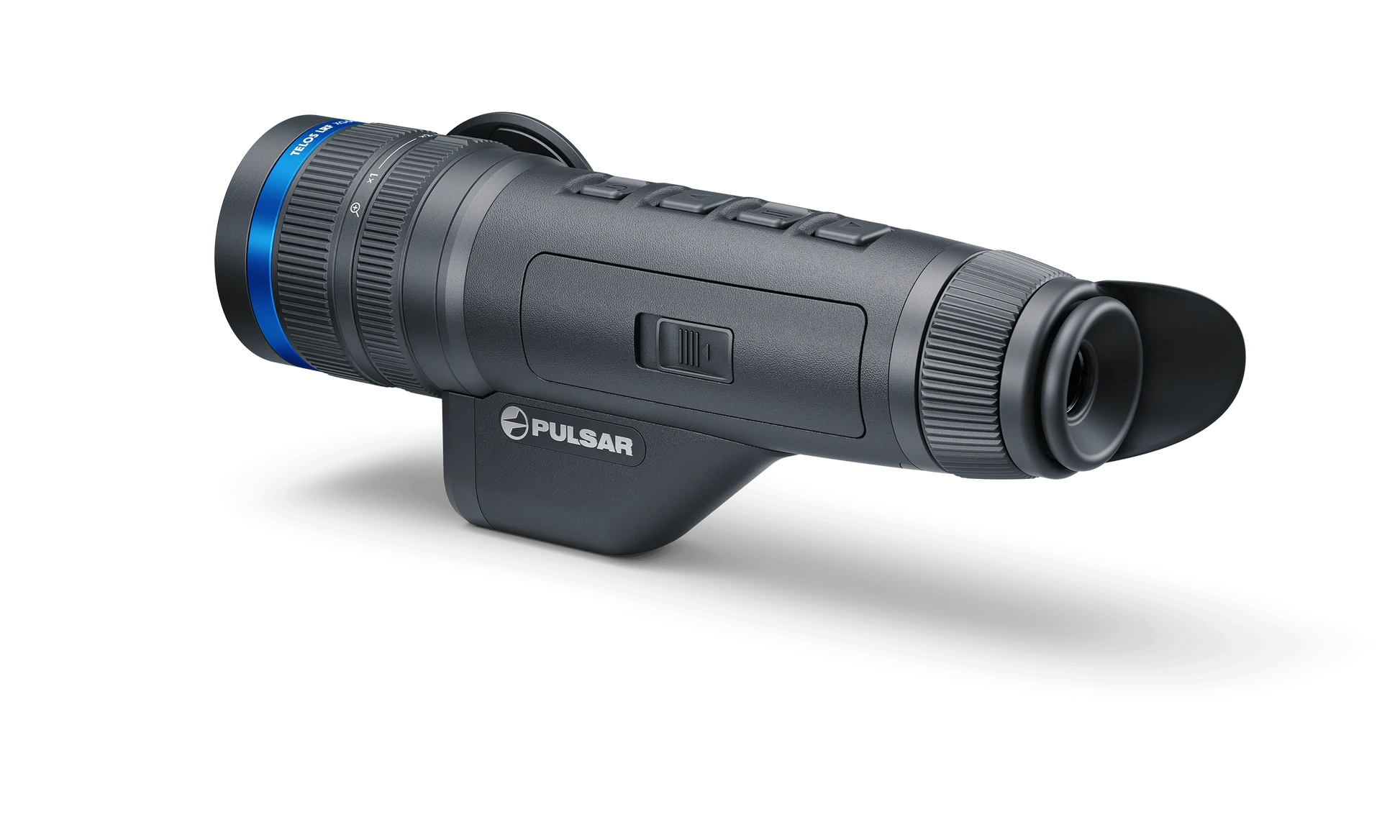

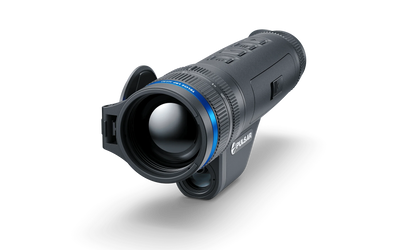

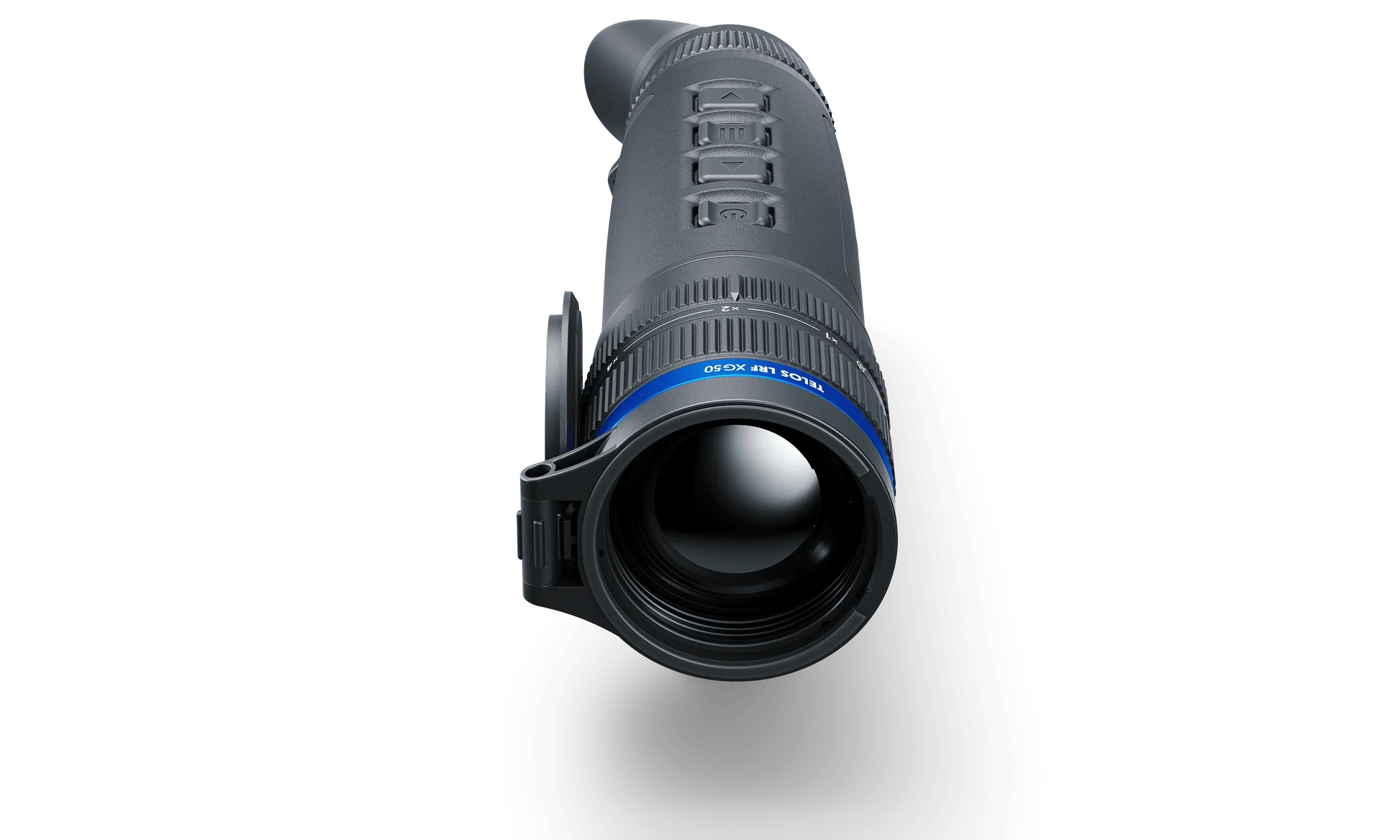

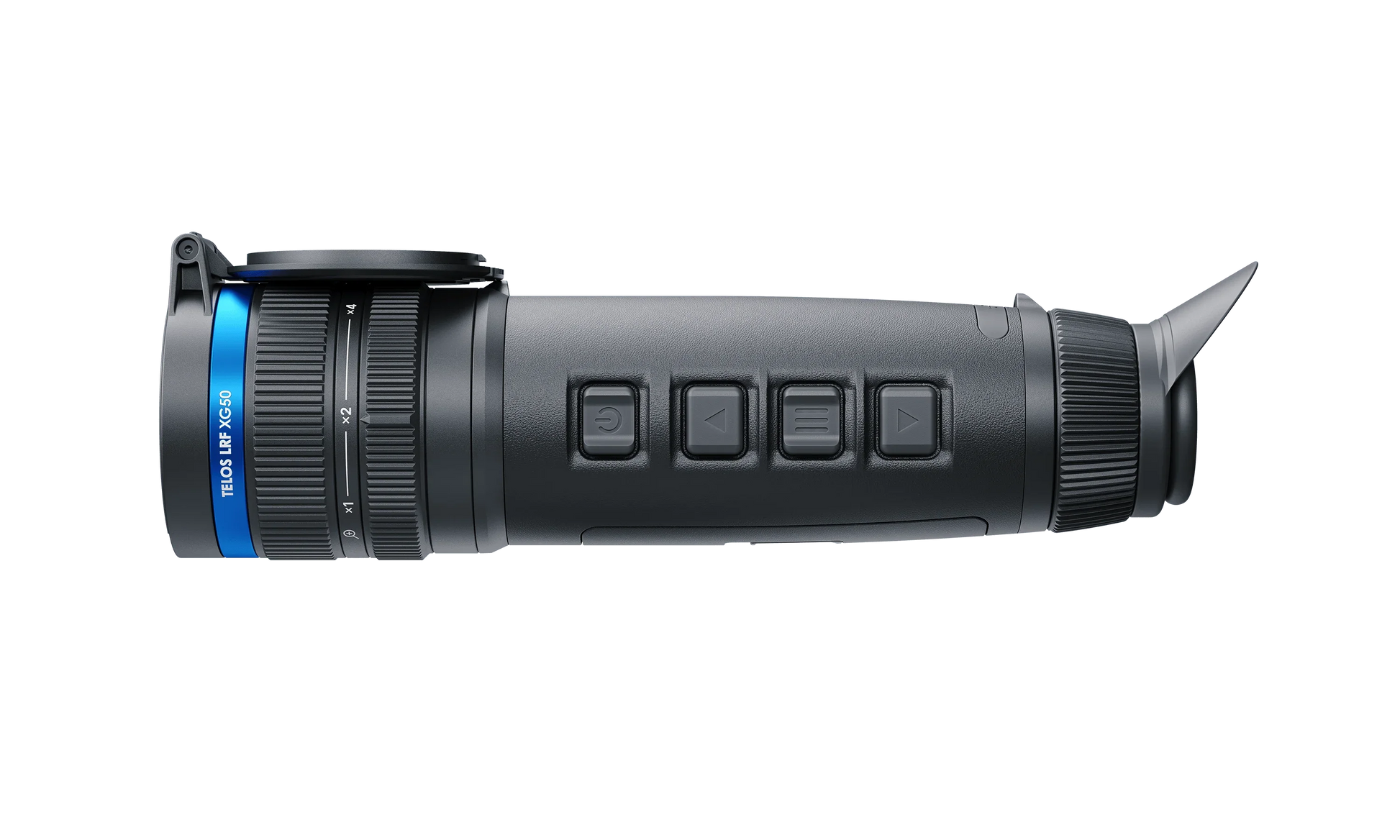

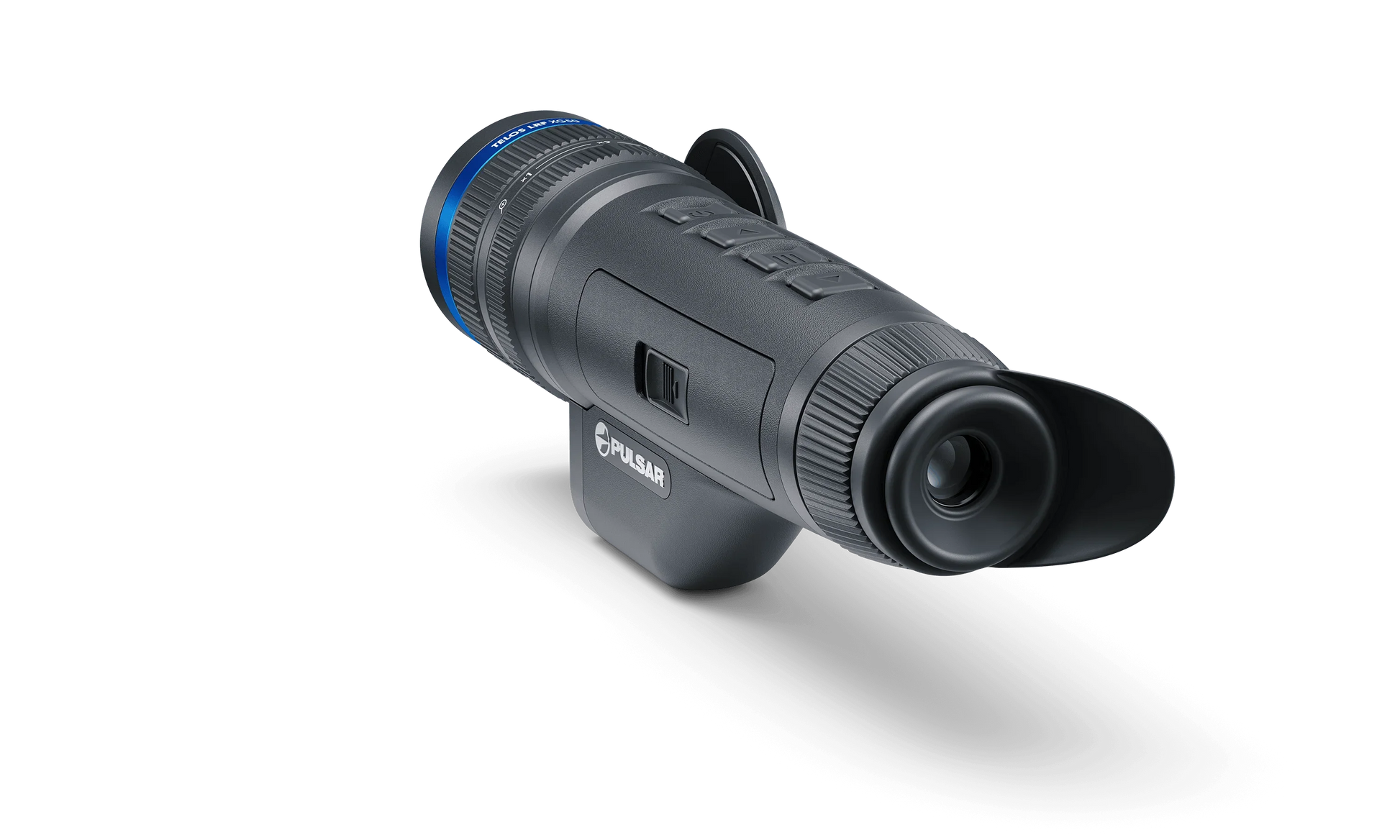

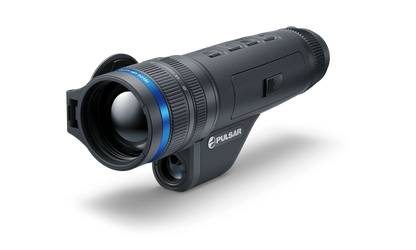

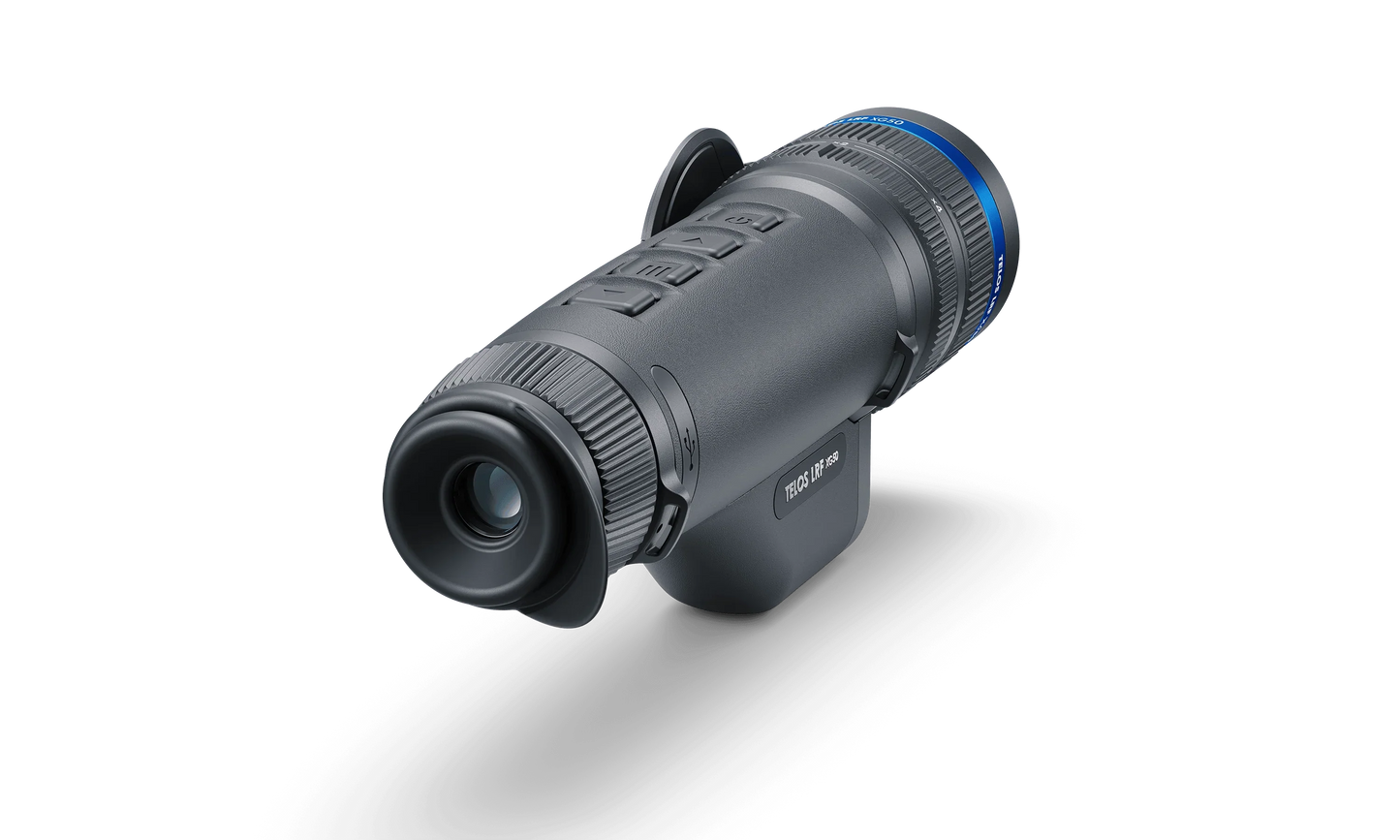

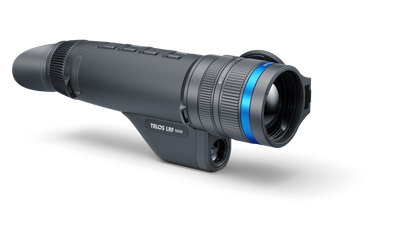

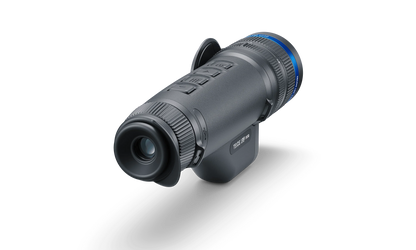

Pulsar TELOS XG50 LRF Thermal Imaging Monocular 640x480 12um 50Hz WiFi (PL77514)
The Pulsar Telos XG50 LRF thermal imaging monocular is a premium device, designed for hunters seeking versatility and cutting-edge features. As the first upgradeable thermal monocular by Pulsar, the Telos series allows users to customize and enhance their monocular over time, ensuring that it remains current with the latest technological advancements.
With various models available, the Telos caters to different hunting needs, offering options like XQ, XG, XP, and XL sensors for different resolution requirements, as well as models with or without a laser rangefinder. Its unique rubberized housing is built for durability and comfort during ambidextrous and extended use. The front-located focusingand digital zoom rings provide tactile, effortless operation, while the newly integrated haptic feedback offers vibrations for intuitive button control.
The Telos is equipped with a replaceable battery, providing up to 8 hours of continuous use, ensuring uninterrupted performance in the field. Furthermore, the Telos Upgradeability service allows users to upgrade components of the monocular, such as sensors or lenses, as newer technologies become available, enhancing longevity and performance. For more details on this service, users can contact local dealers or distributors or visit Pulsar's website.
Pulsar TELOS XG50 LRF Features:
- Microbolometer resolution: 640x480
- Frame Rate: 50Hz
- Pixel pitch: 12μm
- NETD: <40mK
- Display resolution: 1024x768
- Display type: AMOLED
- Objective lens: F50/1.0
- Magnification: 3.5-14x (x4 digital zoom)
- Detector type: Uncooled ASi
- Detection range: 2300 m
- Laser Rangefinder maximum range: 1,000 yards
- Battery type: LPS 7i Li-Ion 6400 mAh, external power supply: 5V, 9V (USB-C)
- Battery life: 8.5 hours
- Dimensions (mm): 238x72x90
- Body material: Rubber armored reinforced plastic
- Weight (kg): 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
- Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market
Pulsar TELOS XG50 LRF Specifications:
Main
Sensor
640x480 pix. @ 12 µm (NETD <40 mK)
Objective lens
F50 / 1.0
Magnification, x
3.5 - 14 (x4 zoom)
Magnification in monocular mode / attachment mode, x
-
Field of view (HxV), degrees / m@100m
8.8x6.6 / 15.4x11.5
Detection range, m
2300
Sensor
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
12
NETD, mK
<40
Frame rate, Hz
50
Optics
Objective lens
F50 / 1.0
Magnification, x
3.5 - 14
Magnification in monocular mode / attachment mode, x
-
Field of view (HxV), degrees / m @ 100 m
8.8x6.6 / 15.4x11.5
Eye relief, mm
14
Recommended magnification of the day scope, x
-
Display
Type
AMOLED
Resolution, pixels
1024x768
Range Performance
Detection range, m
2300
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
-
Wavelength, nm
-
Max. measuring range, m
-
Measurement accuracy, m
-
Video Recorder
Video / photo resolution, pixel
1024x768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
64
Built-in memory capacity
-
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz
2.4 / 5
Bluetooth
Wireless Protocol
-
Wireless Standard
-
Frequency, GHz
-
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPХ7 (waterproof)
Operating temperature range, °С
-25 – +40
Connections and Compatibilities
Mount, type
1/4"
Remote control
-
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.0 – 4.2
Battery type
LPS 7i Li-Ion Battery Pack
Capacity, mAh
6400
Operating time on battery pack (at t=22°C), h *
8.5
External power supply, V
5V, 9V (USB Type-C Power Delivery)
Weight & Size
Body material
rubber armored reinforced plastic
Dimensions, mm
238x72x90
Weight, kg
0.58 (w/o battery) / 0.72 (with the LPS7i battery)
Warranty
3 Years with an additional 2 years if registered with Pulsar via Pulsar website.
Package Contents:
Telos LRF thermal imager
LPS7i battery pack with protective cover
Spare battery compartment cover
Power adapter
USB Type-C cable with USB Type-A adapter
Case
Hand strap
Quick start guide
Lens cloth
Warranty card
