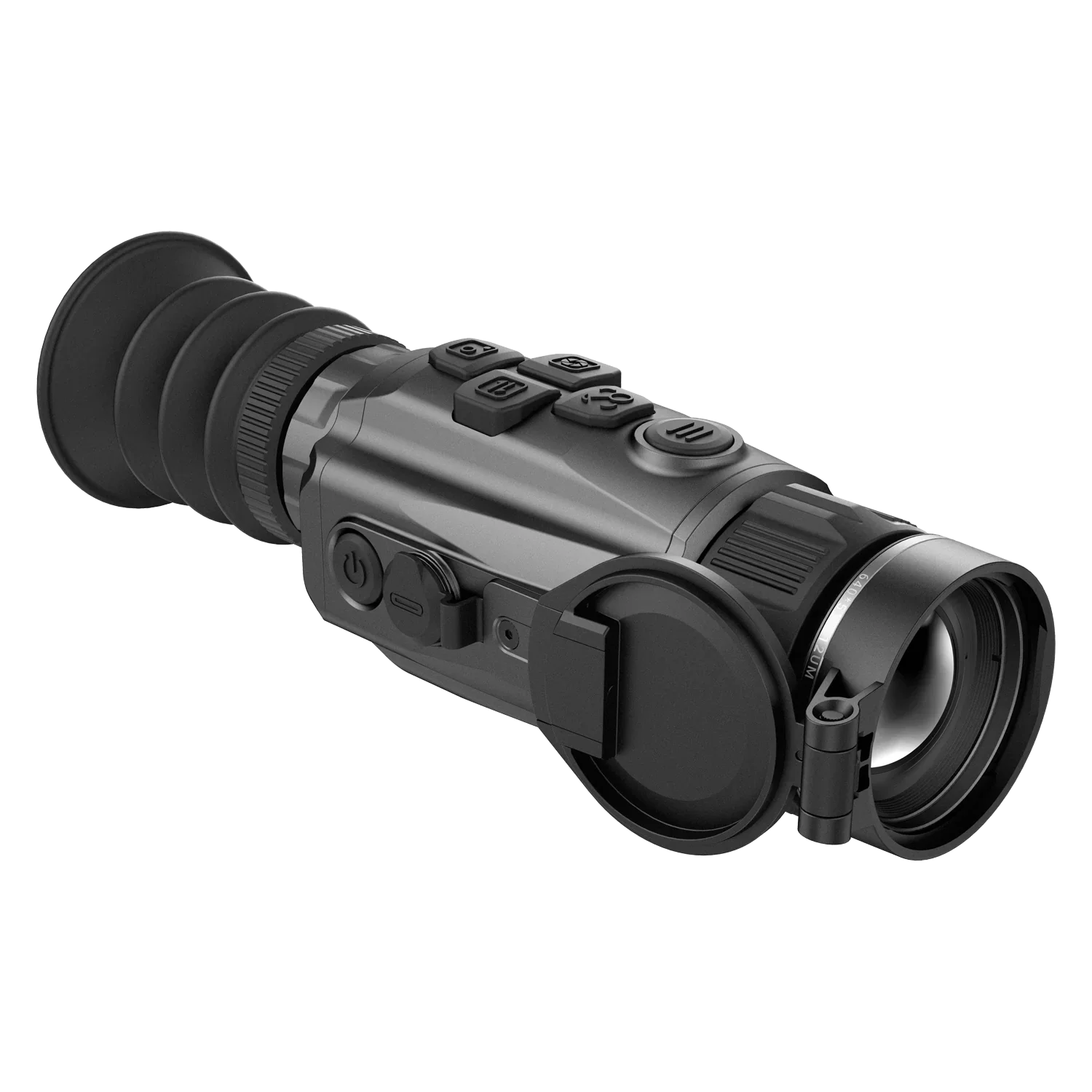

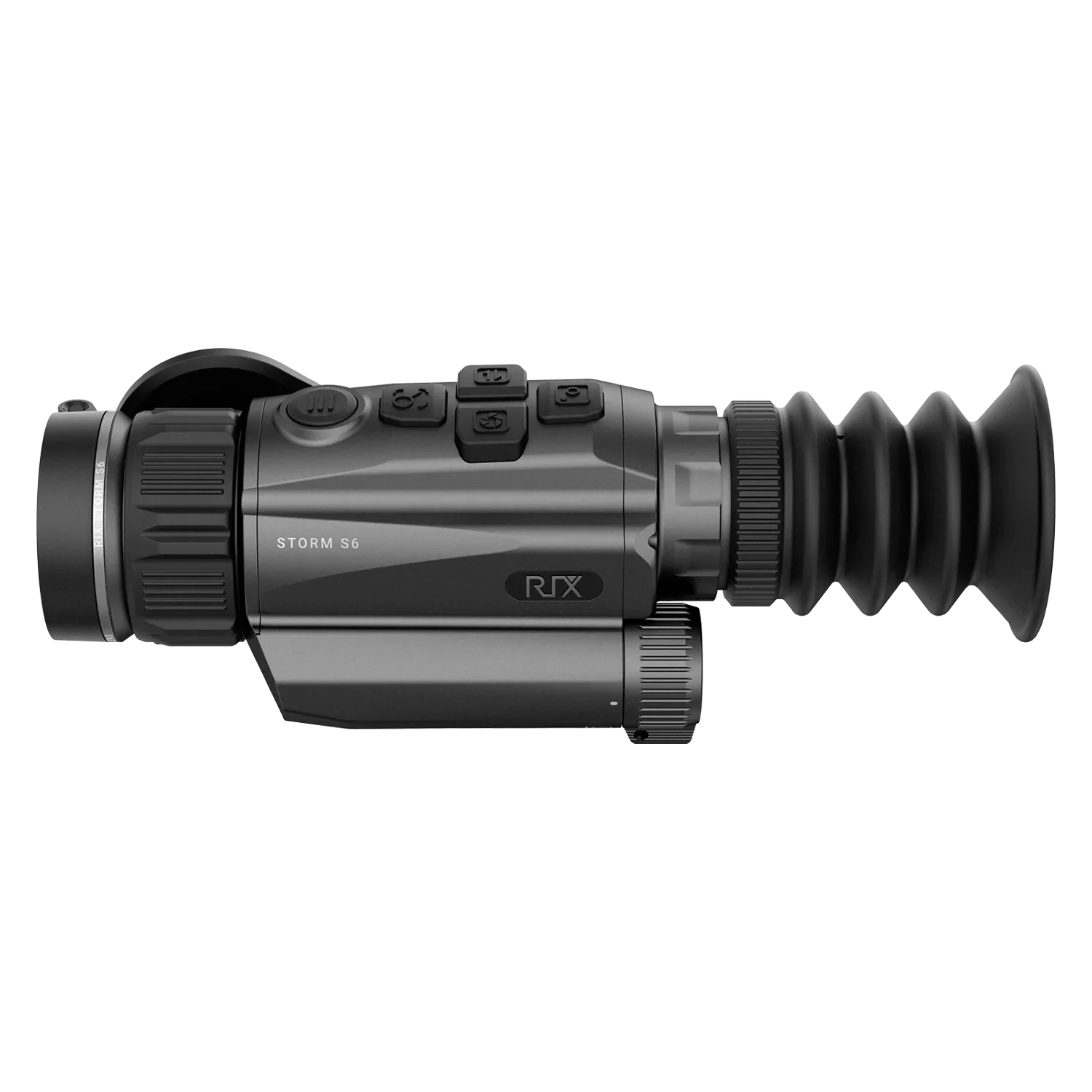

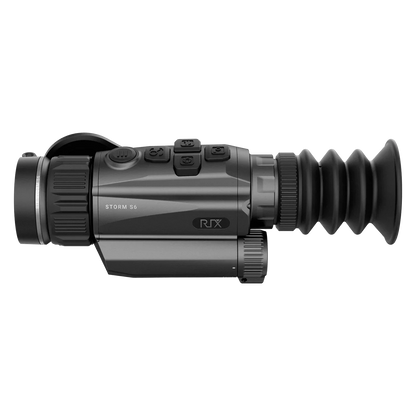

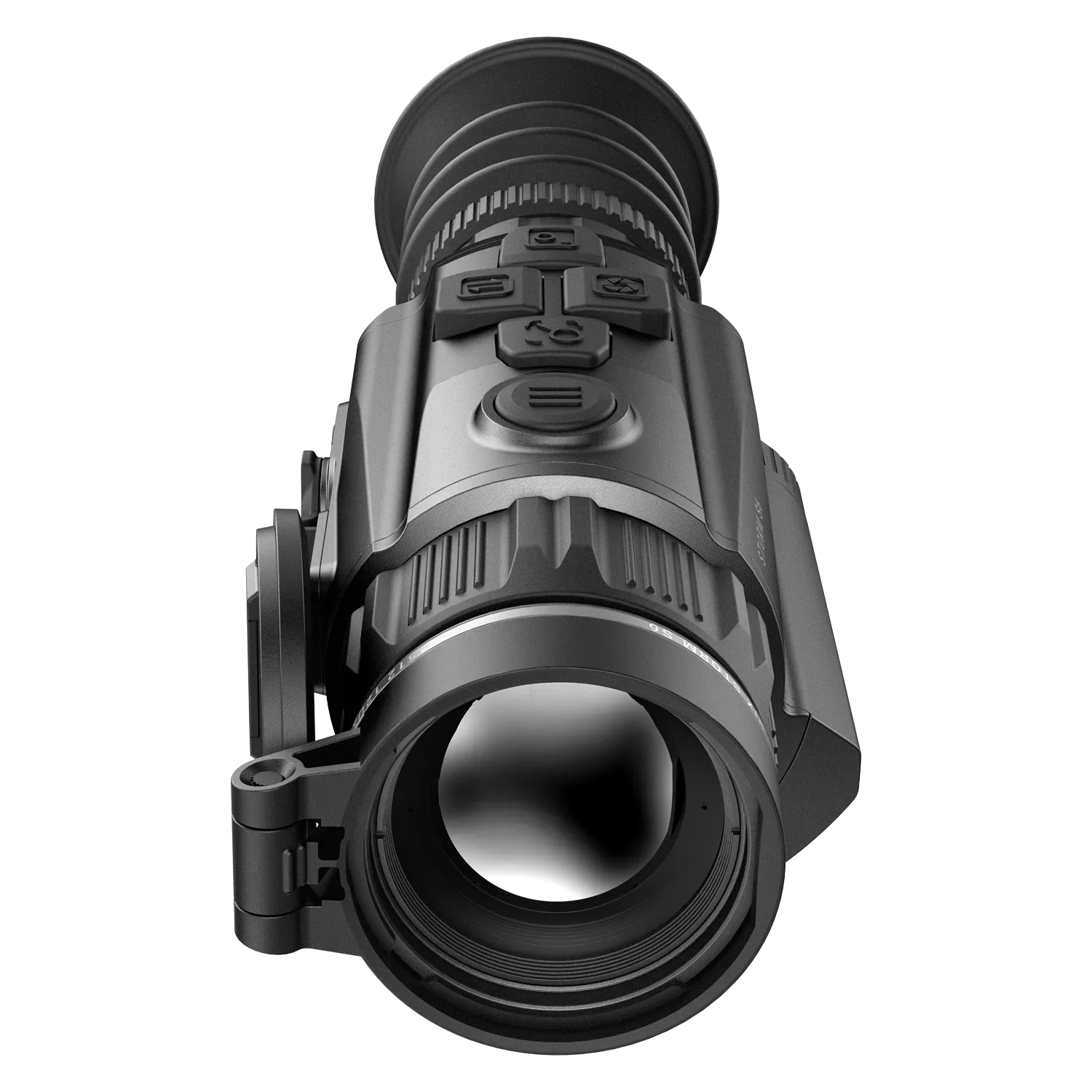

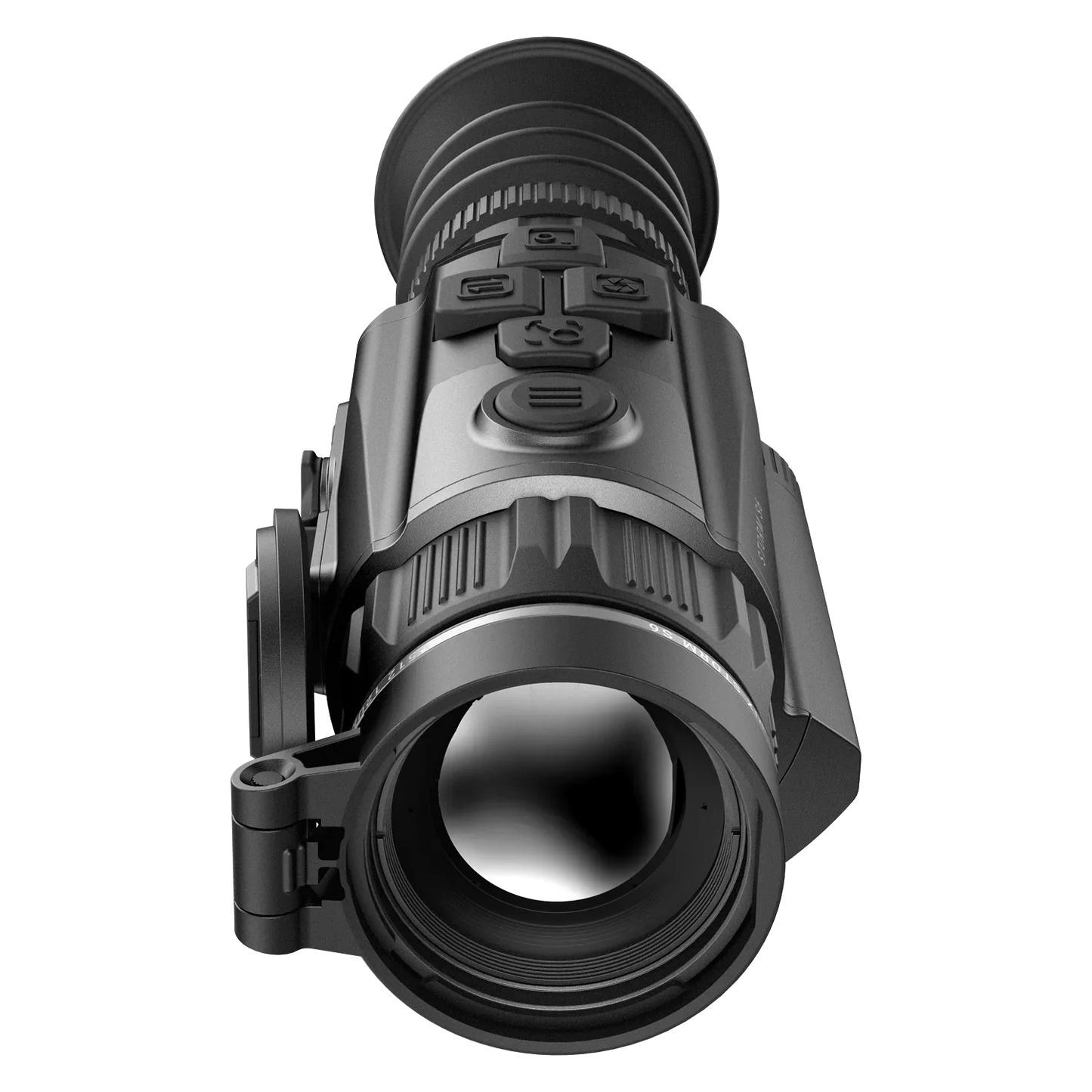

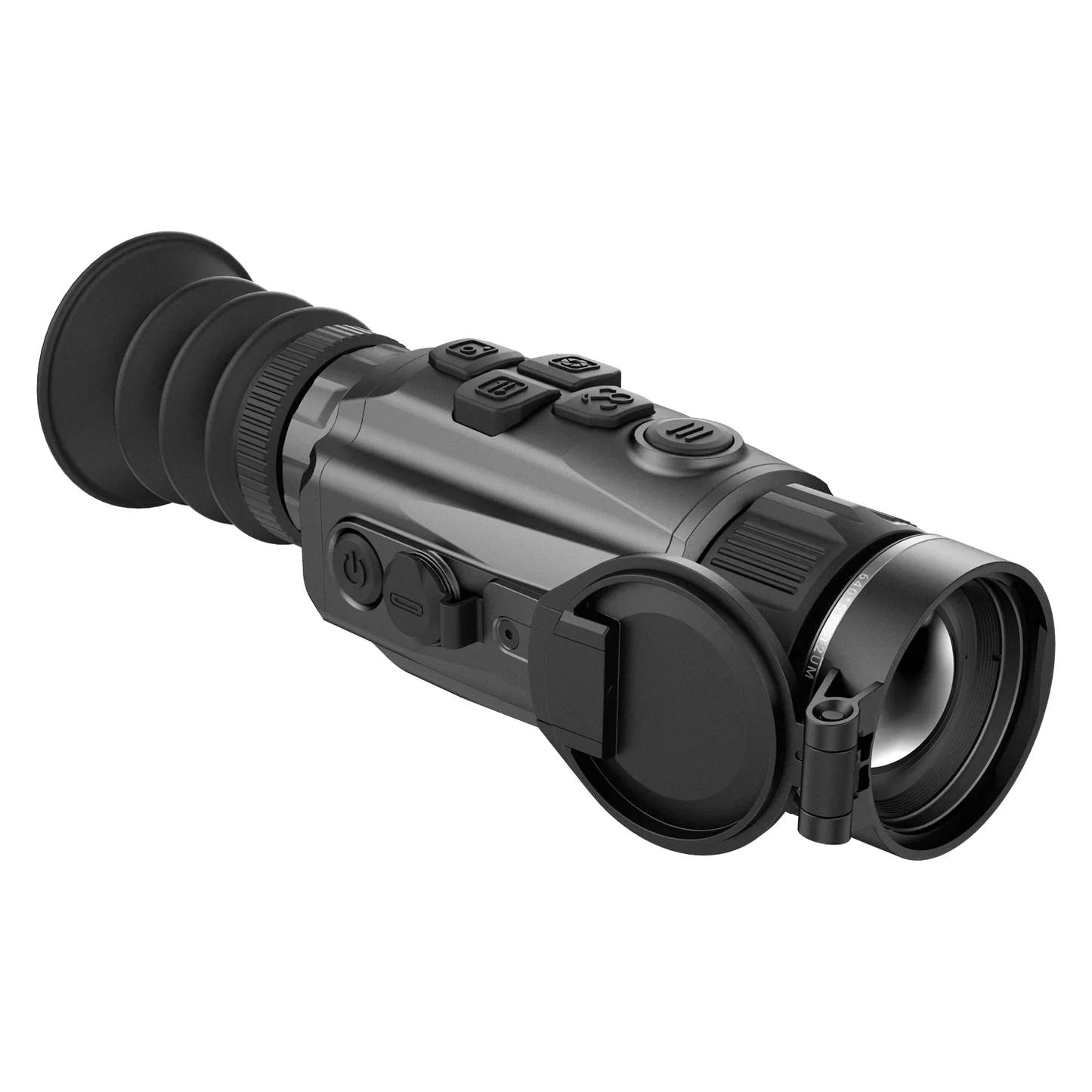

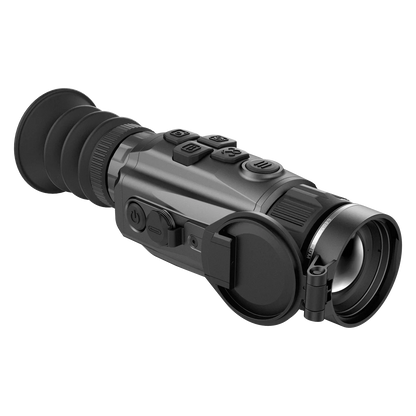

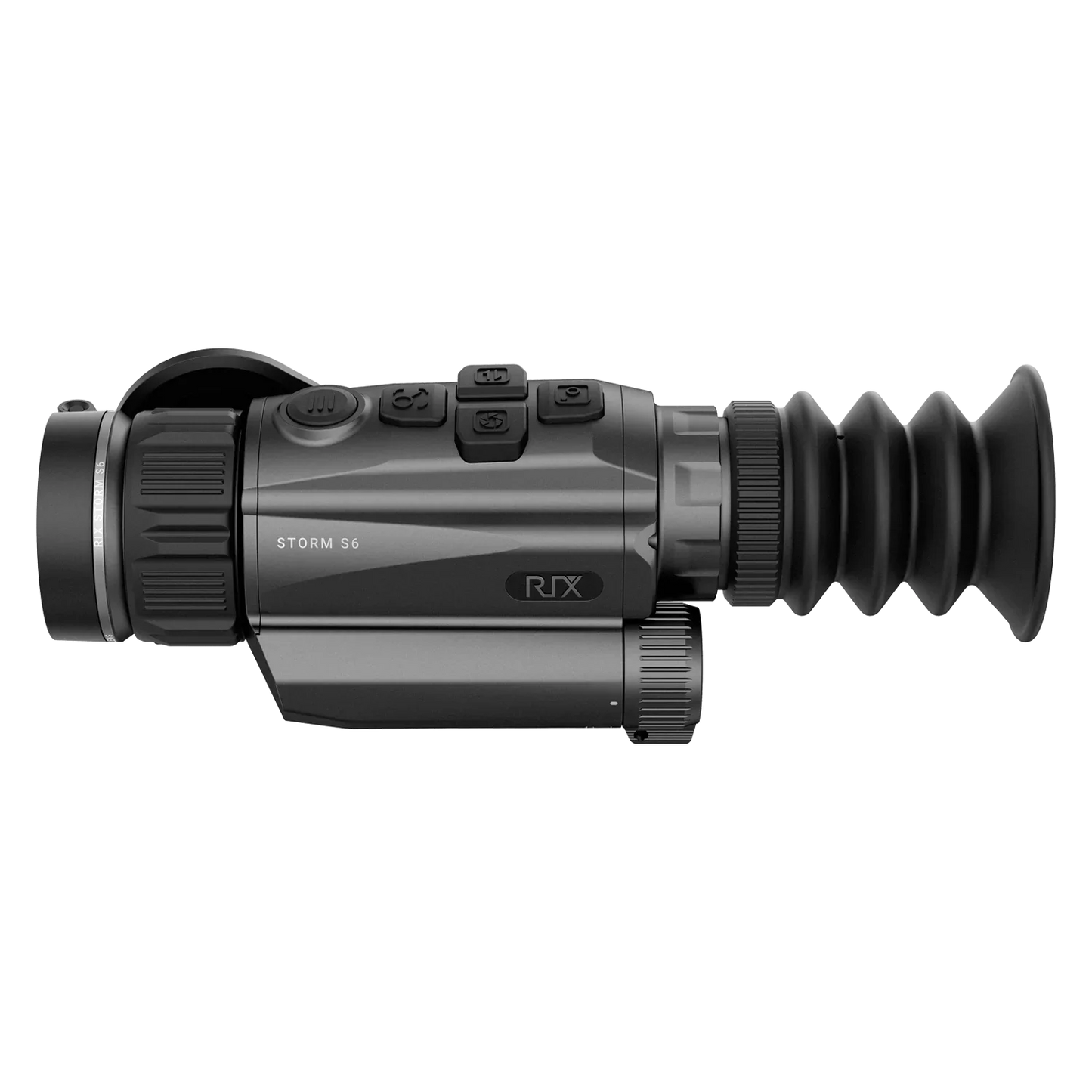

RIX Storm S6 640 Thermal Scope 35mm

RIX Storm S6 Thermal Scope 640x512/12um 35mm 50Hz WiFi



Introducing the STORM series, a line of advanced thermal imaging devices designed for hunting, observation, and geographic positioning, even in the most challenging weather conditions like rain, snow, fog, and haze. Equipped with high-sensitivity infrared detectors, these devices offer top-tier performance for night vision applications, with features like digital zoom, Picture-in-Picture (PiP), multiple reticle options, and video recording.

The STORM series is packed with advanced features and cutting-edge technology designed for optimal thermal imaging performance in hunting and outdoor applications.

HIGH-PERFORMANCE SENSOR

The STORM series is powered by a 12µm sensor with a NETD <25mK and a 50Hz refresh rate, ensuring crisp, clear images, even in challenging environments.

RESOLUTION ENHANCED TECHNOLOGY (RET)

Utilizing advanced AI algorithms, Resolution Enhanced Technology (RET) doubles the pixel count, producing sharper, more detailed images, significantly enhancing your outdoor observation and hunting experiences.

1024×768 FULL COLOR OLED DISPLAY

The OLED screen offers superior contrast, vivid colors, and rich details, delivering an immersive and clear viewing experience in various lighting conditions.

REPLACEABLE BATTERY & QUICK-DETACH DESIGN

The STORM features a replaceable 18650 battery, offering over 6 hours of continuous operation. The 90-degree quick-detach battery cap allows for seamless battery swaps, minimizing downtime during use.

INTUITIVE OPERATING SYSTEM

Designed for ease of use, the STORM’s operating system ensures each function is directly mapped to its corresponding button. This allows users to activate features instantly, while the buttons double as directional keys for quick zeroing adjustments.

RETURN TO CENTER FUNCTION (RTC)

After zeroing, the RTC function realigns the reticle closer to the center of the display, improving your field of view and focus on the target.

ADJUSTABLE PICTURE-IN-PICTURE (PIP)

Unlike traditional PiP modes, the STORM allows users to adjust the magnification level of the PiP image independently, ensuring greater situational awareness and improved shooting accuracy.

LIGHTWEIGHT AND COMPACT DESIGN

Weighing only 440g (just under 1lb), the STORM is both lightweight and compact, making it ideal for handheld use. Its aluminum alloy construction ensures durability, and the quick-detach Picatinny rail provides easy firearm attachment.

With its cutting-edge features, the STORM series is the ideal thermal scope for hunters and outdoor enthusiasts looking for a high-performance, reliable, and user-friendly tool for their adventures.

RIX Optics Storm S6 640 Features:

Light weight, less than 1lb

Optical Zoom: 2x - 8x

High resolution 1024x768 display

PIP function

Replaceable 18650 battery, long battery life

Built-in Wi-Fi module, supporting app connection

High image quality

Weather mode

Built-in 32GB storage, photo and video recording



RIX Optics Storm S6 640 SPECIFICATIONS:

Sensor Specifications

Type VOx Uncooled

Resolution, pixels 640×512

Pixel pitch, μm12

NETD, mK<25

Frame Rate, Hz 50

Optical Specifications

Objective Lens，mm 35

Optic Zoom, x2

Field of View, degrees / yd @ 100 yd 12.5°/21.9 yd

Digital Zoom, x1 to 4

Eye Relief, mm 48

Diopter Adjustment, D-5 to +5

Detection Range, m/yd 1800/1969

Display Specifications

Type OLED

Resolution, pixels 1024×768

Wi-Fi

Wireless Protocol Wi-Fi

Frequency, GHz 2.4GHz

Video Recorder

Video / Photo Resolution, pixel 1024×768

Video / Photo Format.mp4 / .jpg

Built-in Memory, GB 32

Physical Specifications

Degree of Protection, IP code IP67

Operating Temperature Range, °F-4 to +122

Weight, lb 0.97

Dimensions, inch 5.3×2.5×2.2

Connections and Compatibilities

Battery Type 18650

Capacity, mAh 3200

Operating Time on Battery Pack (at t=72°F), h 5

External Power Supply, V 5V (Type C USB)

Max Recoil Power on Rifled Weapon (Eo), g/Joules 1000g/6000 Joules

Compatible Mounts Picatinny mount

Warranty

5 Years

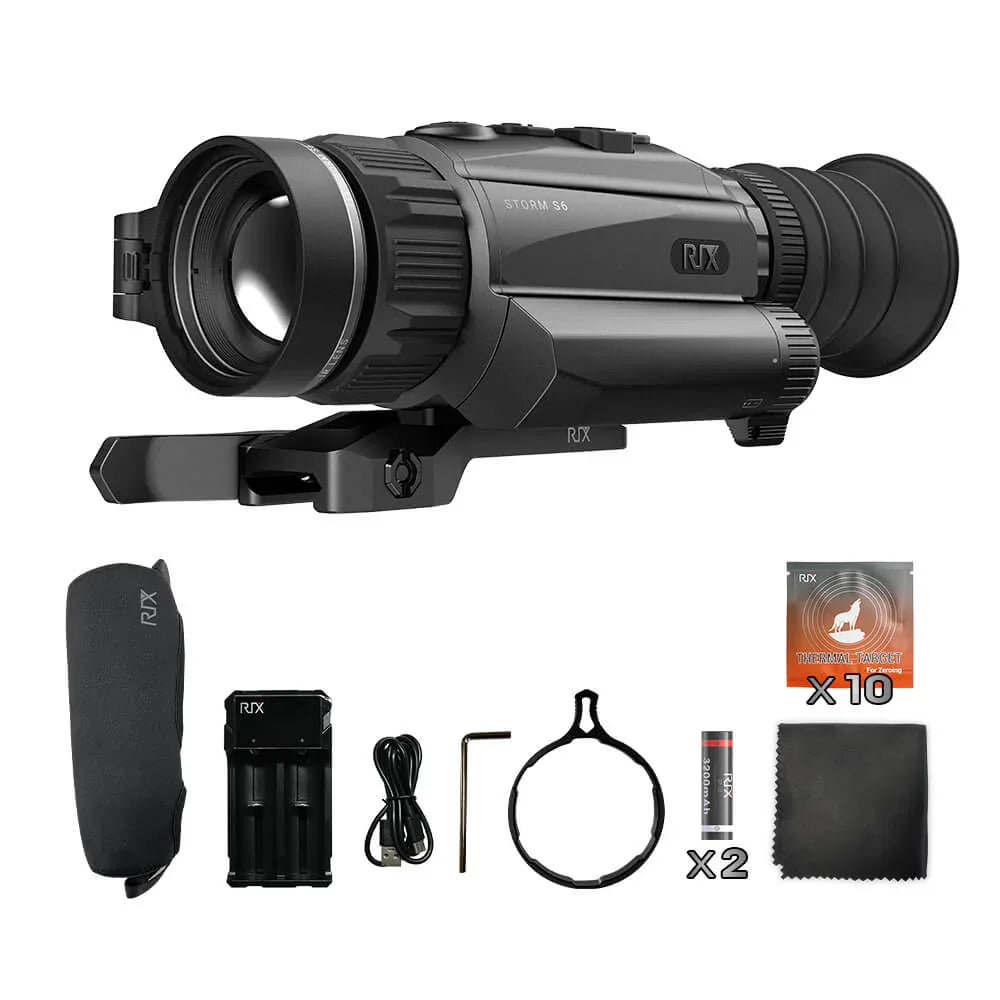

Included:



The STORM Series Thermal Imaging Scope

Dust Cover

Battery x2

Battery Charger

USB Type C Cable

Thermal Target x10

Lens Cloth





EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
