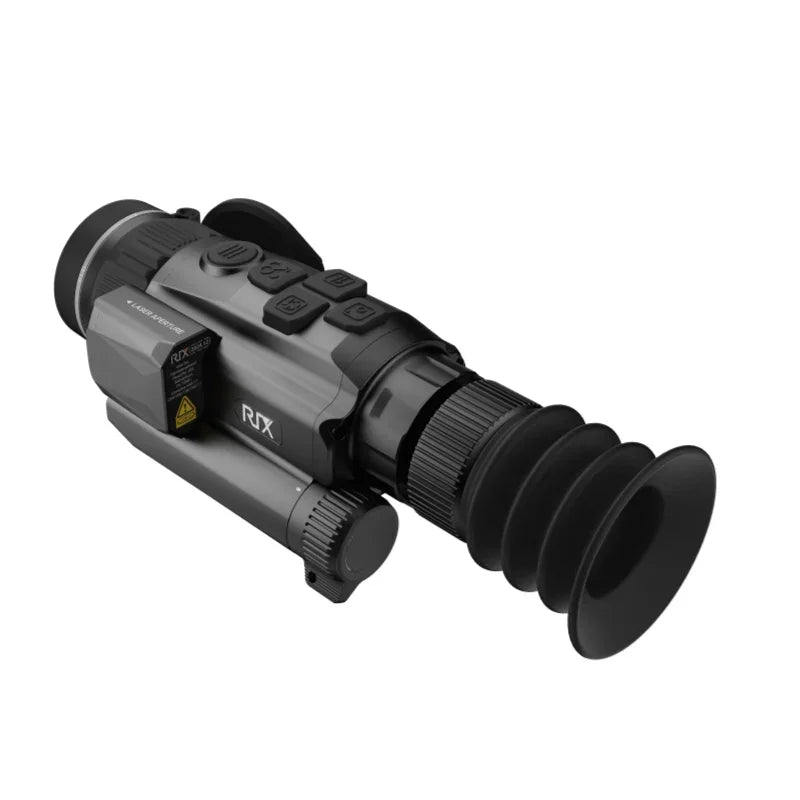

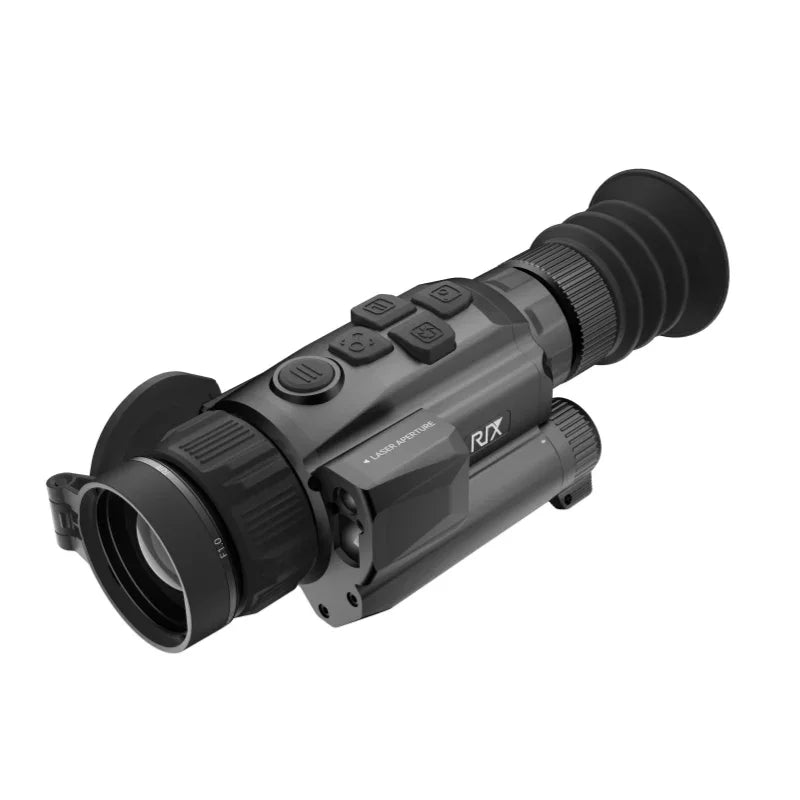

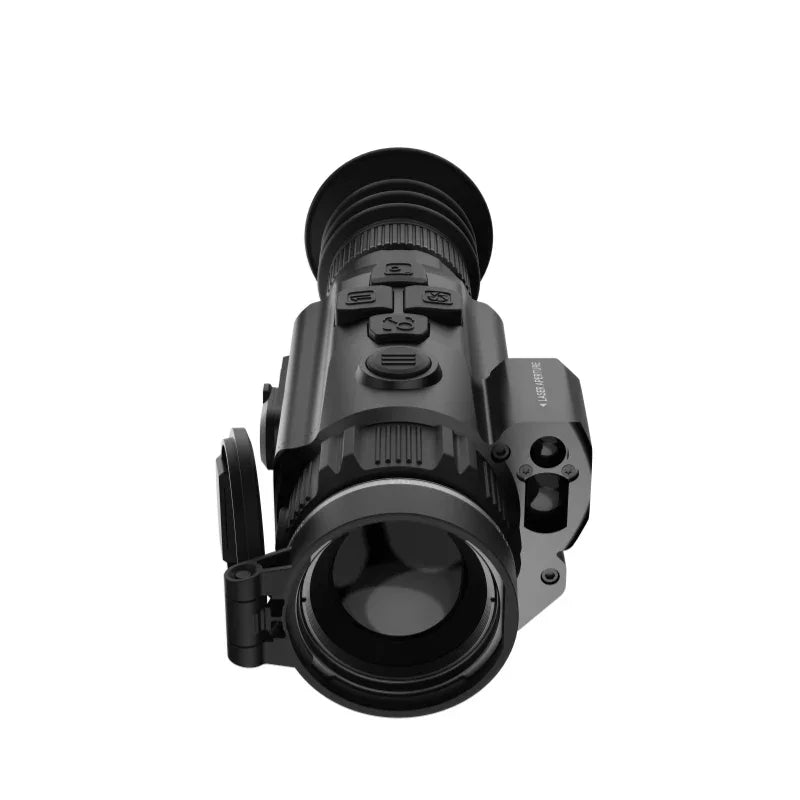

RIX Storm S3R V2 LRF Thermal Scope 384x288/12um 35mm 50Hz 3.5X WiFi
Built around a highly sensitive NETD <15mK thermal detector, an integrated 2,187-yard laser rangefinder, and onboard ballistic calculation, STORM V2 delivers clearer thermal detail and greater shooting confidence—all in a compact, lightweight design ready for real hunting conditions.
NETD <15mK THERMAL SENSITIVITY
The ultra-sensitive thermal detector identifies subtle temperature differences, revealing finer details in low-contrast environments.
Combined with advanced AI image algorithms, STORM V2 produces clearer, smoother thermal imagery with improved target recognition—even in rain, fog, darkness, and while tracking fast-moving targets.
2,187-YARD LRF + BALLISTIC CALCULATION
The integrated laser rangefinder provides fast, accurate ranging up to 2,187 yards. Enhanced sensitivity and optimized rain and fog algorithms help maintain reliable ranging performance in challenging weather.
Combined with onboard ballistic calculation, STORM V2 provides trajectory data and precise aiming guidance directly through the scope—reducing guesswork and supporting more confident long-range shots.
FINE RETICLE. PRECISE ZEROING.
The refined reticle covers less of the target, providing a clearer aiming view and supporting more precise shot placement.
The STORM S6R V2 features precise 0.43 MOA clicks, while the STORM S3R V2offers finer 0.26 MOA clicks, giving hunters greater control for accurate zeroing and point-of-impact optimization.
0.49-INCH FULL HD OLED DISPLAY
The upgraded 0.49-inch, 1920 × 1080 OLED display delivers sharper detail, richer color, and enhanced contrast.
A larger exit pupil, extended eye relief, and optimized semi-circular viewing design create a wider, more comfortable viewing experience while keeping the reticle clear and distortion-free.

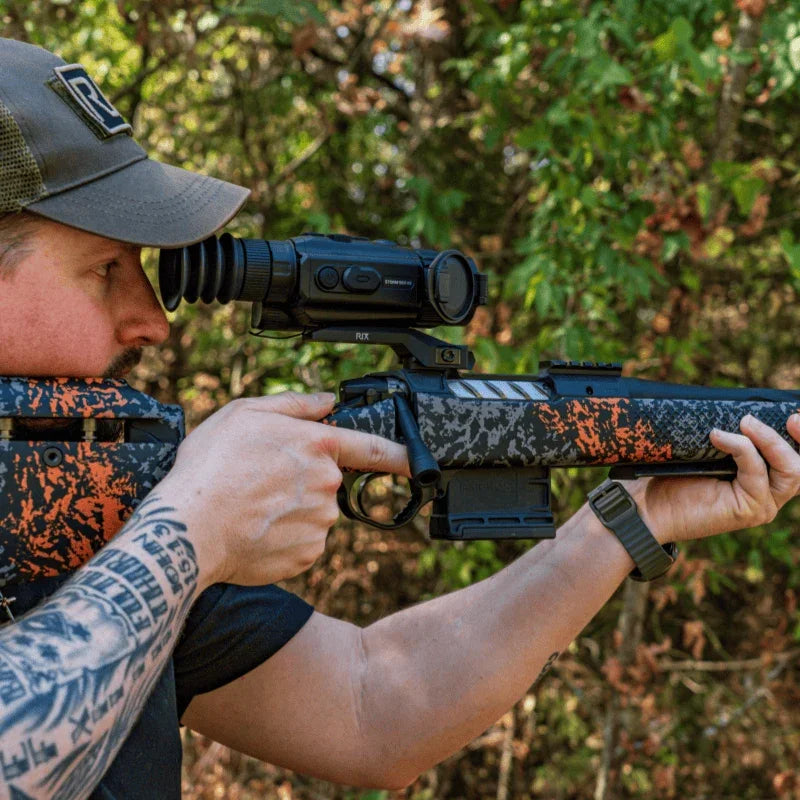

FLEXIBLE, RIFLE-READY DESIGN

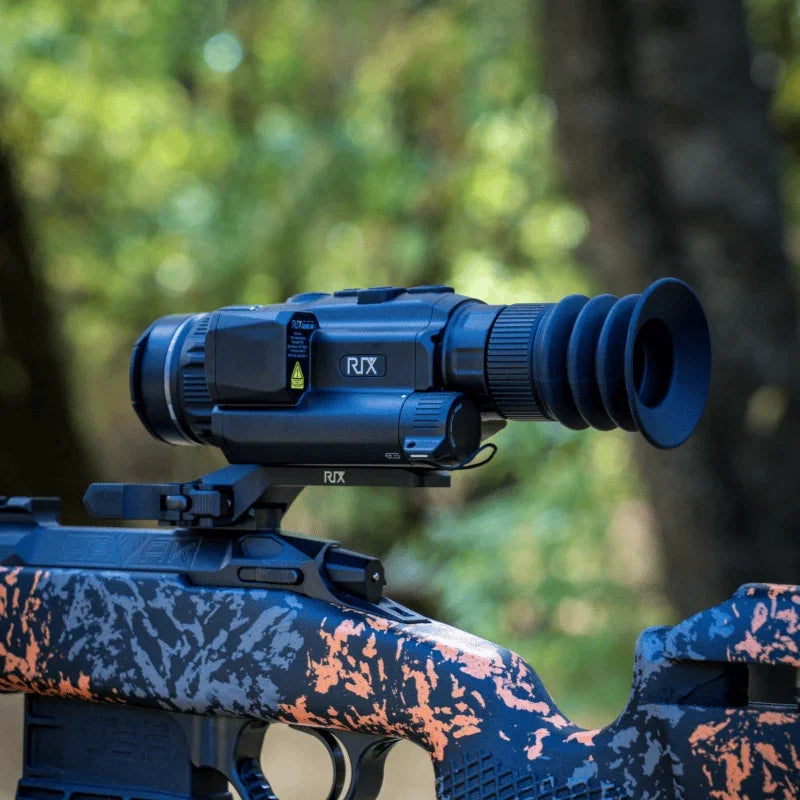

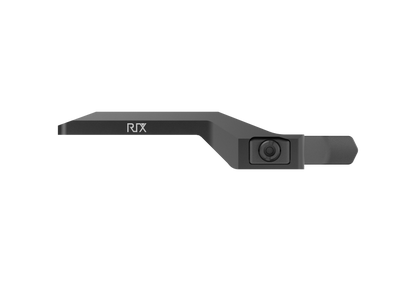

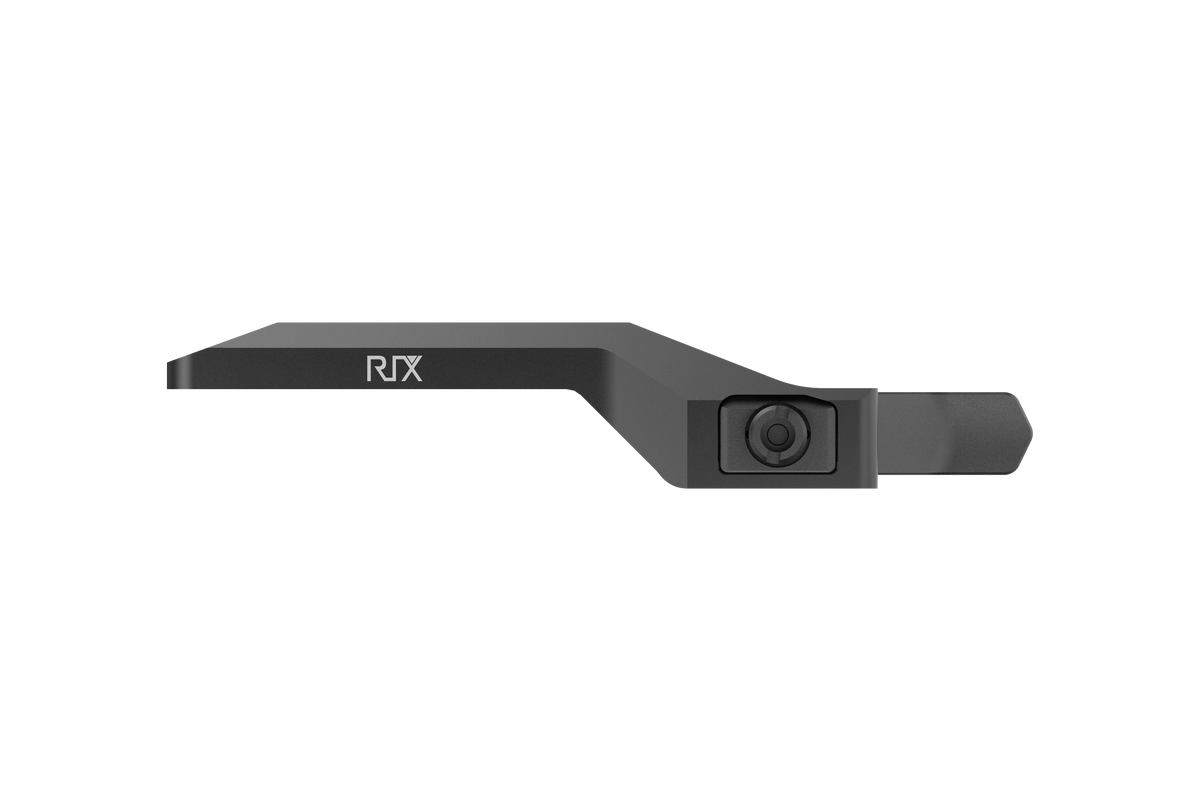

The extended, elevated rail offers greater mounting flexibility, particularly on bolt-action hunting rifles. Compared with the STORM V1, the rail is approximately 0.5 inches higher and 1 inch longer, allowing for more flexible positioning and a more comfortable shooting setup.

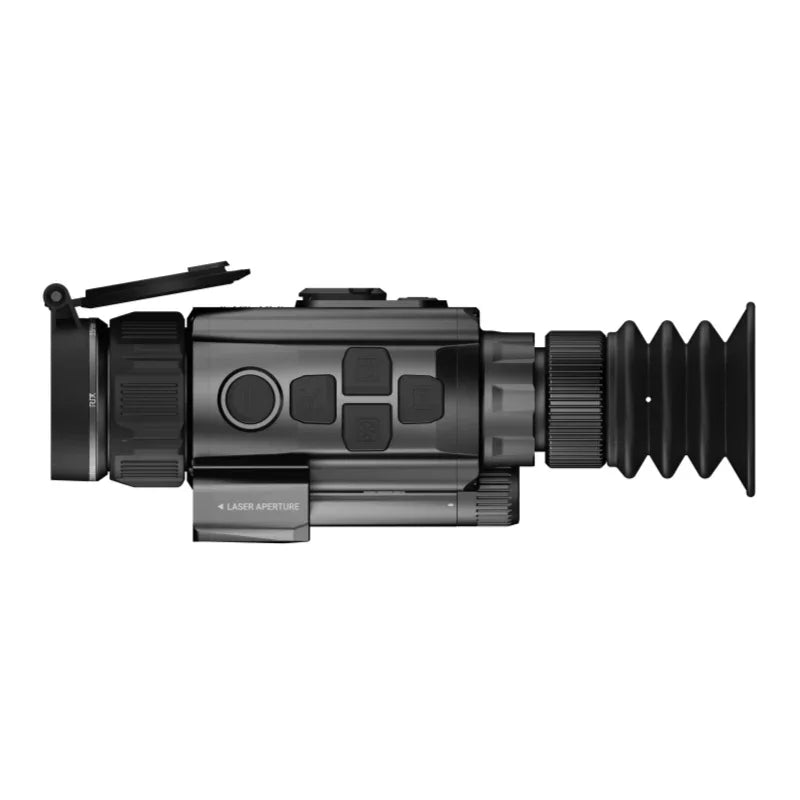

A repositioned LRF module reduces interference during bolt cycling, supporting smoother operation and a more comfortable shooting position.

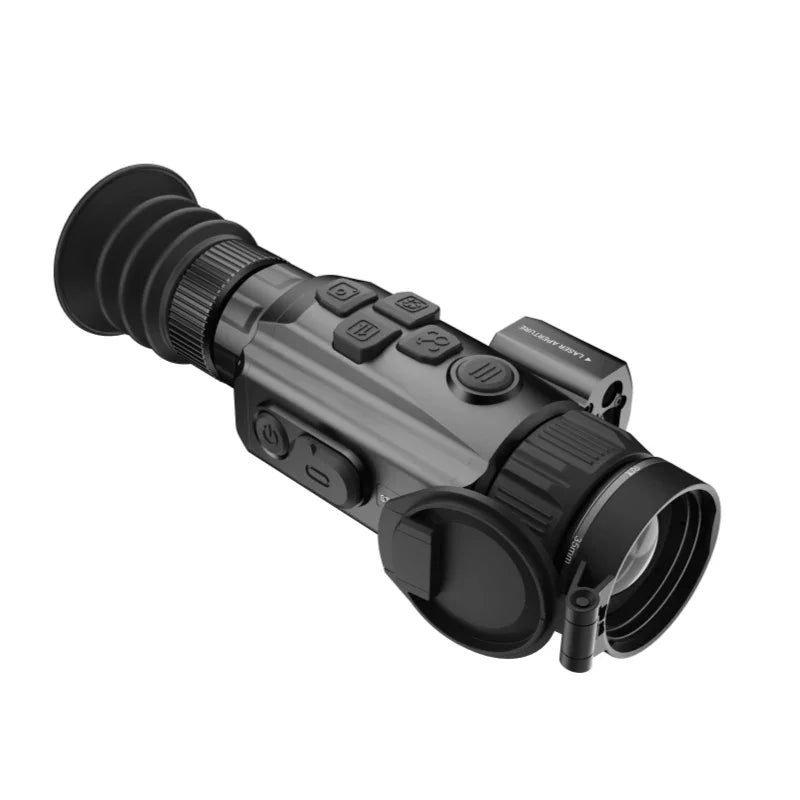

An ergonomic four-way control layout and simplified interface also provide quick, intuitive operation—even in darkness or while wearing gloves.
COMPACT, LIGHTWEIGHT, AND VERSATILE
At only 6.4 inches long and 1.16 pounds, STORM V2 delivers powerful thermal performance in a highly portable package.
Its dual-purpose design allows hunters to transition between a thermal riflescope and a handheld thermal monocular, while the replaceable 18650 battery systemmakes it easy to stay powered during extended time in the field.
RIX Optics Storm S3R V2 LRF 384 Features:
- High image quality
- Weather mode for better imaging in high humidity
- High resolution 1920x1080 AMOLED display
- In clear conditions: LRF up to 2000m, with exceptional stability even in rain and fog
- Easy operation
- Lightweight and compact
RIX Optics Storm S3R V2 LRF 384 Specifications:
Sensor Specifications
Type VOx Uncooled Focal Plane Arrays
Resolution, pixels
384×288
Optical Specifications
Objective Lens, mm
35, F1.0
Field of View (HxV), degrees / yd @ 100 yd
7.5°/4.6° - 13.2°/8.1yd
Field of View (HxV), degrees / m @ 100 m
7.5°/4.6° - 13.2°/8.1yd
Diopter Adjustment, D
-5 to +5
Detection Range, m/yd
1800/1969
Display Specifications
Resolution, pixels
1920×1080 0.49 inch
Laser Rangefinder
Max Measuring Range, m/yd
2000/2187
Measuring Accuracy, m/yd
Software Function
RET
Support
Ballistic Calculation
Yes 5 Zeroing Profiles Supported
Video Recorder
Video / Photo Resolution, Pixels
1744/1072
Video / Photo Format
.mp4/ .jpg
Built in Memory
64GB
Physical Specifications
Degree of Protection IP Code
IP67
Operating Temperature C/F
-20 to +50 / -4 to +122
Weight without External Battery, g/lb
525/1.16
Dimensions mm/inch
163x73x66 / 6.4x2.9x2.6
Connections and Capabilities
Battery Type
18650
Operating Time on Battery Pack (at t=25 C / 72 F), h
4
External Battery Supply, V
5 (Type-C USB)
Max Recoiled Power on Rifled Weapon (Eo), g/J
1000 / 6000
Compatible Mounts
Picatinny
WiFi
Support
Included:
The STORM V2 Series Thermal Imaging Scope
Battery Fireproof Bag
Dust Cover
Thermal Target x10
Battery Charger
Throw Lever
18650 Battery x2
USB Type-C Cable
Lens Cloth
Hex Key
