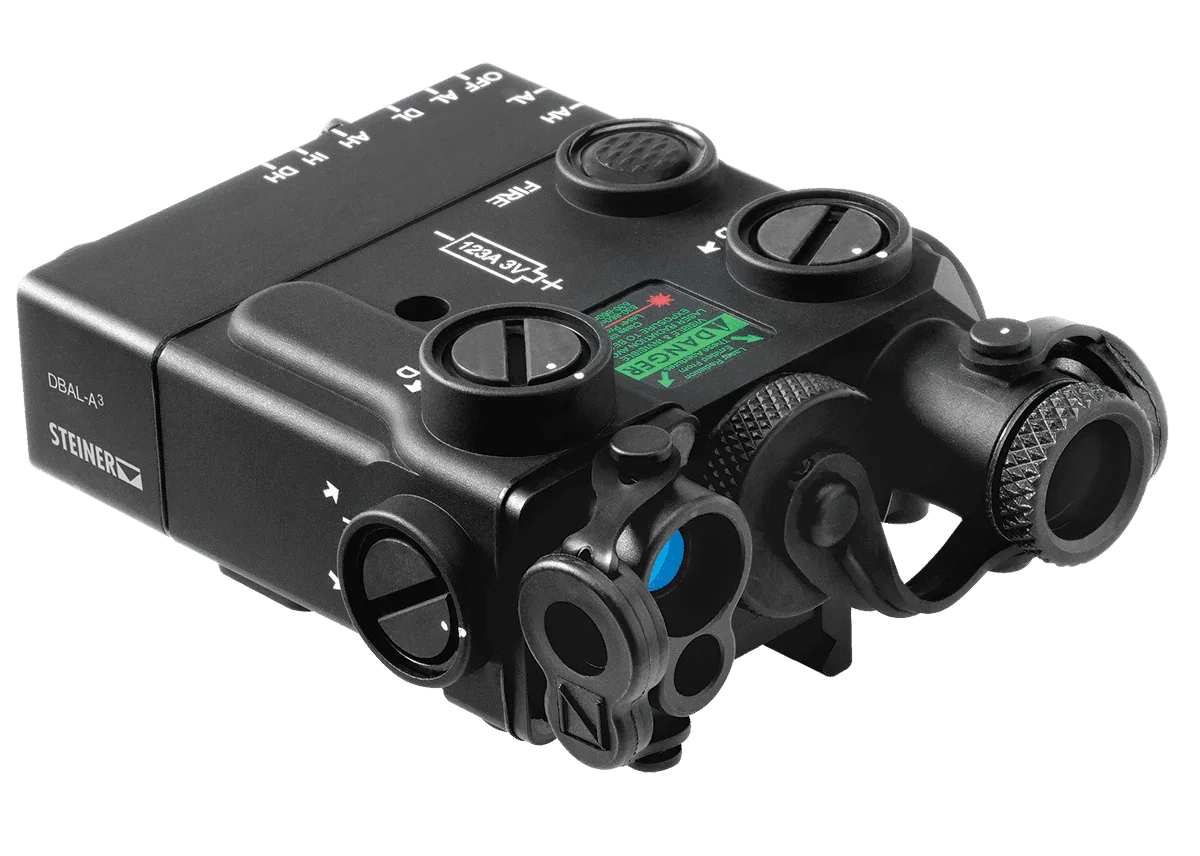

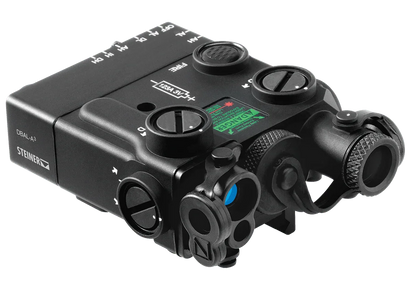

Steiner DBAL-A3 Dual Beam Aiming Green Laser, IR Illuminator - Advanced System Black - PEQ-15 (9008)
The Steiner DBAL-A3 Laser is a cutting-edge, multi-function laser aiming system, combining advanced technology and robust design to meet the demanding needs of professionals in the field. It includes a focusable infrared illuminator, an infrared pointer, and the brightest visible green laser legally available, providing precise targeting and exceptional operational functionality.
Key Features:
Focusable Infrared Illuminator and Pointer: The IR illuminator enhances night vision capabilities, allowing users to target and illuminate areas in complete darkness. The IR pointer provides additional functionality for low-light environments.
Bright Visible Green Laser: Known for its daylight visibility, the green laser improves target acquisition over long distances, offering a critical advantage in various lighting conditions.
Co-Aligning Lasers: The precision alignment of the visible laser and infrared lasers allows for easy zeroing and ensures that your point-of-impact is consistent across multiple operating modes. This feature makes quick adjustments and target acquisition more accurate and efficient.
Dual Remote Cable Ports: A dual remote pressure pad enables simultaneous operation of the visible laser and a connected Steiner Tactical Light, while a second pressure pad activates the infrared components. This flexible design allows for smooth transitions between low-light and full-brightness conditions without needing to adjust your grip.
Aircraft-Grade Aluminum Construction: Built for durability, the DBAL-A3 is housed in an aircraft-grade aluminum frame, ensuring it can withstand harsh conditions and heavy-duty use while remaining lightweight.
Compact Design: As the smallest multi-function laser in its class, the DBAL-A3 frees up valuable space on the weapon's handguard, optimizing ergonomics and handling.
Enhanced Performance:
Improved Output and Defined Edges: Compared to earlier models, the DBAL-A3 features superior infrared output and better-defined illumination edges, providing 5x the range of its predecessors.
Versatile Mounting and Operation: The compact size and lightweight design make it highly versatile for any weapon platform, and the Y-cable pressure pad allows users to switch between light modes effortlessly.
The Steiner DBAL-A3 Laser is an all-in-one tactical solution that excels in low-light and bright conditions, making it a top choice for professionals who require reliability, precision, and flexibility in the field. Its superior build quality and performance capabilities make it one of the best multi-function lasers available today.
Steiner DBAL-A3 Laser, IR Illuminator Black Specifications:
Wavelength - Visible Green Laser
532 nm
Wavelength - IR Laser
835 nm
Wavelength - IR Illuminator
835 nm
Beam Divergence - Visible Red or Green Laser
<0.8 mRad
Beam Divergence - IR Laser
<0.8 mRad
Beam Divergence - IR Illuminator
95-195mRAD (non LED)
Range/Visibility (Night/Day)* - Visible Green Laser
750 m / 15 m
Range/Visibility (Night/Day)* - IR Laser
>250m
Range/Visibility (Night/Day)* - IR Illuminator
≤175 m
Temperature
-0° C to +65° C
Battery
CR 123A
Battery Life (mode dependent)
> 3 Hours
Material
Aircraft Aluminum
Color
Black
Weight (with battery)
8 oz.
Dimensions
3.5 (L) x 2.75 (W) x 1.59 (H)
Waterproof
Submersible to >5 m
Mount
QD HT Mount
Windage and Elevation Adjustment
Yes
Activation Switch
Integrated Push Button
Remote Cable Pressure Pad
Yes
Warranty
2 Year
Special Features
Dual Remote Cable Ports
INCLUDES:
Quick Release Throw Lever Mount, 7″ Remote Cable Pressure Pad Switch, Nylon Pouch, Allen Wrench, Operator’s Manual, One (1) 3V DL123 Battery
