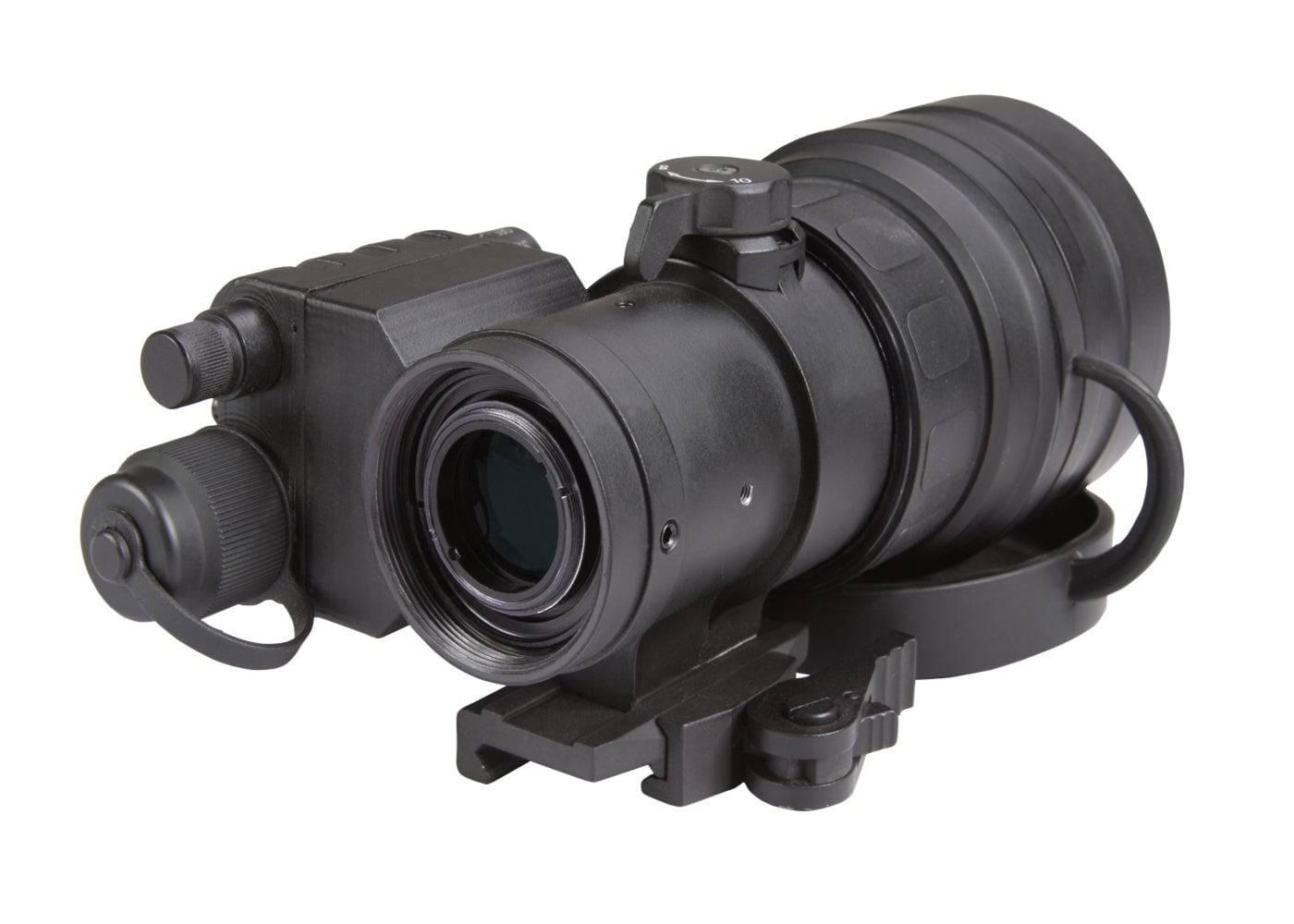

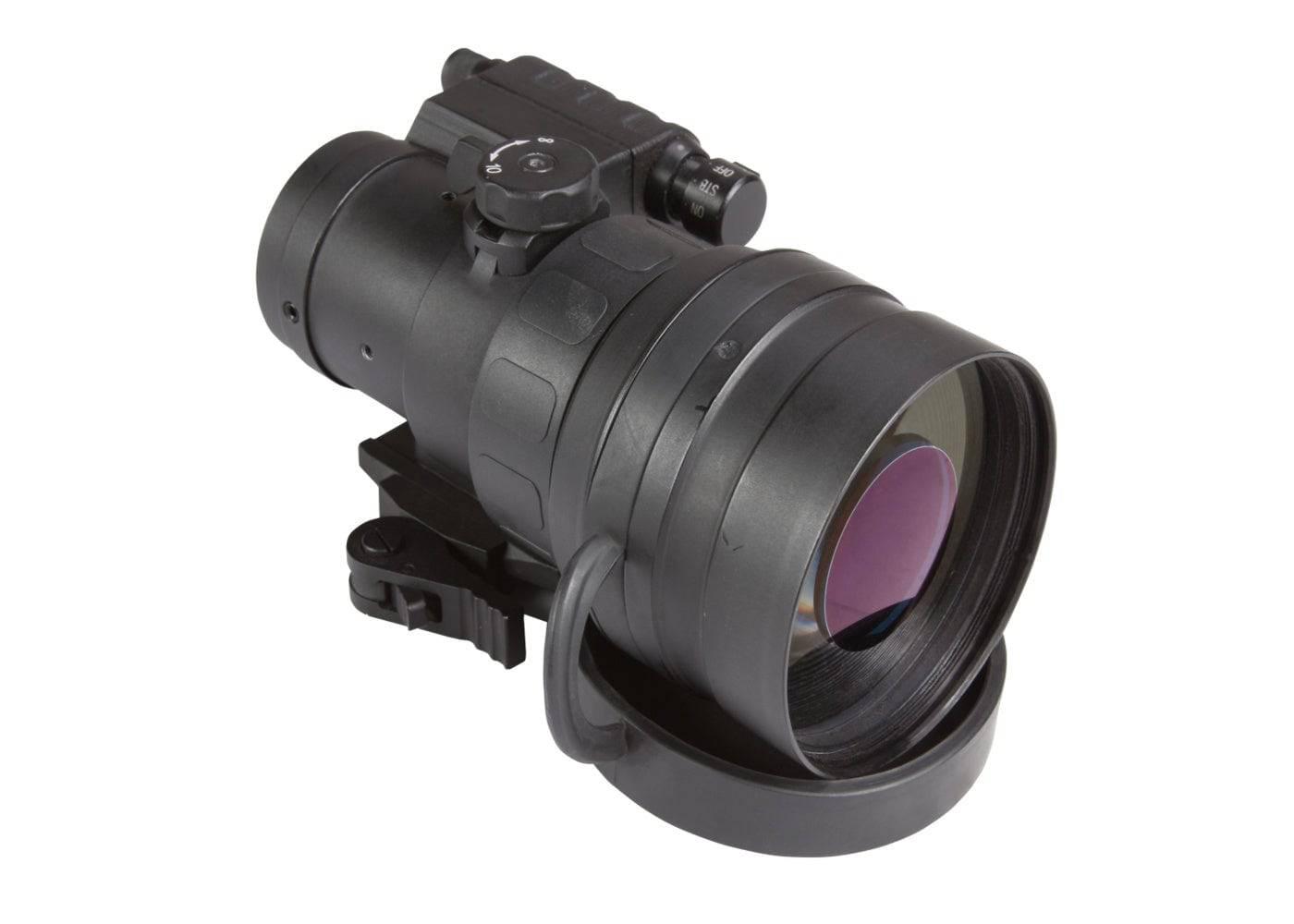

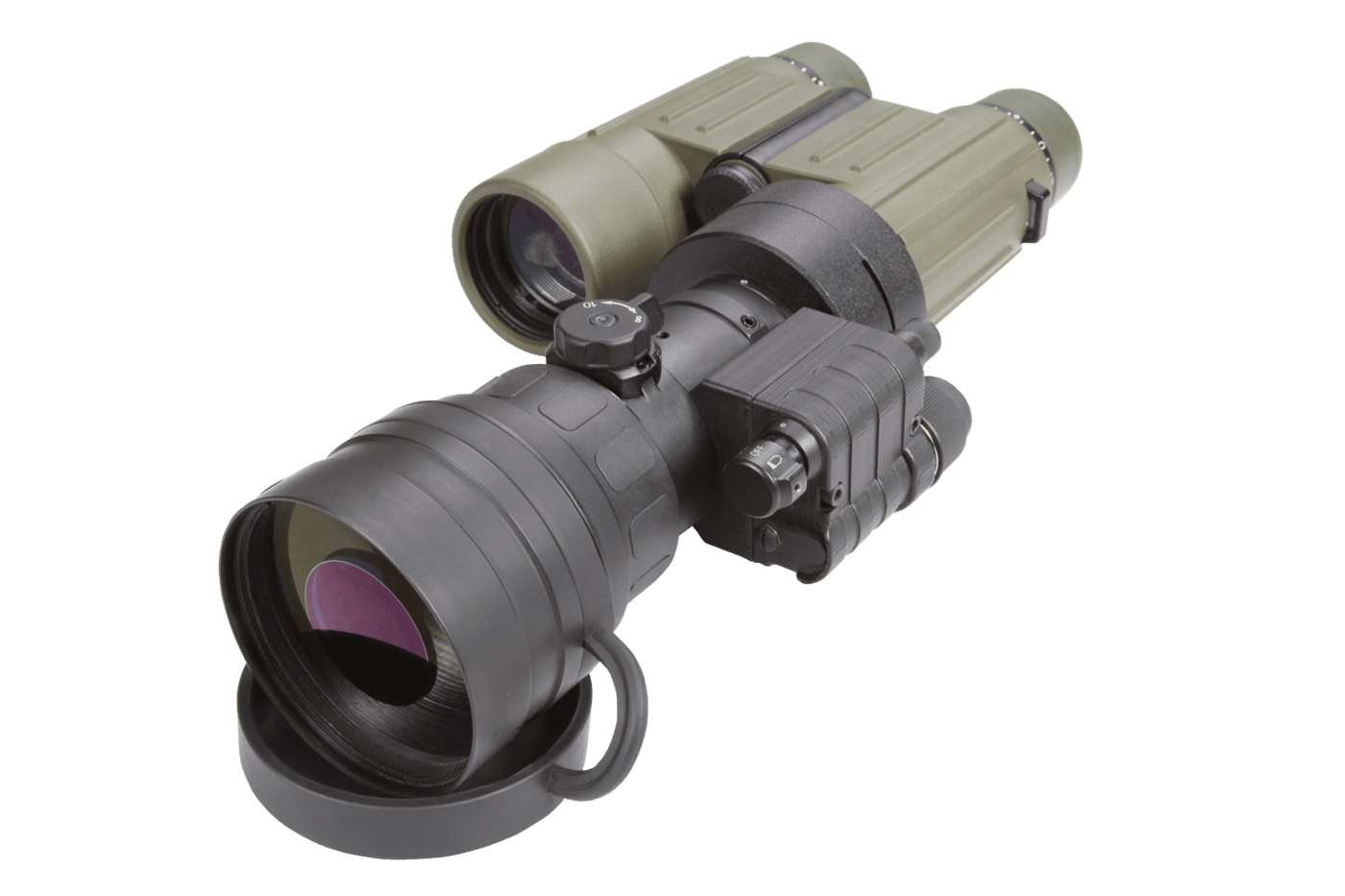

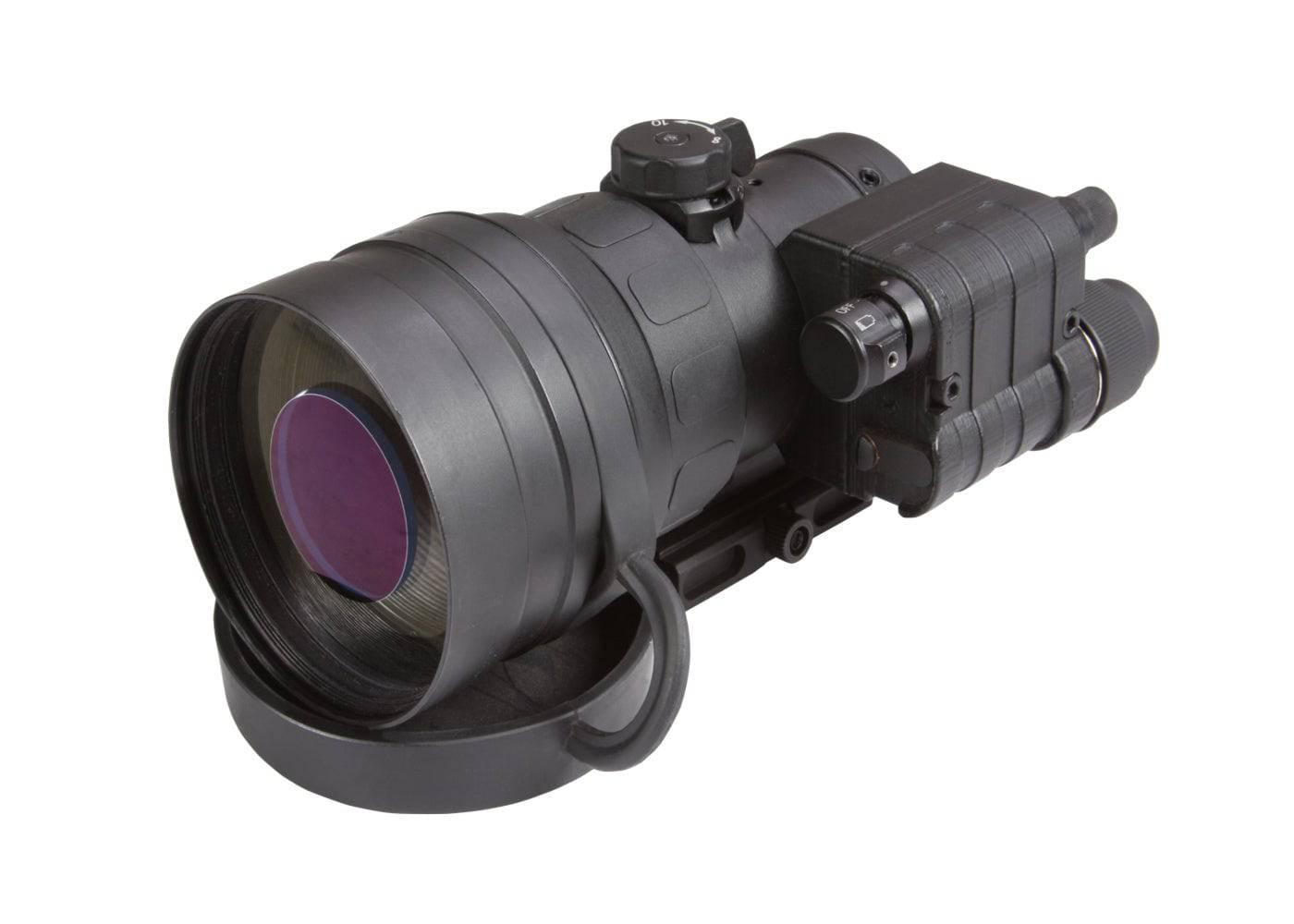

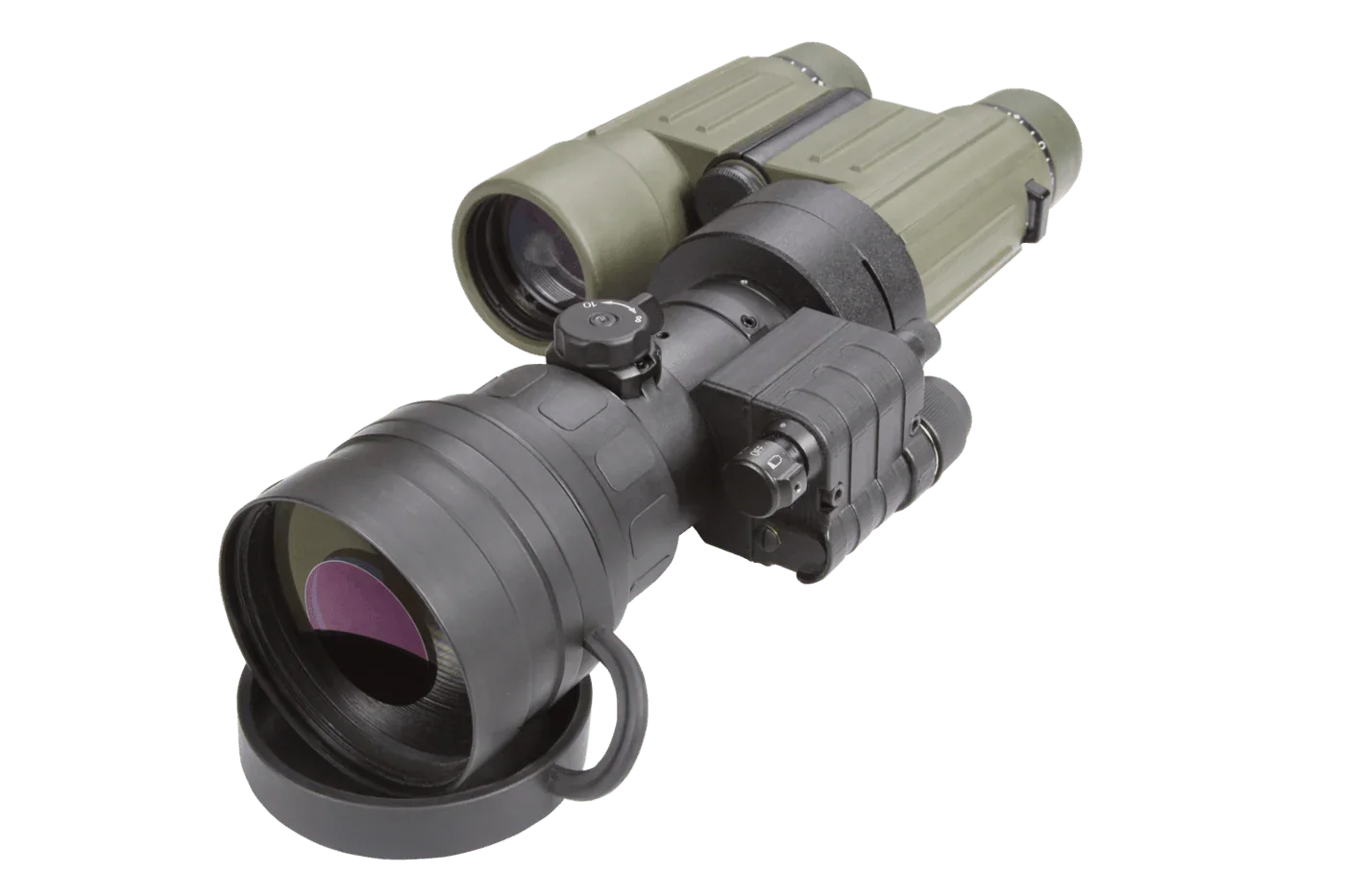

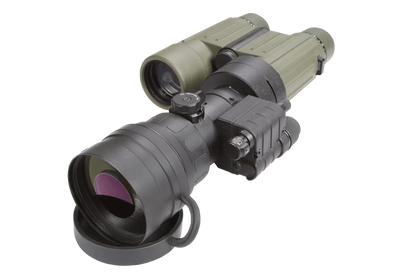

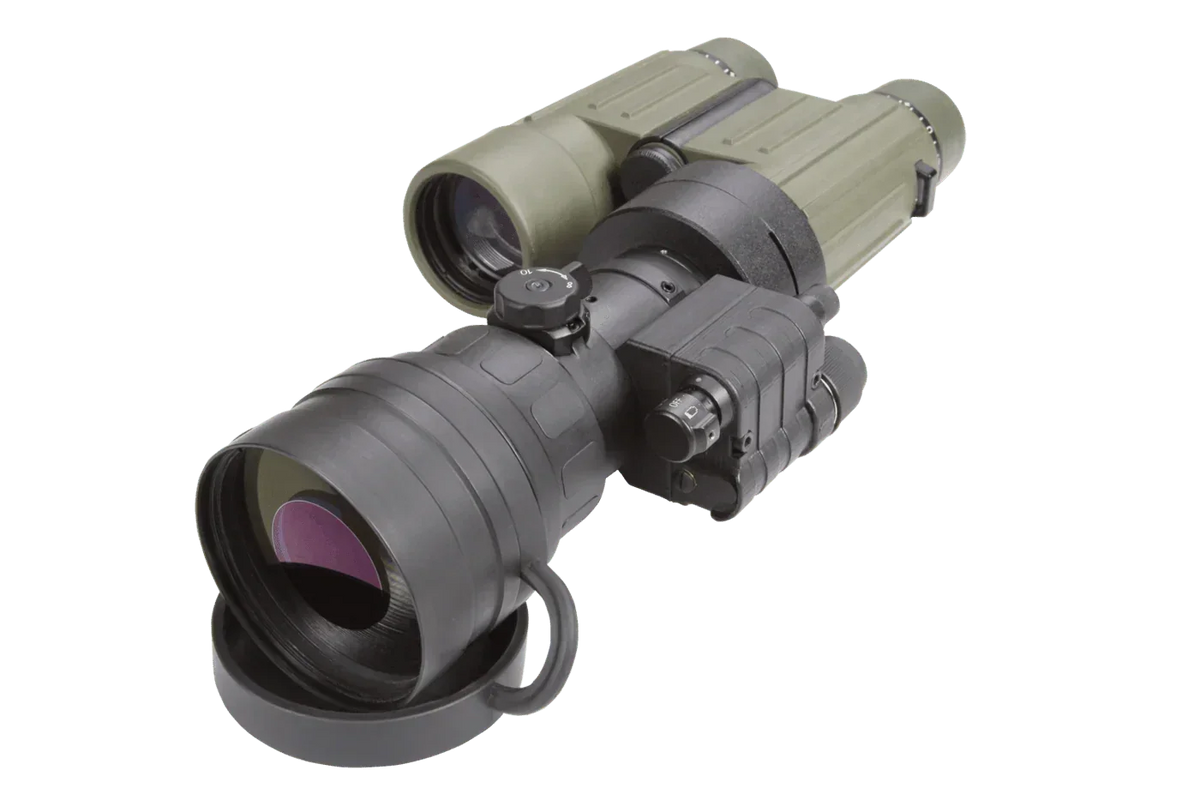

AGM Comanche 22 3AL1 Medium Range Night Vision Clip-On Scope

Name: AGM Comanche 22 3AL1 Medium Range Night Vision Clip-On Scope
Brand: AGM
SKU: 16CO2123283111
Price: 4495.0 USD
Availability: InStock

SKU:16CO2123283111

$ 4,495.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AGM Comanche 22 3AL1 Medium Range Night Vision Clip-On System Gen 3 "Level 1" 16CO2123283111

Authorized Dealer

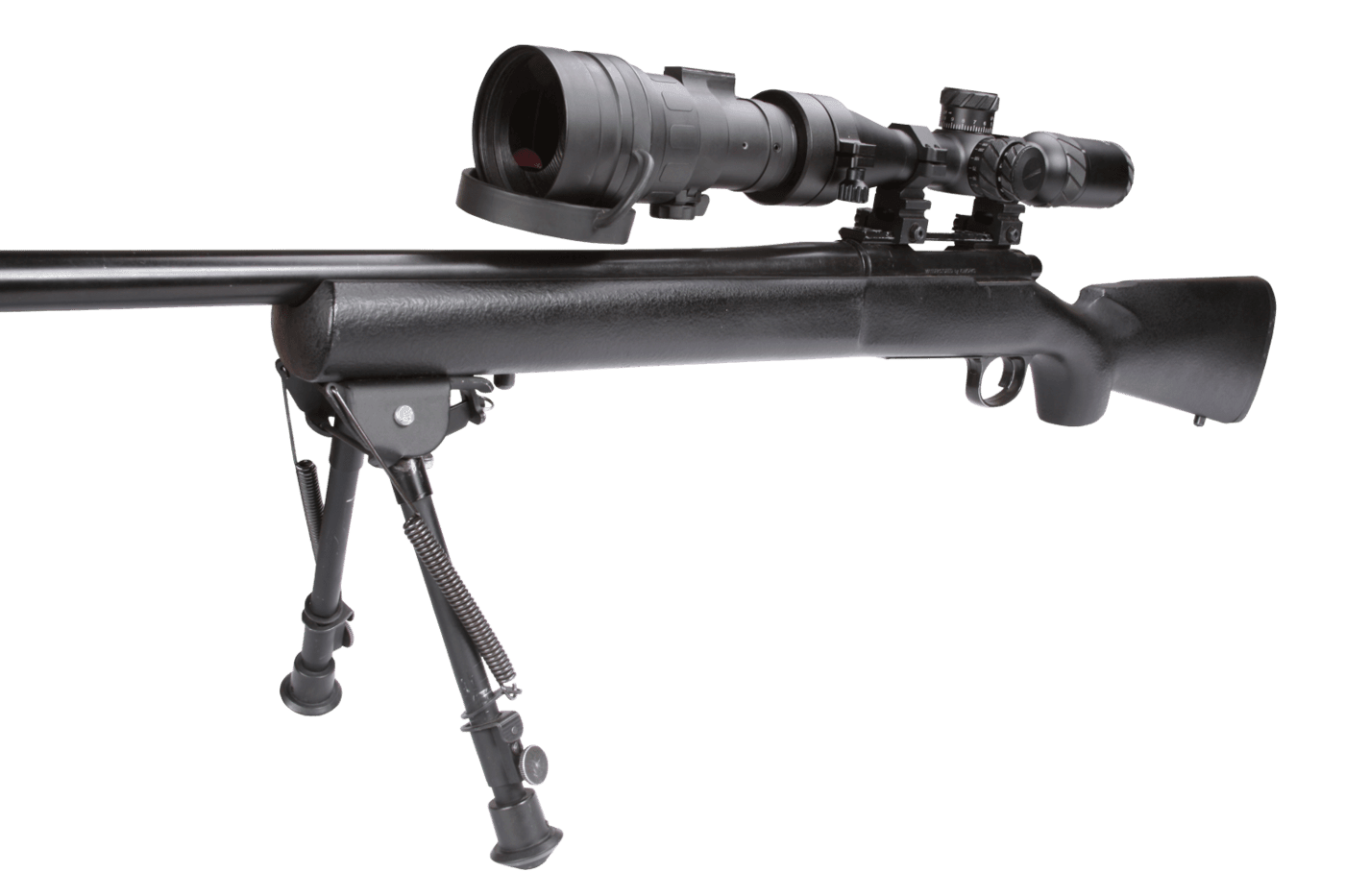

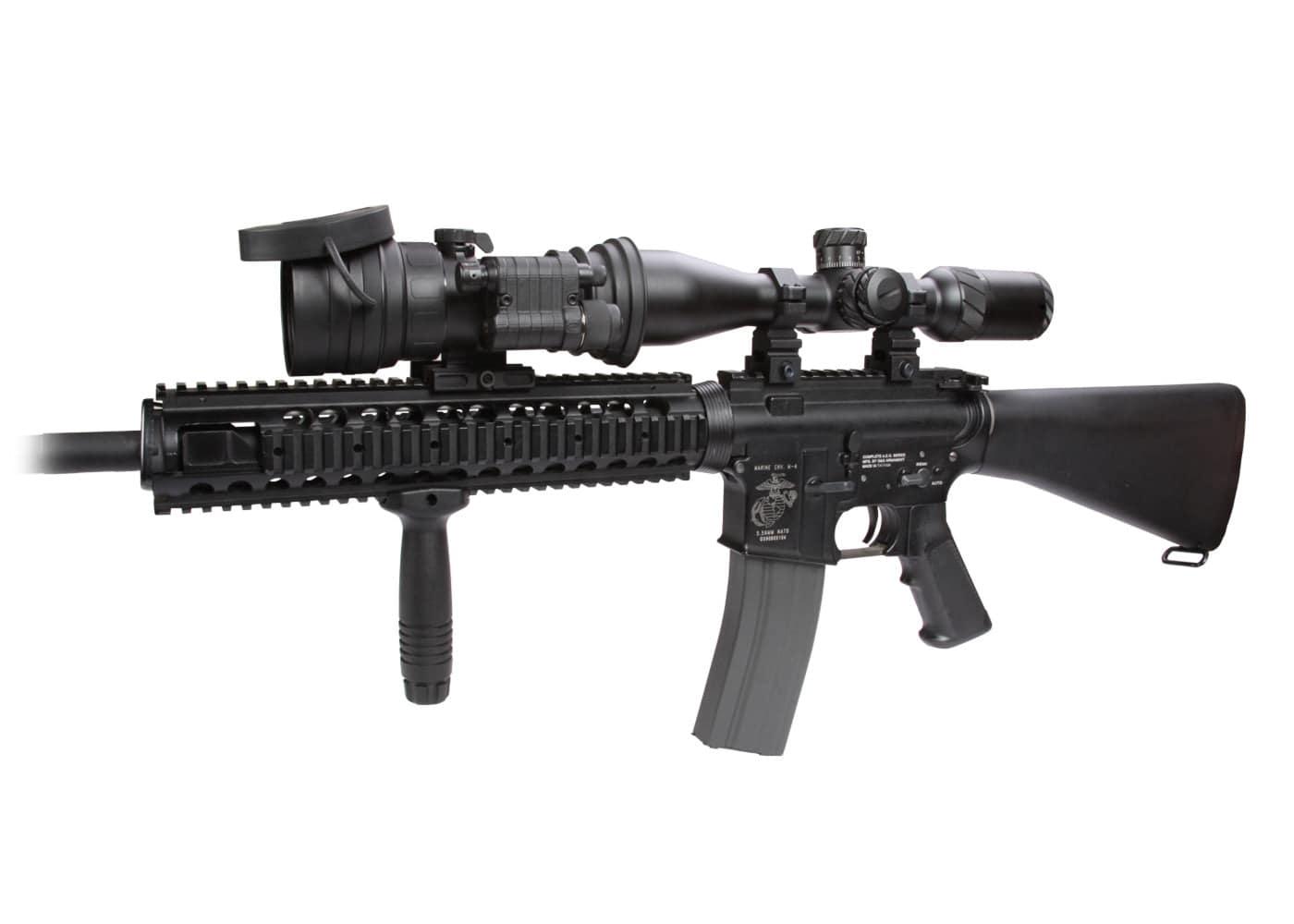

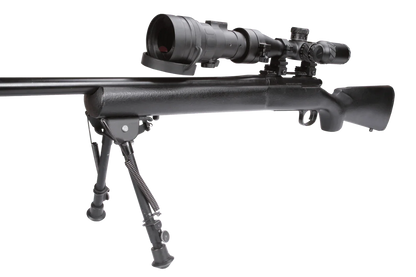

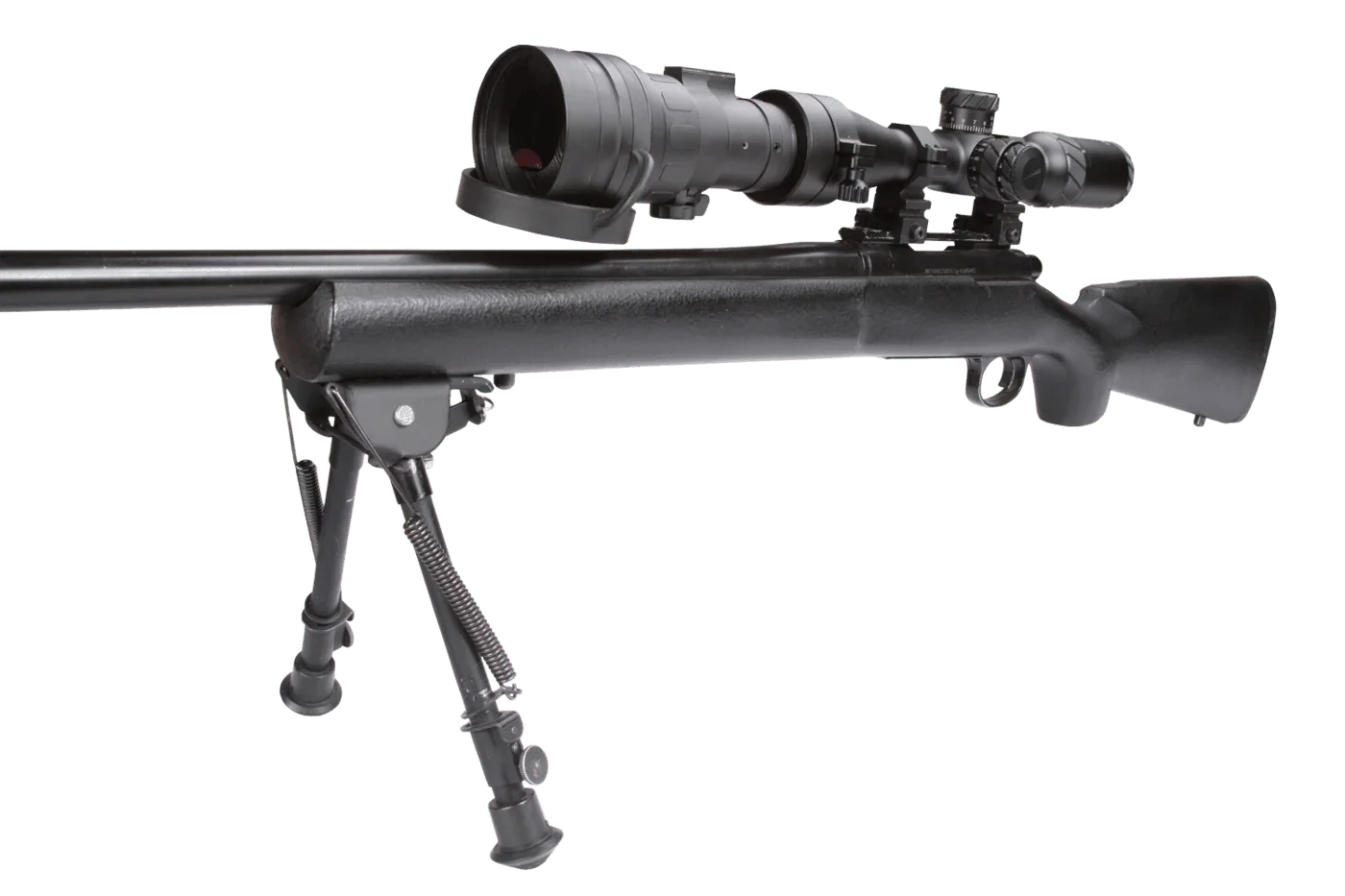

The AGM Comanche 22 NVCO is a cutting-edge system for mid-range nighttime engagements. This model is mounted to a Weaver or Picatinny rail and allows for no-rezeroing in front of an existing day scope, enabling up to 7x magnification. Additionally, the Comanche 22's quick release mount and wireless remote control enhances target acquisition and aiming capabilities. Despite the numerous features, its incredibly competitive price makes it a practical and efficient investment for any mission.

Features:

Simple, quick conversion of daytime scopes to NVDs
Manual gain control
Mounts in front of any daytime scope, no re-zeroing required
Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
Bright-light cut-off system
Quick-release mount
Limited three-year warranty

Tube Level Info:

Gen2+ Lvls	NL1/NW1 - Gen2+ Lvl1			NL2/NW2 - Gen2+ Lvl2			NL3 - Gen2+ Lvl3
Zone	1	2	3	1	2	3	1	2	3
>.015 or larger	0	0	0	0	0	0	0	0	1
>.012 - .015	0	0	0	0	0	1	0	1	1
>.009 - .012	0	1	1	0	2	2	1	2	2
>.006 - .009	0	1	2	1	2	2	1	2	2
.003 - .006	1	2	3	2	3	3	2	3	3
*Qty indicates Max Spots Allowed in Each Zone
**Spot Size (in.)

Gen3 Lvls	3NL1/3AW1 - Gen3 Lvl1			3NL2/3AW2 - Gen3 Lvl2			3NL3/3AW3 - Gen3 Lvl3
Zone	1	2	3	1	2	3	1	2	3
>.015 or larger	0	0	0	0	0	0	0	0	1
>.012 - .015	0	0	0	0	0	1	0	1	1
>.009 - .012	0	1	1	0	2	2	1	2	2
>.006 - .009	0	1	2	1	2	2	1	2	2
.003 - .006	1	2	3	2	3	3	2	3	3
*Qty indicates Max Spots Allowed in Each Zone
**Spot Size (in.)

Specifications:

Image Intensifier Tube

Gen 3 Auto-Gated "Level 1"

Resolution

64-72 lp/mm

Magnification

Unity 1x

Lens System

80 mm; F/1.44

FOV

12°

Focus Range

10m to infinity

Controls

Direct

Led Indicators

Low battery; Excessive light conditions

Infrared Illuminator

Detachable; Long-range (not included)

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 60 hours at 20°C

Exit Pupil Diameter

22 mm

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +50°C (-58°F to +122°F)

Weight

0.75 kg (1.65 lbs)

Overall Dimensions

168×85×80 mm ( 6.6×3.3×3.1 in)

Package Includes

Quick-Release Mount, Battery Adapter, CR123A Battery, Wireless Remote Control, Picatinny Adapter for Wireless Remote Control, Light Suppressor for Day Scope, Light Suppressor 1, Light Suppressor 2, Light Suppressor 3, User Manual, Carrying Case

Warranty

3 Years

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
