AGM Comanche 22 3AW1 Medium Range Night Vision Clip-On Scope
AGM Comanche 22 3AW1 Medium Range Night Vision Clip-On Scope
SKU:16CO2123284111
Couldn't load pickup availability
AGM Comanche 22 3AW1 Medium Range Night Vision Clip-On System White Phosphor Gen 3 "Level 1" 16CO2123284111
Authorized Dealer

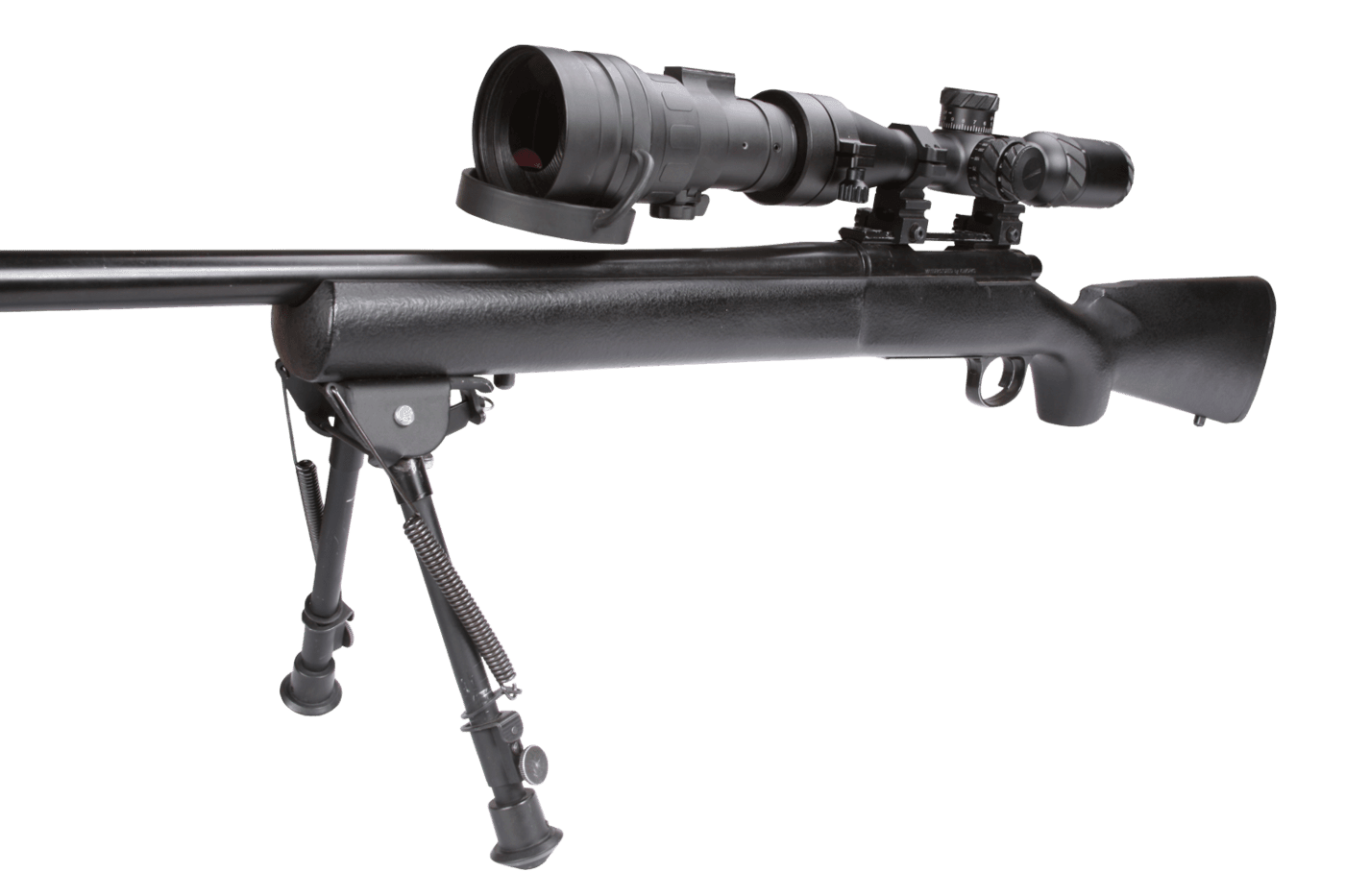

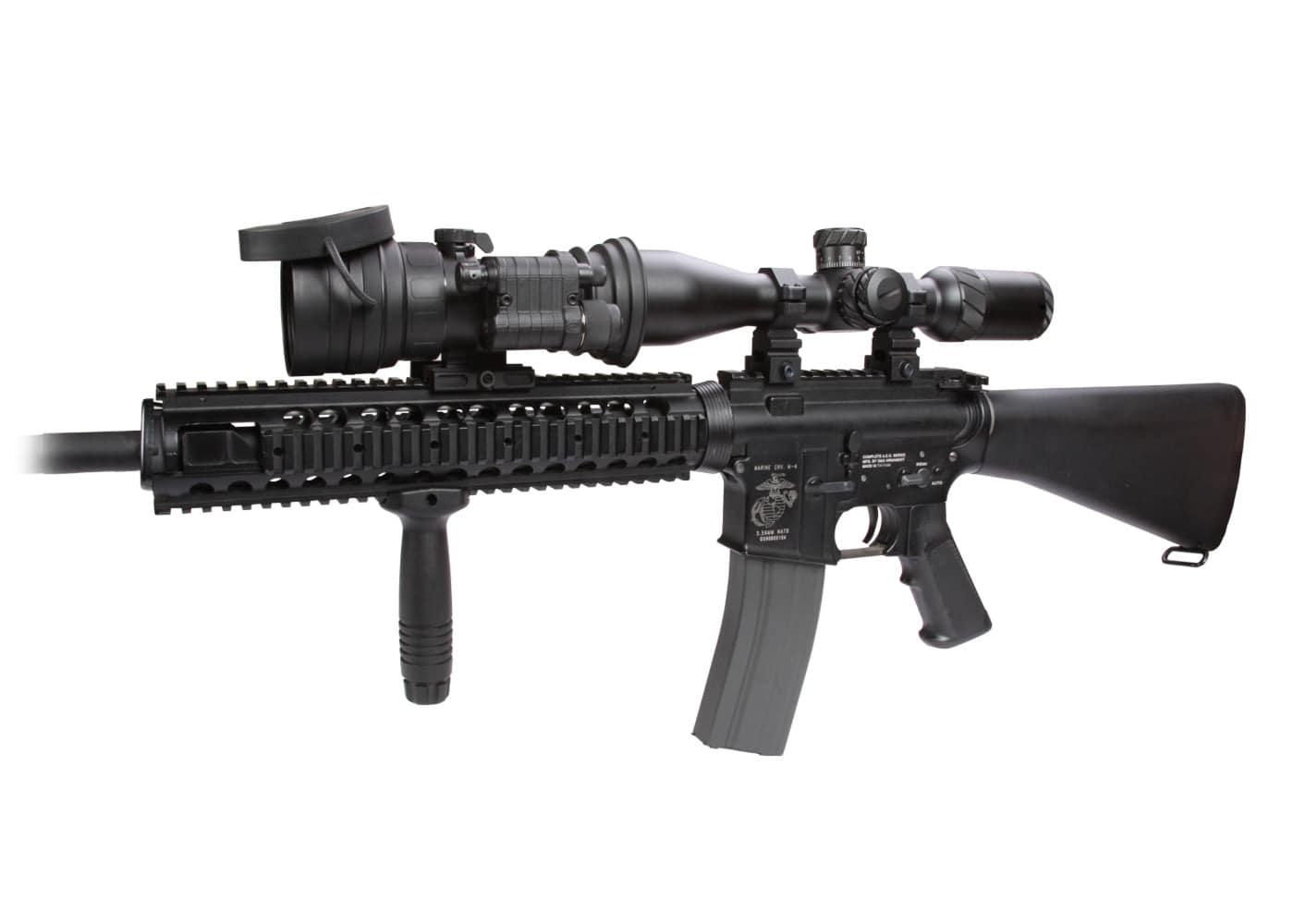

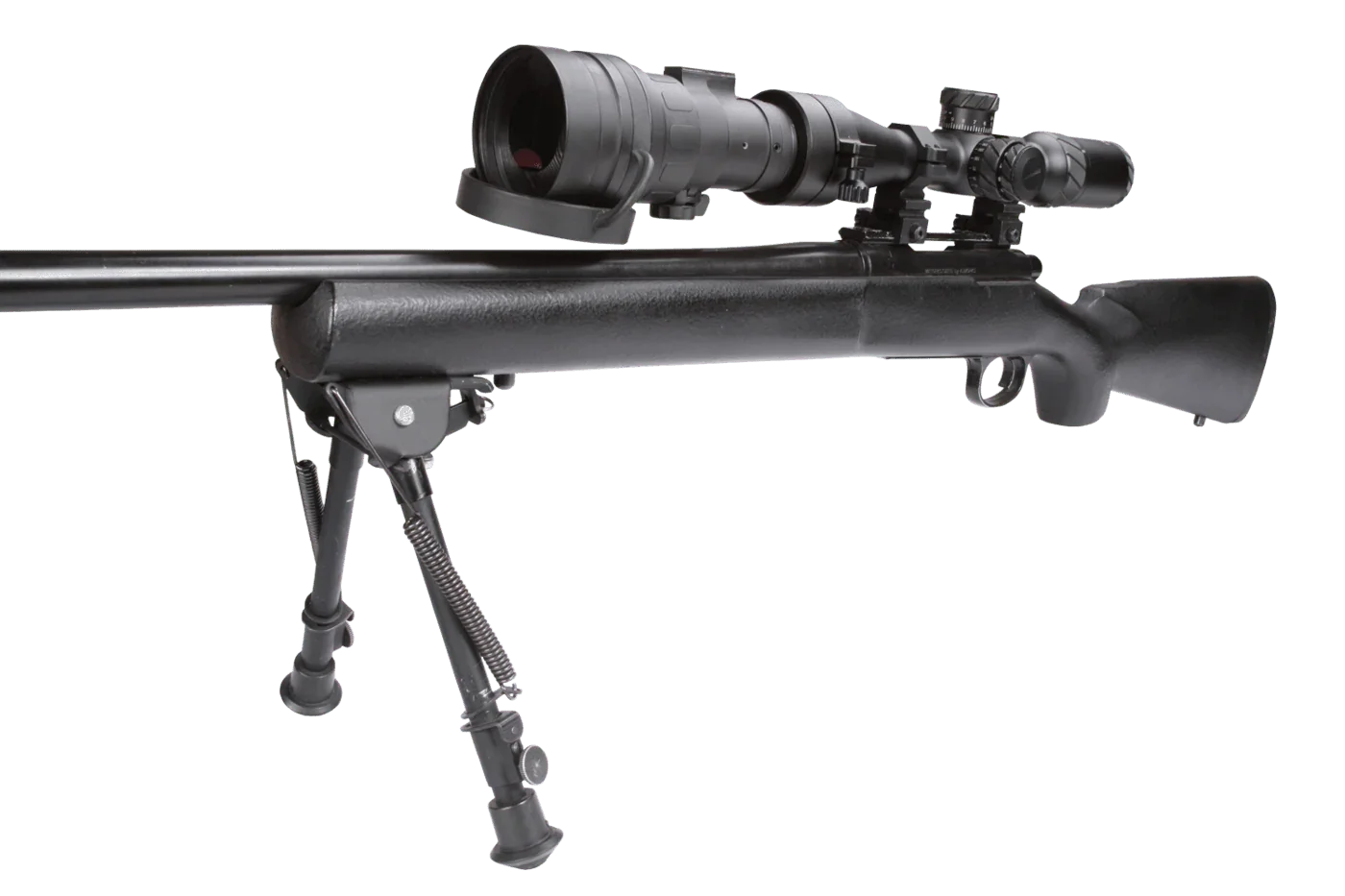

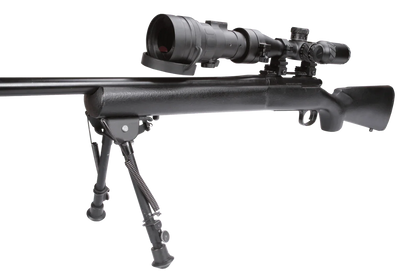

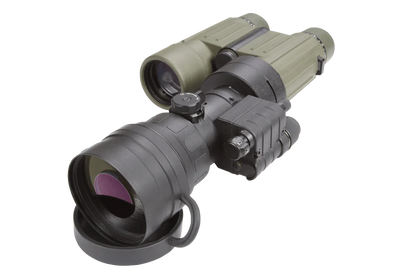

The AGM Comanche 22 NVCO system utilizes the latest night vision clip-on technology for mid-range nighttime applications. It offers increased clarity, versatility, and reliability, providing users with the best performance features at a competitive price. Installing the Comanche 22 on a Weaver or Picatinny rail in front of a day scope allows it to act as a Night Vision Device with no need for re-alignment. When paired with a day scope of up to 7x magnification, this NVCO offers superior target acquisition and improved accuracy for complex operations. A quick-release mount and remote control round out the package, making this clip-on an essential tool for night operations.
AGM Comanche 22 3AW1 Features:
- Simple, quick conversion of daytime scopes to NVDs
- Manual gain control
- Mounts in front of any daytime scope, no re-zeroing required
- Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
- Bright-light cut-off system
- Quick-release mount
- Limited three-year warranty
Tube Level Info:
|
Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|||||||||
AGM Comanche 22 3AW1 Specifications:
Image Intensifier Tube
Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution
64-72 lp/mm
Magnification
Unity 1x
Lens System
80 mm; F/1.44
FOV
12°
Focus Range
10m to Infinity
Controls
Direct
Led Indicators
Low battery; Excessive light conditions
Infrared Illuminator
Detachable; Long-range (not included)
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 60 hours at 20°C
Exit Pupil Diameter
22 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.75 kg (1.65 lbs)
Overall Dimensions
168×85×80 mm ( 6.6×3.3×3.1 in)
Package Includes
Quick-Release Mount, Battery Adapter, CR123A Battery, Wireless Remote Control, Picatinny Adapter for Wireless Remote Control, Light Suppressor for Day Scope, Light Suppressor 1, Light Suppressor 2, Light Suppressor 3, User Manual, Carrying Case
|
Warranty |
3 Years |
