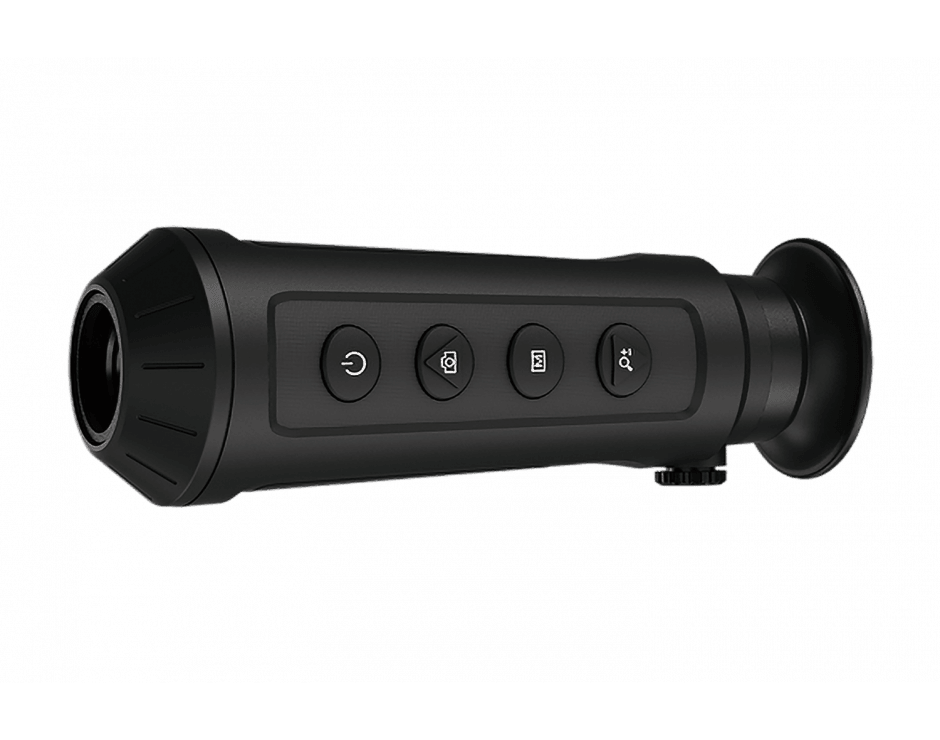

AGM Taipan TM10-256 Thermal Monocular 256x192 / 12um (25Hz) 10mm w/Recording (3092851013TA01)
The AGM Taipan thermal monoculars have earned a reputation for two key qualities: Reliability and Simplicity. The Taipan TM10-256 is an excellent mid-level thermal monocular, perfect for those looking to explore the benefits of thermal imaging. It features an advanced 12-micron, 256x192 resolution thermal sensor and a 720x540 LCOS display, making it ideal for hunters, campers, and outdoor enthusiasts who need to detect animals or people in complete darkness. Its uses range from blood tracking for hunters, which assists in game retrieval, to enhancing safety and awareness for hikers and campers, as well as satisfying general nighttime curiosity.
Despite its simplicity, the Taipan TM10-256 is packed with popular features. It offers up to 8 hours of battery life from an internal rechargeable battery, Wi-Fi hotspot capability, and AGM Connect app compatibility for sharing images and videos. With 1-8X magnification, 8GB of internal storage (eliminating the need for a memory card), and AGM’s 3-year transferable warranty, it is a reliable and user-friendly thermal monocular for a wide range of outdoor activities.
AGM Taipan TM10-256 CHARACTERISTICS:
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: Sensor 25 Hz / OLED 50 Hz
Resolution: 256x192
FOV: 18.00° × 13.55°
1x base mag
AGM Taipan TM10-256 FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
AGM Taipan TM10-256 Features:
- 256×194 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720 × 540 resolution 0.2-inch LCOS display
- Built-in rechargeable Lithium battery
- More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- Limited 3-year warranty
AGM Taipan TM10-256 Specifications:
Palettes
Black Hot, White Hot, Red Hot, Fusion
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Interface
USB Type-C
Pixel Interval
12 μm
Multi Language menu
Yes
Drop Test Height
1.5 m (4.9 feet)
Detector type
Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband
8μm to 14μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
25 Hz
Aperture
F1.0
Resolution
256×192
Detection Range
458 m
NETD
Less than 35 mk (@25°C), F#=1.0
Lens (focal length)
10 mm
Power
5 VDC/2 A, 1.5 W
Field of view (H × X)
18.00° × 13.55° (H × V)
Digital zoom
1×, 2×, 4×, 8×
Monitor
720×540, 0.2 inch, LCOS
Storage
Built-in memory module (8 GB)
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
Built-in rechargeable Lithium battery
Wi-Fi
Yes
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 8 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display
Yes
Weight
260 g (0.57 lb)
Overall Dimensions
158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Protection Level
IP67
3 Year Warranty
Data Sheet
Included:
Lens Tissue
AC Power Adapter/Charger
Operators Manual
Protective Bag
Neck Belt
USB Cable
