SENSOR
Resolution 640x512
Pixel Size 12 μm
Frame Rate 60hz
Sensor Sensitivity ≤20 mK
Image Processing MATRIX III
Core InfiRay Micro II 640
OPTICS
Objective Lens 50 mm f/1.0
Magnification 3x
Digital Zoom 4x, Stepped
Field of View 8.8x6.6
Detection Range 2400 Yards
Display Type 1.03-inch Large-format AMOLED
Display Resolution 2560x2560
Color Palettes White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Reticle Types 8 (7 Static, 1 DIY)
Reticle Colors Black Red, Black Green, White Red, White Green,
Black White, White Black, Crimson, Viridian
Mounting System Picatinny MIL-STD 1913 Rail
P.I.P. Yes
Rangefinder Integrated 1200 yd LRF
Eye Relief 60 mm
Diopter Range -3 to +3
ELECTRONICS
Onboard Recording Video, Recoil-Activated Video, and Image
Onboard Storage 32 GB
Wireless Connectivity Image and Video via App.
Data/Power Connector USB-C
Power Supply USB-C External, IBP-5 Li-ion Battery Packs (5+ Hours Each)
Start Up Time <10 Seconds, Instant from Standby
PHYSICAL
Size 9.50” x 3.00” x 3.75”
Weight 36.63 Oz
ENVIRONMENTAL/WARRANTY
Warranty 5 Years
Housing Material Magnesium Alloy
Ingress Protection IP67
Operation Temperature -4F~122F
Max. Recoil 1000 g/s. (300 Win./7mm Mag)

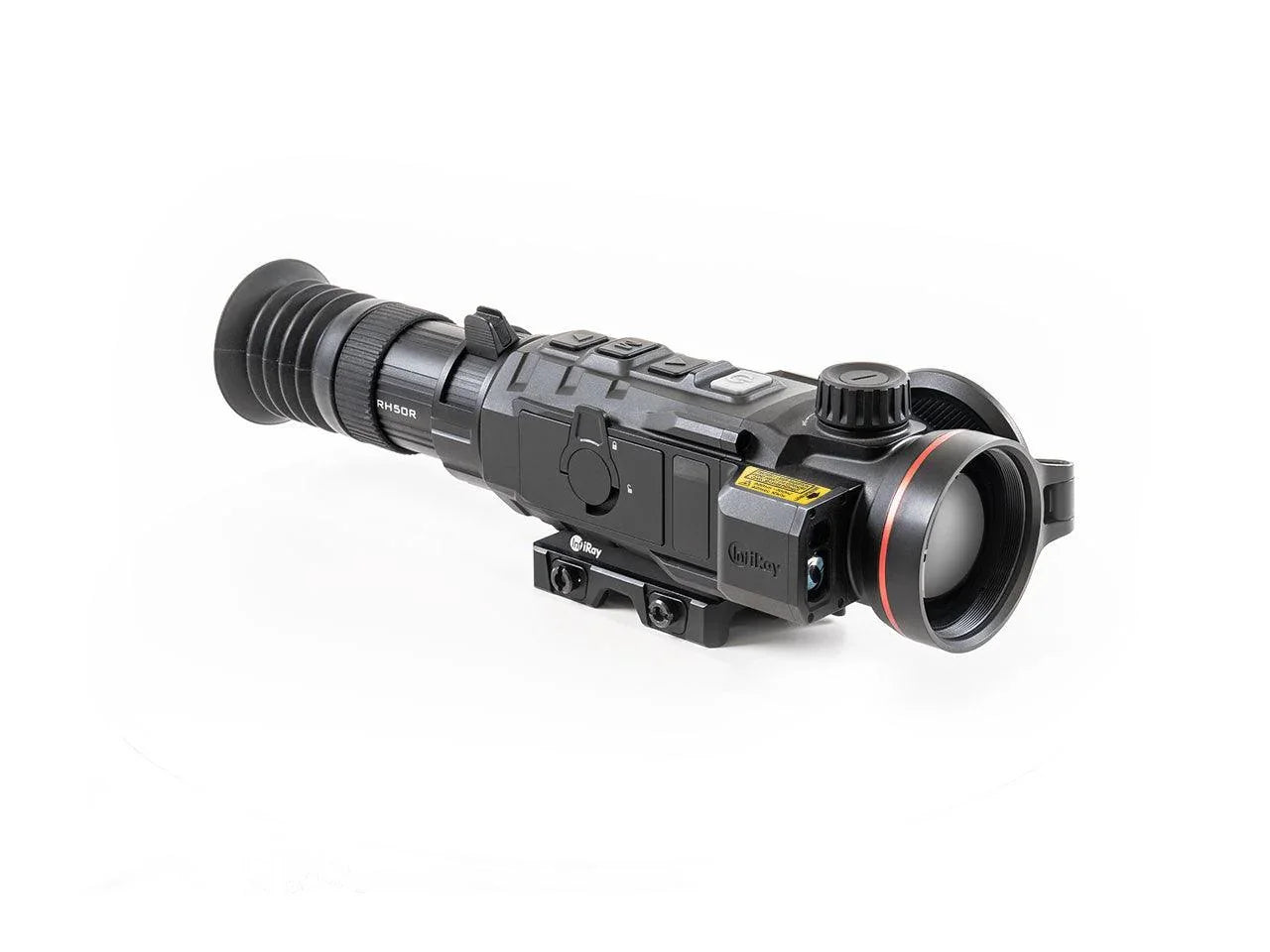

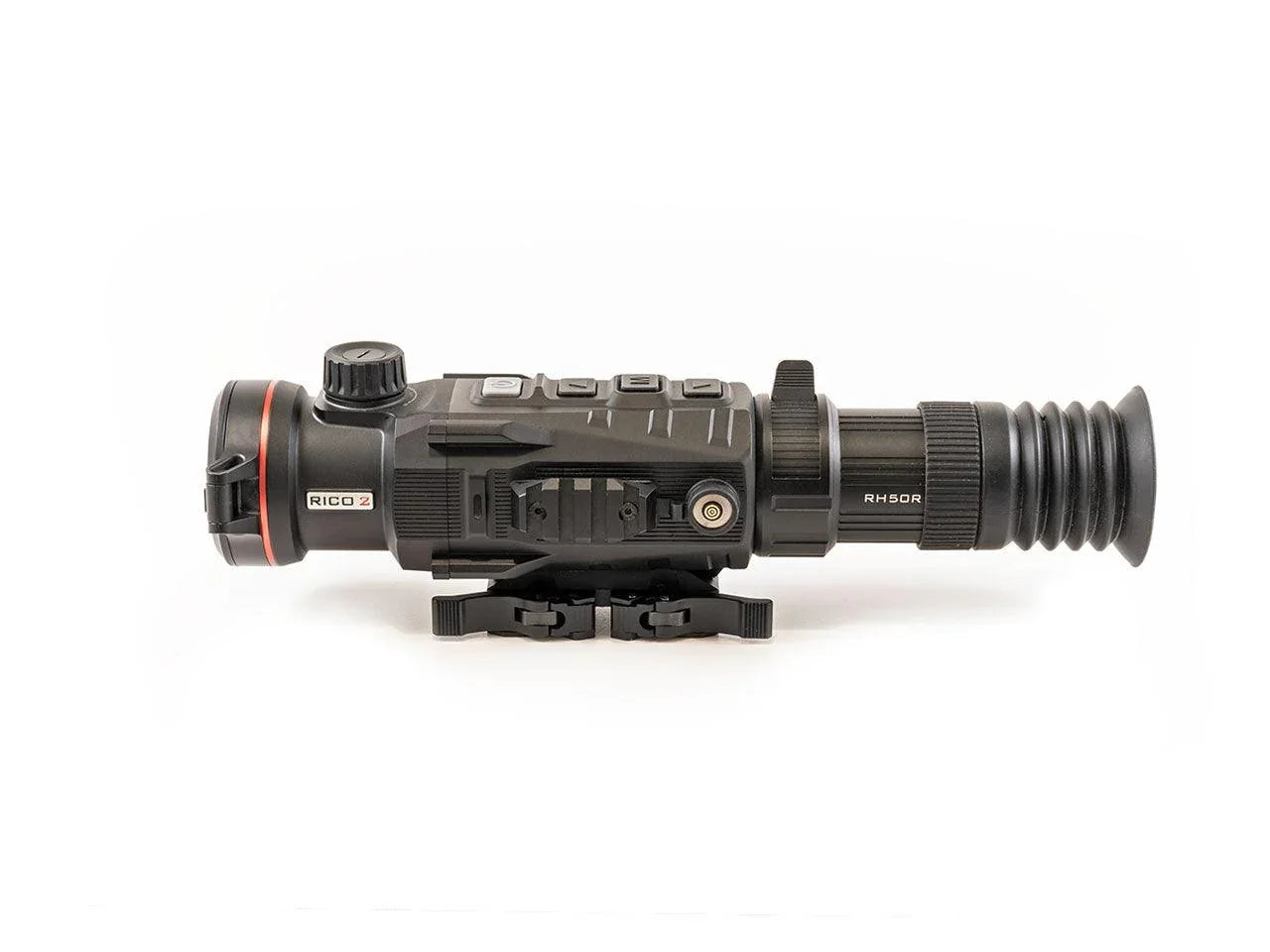

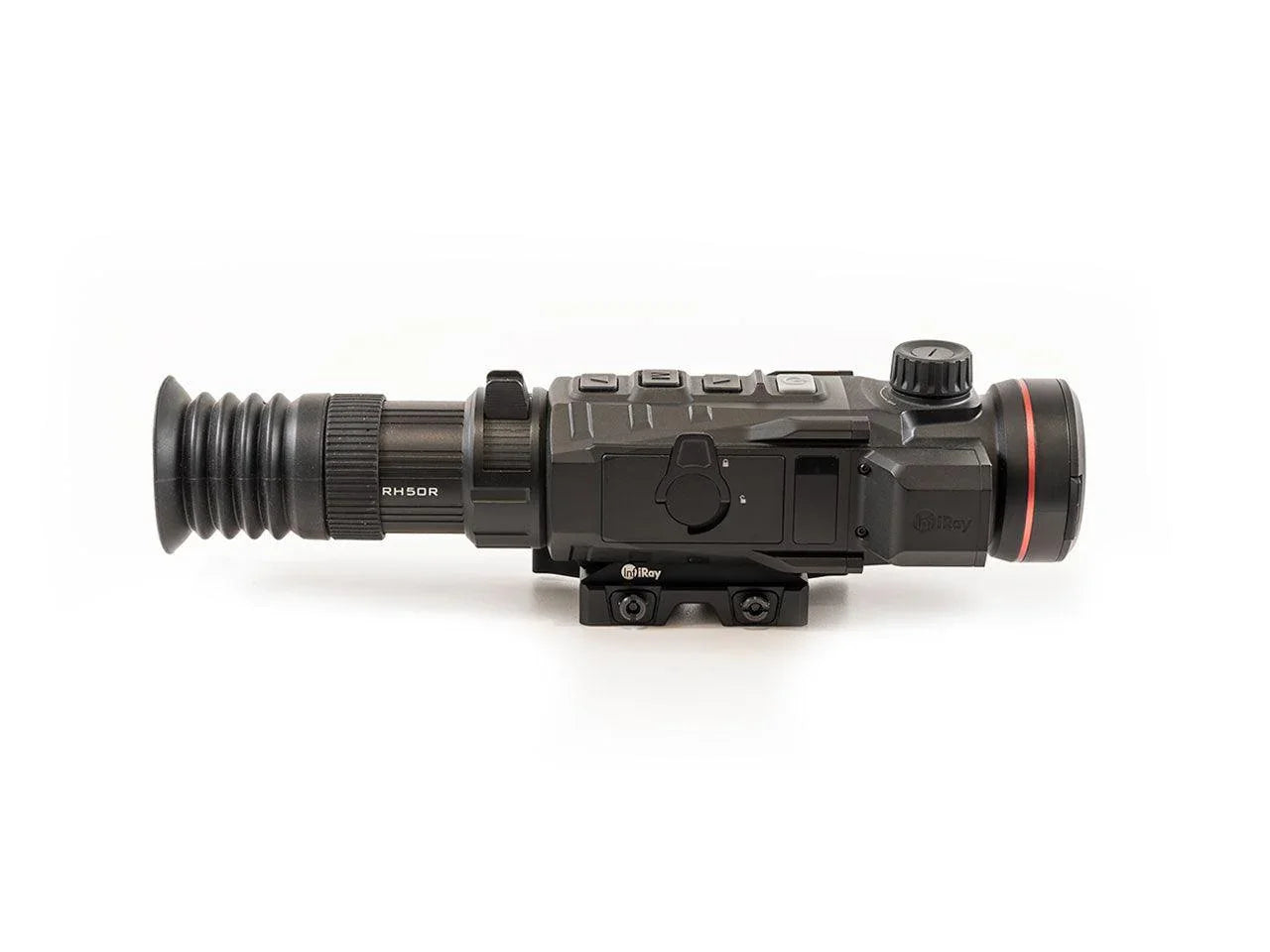

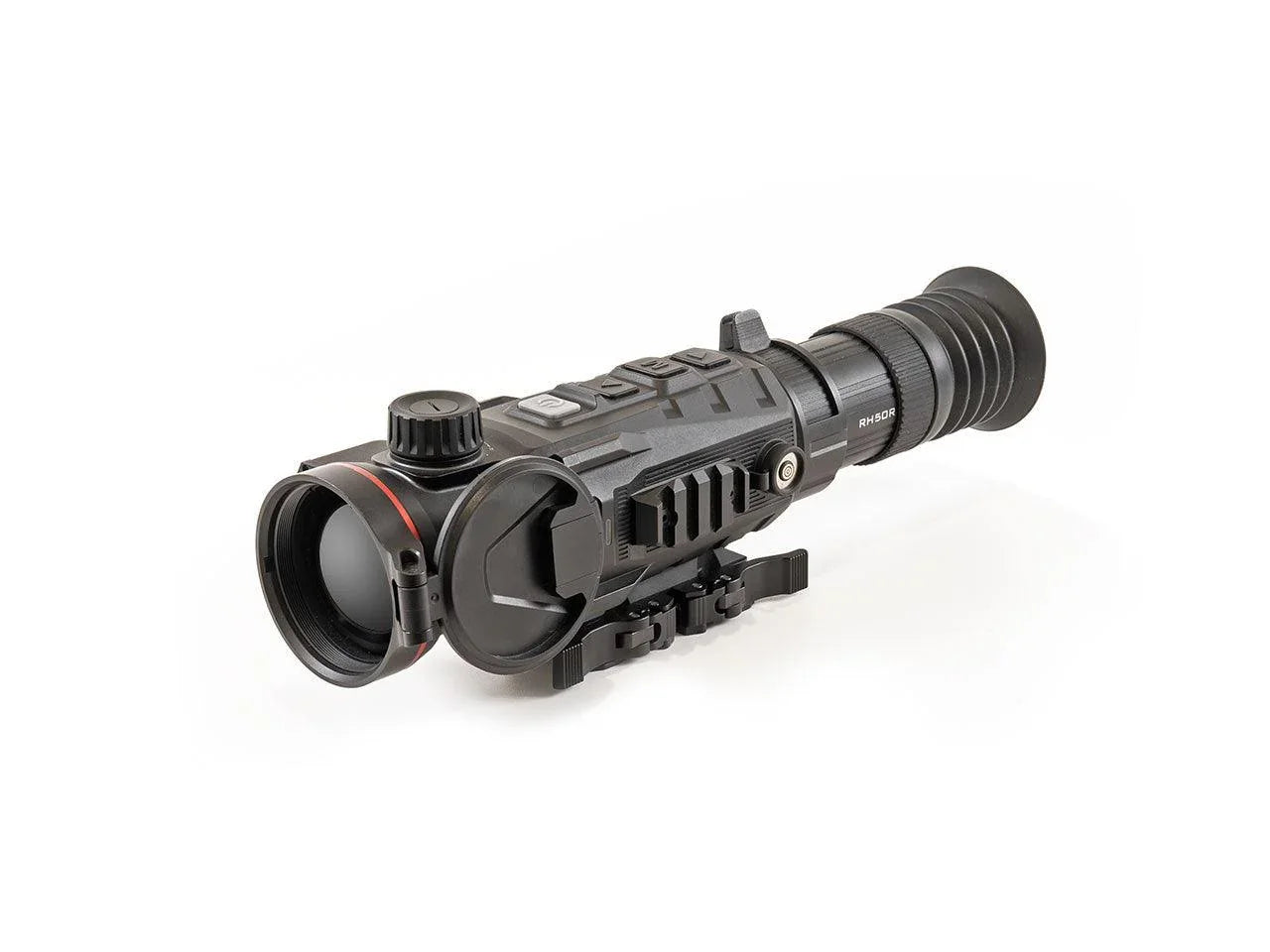

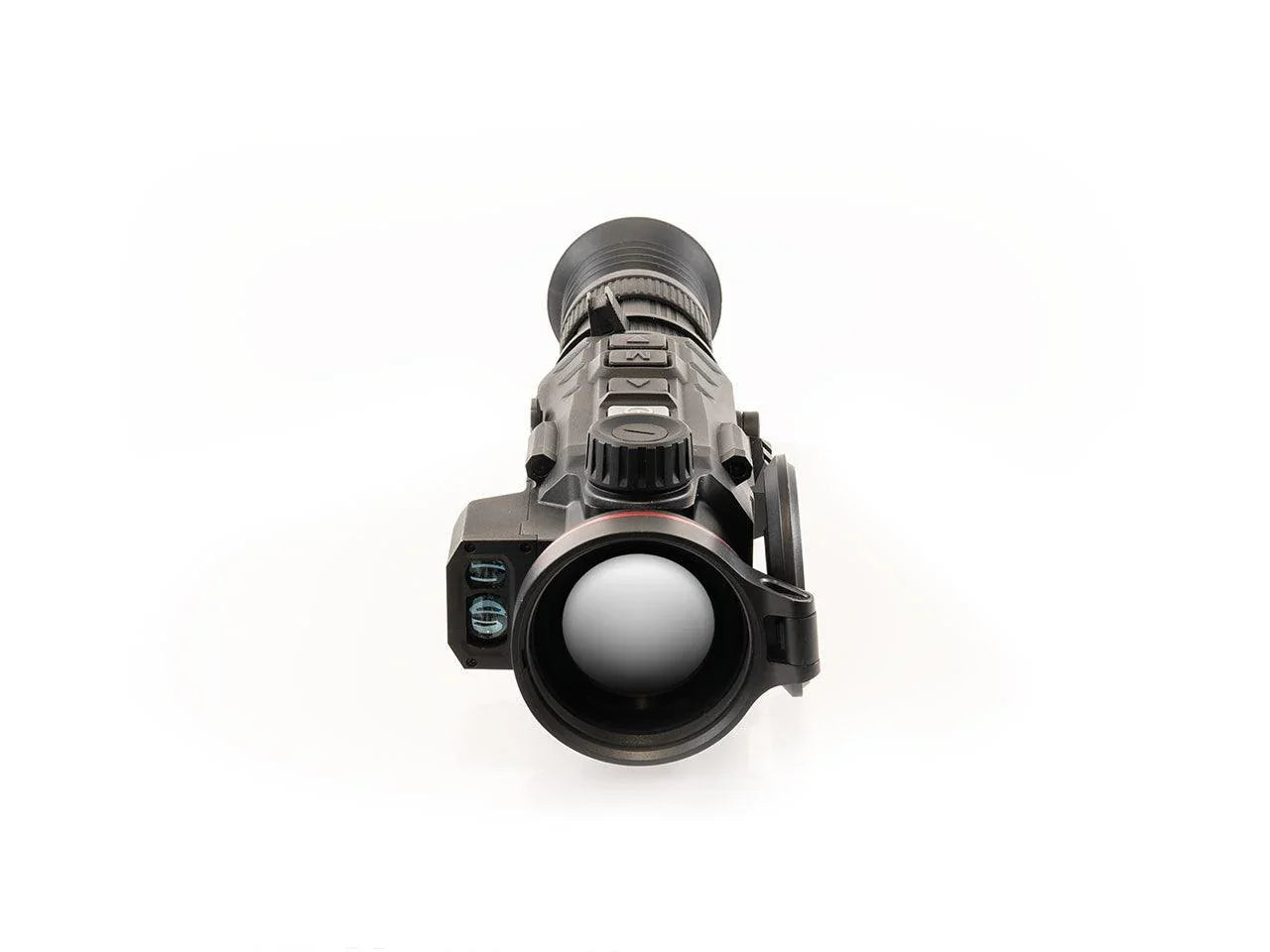

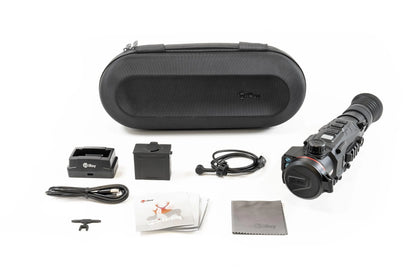

The RICO Mk2 rifle scope ships with everything you need to get out and hunt.
• 50mm Objective Lens Cap
• Standard Rubber Eyeguard
• Dual Throw Mount for RICO Mk2
• M5 Screws
• 3mm Hex Key and Spanner Tool
• Magnetic Charging Cable
• USB-C Cable
• IBP-5 Battery 4400 mAh
• IBC-5 Battery Charger
• USB Power Adapter
• Soft Case
• Lens Cloth
• User Manual
