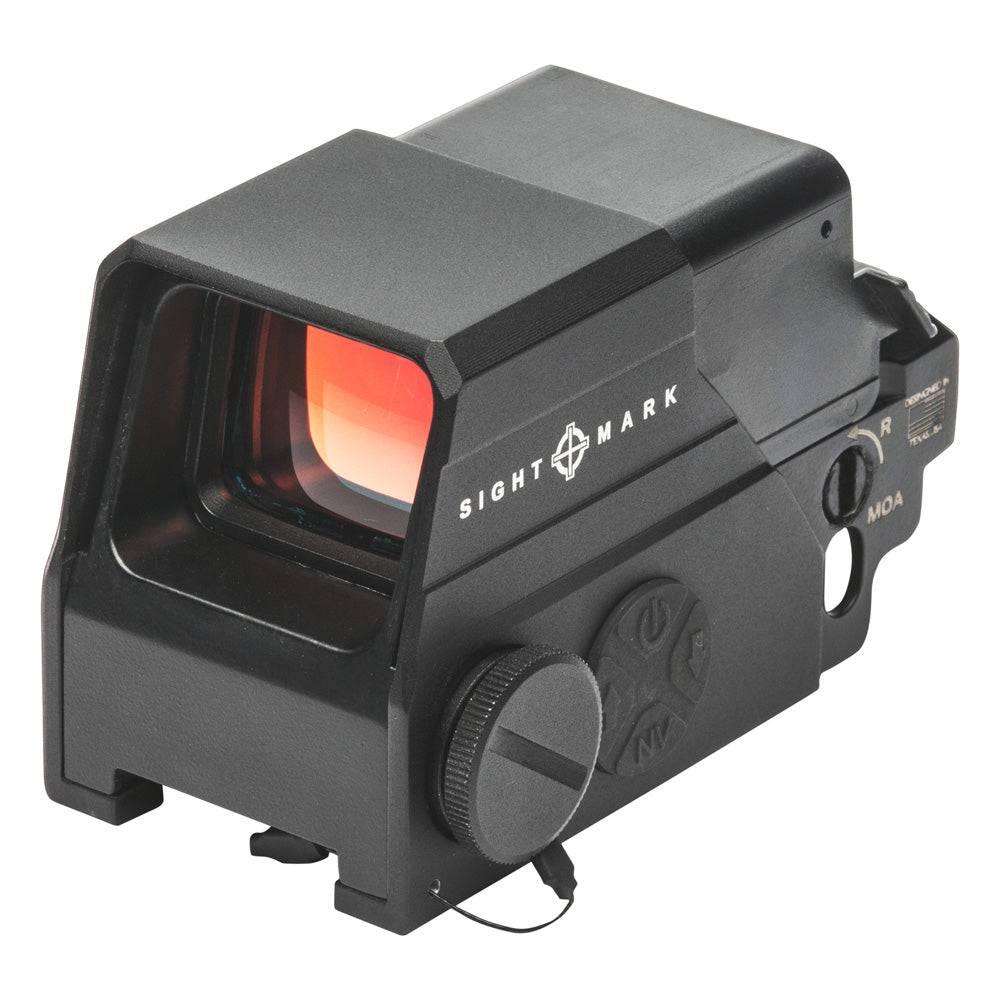

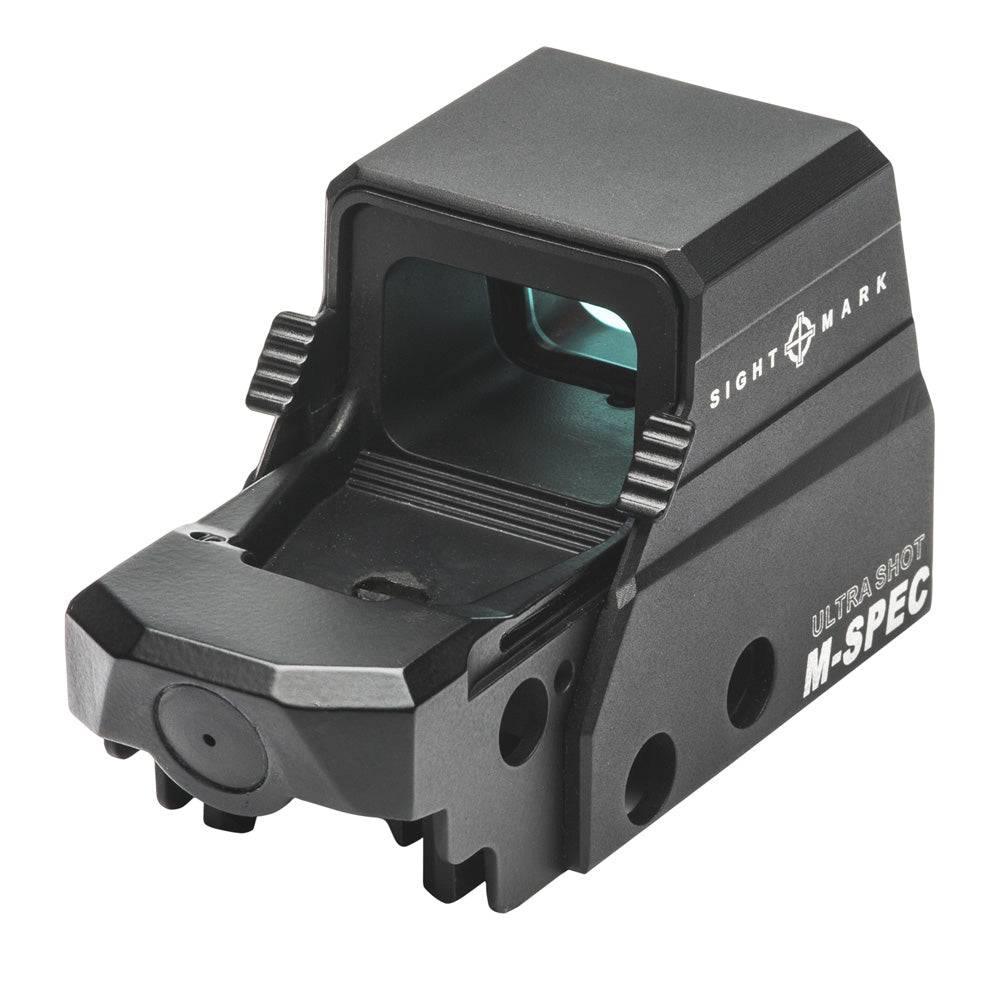

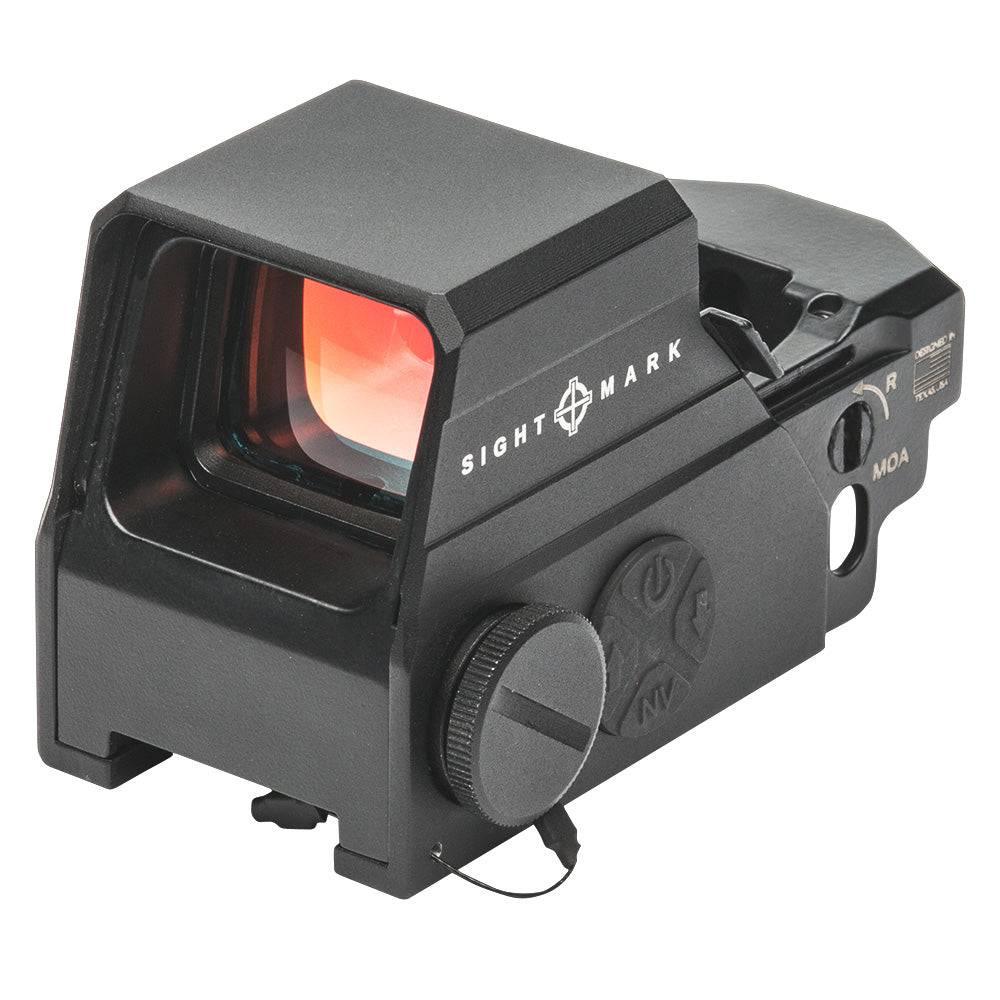

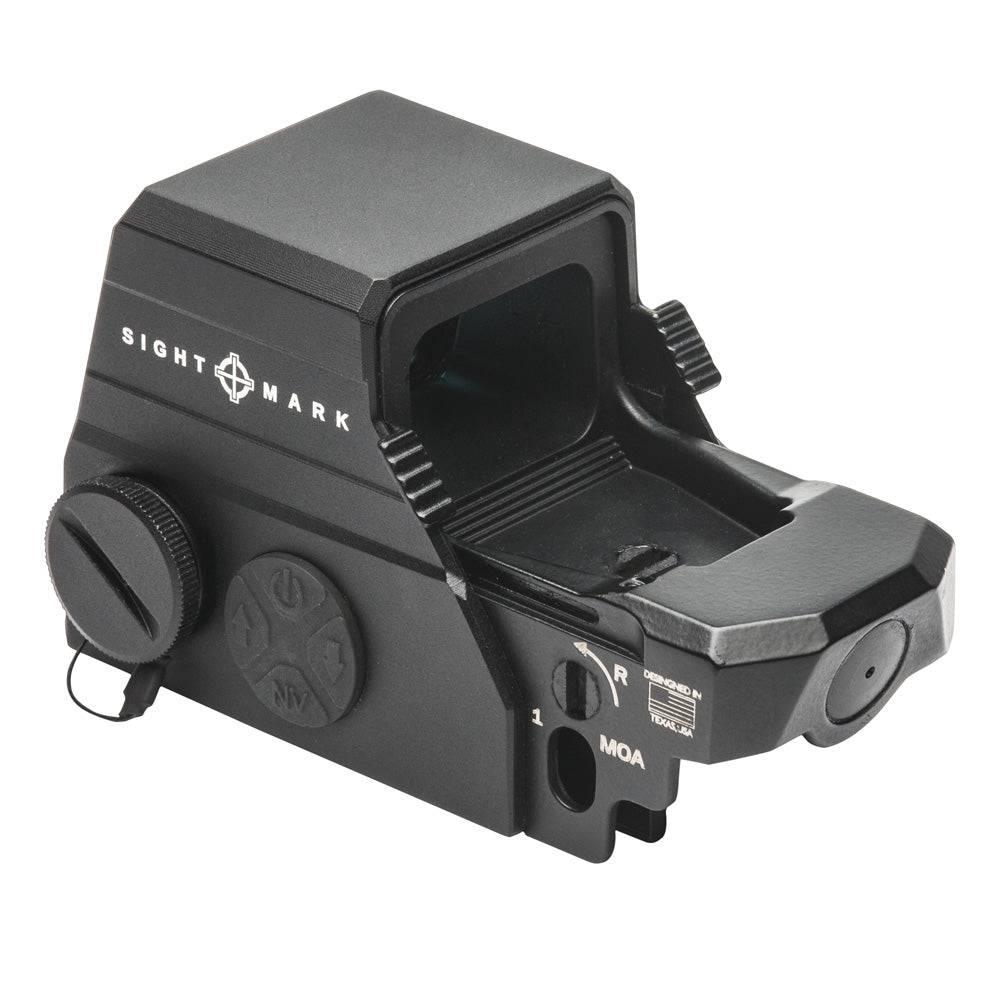

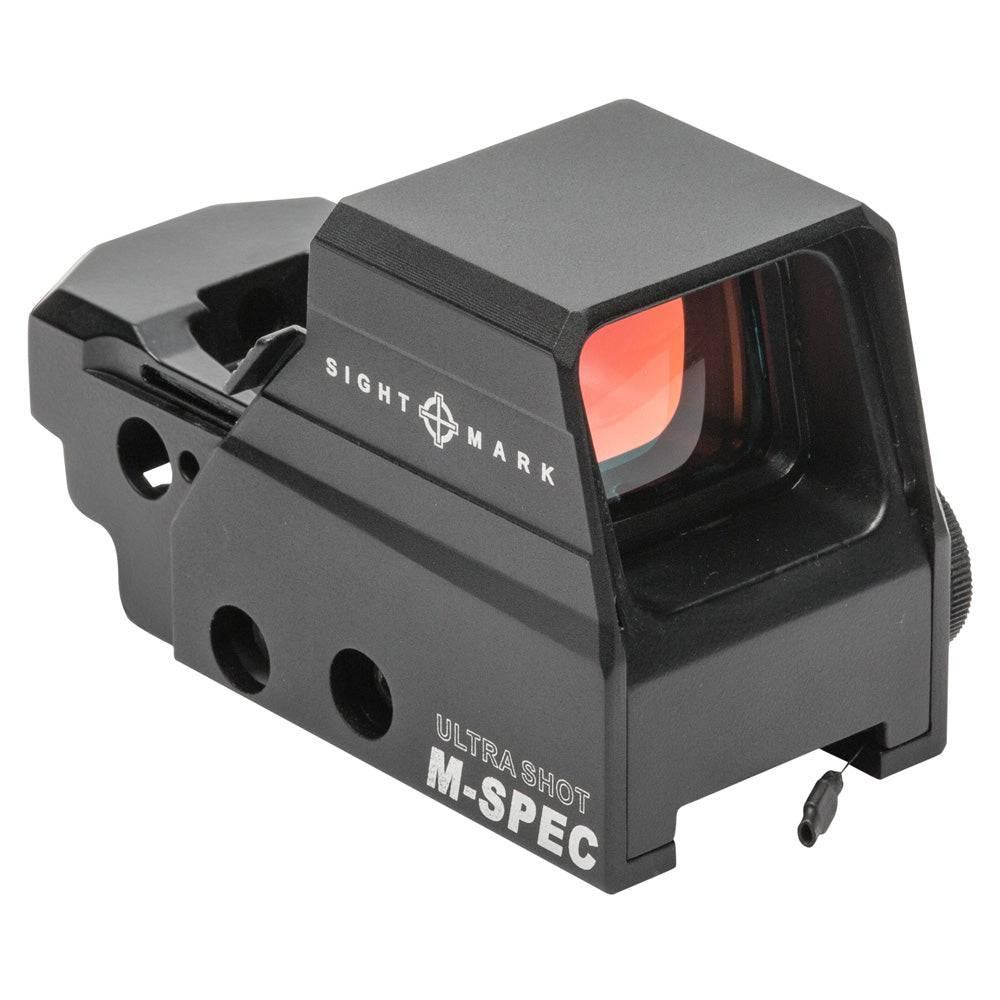

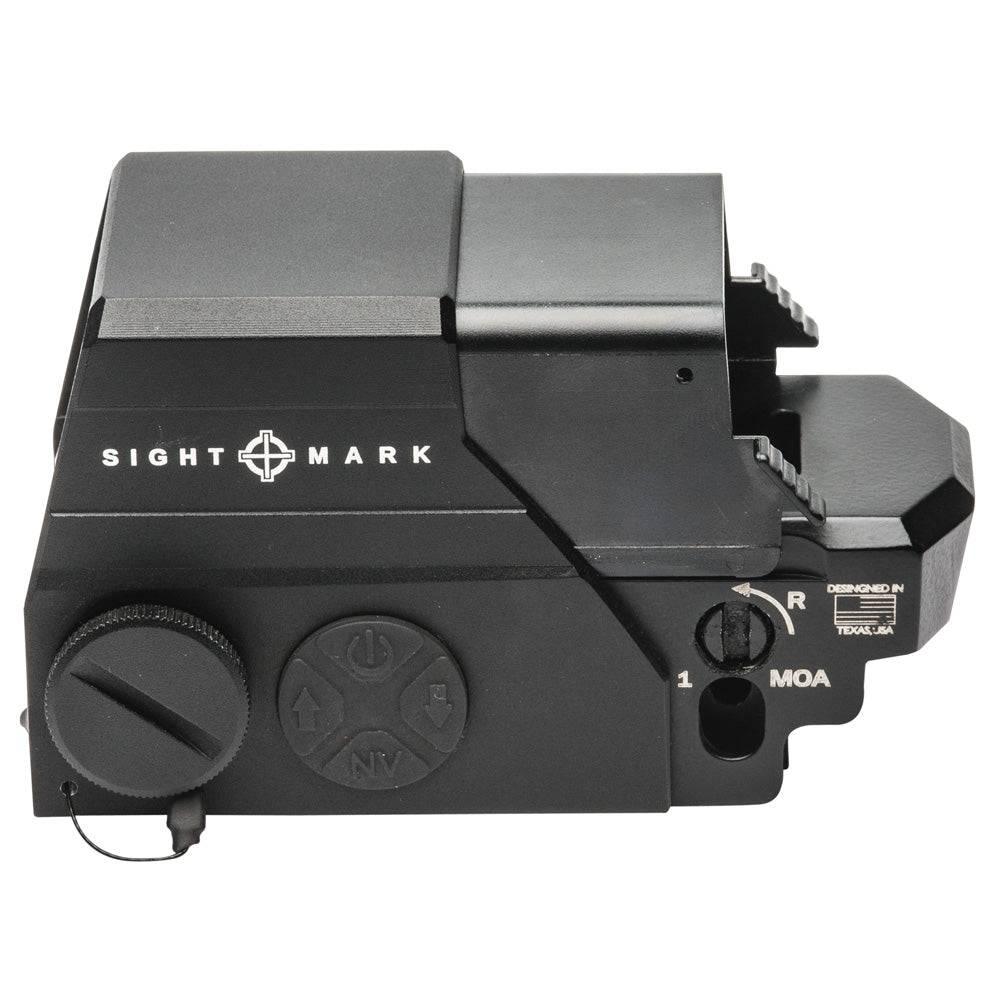

Sightmark Ultra Shot M-Spec FMS Reflex Sight

Sightmark Ultra Shot M-Spec FMS Reflex Sight


Regular price $ 199.97
Regular price Sale price $ 199.97
Sale Sold out
Shipping calculated at checkout.
Sightmark Ultra Shot M-Spec FMS Reflex Sight Rifle Scope with QD Mount (SM26035)




Designed for intensive shooting, the Sightmark Ultra Shot M-Spec FMS Reflex Sight will provide reliable accuracy, lightning-fast target acquisition and mil-spec quality performance in any environment. Its wide-angle lens system with anti-reflective red coating and scratch-resistant shield, plus illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision modes, parallax adjustment beyond 10 yards and unlimited eye relief offer an expansive, dependable view in varying lighting and simple sighting. Strong and tough, the Ultra Shot M-Spec is engineered with a 6061-T6 aluminum hood, dustproof, IP68 waterproof and able to withstand .50 BMG recoil.

The Sightmark Ultra Shot M-Spec FMS Reflex Sight offers superior accuracy with up to 120 MOA of travel across 1 MOA windage and elevation adjustments. Enjoy 200 – 2,000 hours of battery life with a single CR123A battery, and a locking picatinny mount ensures a secure fit. Includes digital switch controls and auto sensing activation for added convenience. Compatible with the XT-3 Tactical Magnifier for extended range.


  • Patented integrated sunshade
  • Advanced coated, scratch resistant lens system

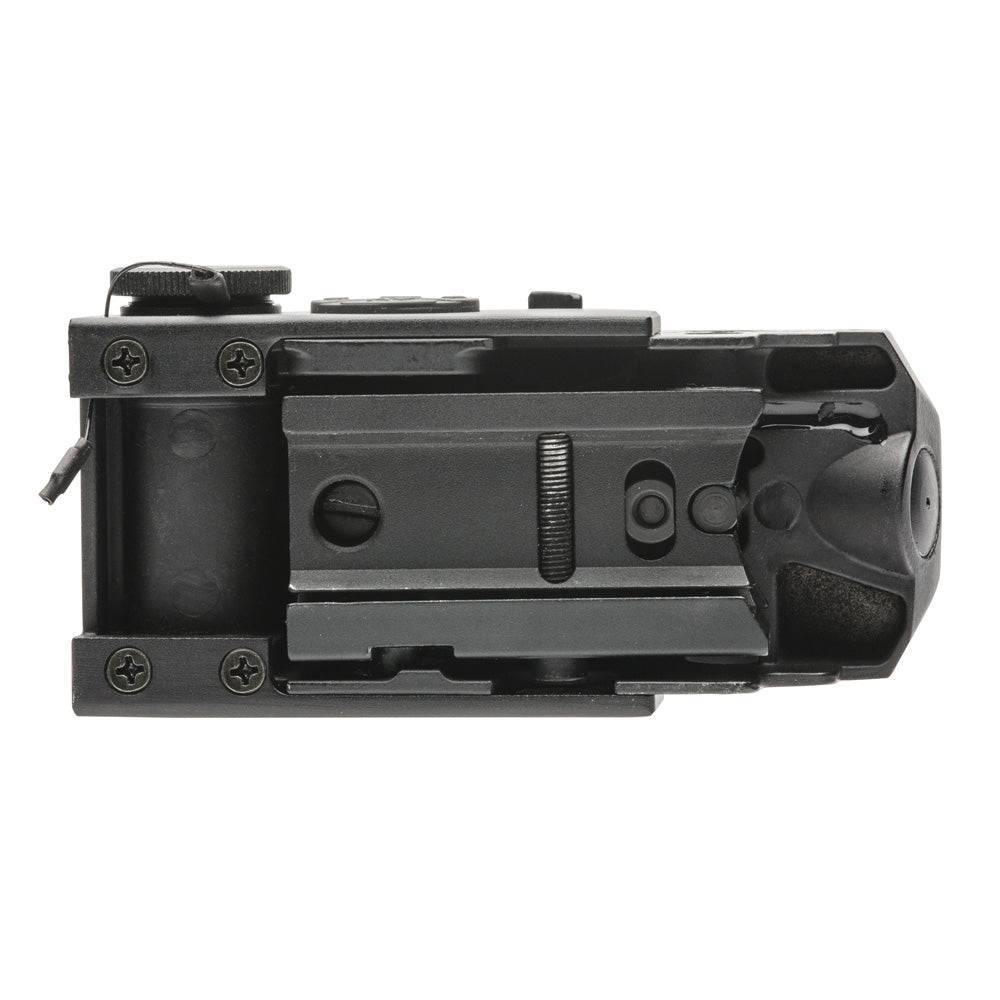

  • Locking quick-detach picatinny mount
  • 12-hr. auto shut-off
  • Motion sensing on/off activation
  • Low battery indicator

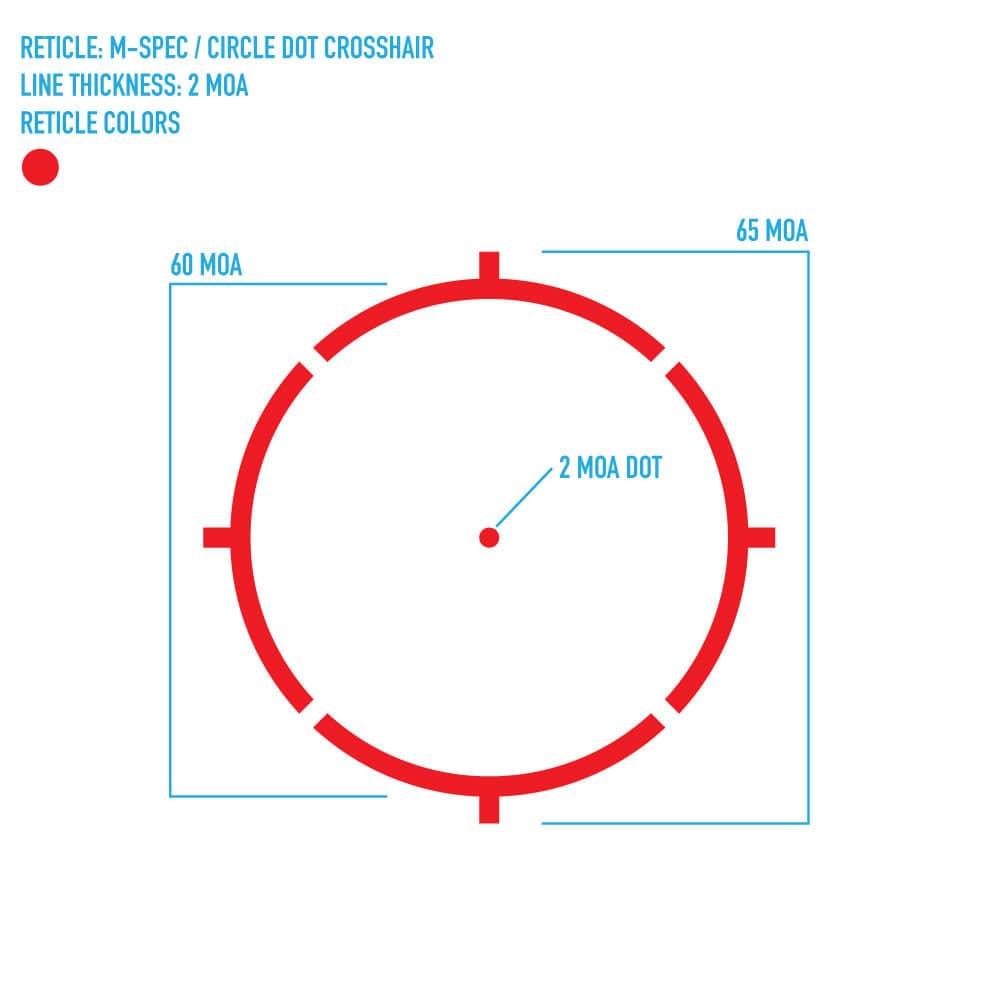

Reticle, Type 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)
Reticle, Color Red
Reticle Brightness Setting Off, 1-10, NV
Objective overall dimension (mm) 33x24 mm
Eye relief (in/mm) Unlimited
Elevation Range of Adjustment 120 MOA
Windage & Elevation. adjustment range, mm 120 MOA
Adjustment Value 1 MOA
Parallax Setting 10 / 9.1 yd/m
Finish/Color Matte black
Body Material Magnesium alloy
Maximum Recoil  .50 BMG Max caliber
IP Rating (waterproof) IP68 - waterproof to 40ft/12m
Nitrogen Filled No
Fog Proof No
Shock-proofness Yes, 8ft / 2.4m
Lens Coating Red
Battery Type CR123A
Mount Type Picatinny
Battery Life 200-2,000 Hours
Battery Voltage, V 3 V
Operating temperature, F/C -22 to 160 / -30 to 71 F/C
Length (in/mm) 4.01 / 102 in/mm
Width (in/mm) 1.85 / 47 in/mm
Height (in/mm) 2.32 / 59 in/mm
Weight, oz 9.6 oz.



  • Manual
  • CR123A battery
  • Adjustment tools
  • Neoprene cover
